Description
Technical Data:
Casting Material: AISI304 - DIN 1.4308
AISI316 - DIN 1.4401
Production: S3213 - Pad - Cast
Surface Treatment: “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load

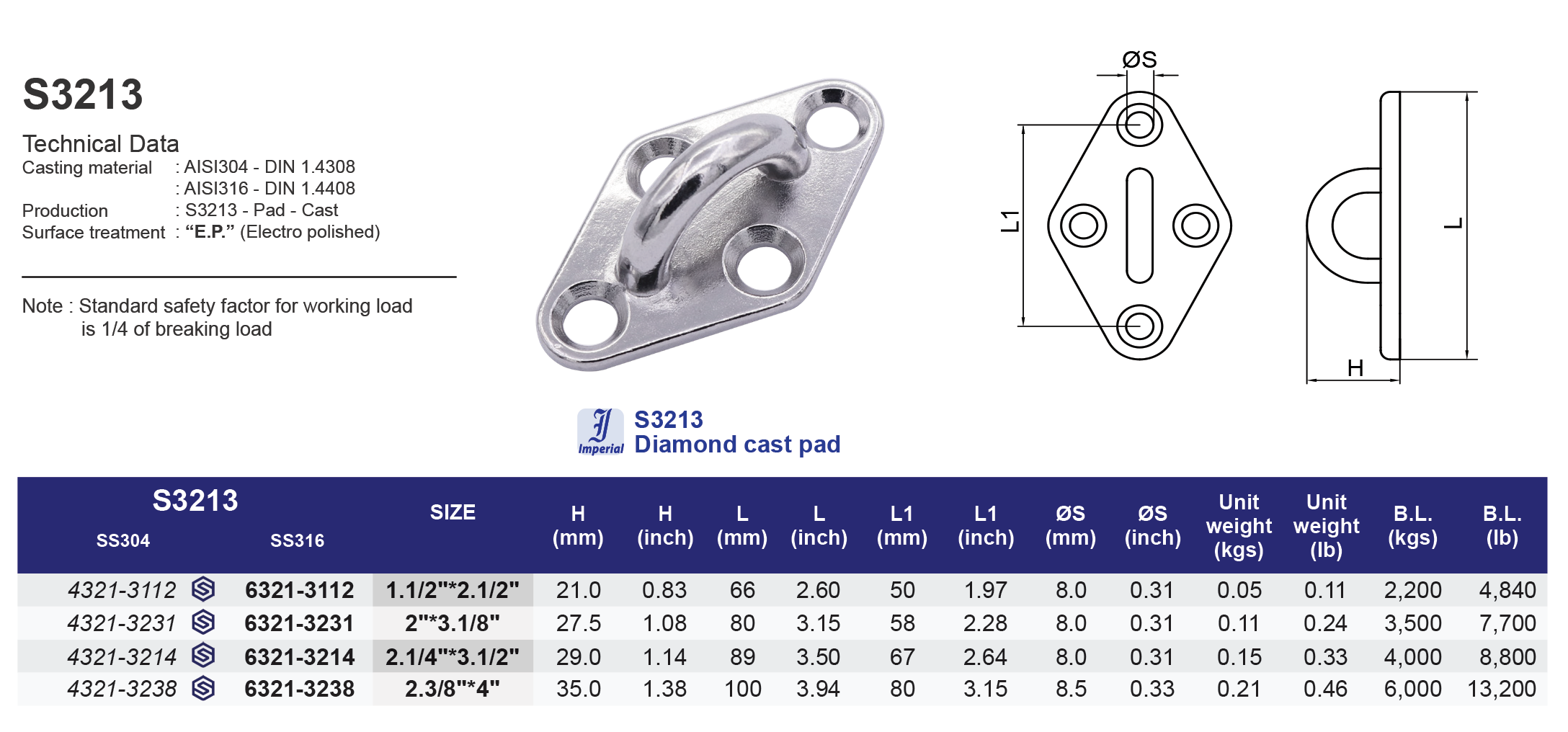

Model
S3213

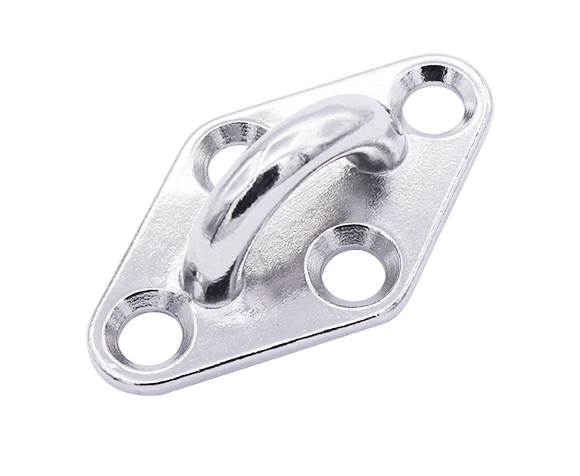

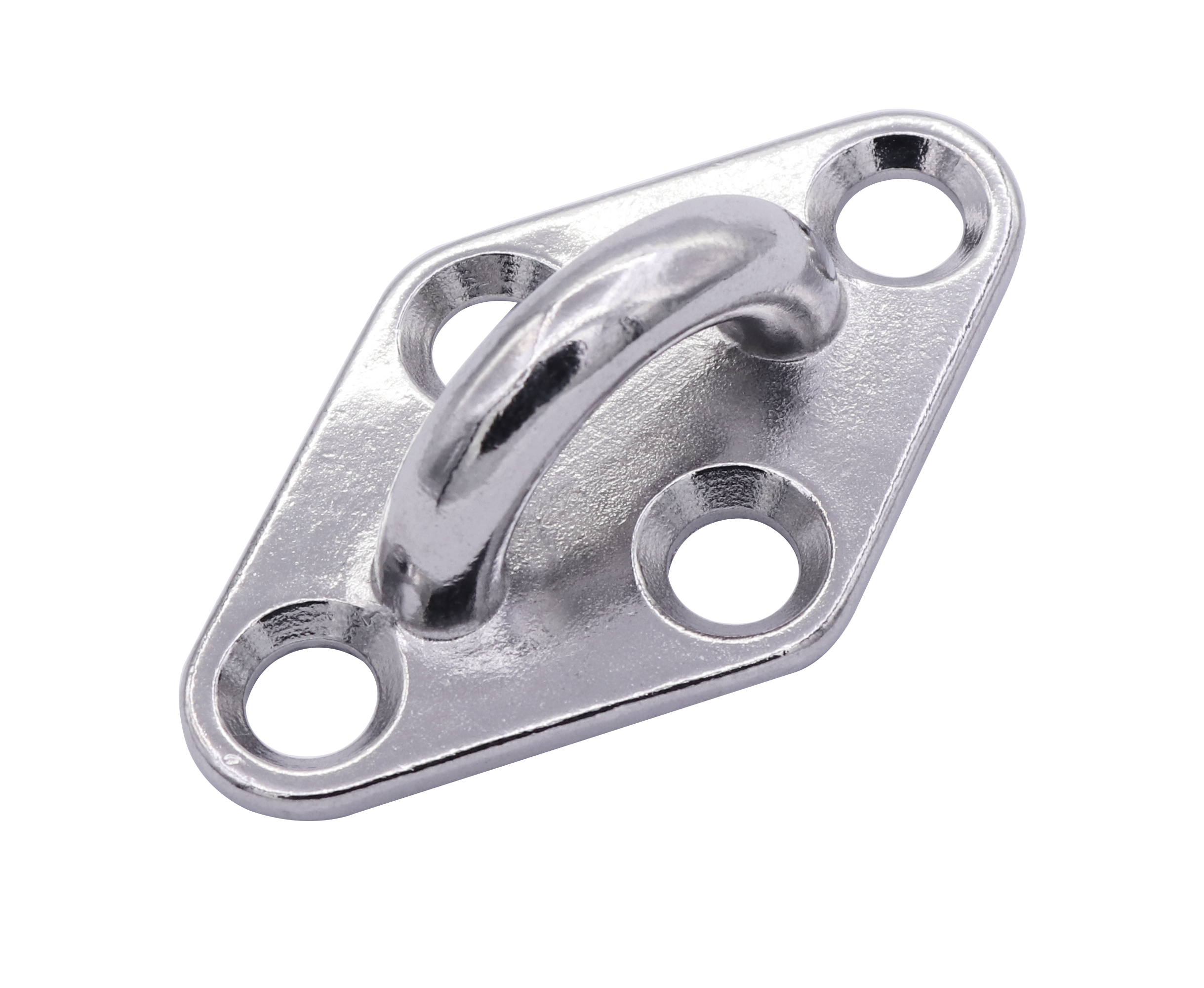

Diamond Cast Pad
316 ss
| SS316 | Size | H (mm) | L (mm) | L2 (mm) | ØS (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 63213112 | 2-1/2" | 21 | 66 | 20 | 8.0 | 0.05 | 2,200 |
| 63213231 | 3-1/8" | 27.5 | 80 | 16 | 8.0 | 0.11 | 3,500 |
| 63213214 | 3-1/2" | 29 | 89 | 22 | 8.5 | 0.15 | 4,000 |
| 63213238 | 4" | 35 | 100 | 25 | 8.5 | 0.21 | 6,000 |
| SS316 | Size | H (inch) | L (inch) | L2 (inch) | ØS (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 63213112 | 2-1/2" | 0.83 | 2.60 | 0.79 | 0.31 | 0.11 | 4,840 |
| 63213231 | 3-1/8" | 1.08 | 3.15 | 0.63 | 0.31 | 0.24 | 7,700 |
| 63213214 | 3-1/2" | 1.14 | 3.50 | 0.87 | 0.33 | 0.33 | 8,800 |
| 63213238 | 4" | 1.38 | 3.94 | 0.98 | 0.33 | 0.46 | 13,200 |
