Technical Data
Casting Material : AISI316 - DIN 1.4408
Production : Hook - Cast
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

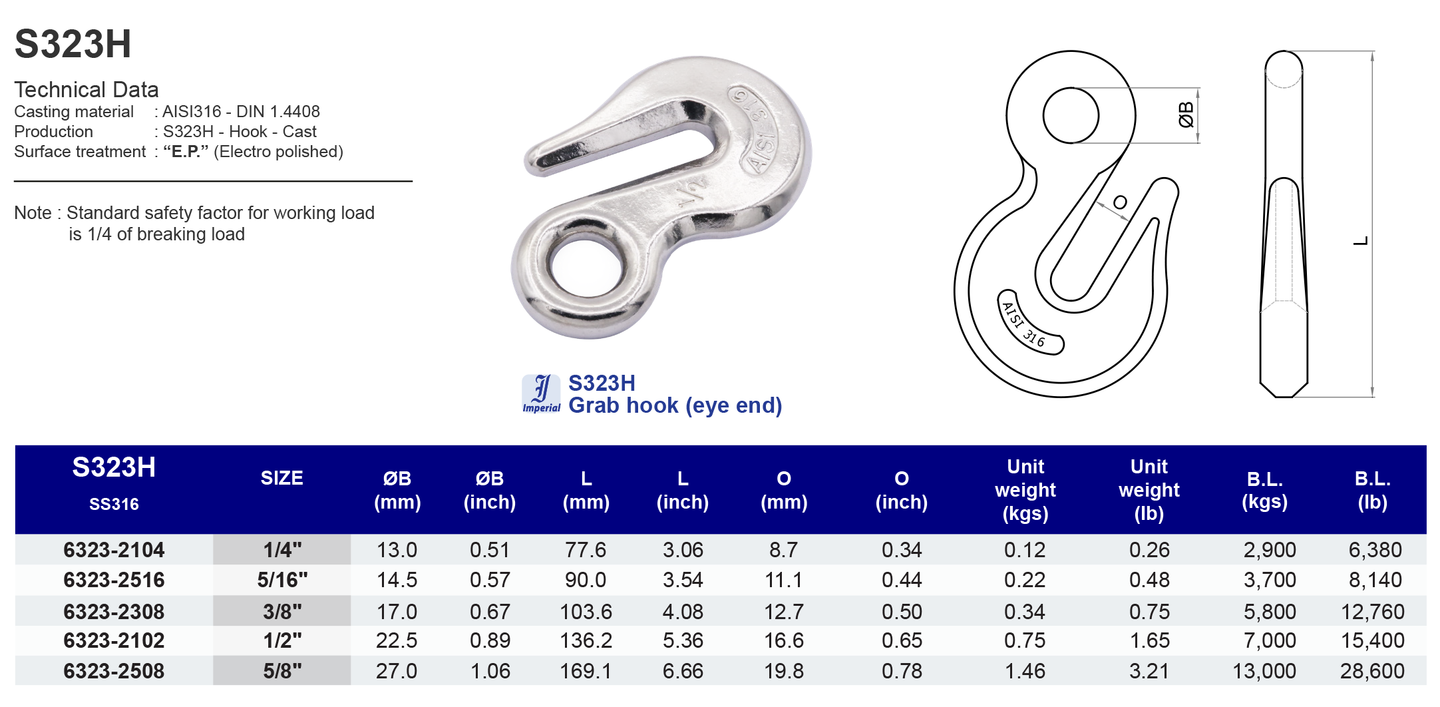

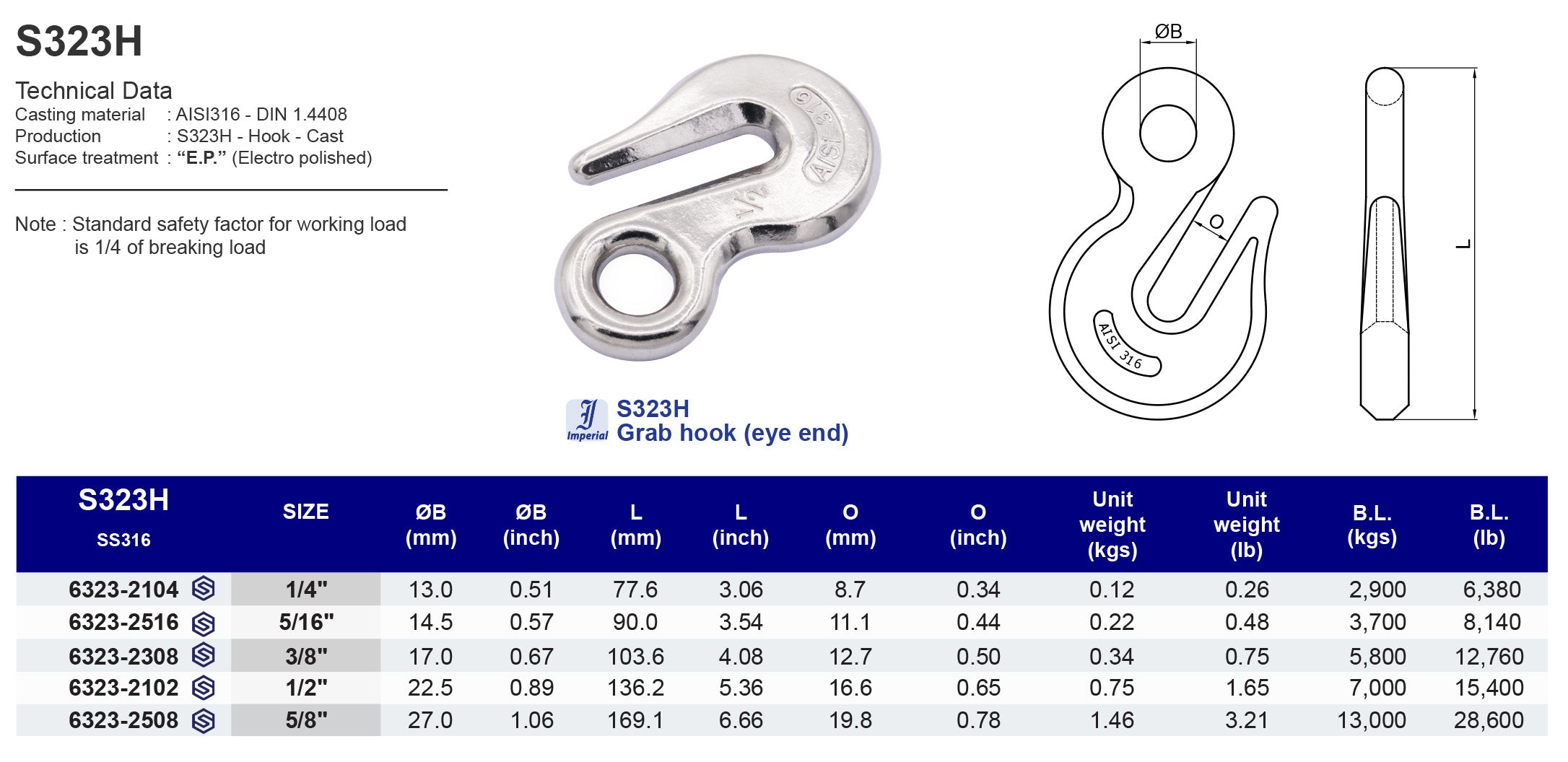

Model
S323H
Grab hook (eye end)
316 ss
| SS316 | Size | ØB (mm) | L (mm) | O (mm) | Unit weight (kgs) | Unit weight (lb) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 63232104 | 1/4" | 13.0 | 77.6 | 8.7 | 0.12 | 0.26 | 2,900 |
| 63232516 | 5/16" | 14.5 | 90.0 | 11.1 | 0.22 | 0.48 | 3,700 |
| 63232308 | 3/8" | 17.0 | 103.6 | 12.7 | 0.34 | 0.75 | 5,800 |
| 63232102 | 1/2" | 22.5 | 136.2 | 16.6 | 0.75 | 1.65 | 7,000 |
| 63232508 | 5/8" | 27.0 | 169.1 | 19.8 | 1.46 | 3.21 | 13,000 |
| SS316 | Size | ØB (inch) | L (inch) | O (inch) | Unit weight (kgs) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 63232104 | 1/4" | 0.51 | 3.06 | 0.34 | 0.12 | 0.26 | 6,380 |
| 63232516 | 5/16" | 0.57 | 3.54 | 0.44 | 0.22 | 0.48 | 8,140 |
| 63232308 | 3/8" | 0.67 | 4.08 | 0.50 | 0.34 | 0.75 | 12,760 |
| 63232102 | 1/2" | 0.89 | 5.36 | 0.65 | 0.75 | 1.65 | 15,400 |
| 63232508 | 5/8" | 1.06 | 6.66 | 0.78 | 1.46 | 3.21 | 28,600 |
