Technical Data
Casting Material : AISI316 - DIN 1.4408
Production : Hook - Cast
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

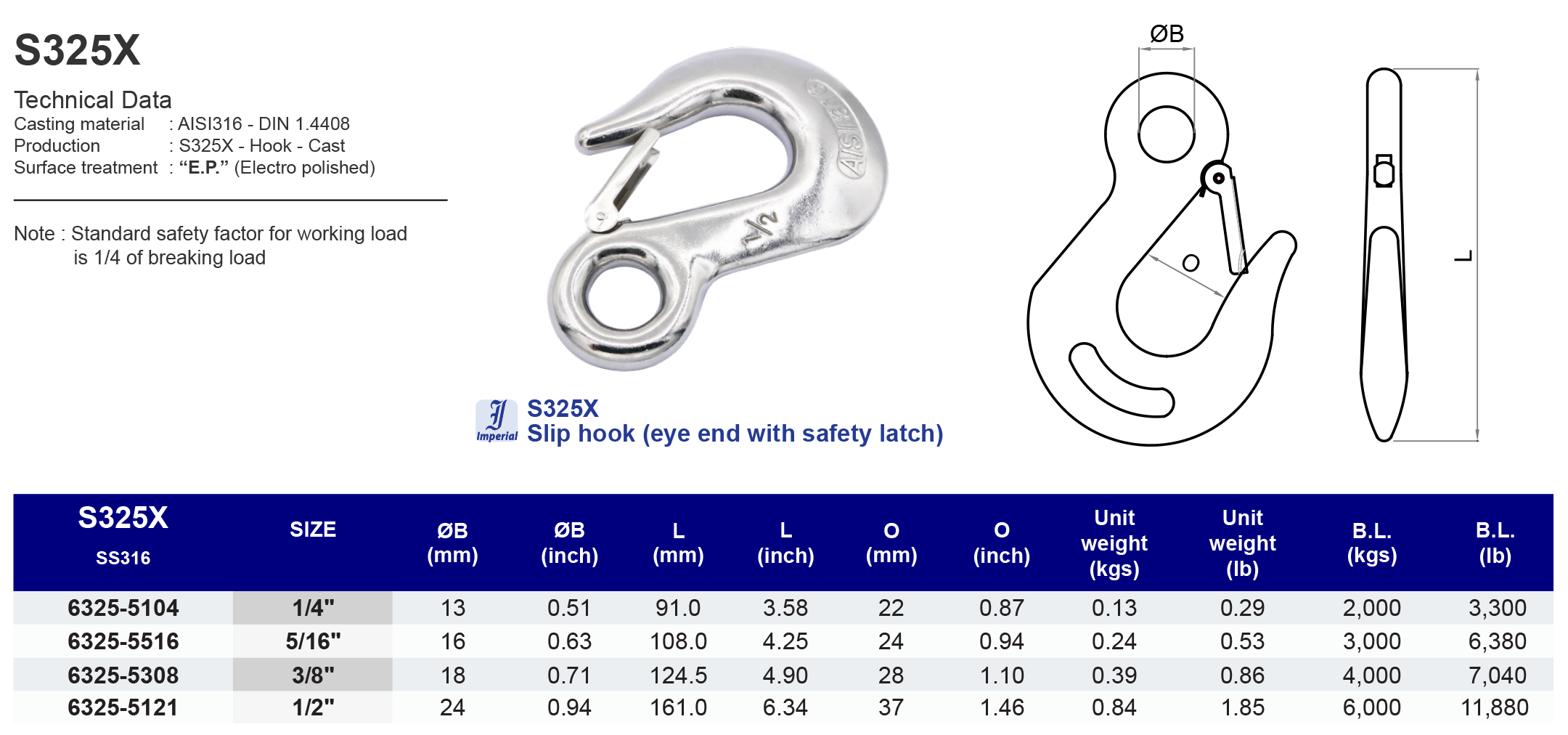

Model
S325X

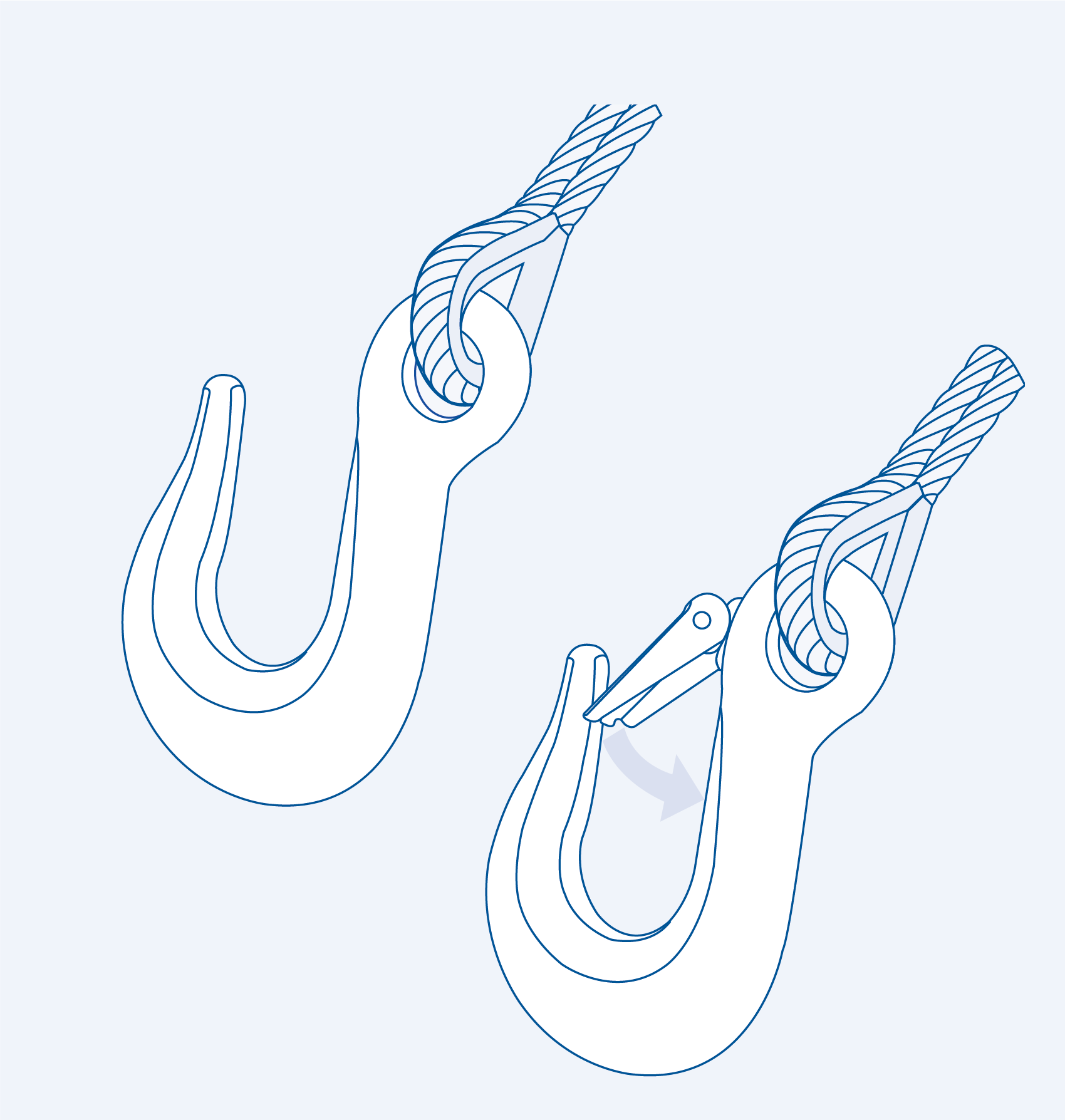

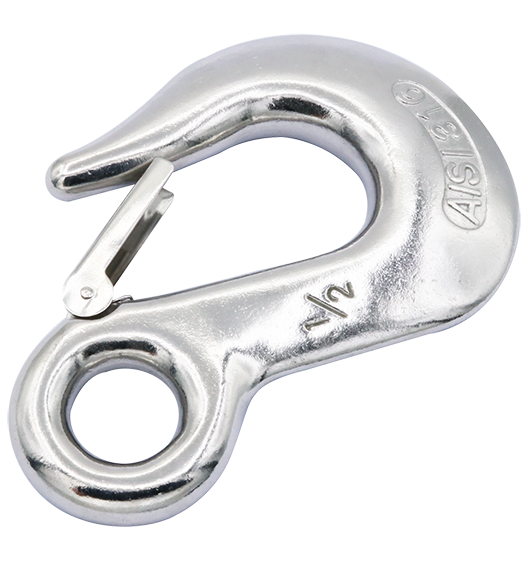

Slip hook (eye end with safety latch)
316 ss
| SS316 | Size | ØB (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 63255104 | 1/4" | 13 | 91 | 22 | 0.13 | 2,000 |
| 63255516 | 5/16" | 16 | 108 | 24 | 0.24 | 3,000 |
| 63255308 | 3/8" | 18 | 124.5 | 28 | 0.39 | 4,000 |
| 63255121 | 1/2" | 24 | 161 | 37 | 0.84 | 6,000 |
| SS316 | Size | ØB (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 63255104 | 1/4" | 0.51 | 3.58 | 0.87 | 0.29 | 3,300 |
| 63255516 | 5/16" | 0.63 | 4.25 | 0.94 | 0.53 | 6,380 |
| 63255308 | 3/8" | 0.71 | 4.90 | 1.10 | 0.86 | 7,040 |
| 63255121 | 1/2" | 0.94 | 6.34 | 1.46 | 1.85 | 11,880 |
