Description

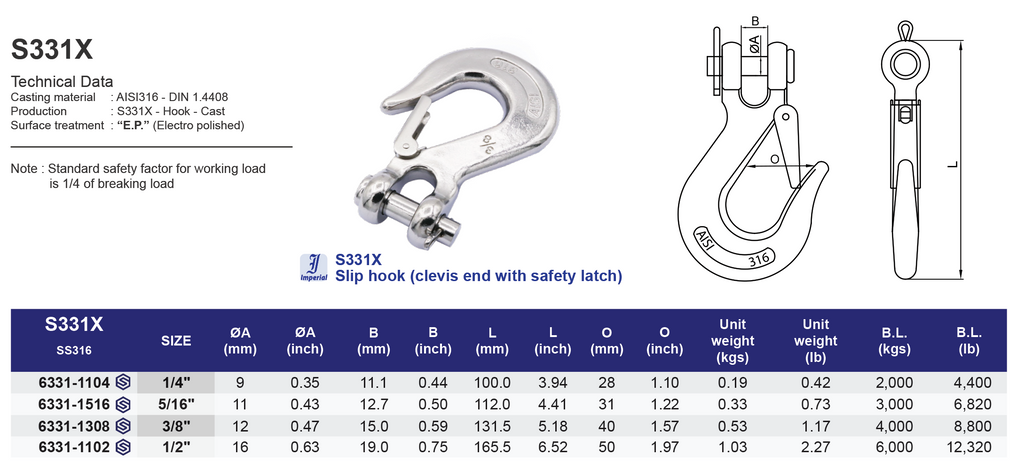

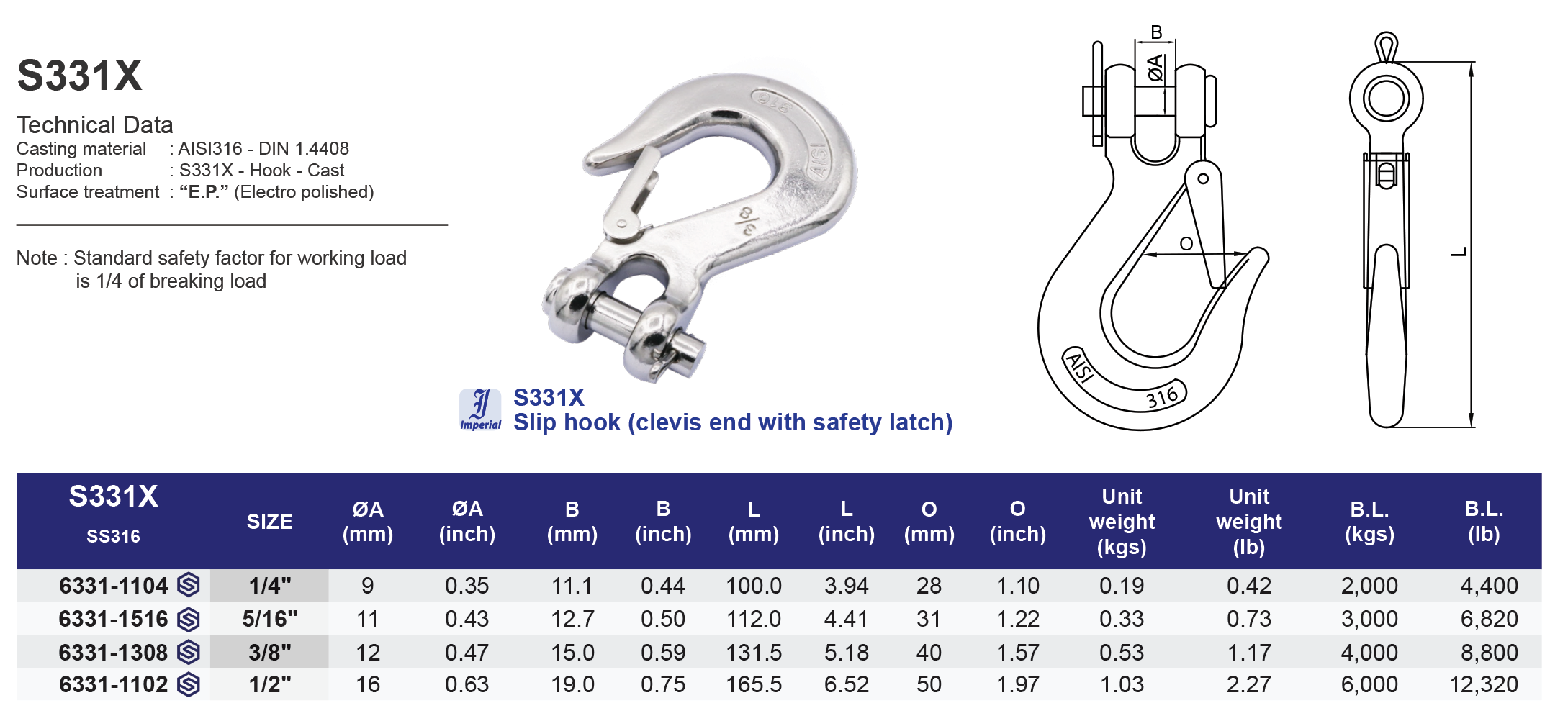

Technical Data
Casting Material : AISI316 - DIN 1.4408
Production : Hook - Cast
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD
Model

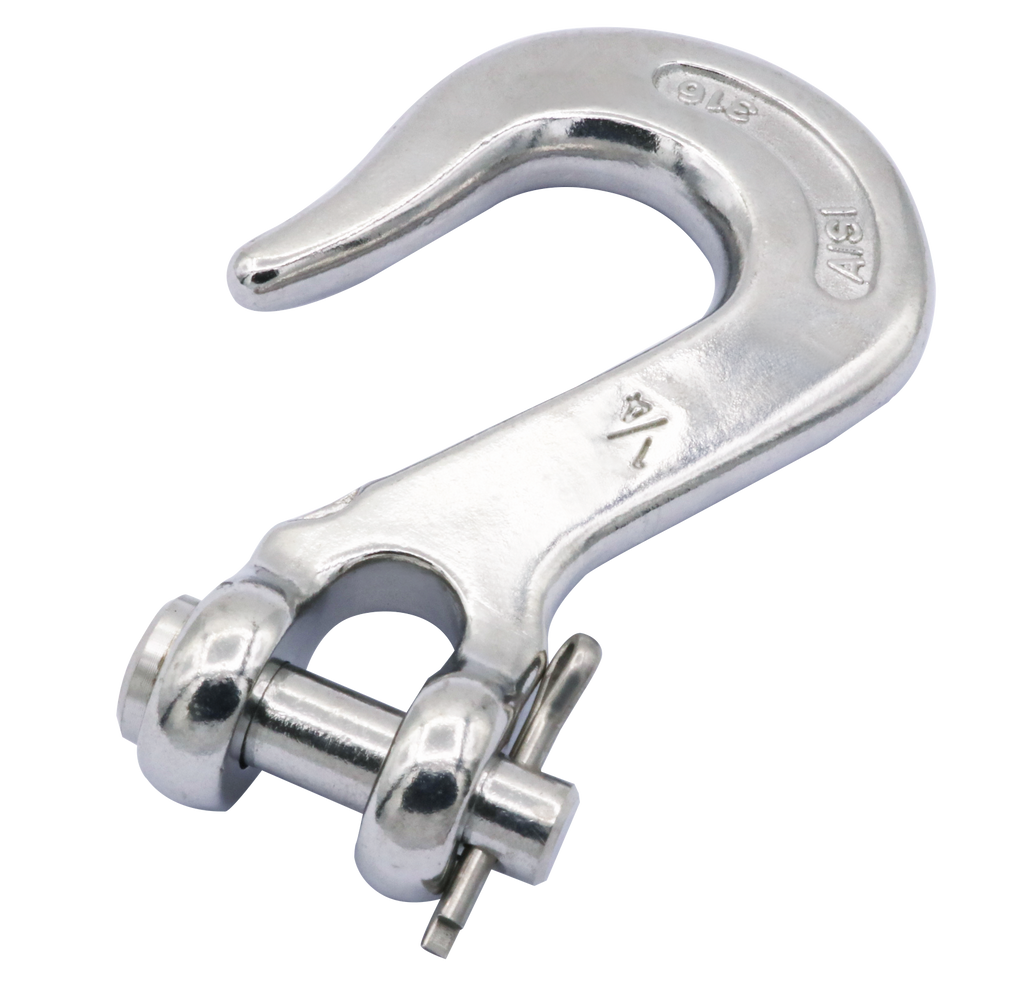

S331X

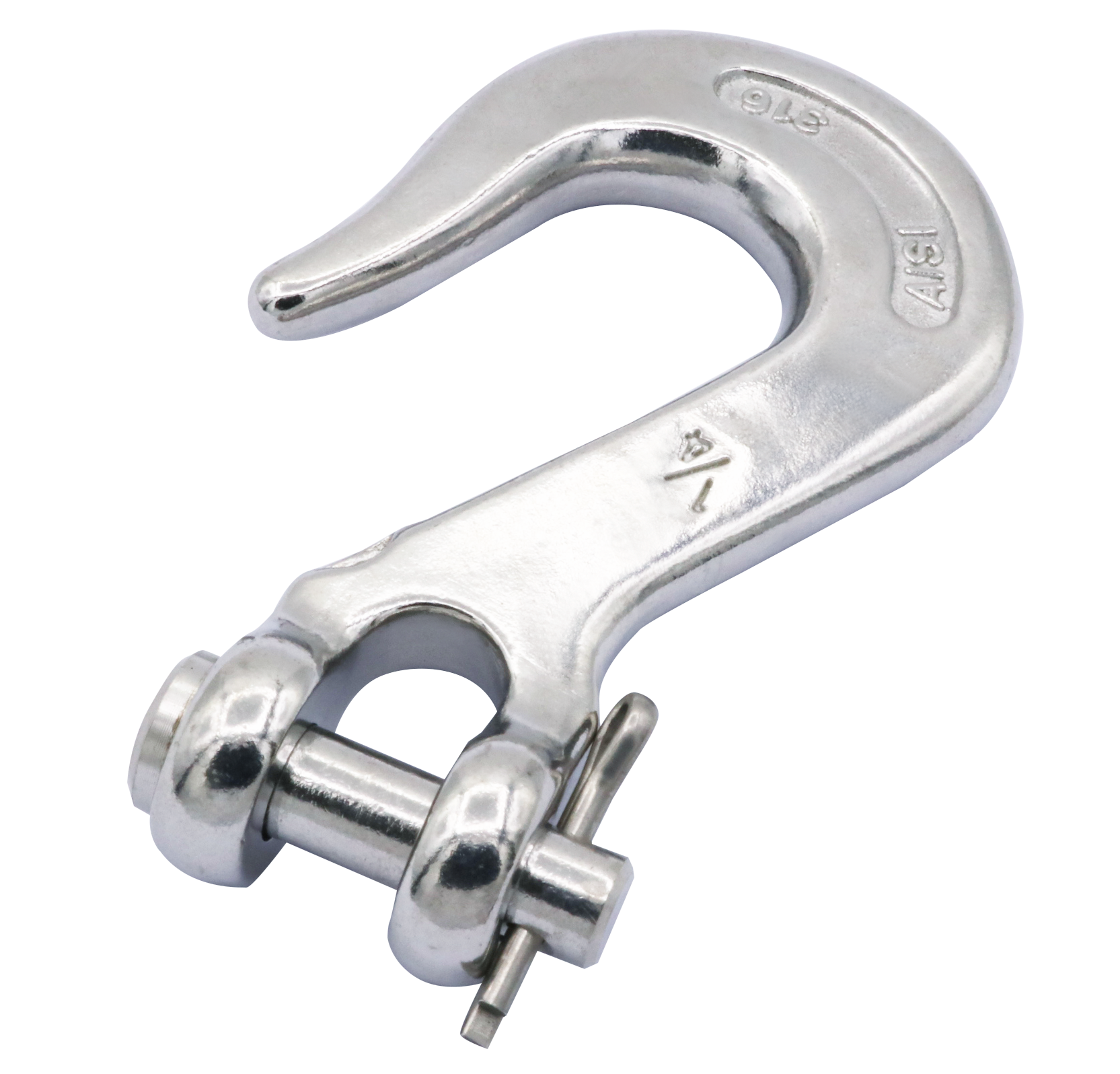

Slip hook (clevis end with safety latch)
316 ss
| SS316 | Size | ØA (mm) | B (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 63311104 | 1/4" | 9 | 11.1 | 100.0 | 22.5 | 0.19 | 2,000 |
| 63311516 | 5/16" | 11 | 12.7 | 112.0 | 24.5 | 0.33 | 3,000 |
| 63311308 | 3/8" | 12 | 15.0 | 131.5 | 30.0 | 0.52 | 4,000 |
| 63311102 | 1/2" | 16 | 19.0 | 165.5 | 36.0 | 1.01 | 6,000 |
| SS316 | Size | ØA(inch) | B (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 63311104 | 1/4" | 0.35 | 0.44 | 3.94 | 0.89 | 0.42 | 4,400 |
| 63311516 | 5/16" | 0.43 | 0.50 | 4.41 | 0.96 | 0.73 | 6,820 |
| 63311308 | 3/8" | 0.47 | 0.59 | 5.18 | 1.18 | 1.14 | 8,800 |
| 63311102 | 1/2" | 0.63 | 0.75 | 6.52 | 1.42 | 2.22 | 12,320 |
