Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Forging Material: AISI316 - DIN 1.4401
Production: S3400 - Toggle - Cast
Pin - See Chart
Surface Treatment: “E.P.” (Electro polished)

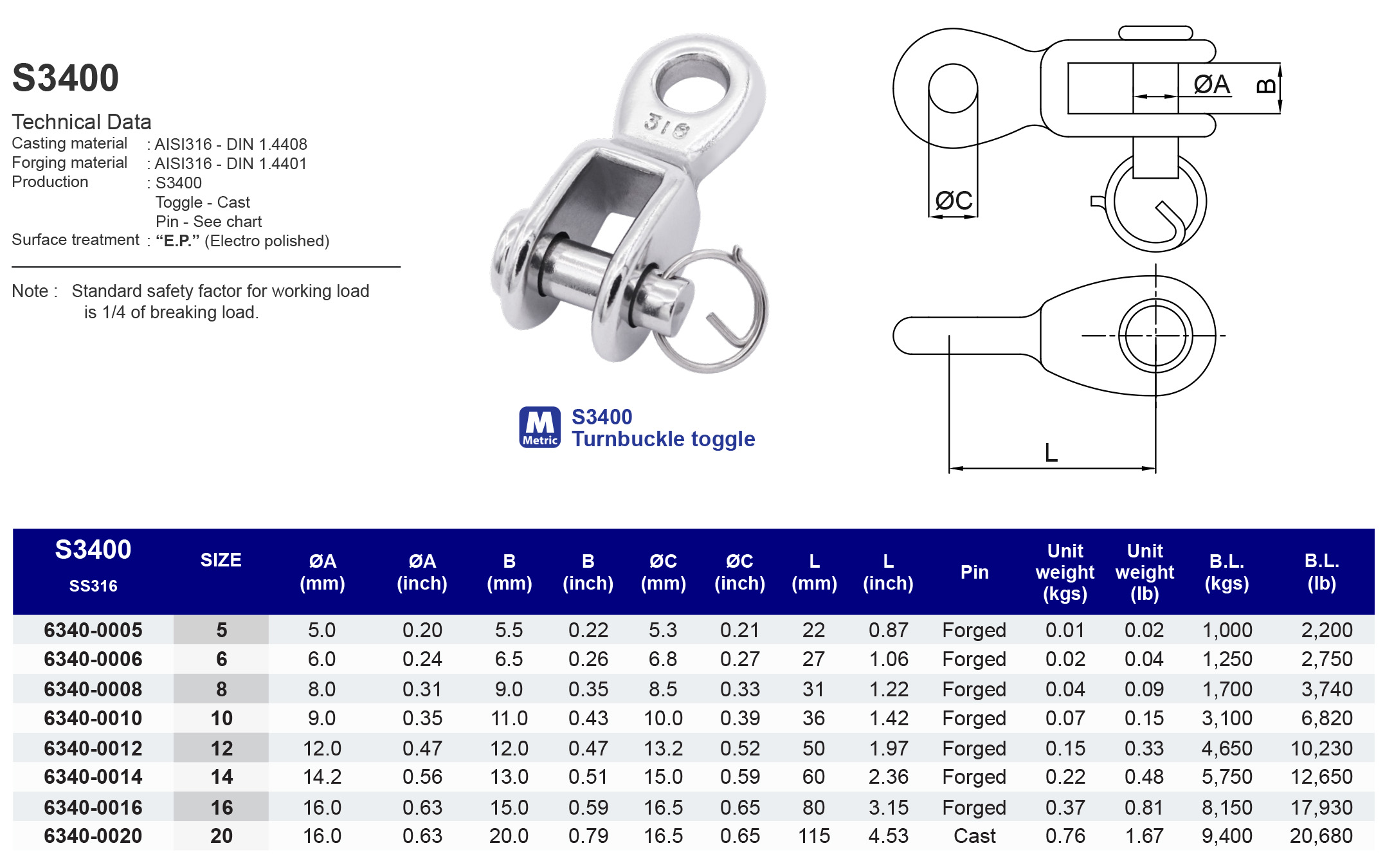

Model
S3400

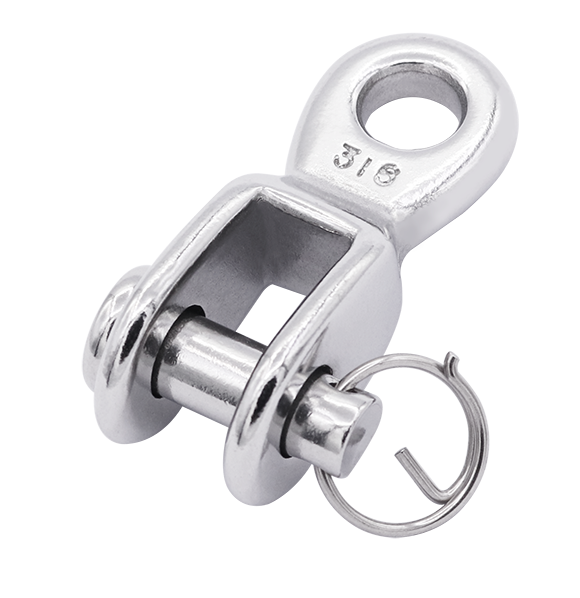

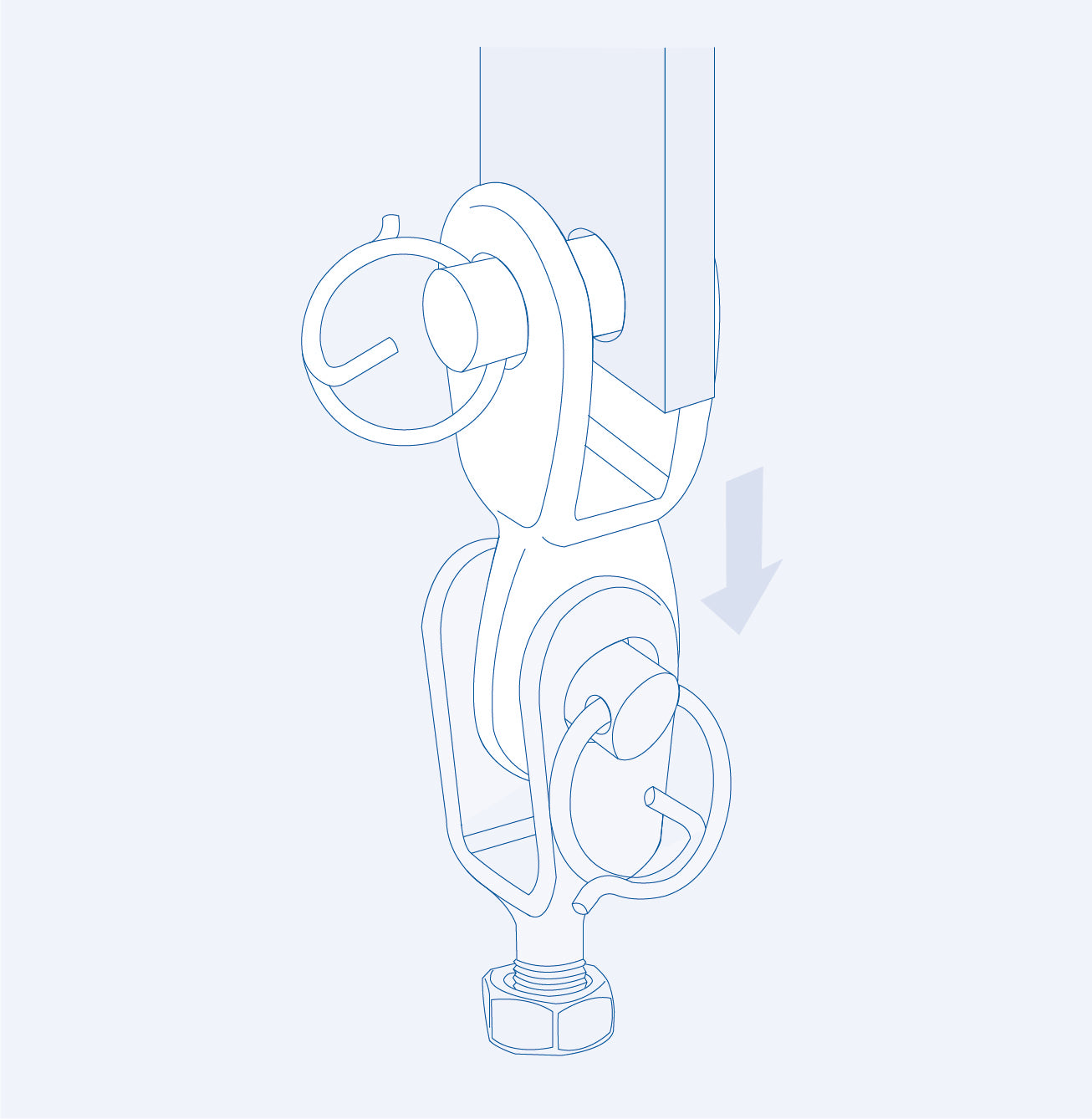

Turnbuckle toggle
316 ss
| SS316 | Size | ØA (mm) | B (mm) | ØC (mm) | L (mm) | Pin | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|---|
| 63400005 | 5 | 5 | 5.5 | 5.3 | 22 | Forged | 0.01 | 1,000 |
| 63400006 | 6 | 6 | 6.5 | 6.8 | 27 | Forged | 0.02 | 1,250 |
| 63400008 | 8 | 8 | 9 | 8.5 | 31 | Forged | 0.04 | 1,700 |
| 63400010 | 10 | 9 | 11 | 10 | 36 | Forged | 0.07 | 3,100 |
| 63400012 | 12 | 12 | 12 | 13.2 | 50 | Forged | 0.15 | 4,650 |
| 63400014 | 14 | 14.2 | 13 | 15 | 60 | Forged | 0.22 | 5,750 |
| 63400016 | 16 | 16 | 15 | 16.5 | 80 | Forged | 0.37 | 8,150 |
| 63400020 | 20 | 16 | 20 | 16.5 | 115 | Cast | 0.76 | 9,400 |
| SS316 | Size | ØA (inch) | B (inch) | ØC (inch) | L (inch) | Pin | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|
| 63400005 | 3/16" | 0.20 | 0.22 | 0.21 | 0.87 | Forged | 0.02 | 2,200 |
| 63400006 | 1/4" | 0.24 | 0.26 | 0.27 | 1.06 | Forged | 0.04 | 2,750 |
| 63400008 | 5/16" | 0.31 | 0.35 | 0.33 | 1.22 | Forged | 0.09 | 3,740 |
| 63400010 | 3/8" | 0.35 | 0.43 | 0.39 | 1.42 | Forged | 0.15 | 6,820 |
| 63400012 | 1/2" | 0.47 | 0.47 | 0.52 | 1.97 | Forged | 0.33 | 10,230 |
| 63400014 | 9/16" | 0.56 | 0.51 | 0.59 | 2.36 | Forged | 0.48 | 12,650 |
| 63400016 | 5/8" | 0.63 | 0.59 | 0.65 | 3.15 | Forged | 0.81 | 17,930 |
| 63400020 | 3/4" | 0.63 | 0.79 | 0.65 | 4.53 | Cast | 1.67 | 20,680 |
