Description
Technical Data
Casting Material : AISI304 - DIN 1.4308
Forging Material : AISI304 - DIN 1.4301
Production : Shackle - Cast , Pin - Forged
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

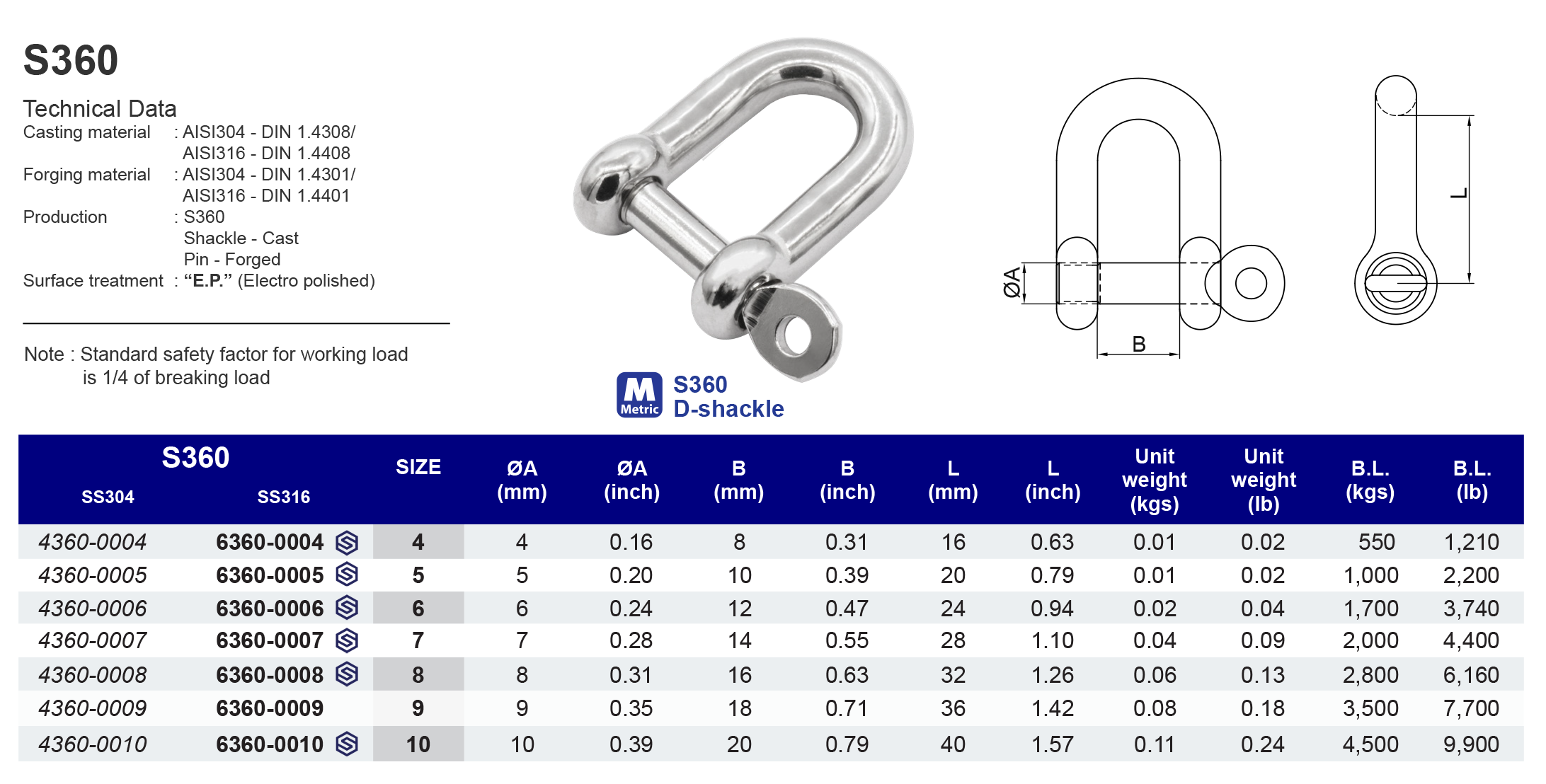

Model
S360

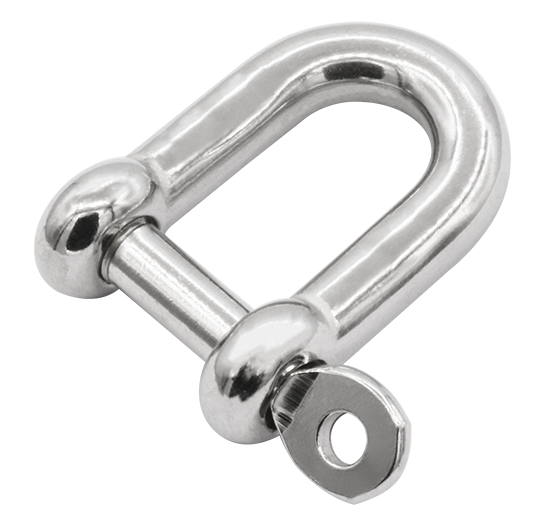

D- shackle
304 ss
| SS304 | Size | ØA (mm) | ØB (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 43600004 | 4 | 4 | 8 | 16 | 0.01 | 550 |
| 43600005 | 5 | 5 | 10 | 20 | 0.01 | 1,000 |
| 43600006 | 6 | 6 | 12 | 24 | 0.02 | 1,700 |
| 43600007 | 7 | 7 | 14 | 28 | 0.04 | 2,000 |
| 43600008 | 8 | 8 | 16 | 32 | 0.06 | 2,800 |
| 43600009 | 9 | 9 | 18 | 36 | 0.08 | 3,500 |
| 43600010 | 10 | 10 | 20 | 40 | 0.11 | 4,500 |
| SS304 | Size | ØA (inch) | ØB (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 43600004 | 5/32" | 0.16 | 0.31 | 0.63 | 0.02 | 1,210 |
| 43600005 | 3/16" | 0.20 | 0.39 | 0.79 | 0.02 | 2,200 |
| 43600006 | 1/4" | 0.24 | 0.47 | 0.94 | 0.04 | 3,740 |
| 43600007 | 9/32" | 0.28 | 0.55 | 1.10 | 0.09 | 4,400 |
| 43600008 | 5/16" | 0.31 | 0.63 | 1.26 | 0.13 | 6,160 |
| 43600009 | 11/32" | 0.35 | 0.71 | 1.42 | 0.18 | 7,700 |
| 43600010 | 3/8" | 0.39 | 0.79 | 1.57 | 0.24 | 9,900 |
