Description
Technical Data
Casting Material : AISI316 - DIN 1.4408
Forging Material : AISI316 - DIN 1.4401
Production : Shackle - Cast , Pin - Forged
Surface Treatment : “E.P.” (Electro polished)

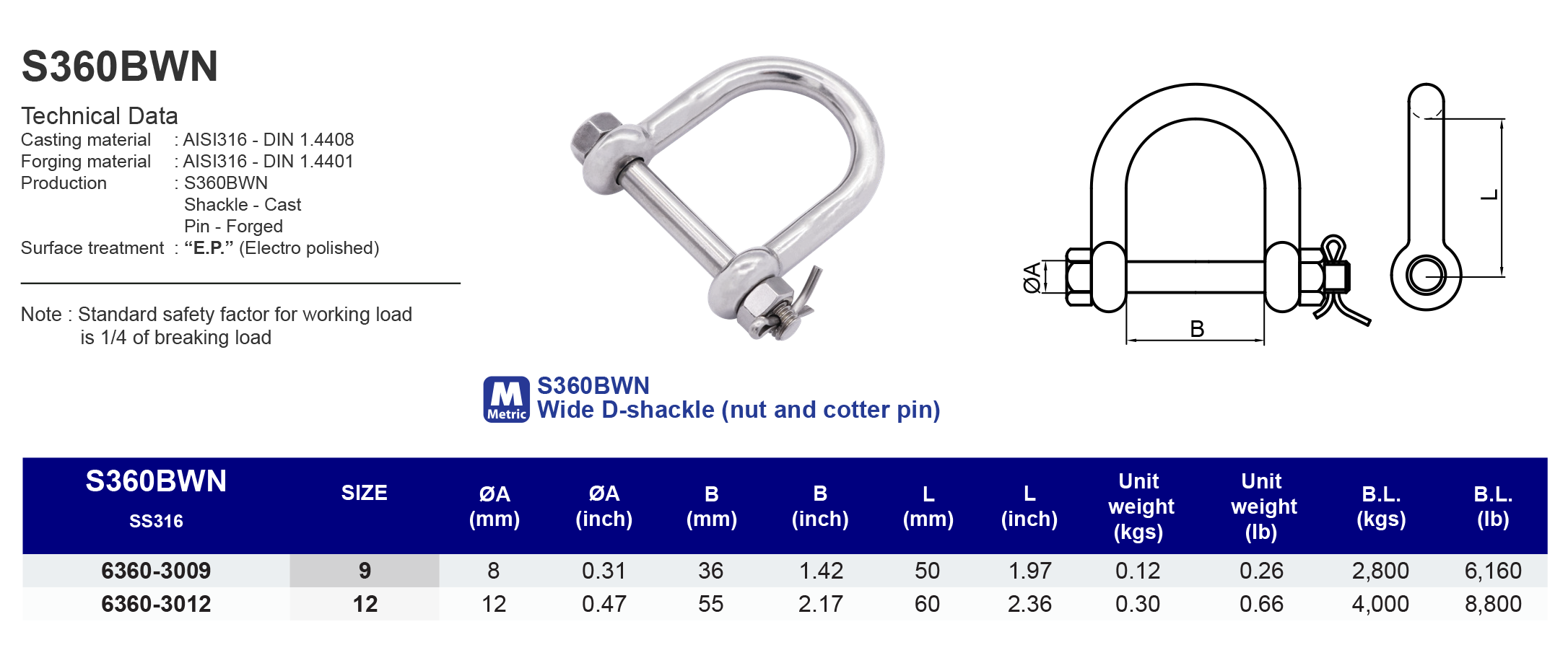

DATA SHEET DOWNLOAD
Model
S360BWN

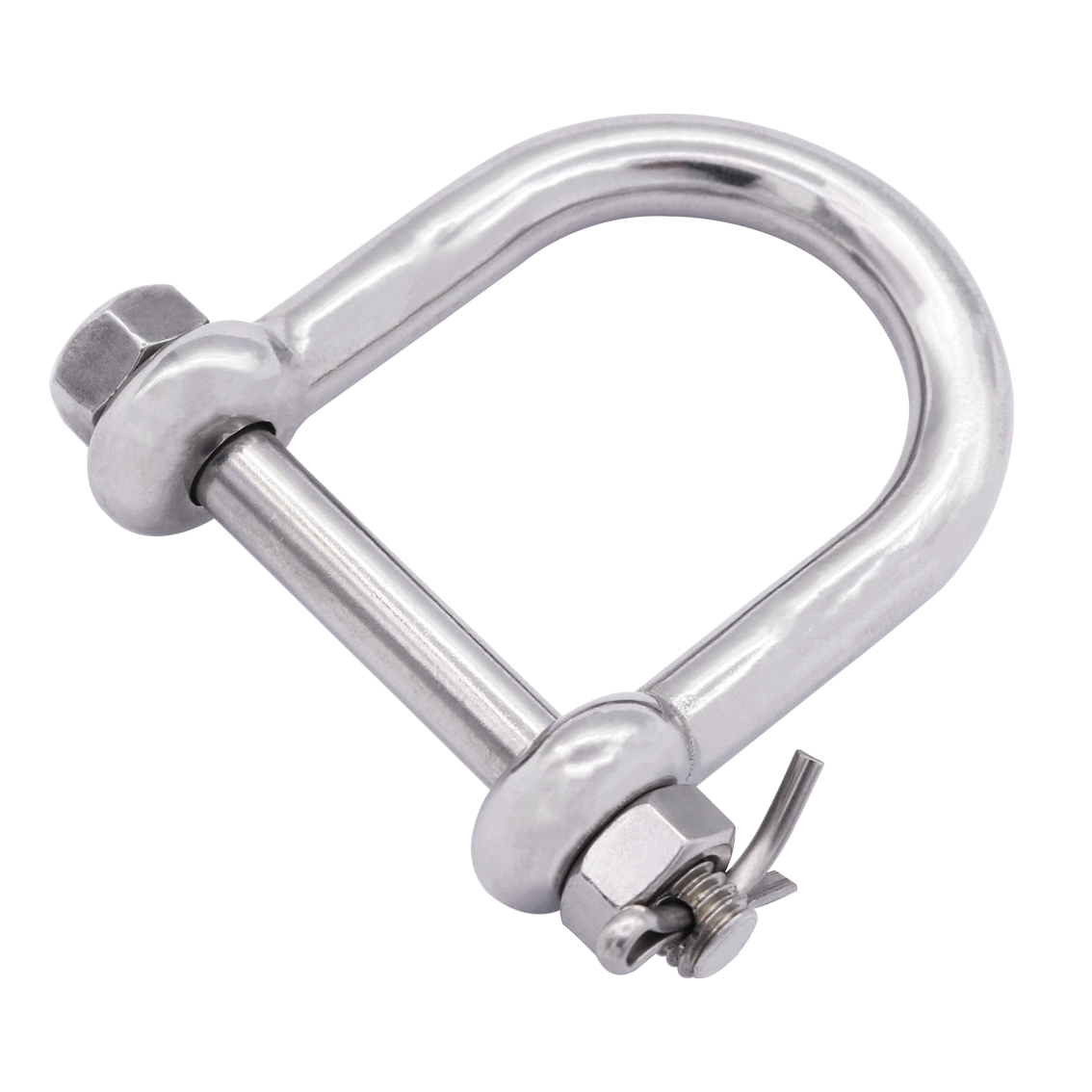

Wide D-shackle (nut and cotter pin)
316 ss
| SS316 | Size | ØA (mm) | ØB (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 63603009 | 9 | 8 | 36 | 50 | 0.12 | 2,800 |
| 63603012 | 12 | 12 | 55 | 60 | 0.30 | 4,000 |
| SS316 | Size | ØA (inch) | ØB (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 63603009 | 11/32" | 0.31 | 1.42 | 1.97 | 0.26 | 6,160 |
| 63603012 | 1/2" | 0.47 | 2.17 | 2.36 | 0.66 | 8,800 |
