Description
Technical Data
Casting Material : AISI304 - DIN 1.4308
Forging Material : AISI304 - DIN 1.4301
Production : Shackle - Cast , Pin - See chart
Surface Treatment : “E.P.” (Electro polished)
DATA SHEET DOWNLOAD

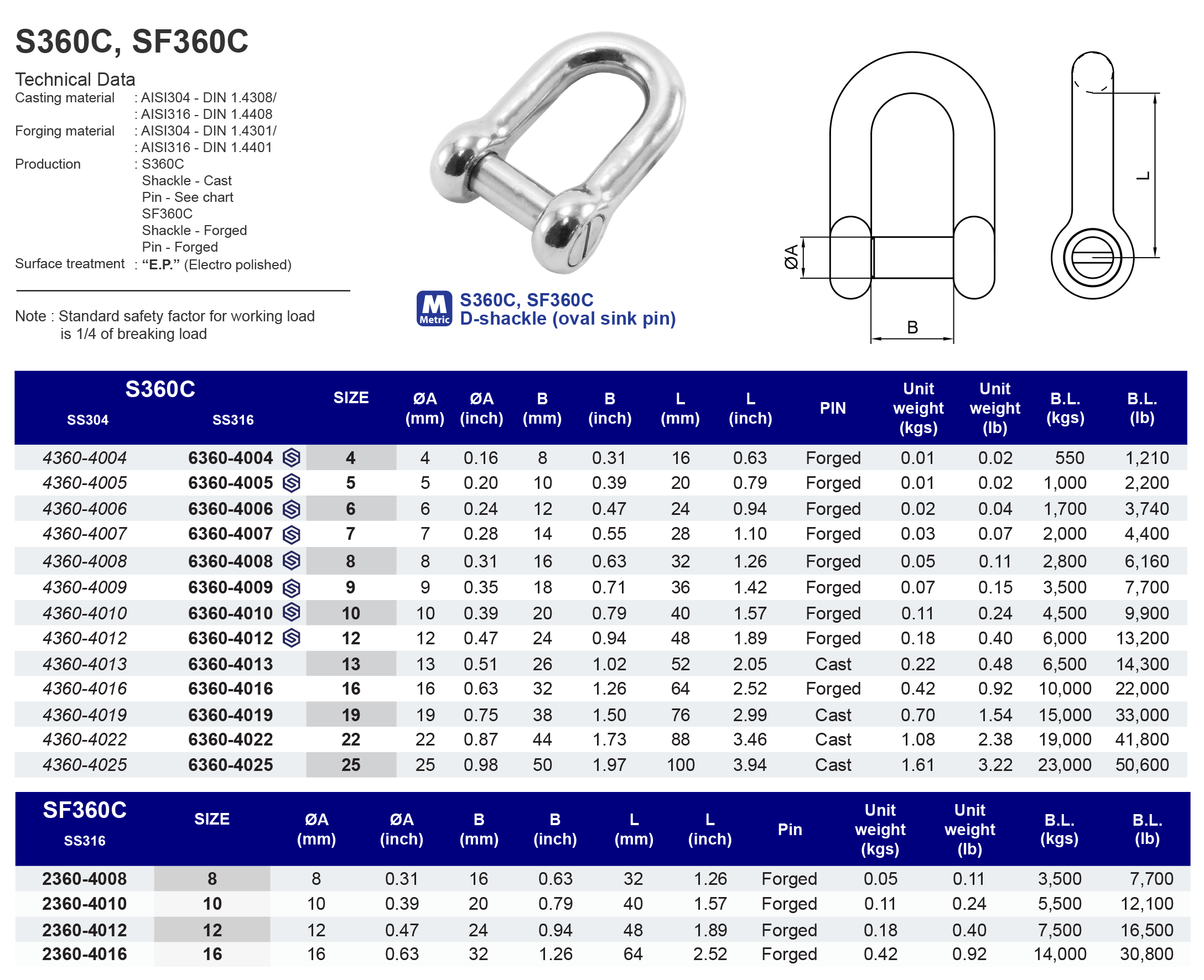

Model
S360C
D-shackle (oval sink pin)
304 ss
| SS304 | Size | ØA (mm) | ØB (mm) | L (mm) | Pin | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 43604004 | 4 | 4 | 8 | 16 | Forged | 0.01 | 550 |
| 43604005 | 5 | 5 | 10 | 20 | Forged | 0.01 | 1,000 |
| 43604006 | 6 | 6 | 12 | 24 | Forged | 0.02 | 1,700 |
| 43604007 | 7 | 7 | 14 | 28 | Forged | 0.03 | 2,000 |
| 43604008 | 8 | 8 | 16 | 32 | Forged | 0.05 | 2,800 |
| 43604009 | 9 | 9 | 18 | 36 | Forged | 0.07 | 3,500 |
| 43604010 | 10 | 10 | 20 | 40 | Forged | 0.11 | 4,500 |
| 43604012 | 12 | 12 | 24 | 48 | Forged | 0.18 | 6,000 |
| 43604013 | 13 | 13 | 26 | 52 | Cast | 0.22 | 6,500 |
| 43604016 | 16 | 16 | 32 | 64 | Forged | 0.42 | 10,000 |
| 43604019 | 19 | 19 | 38 | 76 | Cast | 0.70 | 15,000 |
| 43604022 | 22 | 22 | 44 | 88 | Cast | 1.08 | 19,000 |
| 43604025 | 25 | 25 | 50 | 100 | Cast | 1.61 | 23,000 |
| SS304 | Size | ØA (inch) | ØB (inch) | L (inch) | Pin | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 43604004 | 5/32" | 0.16 | 0.31 | 0.63 | Forged | 0.02 | 1,210 |
| 43604005 | 3/16" | 0.20 | 0.39 | 0.79 | Forged | 0.02 | 2,200 |
| 43604006 | 1/4" | 0.24 | 0.47 | 0.94 | Forged | 0.04 | 3,740 |
| 43604007 | 9/32" | 0.28 | 0.55 | 1.10 | Forged | 0.07 | 4,400 |
| 43604008 | 5/16" | 0.31 | 0.63 | 1.26 | Forged | 0.11 | 6,160 |
| 43604009 | 11/32" | 0.35 | 0.71 | 1.42 | Forged | 0.15 | 7,700 |
| 43604010 | 3/8" | 0.39 | 0.79 | 1.57 | Forged | 0.24 | 9,900 |
| 43604012 | 15/32" | 0.47 | 0.94 | 1.89 | Forged | 0.40 | 13,200 |
| 43604013 | 1/2" | 0.51 | 1.02 | 2.05 | Cast | 0.48 | 14,300 |
| 43604016 | 5/8" | 0.63 | 1.26 | 2.52 | Forged | 0.92 | 22,000 |
| 43604019 | 3/4" | 0.75 | 1.50 | 2.99 | Cast | 1.54 | 33,000 |
| 43604022 | 7/8" | 0.87 | 1.73 | 3.46 | Cast | 2.38 | 41,800 |
| 43604025 | 1" | 0.98 | 1.97 | 3.94 | Cast | 3.22 | 50,600 |
