Description
Technical Data
Forging Material : AISI316 - DIN 1.4401
Production : Shackle - Cast , Pin - Forged
Surface Treatment : “E.P.” (Electro polished)
DATA SHEET DOWNLOAD

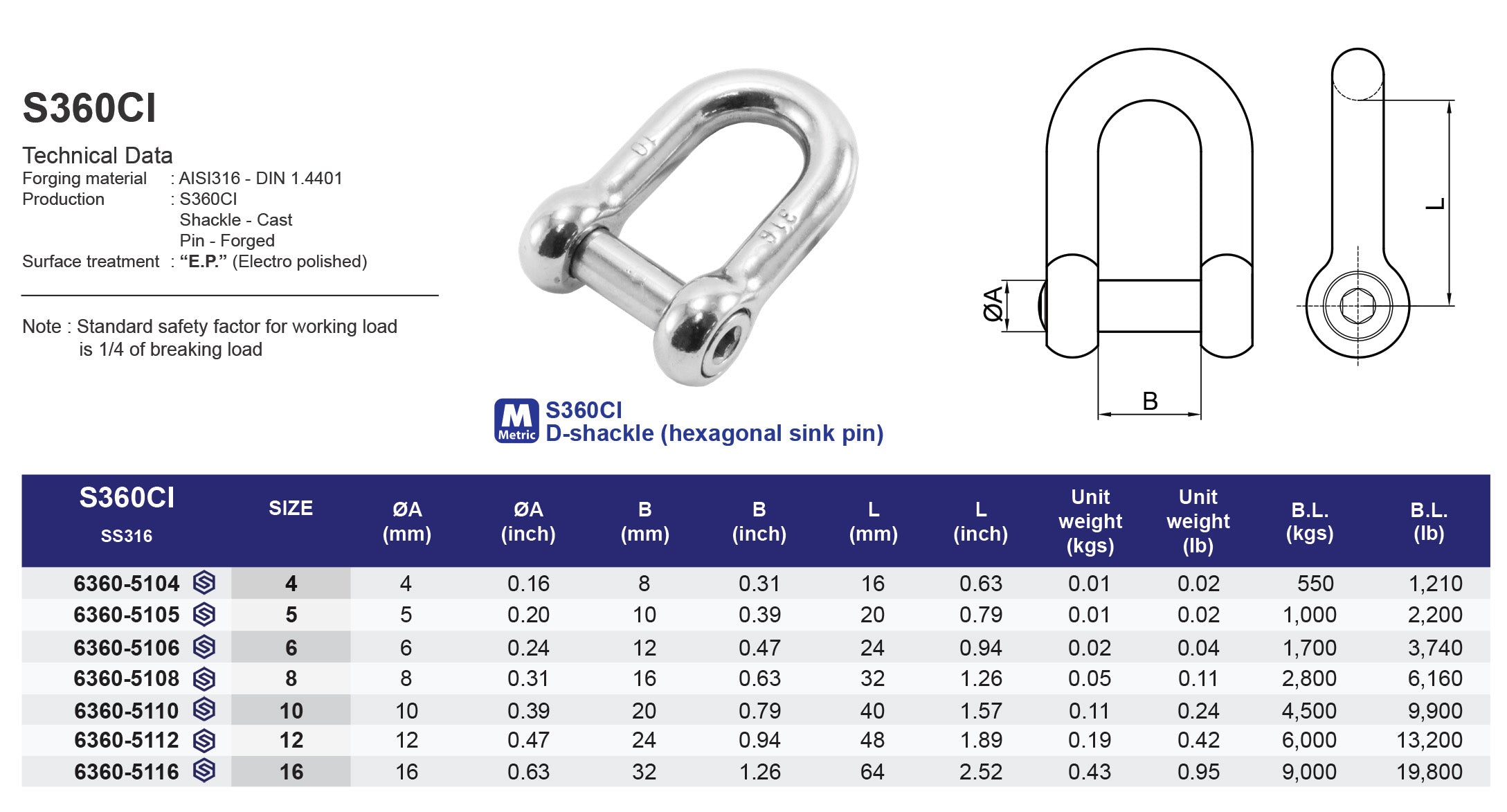

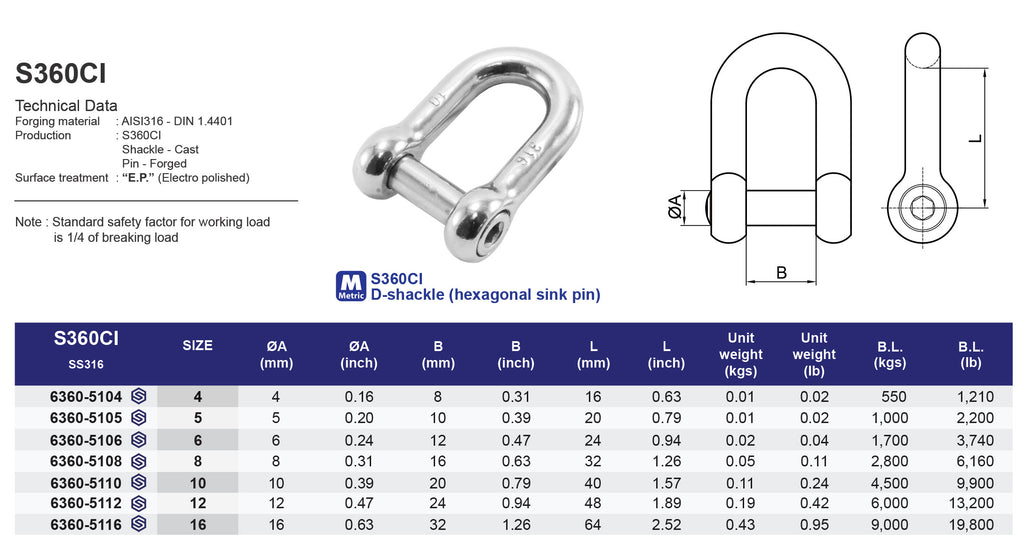

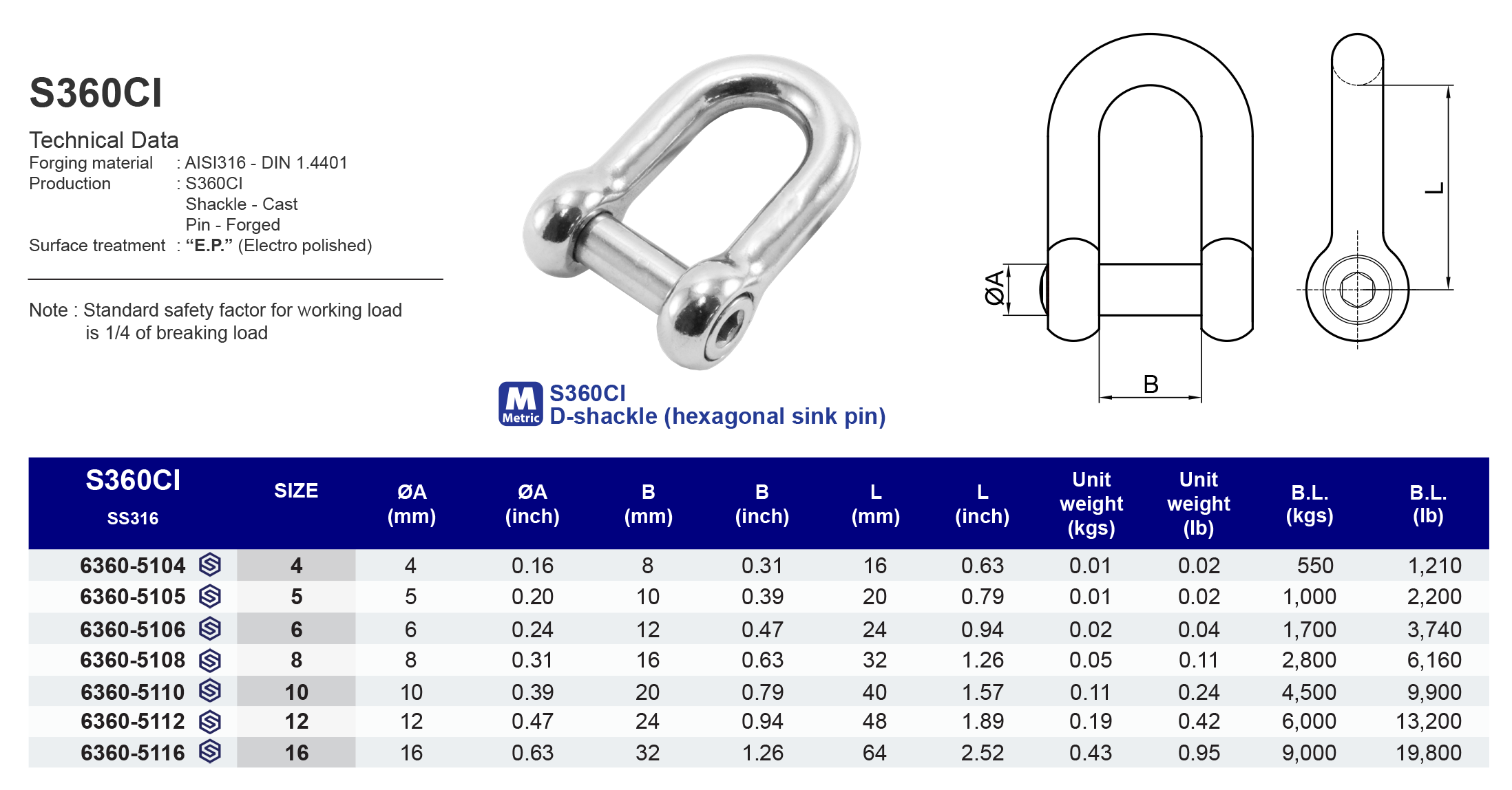

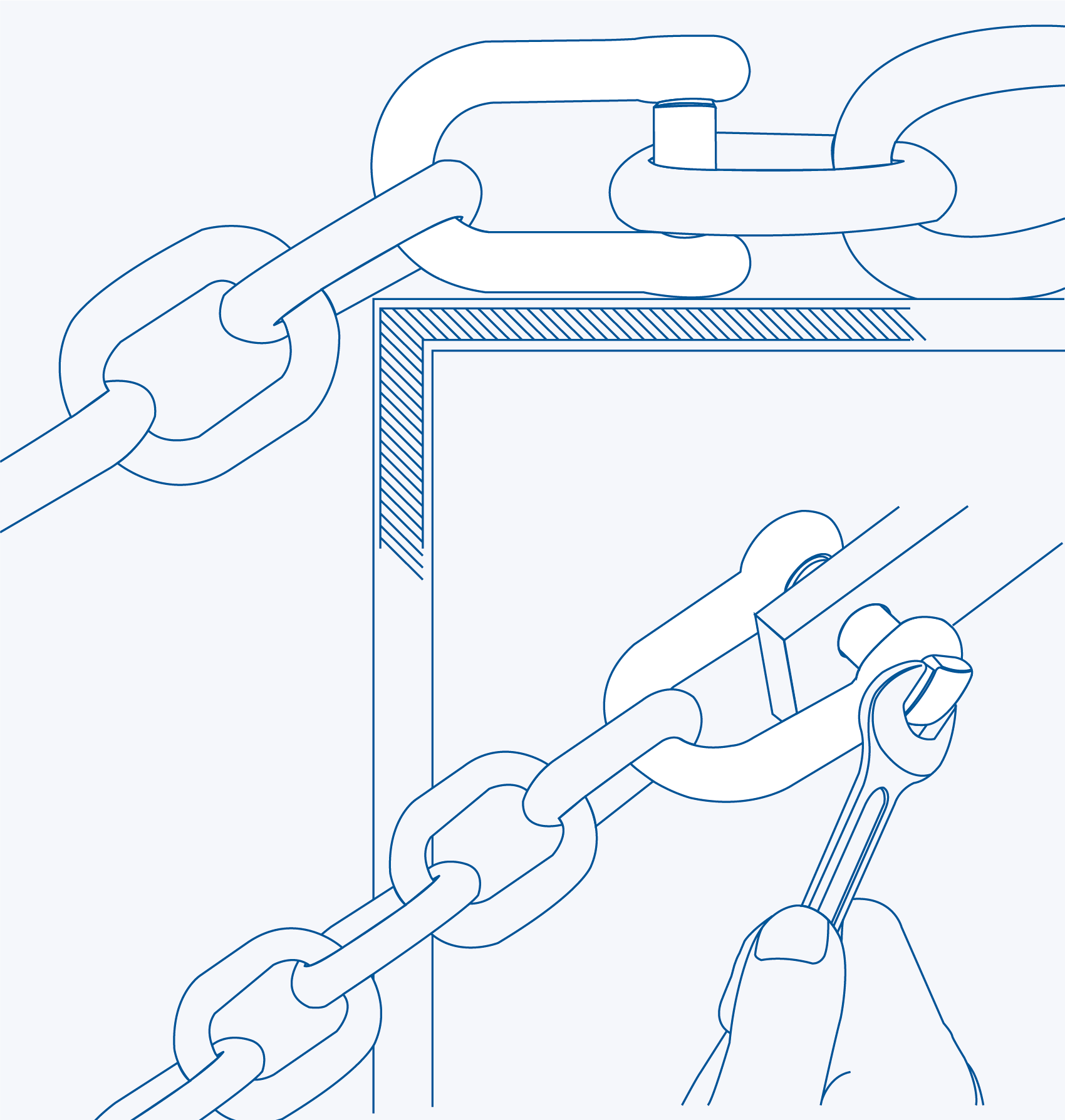

Model
S360CI

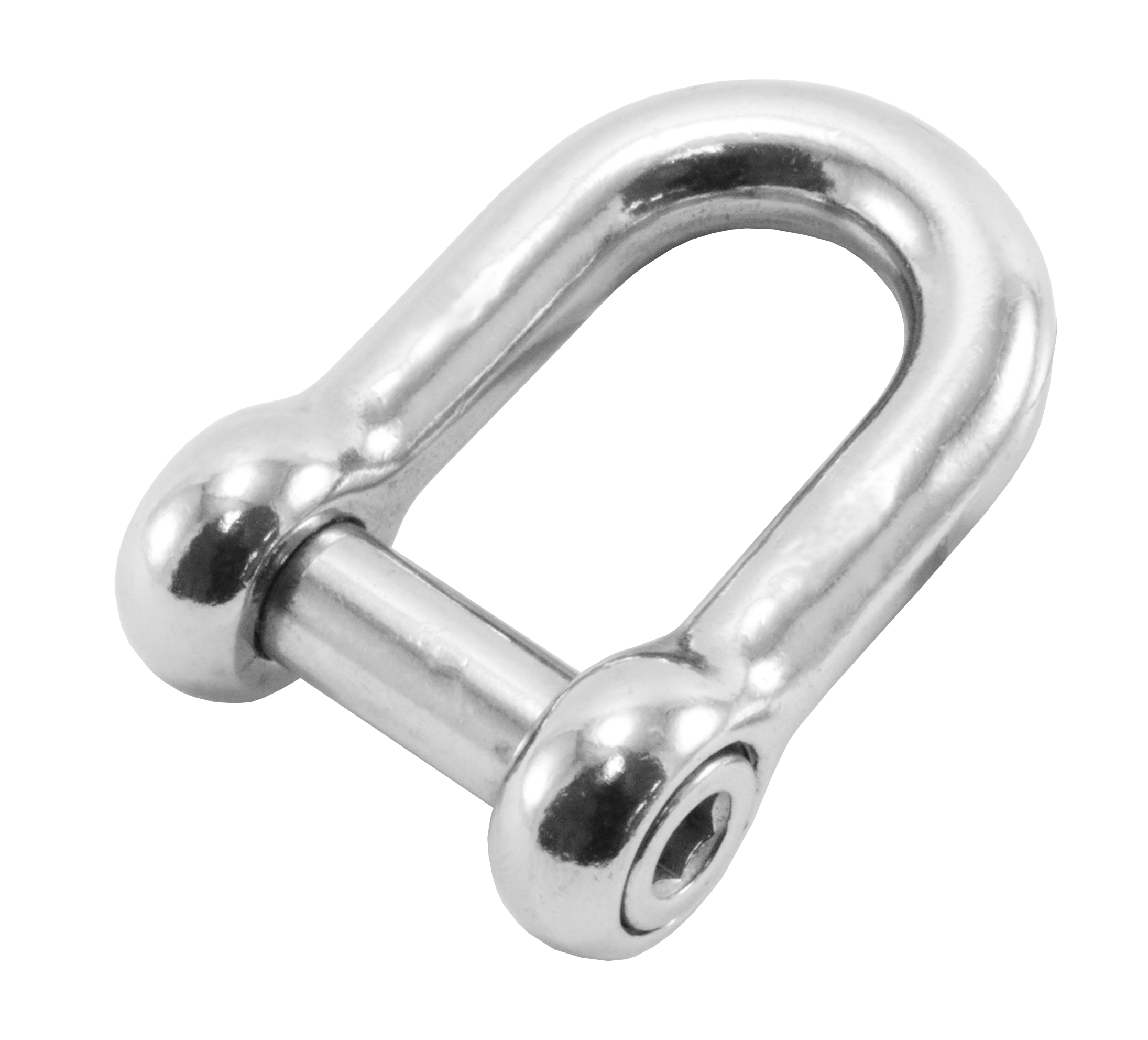

D-shackle (hexagonal sink pin)
316 ss
| SS316 | Size | ØA (mm) | ØB (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 63605104 | 4 | 4 | 8 | 16 | 0.01 | 550 |
| 63605105 | 5 | 5 | 10 | 20 | 0.01 | 1,000 |
| 63605106 | 6 | 6 | 12 | 24 | 0.02 | 1,700 |
| 63605108 | 8 | 8 | 16 | 32 | 0.05 | 2,800 |
| 63605110 | 10 | 10 | 20 | 40 | 0.11 | 4,500 |
| 63605112 | 12 | 12 | 24 | 48 | 0.19 | 6,000 |
| 63605116 | 16 | 16 | 32 | 64 | 0.43 | 10,000 |
| SS316 | Size | ØA (inch) | ØB (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 63605104 | 5/32" | 0.16 | 0.31 | 0.63 | 0.02 | 1,210 |
| 63605105 | 3/16" | 0.20 | 0.39 | 0.79 | 0.02 | 2,200 |
| 63605106 | 1/4" | 0.24 | 0.47 | 0.94 | 0.04 | 3,740 |
| 63605108 | 5/16" | 0.31 | 0.63 | 1.26 | 0.11 | 6,160 |
| 63605110 | 3/8" | 0.39 | 0.79 | 1.57 | 0.24 | 9,900 |
| 63605112 | 1/2" | 0.47 | 0.94 | 1.89 | 0.42 | 13,200 |
| 63605116 | 5/8" | 0.63 | 1.26 | 2.52 | 0.95 | 22,000 |
