Casting Material : AISI316 - DIN 1.4408
Forging Material : AISI316 - DIN 1.4401
Production : S360LK - Shackle - Cast Pin - Forged
Surface Treatment : “E.P.” (Electro polished)
DATA SHEET DOWNLOAD
Model

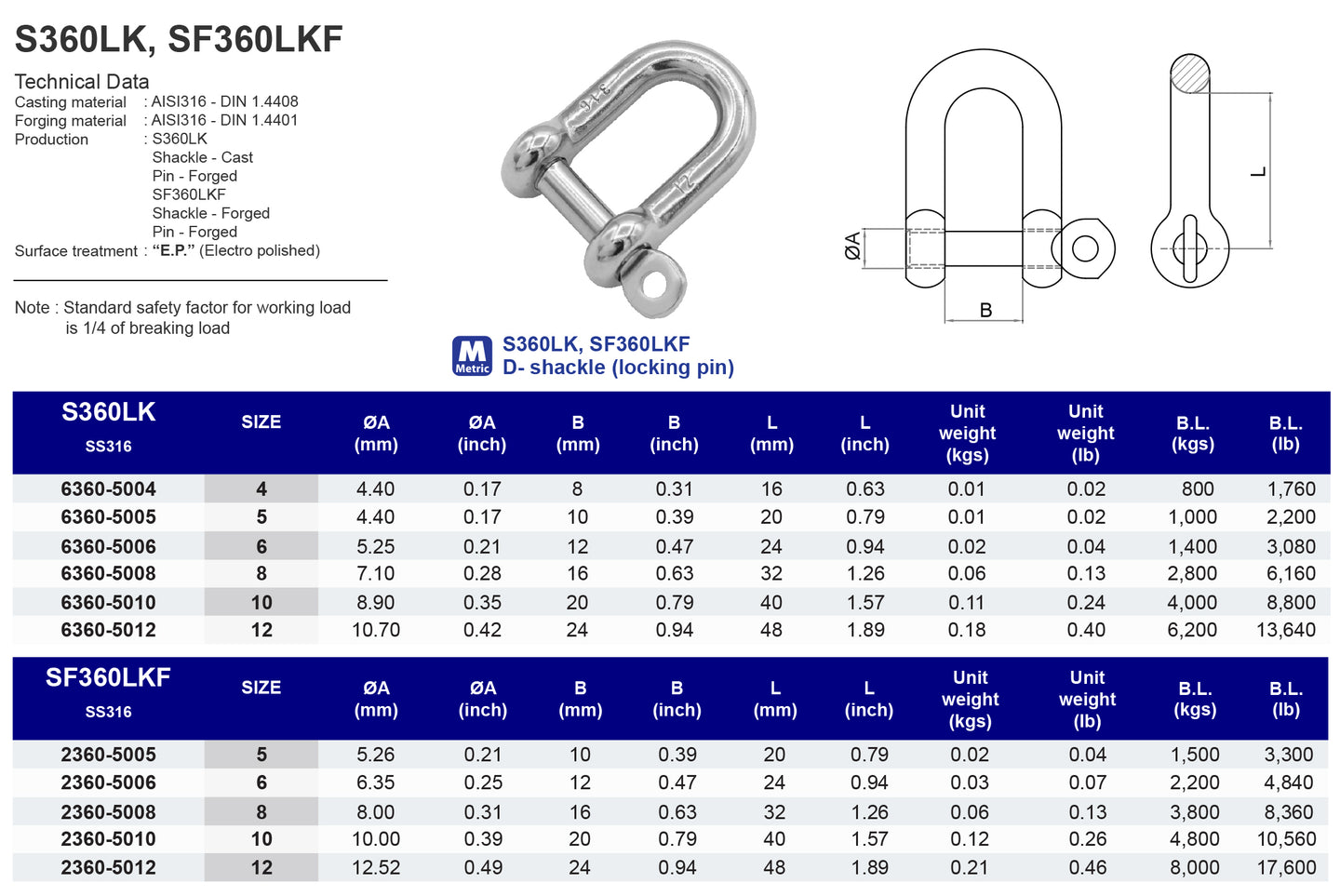

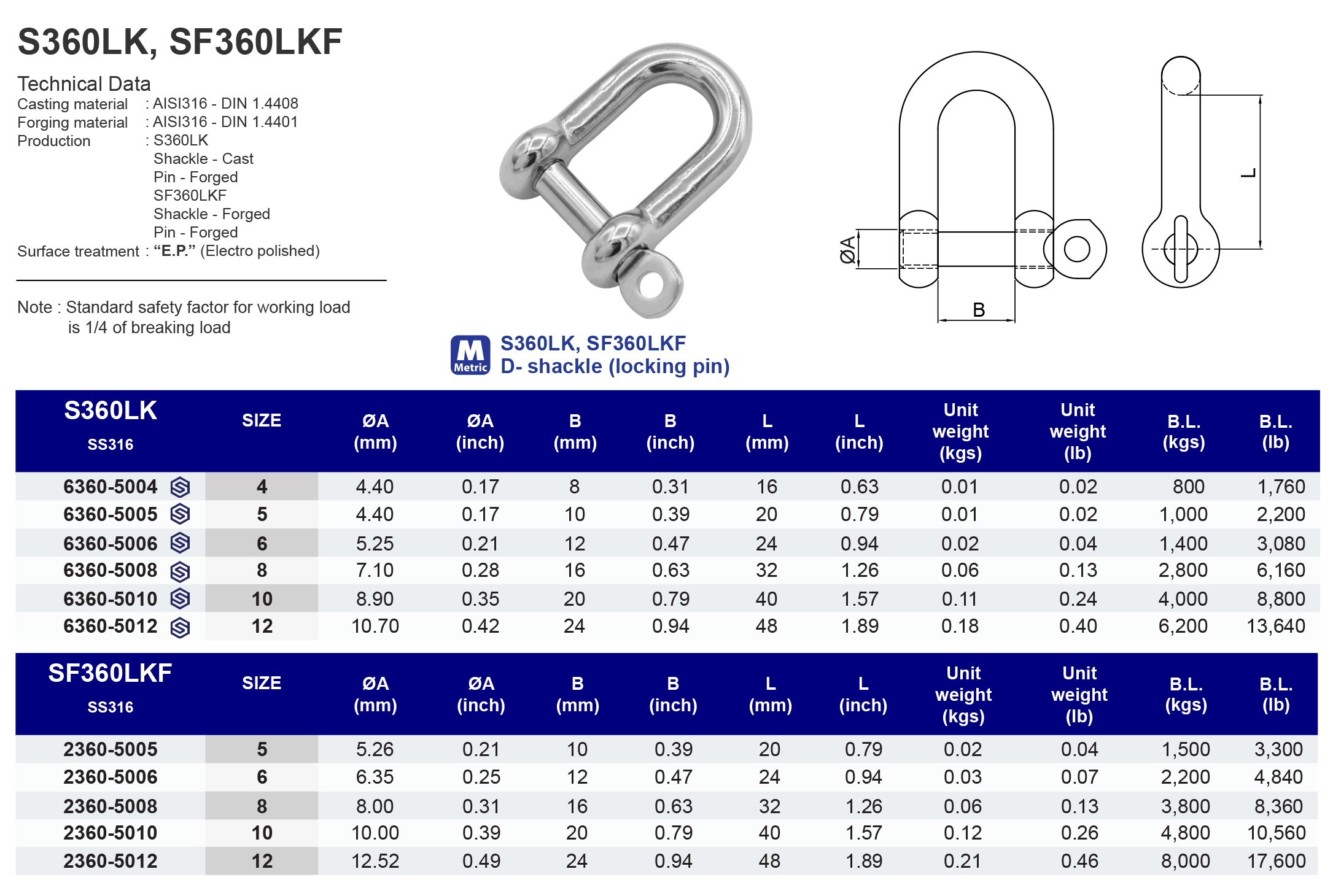

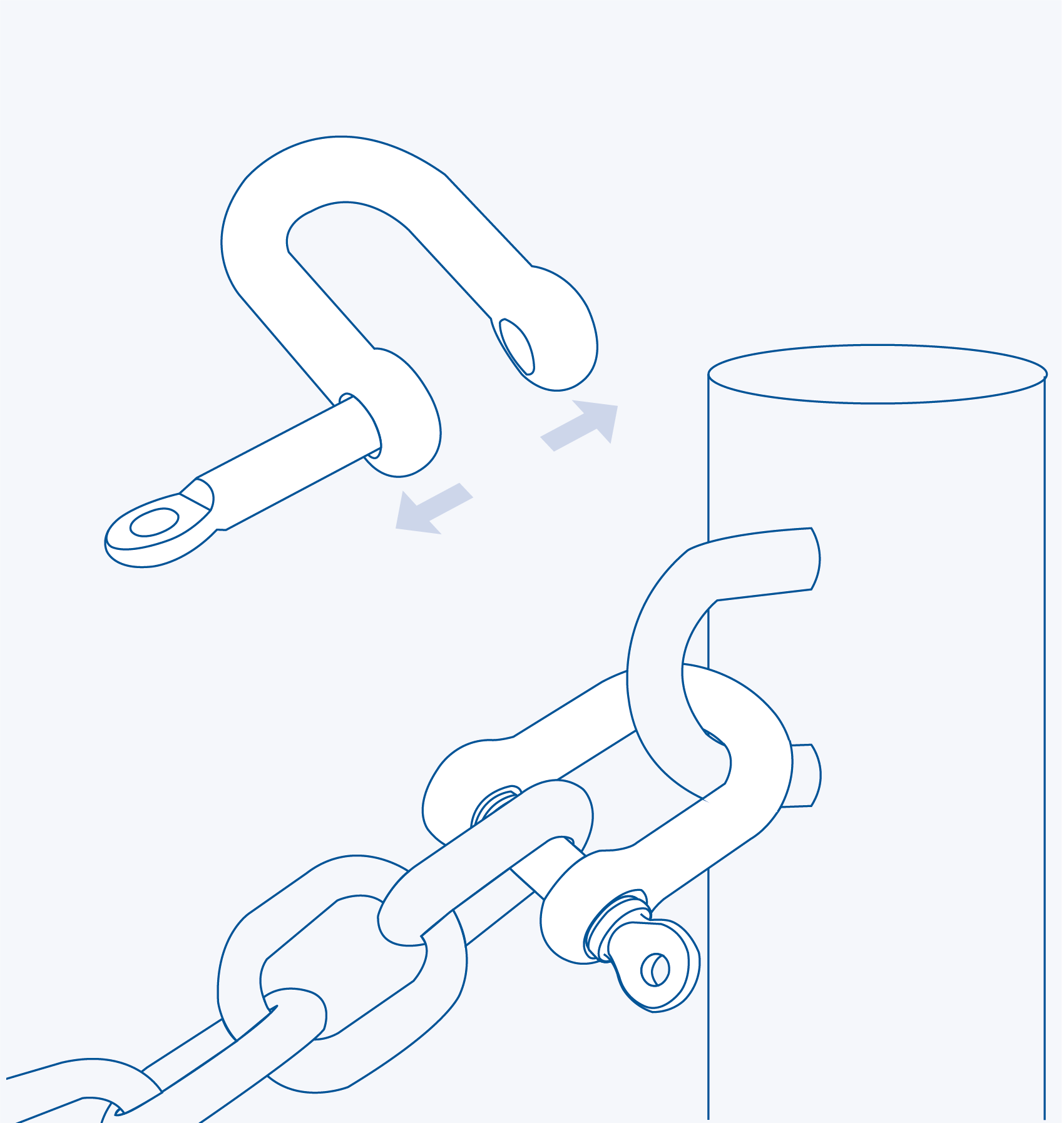

S360LK

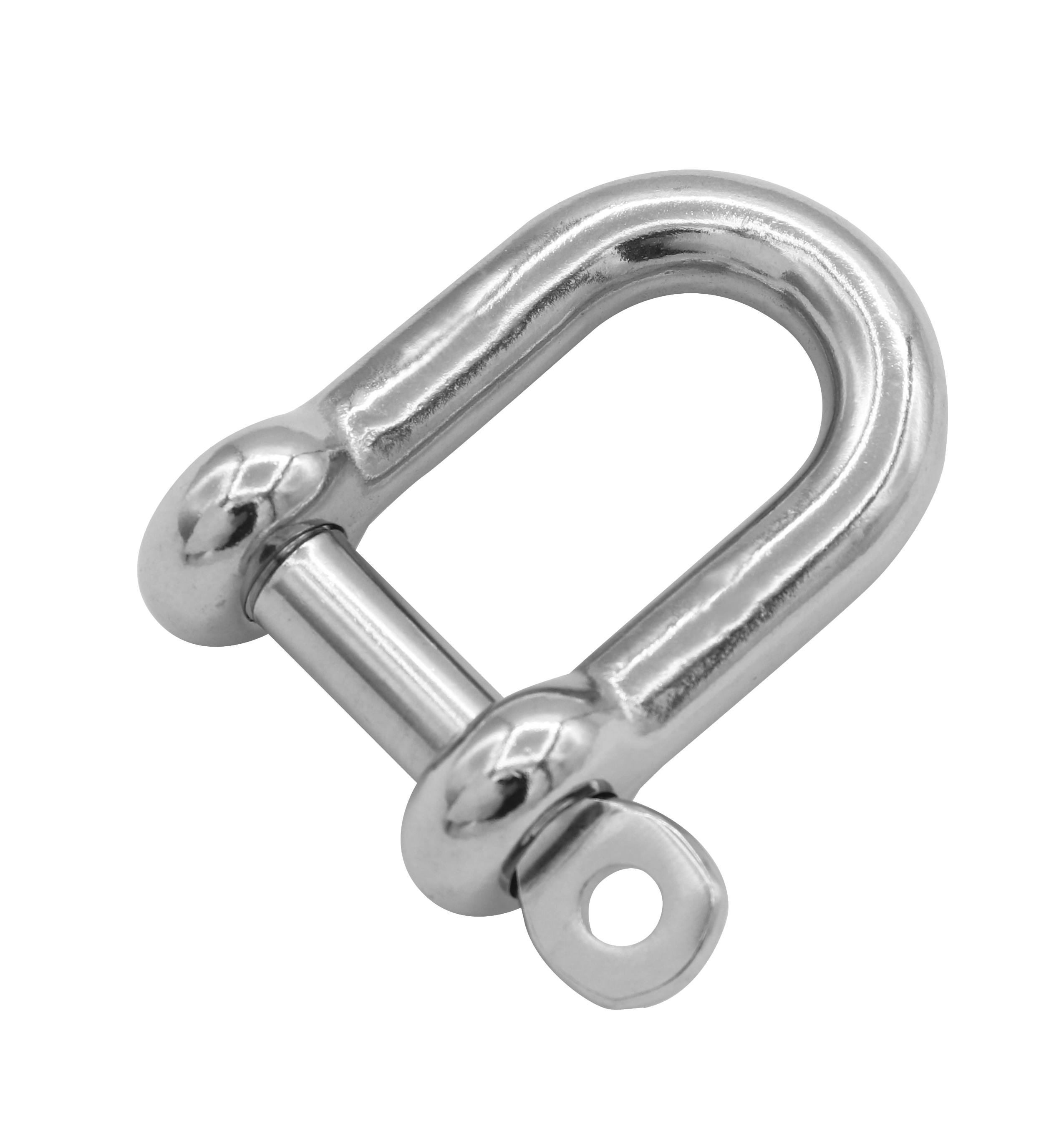

D-shackle (locking pin)
316 ss
| SS316 | Size | ØA (mm) | ØB (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 63605004 | 4 | 4.40 | 8 | 16 | 0.01 | 800 |
| 63605005 | 5 | 4.40 | 10 | 20 | 0.01 | 1,000 |
| 63605006 | 6 | 5.25 | 12 | 24 | 0.02 | 1,400 |
| 63605008 | 8 | 7.10 | 16 | 32 | 0.06 | 2,800 |
| 63605010 | 10 | 8.90 | 20 | 40 | 0.11 | 4,000 |
| 63605012 | 12 | 10.70 | 24 | 48 | 0.18 | 6,200 |
| SS316 | Size | ØA (inch) | ØB (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 63605004 | 5/32" | 0.17 | 0.31 | 0.63 | 0.02 | 1,760 |
| 63605005 | 3/16" | 0.17 | 0.39 | 0.79 | 0.02 | 2,200 |
| 63605006 | 1/4" | 0.21 | 0.47 | 0.94 | 0.04 | 3,080 |
| 63605008 | 5/16" | 0.28 | 0.63 | 1.26 | 0.13 | 6,160 |
| 63605010 | 3/8" | 0.35 | 0.79 | 1.57 | 0.24 | 8,800 |
| 63605012 | 1/2" | 0.42 | 0.94 | 1.89 | 0.40 | 13,640 |
