Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Forging Material: AISI316 - DIN 1.4401
Production: Shackle - Cast , Pin - Forged
Surface Treatment: “E.P.” (Electro polished)
DATA SHEET DOWNLOAD

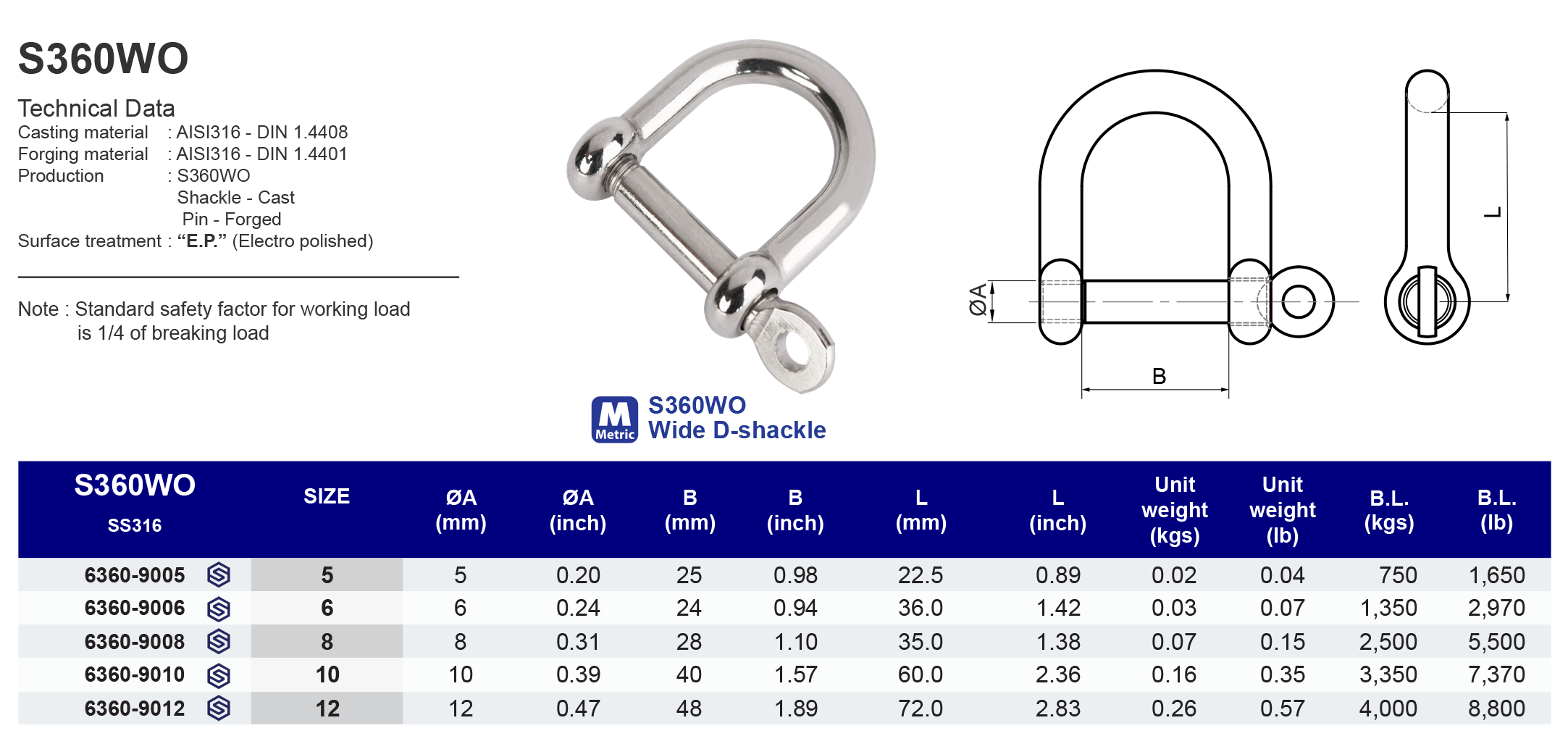

Model
S360WO

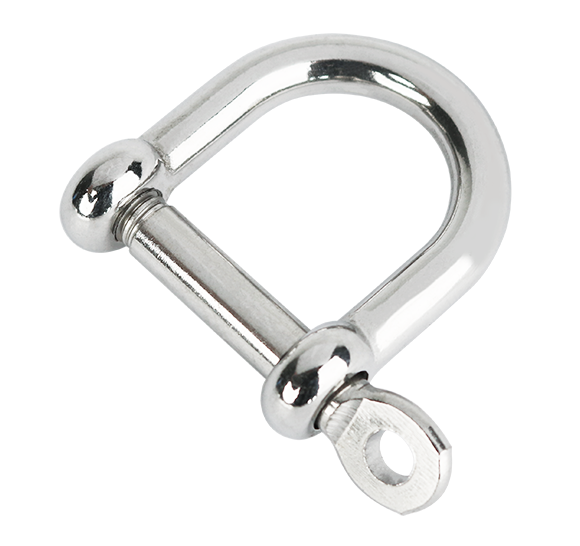

Wide D-shackle
316 ss
| SS316 | Size | ØA (mm) | ØB (mm) | L (mm) | Unit weight (kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|
| 63609005 | 5 | 5 | 25 | 22.5 | 0.02 | 750 |
| 63609006 | 6 | 6 | 24 | 36 | 0.03 | 1,350 |
| 63609008 | 8 | 8 | 28 | 35 | 0.07 | 2,500 |
| 63609010 | 10 | 10 | 40 | 60 | 0.16 | 3,350 |
| 63609012 | 12 | 12 | 48 | 72 | 0.26 | 4,000 |
| SS316 | Size | ØA (inch) | ØB (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 63609005 | 3/16" | 0.20 | 0.98 | 0.89 | 0.04 | 1,650 |
| 63609006 | 1/4" | 0.24 | 0.94 | 1.42 | 0.07 | 2,970 |
| 63609008 | 5/16" | 0.31 | 1.10 | 1.38 | 0.15 | 5,500 |
| 63609010 | 3/8" | 0.39 | 1.57 | 2.36 | 0.35 | 7,370 |
| 63609012 | 1/2" | 0.47 | 1.89 | 2.83 | 0.57 | 8,800 |
