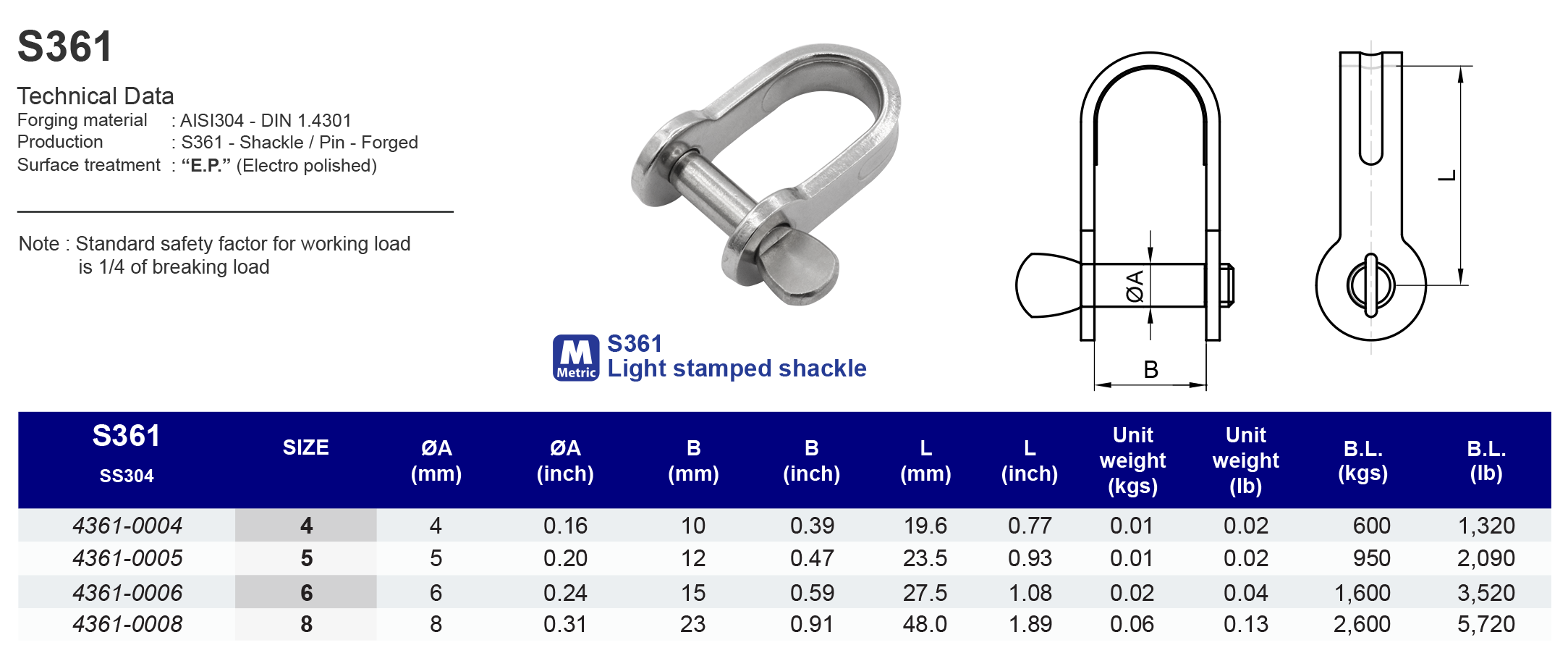

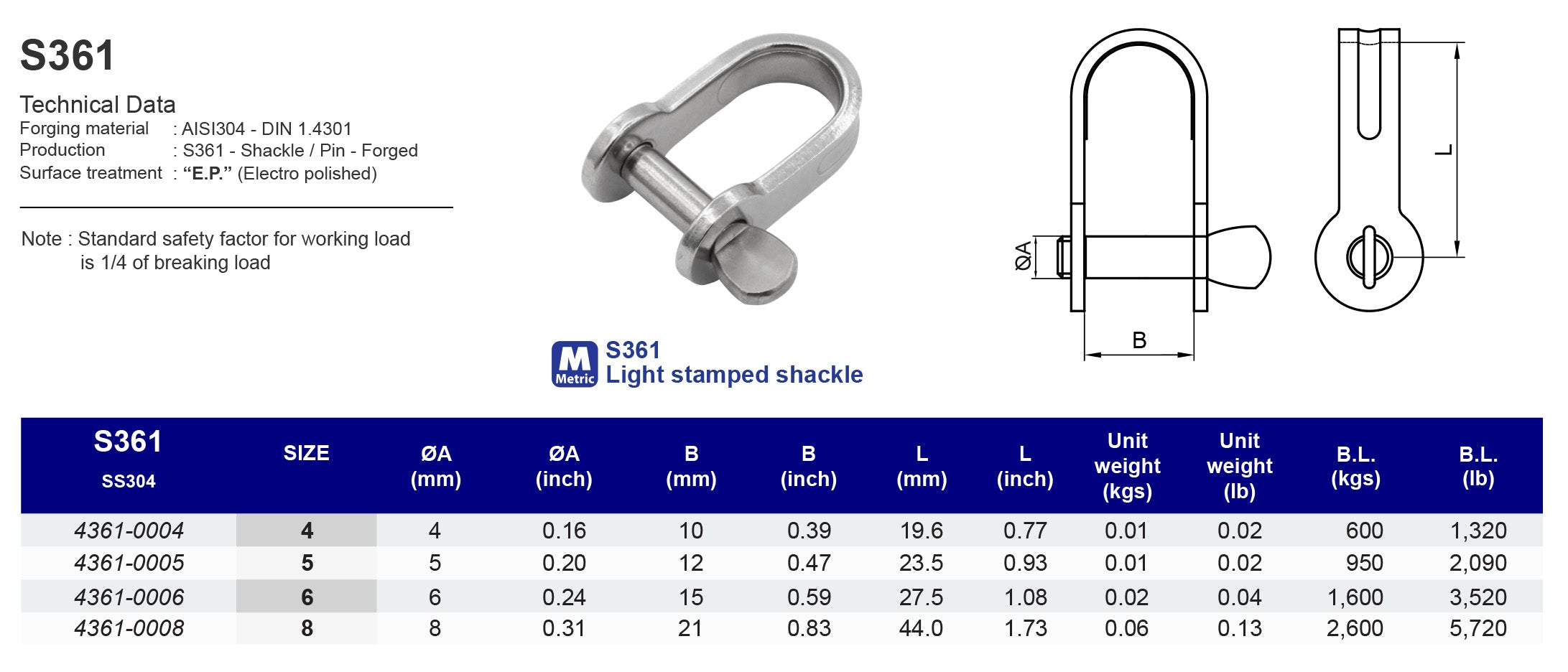

Description
Technical Data:
Forging Material: AISI304 - DIN 1.4301
Production: S361 - Shackle / Pin - Forged
Surface Treatment: “E.P.” (Electro polished)
Note : Standard safety factor for working load
is 1/4 of breaking load
Model
S361

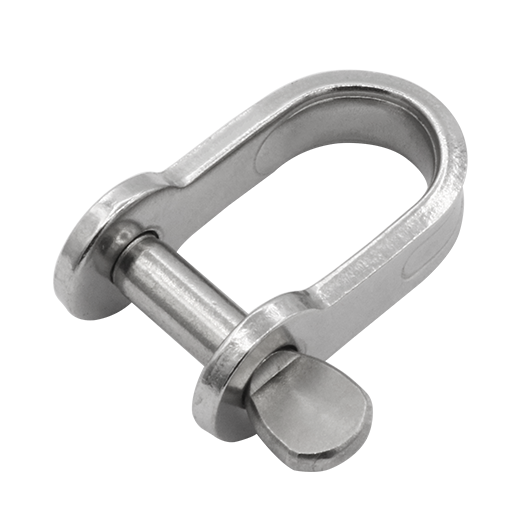

Light stamped shackle
304 ss
![Kinzi 304 Kinzi 304](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/304-ss.png)
![S361 drawing S361 drawing](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/S361_DiagramV1.png)
![S361 image S361 image](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/S361_ImageV1.png)
SS304 | Size | ØA (mm) | ØB (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
---|---|---|---|---|---|---|
43610004 | 4 | 4 | 10 | 19.6 | 0.01 | 600 |
43610005 | 5 | 5 | 12 | 23.5 | 0.01 | 950 |
43610006 | 6 | 6 | 15 | 27.5 | 0.02 | 1,600 |
43610008 | 8 | 8 | 23 | 48.0 | 0.06 | 2,600 |
SS304 | Size | ØA (inch) | ØB (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
---|---|---|---|---|---|---|
43610004 | 5/32" | 0.16 | 0.39 | 0.77 | 0.02 | 1,320 |
43610005 | 3/16" | 0.20 | 0.47 | 0.93 | 0.02 | 2,090 |
43610006 | 1/4" | 0.24 | 0.59 | 1.08 | 0.04 | 3,520 |
43610008 | 5/16" | 0.31 | 0.91 | 1.89 | 0.13 | 5,720 |
