Description

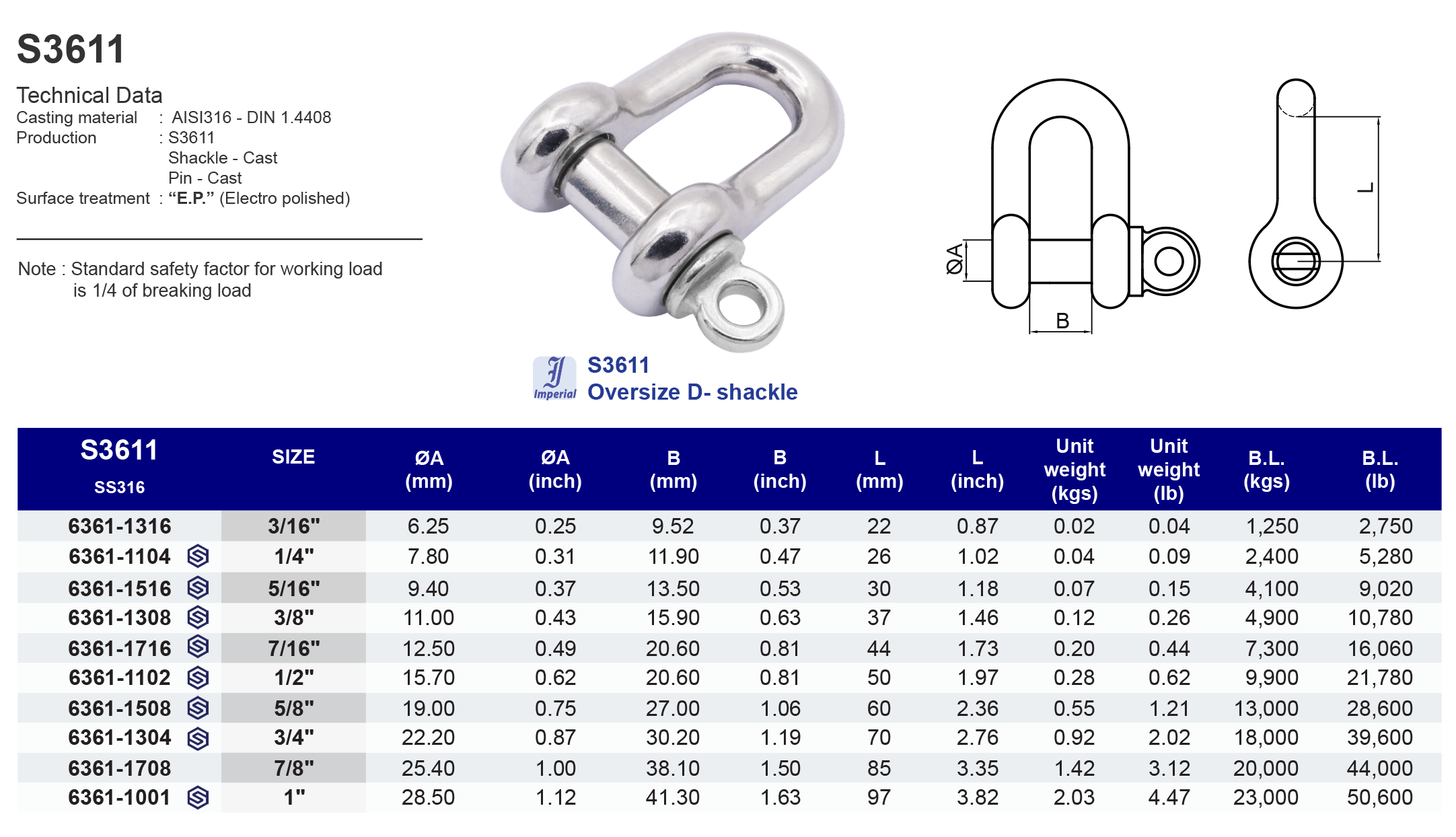

Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production: S3611 - Shackle / Pin - Cast
Surface Treatment: “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load DATA SHEET DOWNLOAD

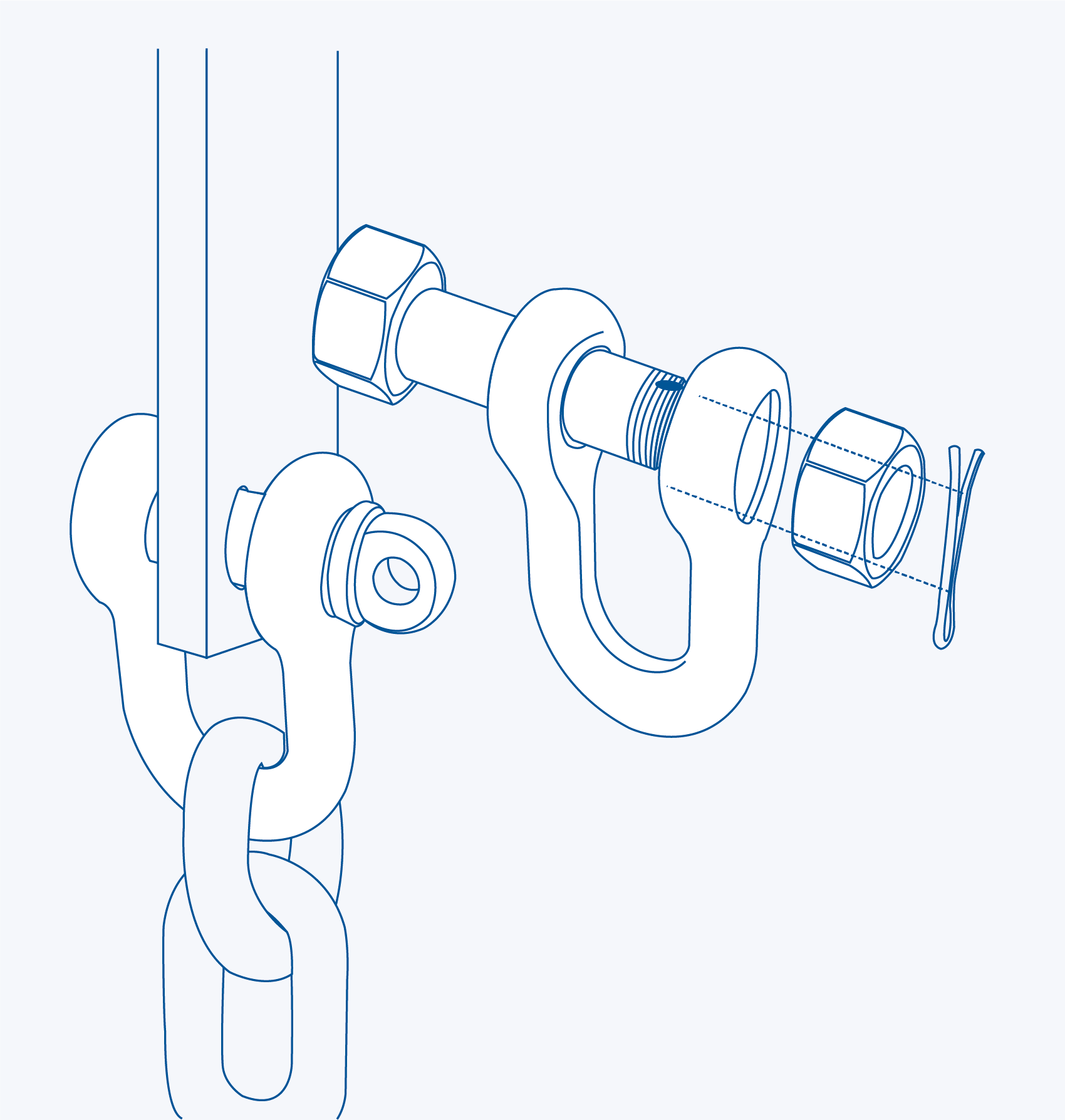

Model
S3611
Oversize D-Shackle
316 ss
![Kinzi 316 Kinzi 316](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/316-ss.png)
![S3611 drawing S3611 drawing](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/S3611_DiagramV1.png)

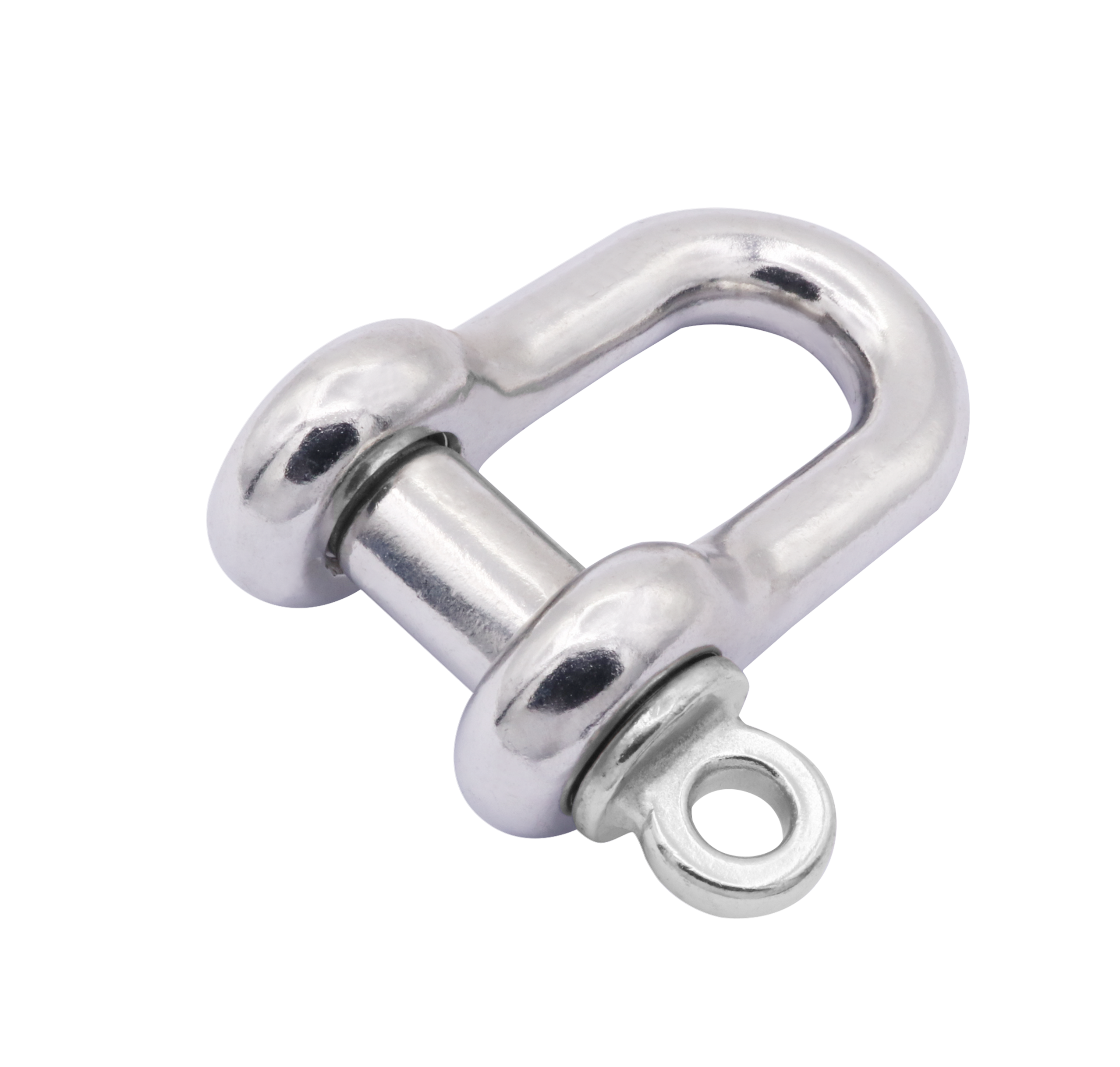

![S3611 image S3611 image](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/S3611_ImageV1.png)
SS316 | Size | ØA (mm) | ØB (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
---|---|---|---|---|---|---|
63611316 | 3/16" | 6.25 | 9.52 | 22 | 0.02 | 1,250 |
63611104 | 1/4" | 7.80 | 11.90 | 26 | 0.04 | 2,400 |
63611516 | 5/16" | 9.40 | 13.50 | 30 | 0.07 | 4,100 |
63611308 | 3/8" | 11.00 | 15.90 | 37 | 0.12 | 4,900 |
63611716 | 7/16" | 12.50 | 20.60 | 44 | 0.20 | 7,300 |
63611102 | 1/2" | 15.70 | 20.60 | 50 | 0.28 | 9,900 |
63611508 | 5/8" | 19.00 | 27.00 | 60 | 0.55 | 13,000 |
63611304 | 3/4" | 22.20 | 30.20 | 70 | 0.92 | 18,000 |
63611708 | 7/8" | 25.40 | 38.10 | 85 | 1.42 | 20,000 |
63611001 | 1" | 28.50 | 41.30 | 97 | 2.03 | 23,000 |
SS316 | Size | ØA (inch) | ØB (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
---|---|---|---|---|---|---|
63611316 | 3/16" | 0.25 | 0.37 | 0.87 | 0.04 | 2,750 |
63611104 | 1/4" | 0.31 | 0.47 | 1.02 | 0.09 | 5,280 |
63611516 | 5/16" | 0.37 | 0.53 | 1.18 | 0.15 | 9,020 |
63611308 | 3/8" | 0.43 | 0.63 | 1.46 | 0.26 | 10,780 |
63611716 | 7/16" | 0.49 | 0.81 | 1.73 | 0.44 | 16,060 |
63611102 | 1/2" | 0.62 | 0.81 | 1.97 | 0.62 | 21,780 |
63611508 | 5/8" | 0.75 | 1.06 | 2.36 | 1.21 | 28,600 |
63611304 | 3/4" | 0.87 | 1.19 | 2.76 | 2.02 | 39,600 |
63611708 | 7/8" | 1.00 | 1.50 | 3.35 | 3.12 | 44,000 |
63611001 | 1" | 1.12 | 1.63 | 3.82 | 4.47 | 50,600 |
