Description

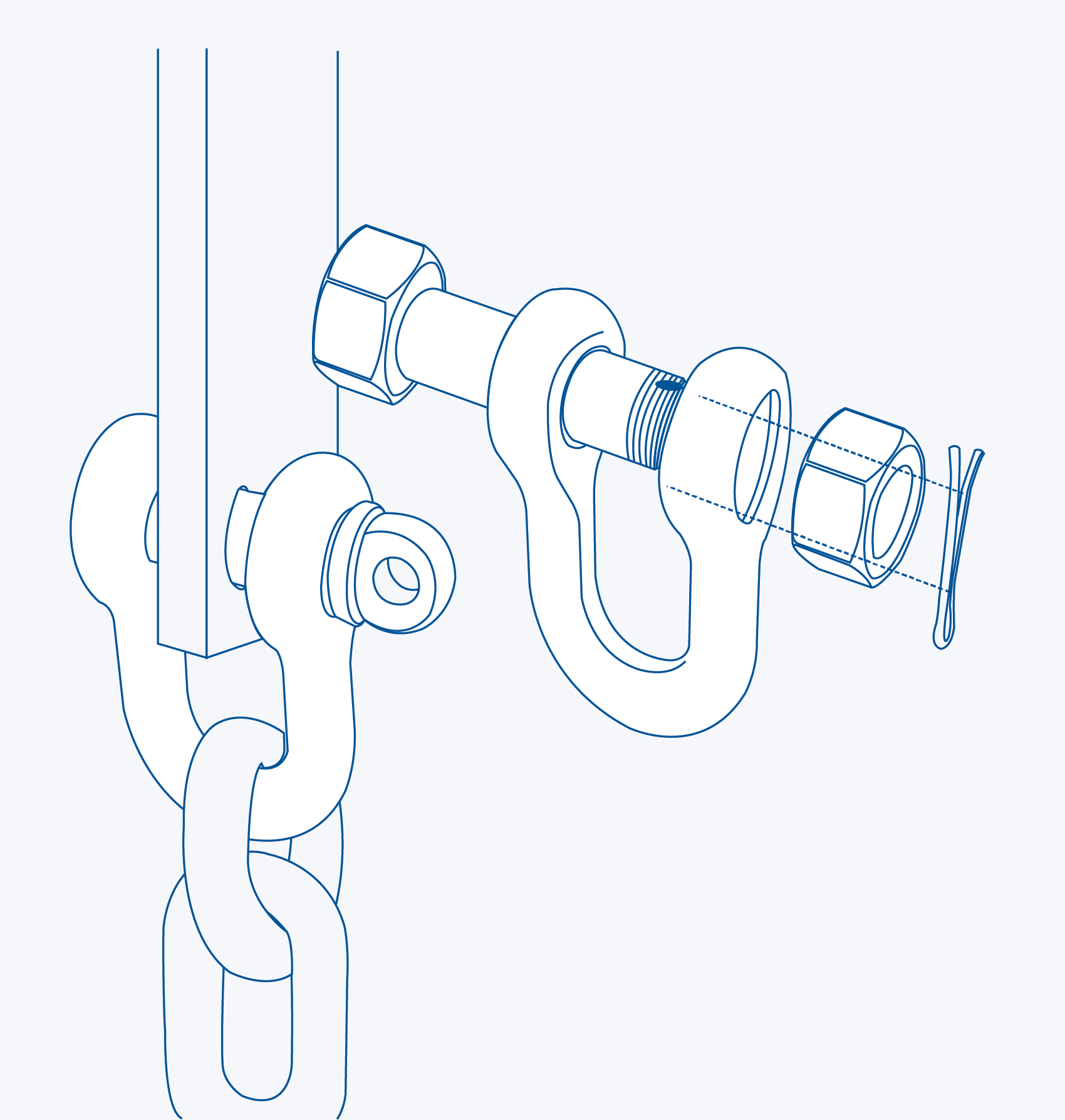

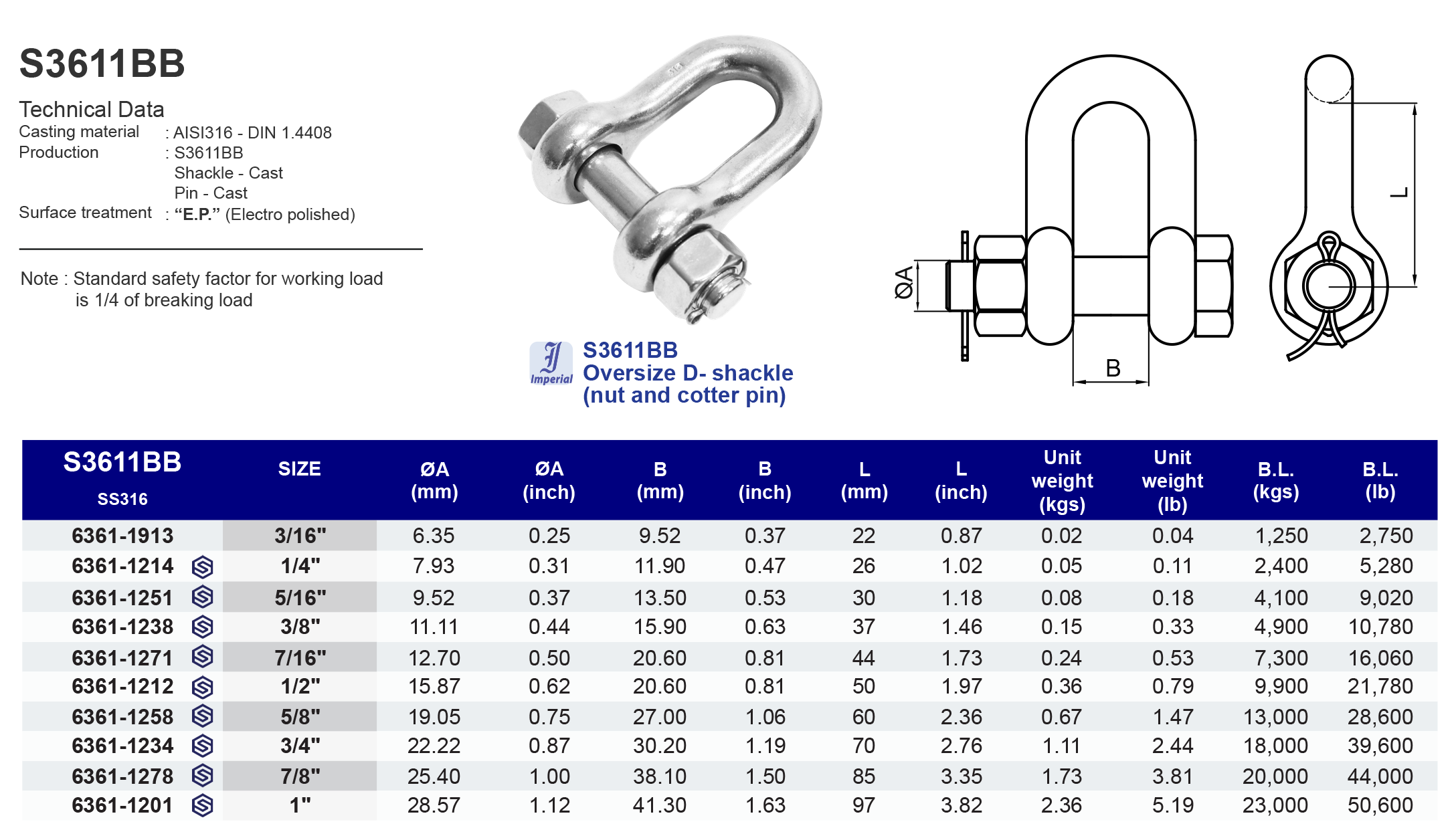

Technical Data
Casting Material : AISI316 - DIN 1.4408
Production : Shackle - Cast , Pin - Cast
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD
Model
S3611BB

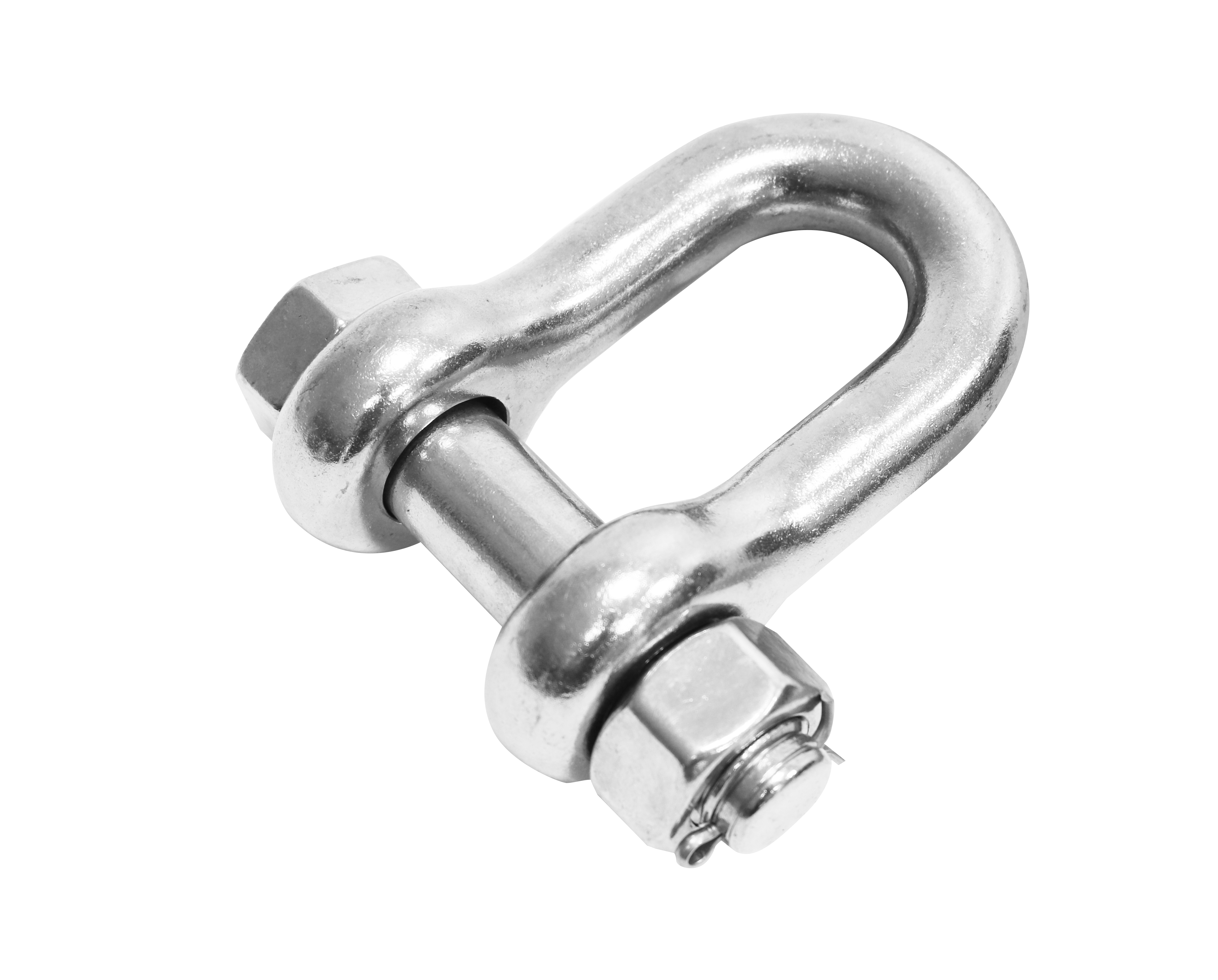

Oversize D-shackle (nut and cotter pin)
316 ss
| SS316 | Size | ØA (mm) | ØB (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 63611913 | 3/16" | 6.35 | 9.52 | 22 | 0.02 | 1,250 |
| 63611214 | 1/4" | 7.93 | 11.9 | 26 | 0.05 | 2,400 |
| 63611251 | 5/16" | 9.52 | 13.5 | 30 | 0.08 | 4,100 |
| 63611238 | 3/8" | 11.11 | 15.9 | 37 | 0.15 | 4,900 |
| 63611271 | 7/16" | 12.70 | 20.6 | 44 | 0.24 | 7,300 |
| 63611212 | 1/2" | 15.87 | 20.6 | 50 | 0.36 | 9,900 |
| 63611258 | 5/8" | 19.05 | 27.0 | 60 | 0.67 | 13,000 |
| 63611234 | 3/4" | 22.22 | 30.2 | 70 | 1.11 | 18,000 |
| 63611278 | 7/8" | 25.40 | 38.1 | 85 | 1.73 | 20,000 |
| 63611201 | 1" | 28.57 | 41.3 | 97 | 2.36 | 23,000 |
| SS316 | Size | ØA (inch) | ØB (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 63611913 | 3/16" | 0.25 | 0.37 | 0.87 | 0.04 | 2,750 |
| 63611214 | 1/4" | 0.31 | 0.47 | 1.02 | 0.11 | 5,280 |
| 63611251 | 5/16" | 0.37 | 0.53 | 1.18 | 0.18 | 9,020 |
| 63611238 | 3/8" | 0.44 | 0.63 | 1.46 | 0.33 | 10,780 |
| 63611271 | 7/16" | 0.50 | 0.81 | 1.73 | 0.53 | 16,060 |
| 63611212 | 1/2" | 0.62 | 0.81 | 1.97 | 0.79 | 21,780 |
| 63611258 | 5/8" | 0.75 | 1.06 | 2.36 | 1.47 | 28,600 |
| 63611234 | 3/4" | 0.87 | 1.19 | 2.76 | 2.44 | 39,600 |
| 63611278 | 7/8" | 1.00 | 1.50 | 3.35 | 3.81 | 44,000 |
| 63611201 | 1" | 1.12 | 1.63 | 3.82 | 5.19 | 50,600 |
