Description
Technical Data
Casting Material : AISI316 - DIN 1.4408
Forging Material : AISI316 - DIN 1.4401
Production : Shackle - Cast , Pin - Forged
Surface Treatment : “E.P.” (Electro polished)
DATA SHEET DOWNLOAD

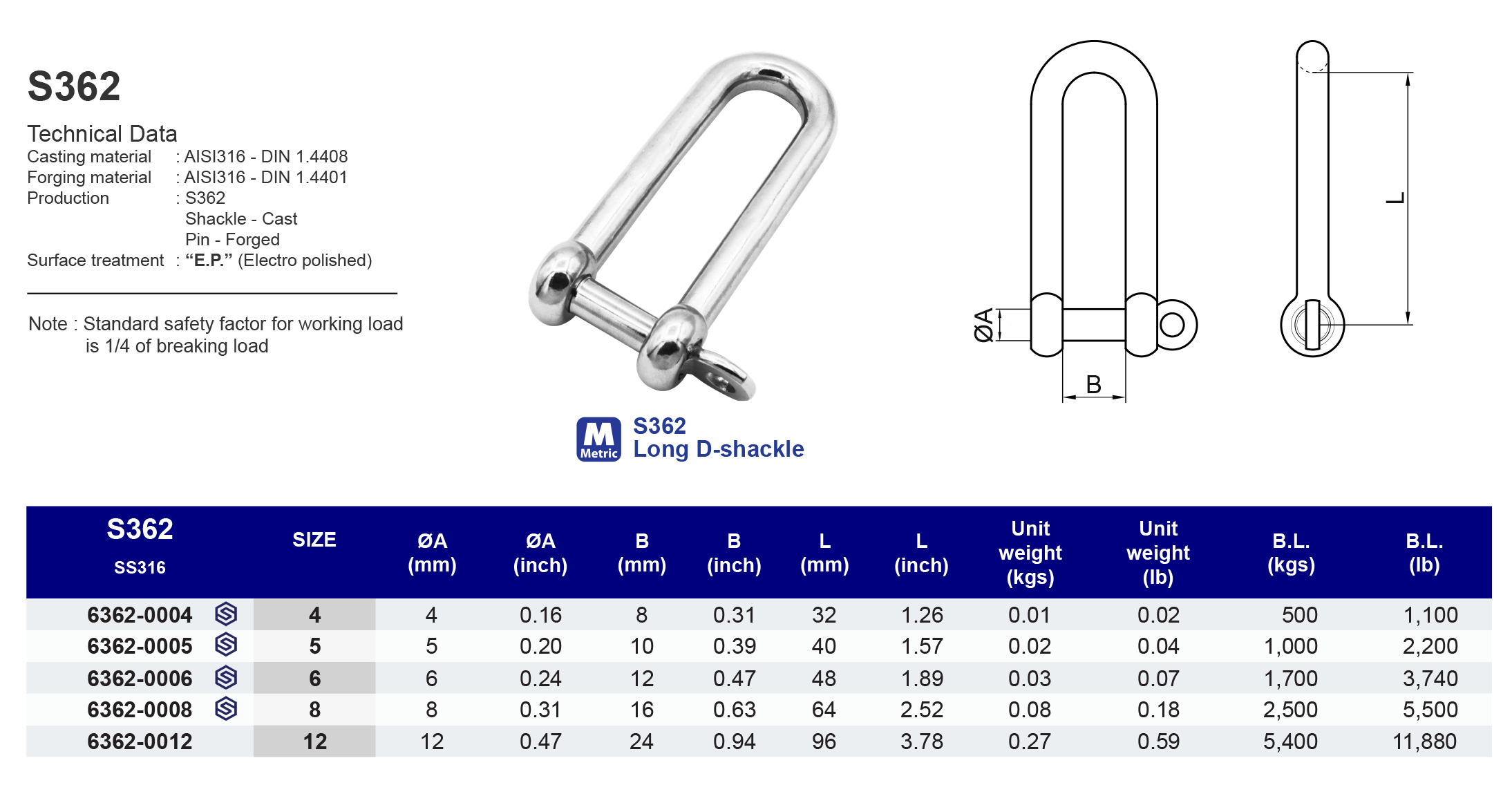

Model
S362

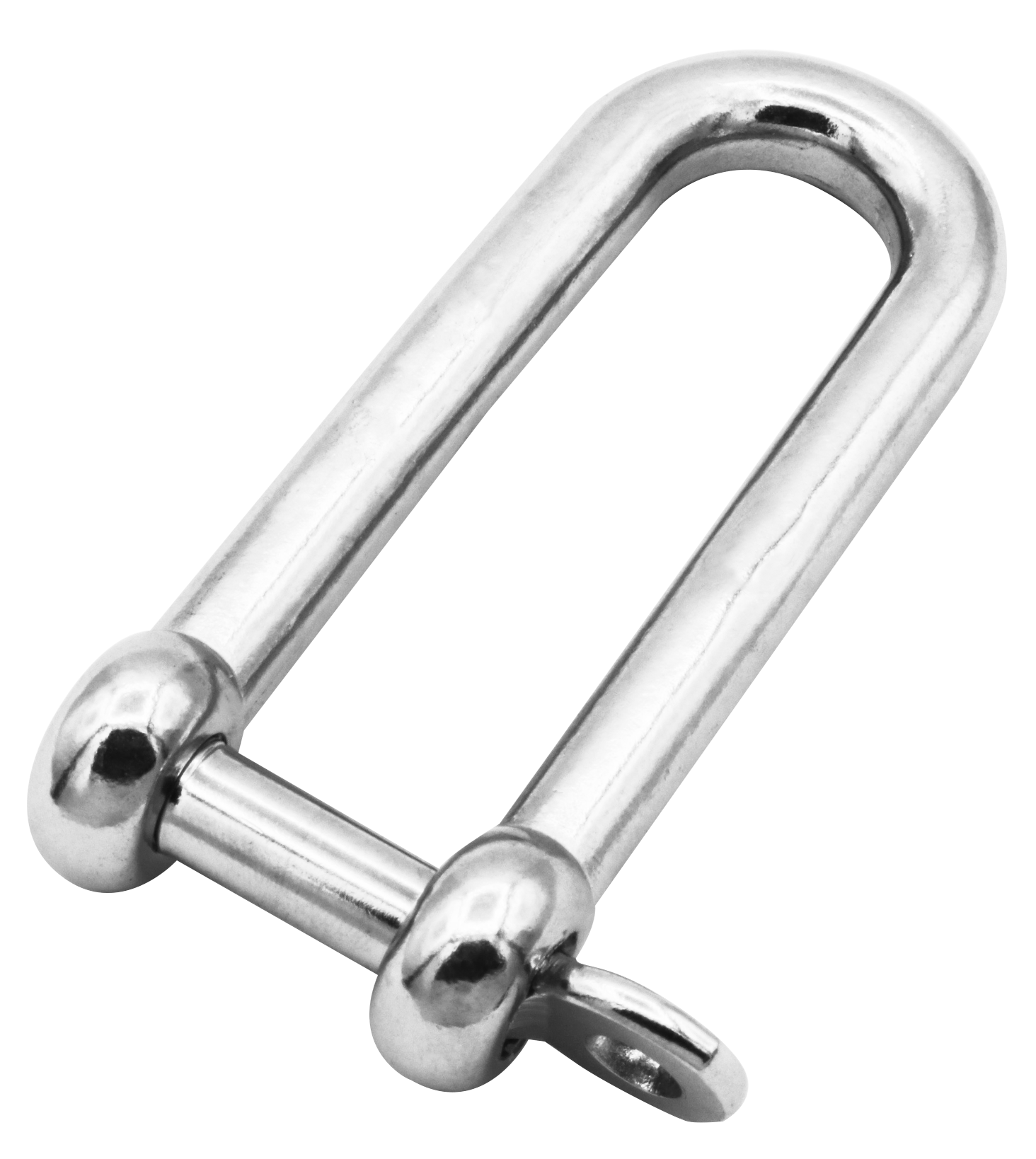

Long D-shackle
316 ss
| SS316 | Size | ØA (mm) | ØB (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 63620004 | 4 | 4 | 8 | 32 | 0.01 | 500 |
| 63620005 | 5 | 5 | 10 | 40 | 0.02 | 1,000 |
| 63620006 | 6 | 6 | 12 | 48 | 0.03 | 1,700 |
| 63620008 | 8 | 8 | 16 | 64 | 0.08 | 2,500 |
| 63620012 | 12 | 12 | 24 | 96 | 0.27 | 5,400 |
| SS316 | Size | ØA (inch) | ØB (inch) | L (inch) | Unit weight (lb) | B.L.(lb) |
|---|---|---|---|---|---|---|
| 63620004 | 5/32" | 0.16 | 0.31 | 1.26 | 0.02 | 1,100 |
| 63620005 | 3/16" | 0.20 | 0.39 | 1.57 | 0.04 | 2,200 |
| 63620006 | 1/4" | 0.24 | 0.47 | 1.89 | 0.07 | 3,740 |
| 63620008 | 5/16" | 0.31 | 0.63 | 2.52 | 0.18 | 5,500 |
| 63620012 | 1/2" | 0.47 | 0.94 | 3.78 | 0.59 | 11,880 |
