Description
Technical Data
Casting Material : AISI316 - DIN 1.4408
Forging Material : AISI316 - DIN 1.4401
Production : Shackle - Cast , Pin - See chart
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

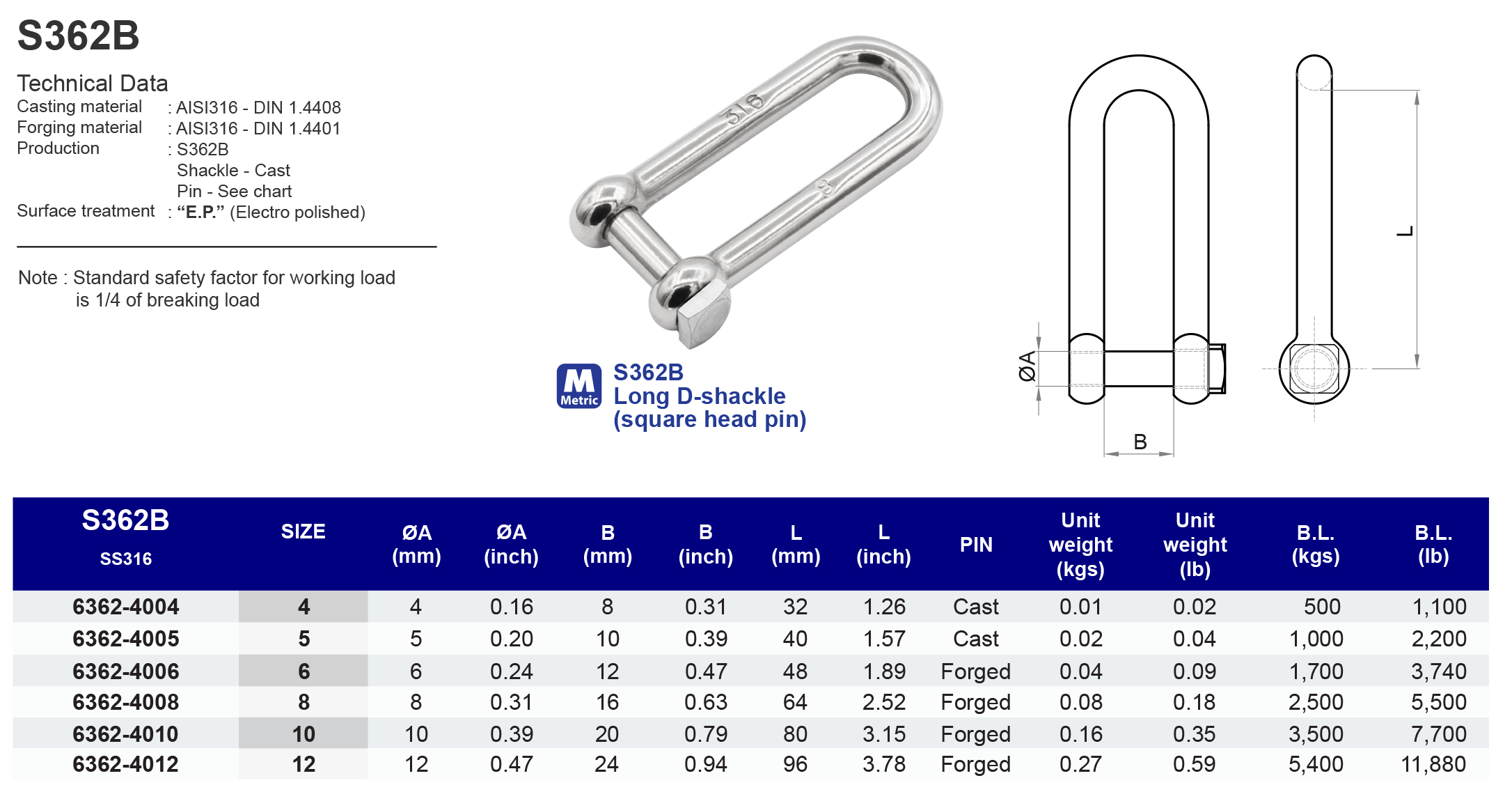

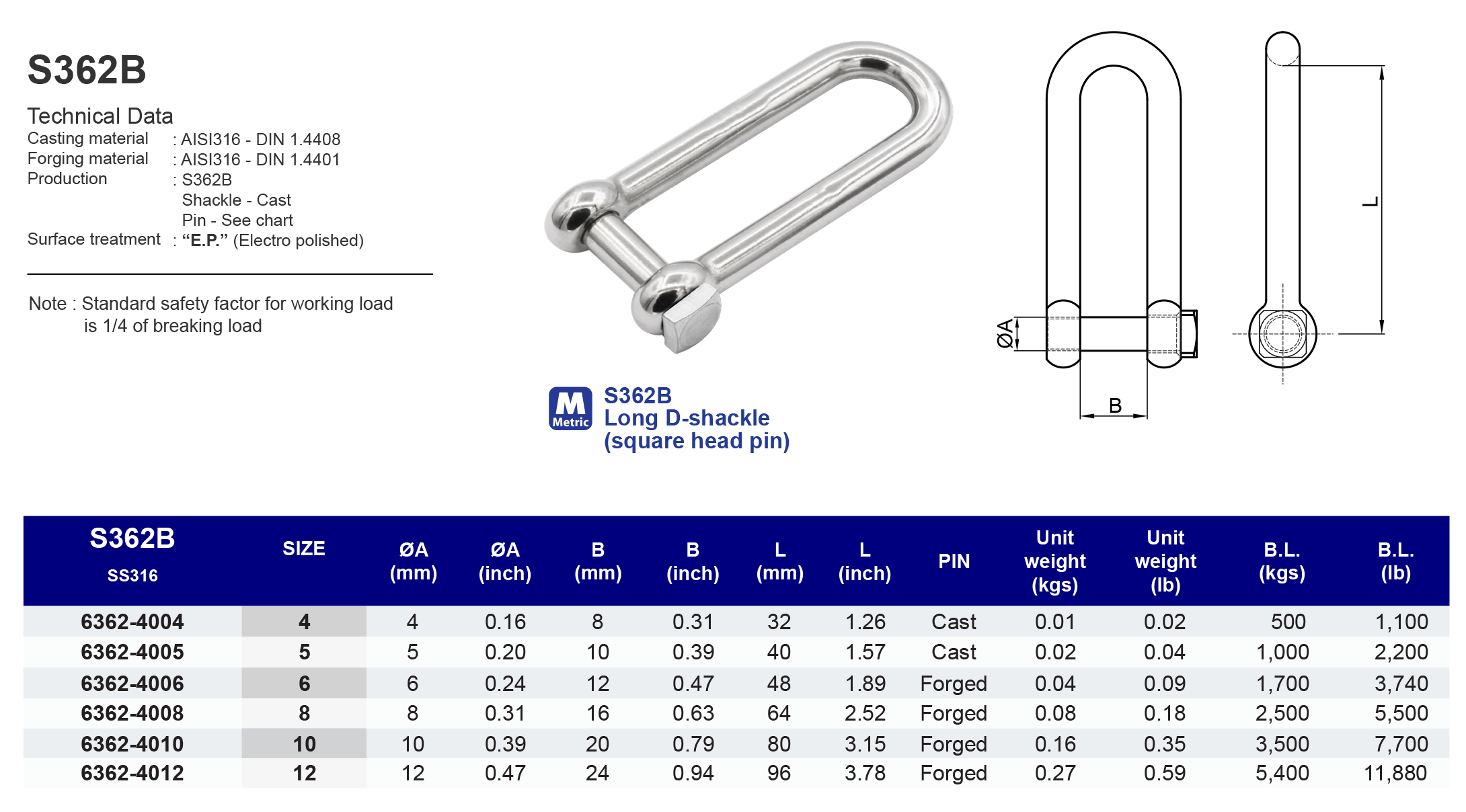

Model
S362B

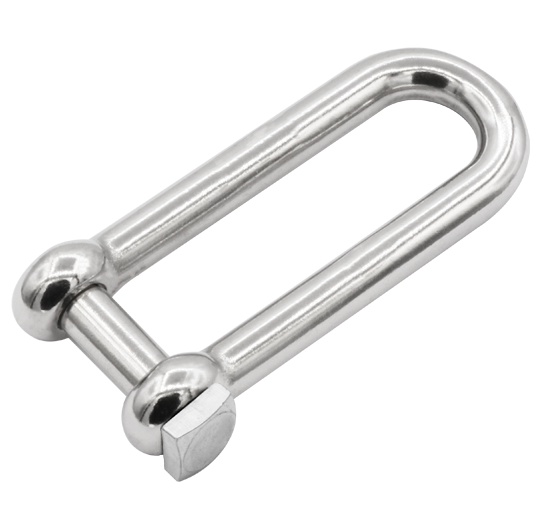

Long D-shackle (square head pin)
316 ss
| SS316 | Size | ØA (mm) | ØB (mm) | L (mm) | PIN | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 63624004 | 4 | 4 | 8 | 32 | Cast | 0.01 | 500 |
| 63624005 | 5 | 5 | 10 | 40 | Cast | 0.02 | 1,000 |
| 63624006 | 6 | 6 | 12 | 48 | Forged | 0.04 | 1,700 |
| 63624008 | 8 | 8 | 16 | 64 | Forged | 0.08 | 2,500 |
| 63624010 | 10 | 10 | 20 | 80 | Forged | 0.16 | 3,500 |
| 63624012 | 12 | 12 | 24 | 96 | Forged | 0.27 | 5,400 |
| SS316 | Size | ØA (inch) | ØB (inch) | L (inch) | PIN | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 63624004 | 5/32 | 0.16 | 0.31 | 1.26 | Cast | 0.02 | 1,100 |
| 63624005 | 3/16" | 0.20 | 0.39 | 1.57 | Cast | 0.04 | 2,200 |
| 63624006 | 1/4" | 0.24 | 0.47 | 1.89 | Forged | 0.09 | 3,740 |
| 63624008 | 5/16" | 0.31 | 0.63 | 2.52 | Forged | 0.18 | 5,500 |
| 63624010 | 3/8" | 0.39 | 0.79 | 3.15 | Forged | 0.35 | 7,700 |
| 63624012 | 1/2" | 0.47 | 0.94 | 3.78 | Forged | 0.59 | 11,880 |
