Description

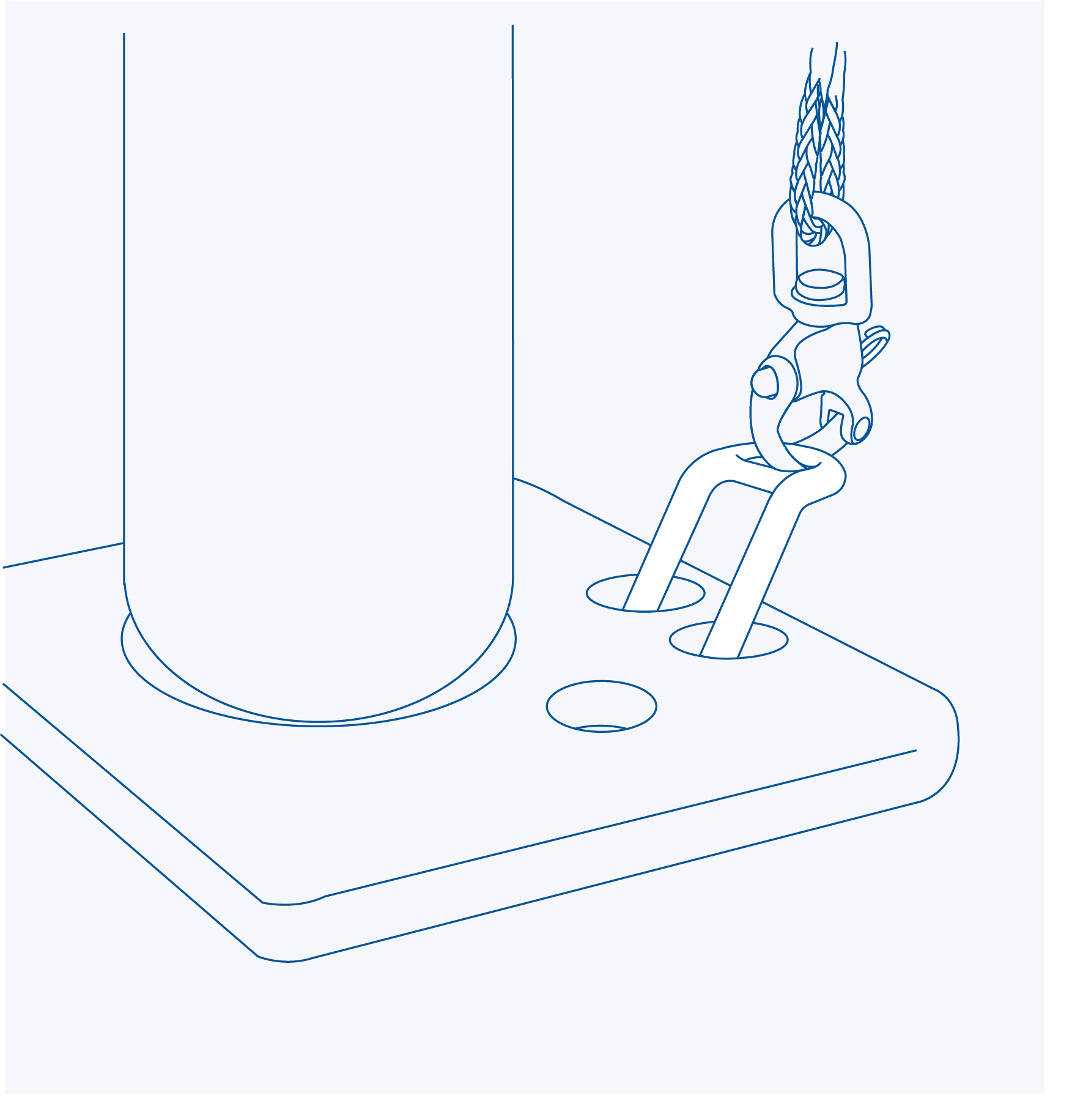

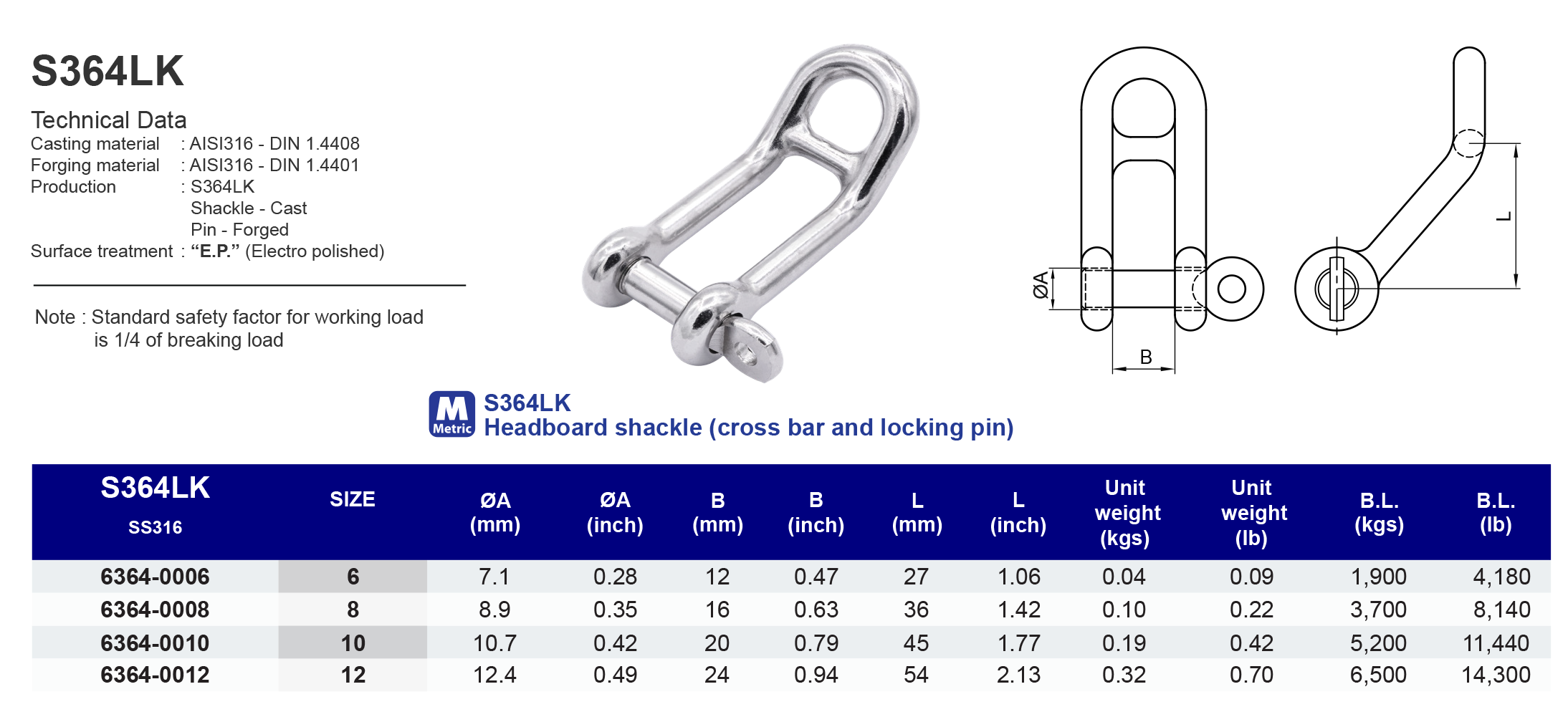

Technical Data
Casting Material : AISI316 - DIN 1.4408
Forging Material : AISI316 - DIN 1.4401
Production : Shackle - Cast , Pin - Forged
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD
Model

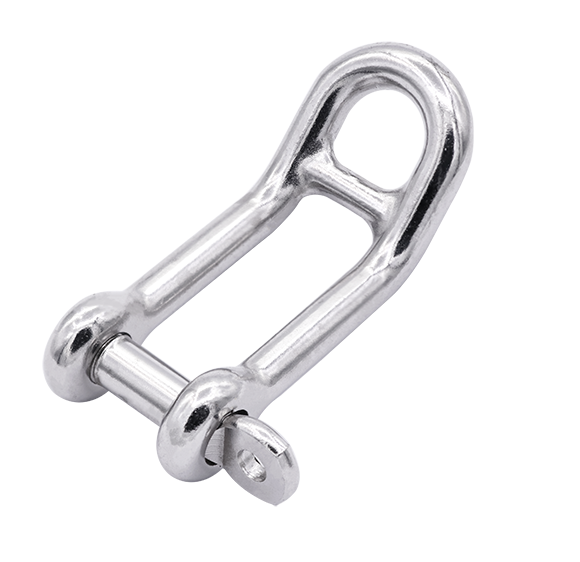

S364LK
Headboard shackle (cross bar and locking pin)
316 ss
| SS316 | Size | ØA (mm) | ØB (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 63640006 | 6 | 7.1 | 12 | 11.25 | 0.04 | 1,900 |
| 63640008 | 8 | 8.9 | 16 | 15.00 | 0.10 | 3,700 |
| 63640010 | 10 | 10.7 | 20 | 18.75 | 0.19 | 5,200 |
| 63640012 | 12 | 12.4 | 24 | 22.5 | 0.32 | 6,500 |
| SS316 | Size | ØA (inch) | ØB (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 63640006 | 6 | 0.28 | 0.47 | 0.44 | 0.09 | 4,180 |
| 63640008 | 8 | 0.35 | 0.63 | 0.59 | 0.22 | 8,140 |
| 63640010 | 10 | 0.42 | 0.79 | 0.74 | 0.42 | 11,440 |
| 63640012 | 12 | 0.49 | 0.94 | 0.89 | 0.70 | 14,300 |
