Description

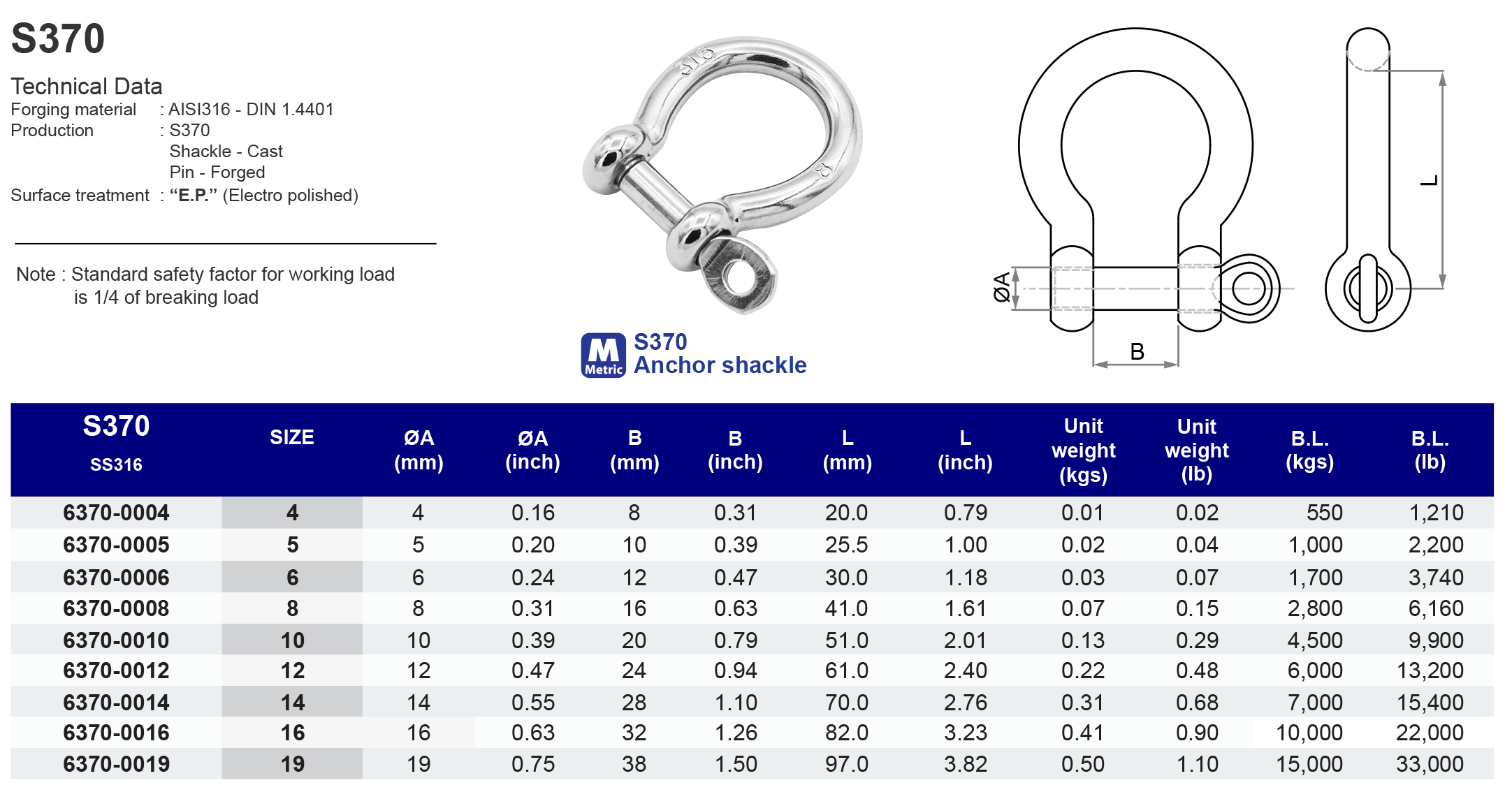

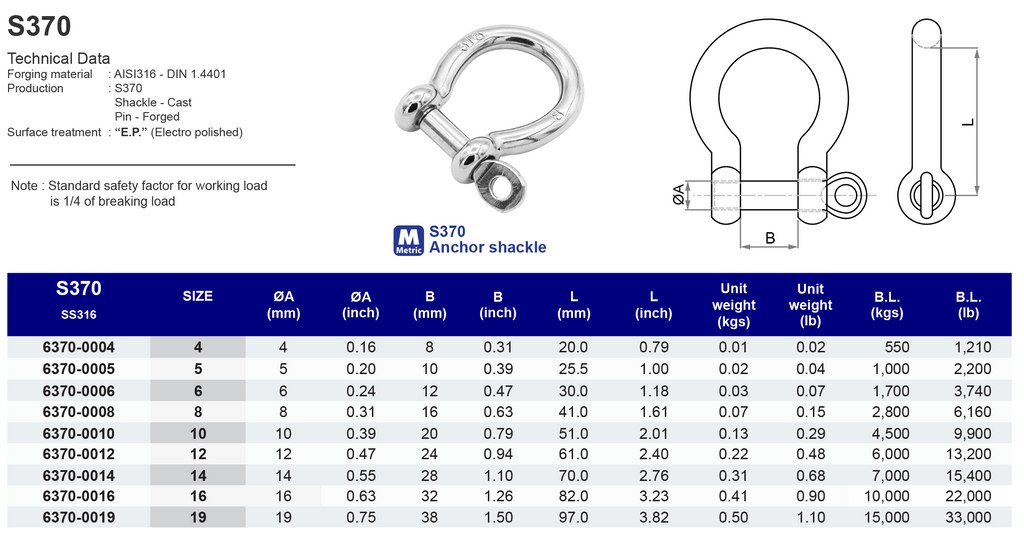

Technical Data:
Forging Material: AISI316 - DIN 1.4401
Production: S370 - Shackle - Cast
Pin - Forged
Surface Treatment: “E.P.” (Electro polished)
Model
S370
Anchor shackle
316 ss
![Kinzi 316 Kinzi 316](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/316-ss.png)
![S370 drawing S370 drawing](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/S370_DiagramV1.png)

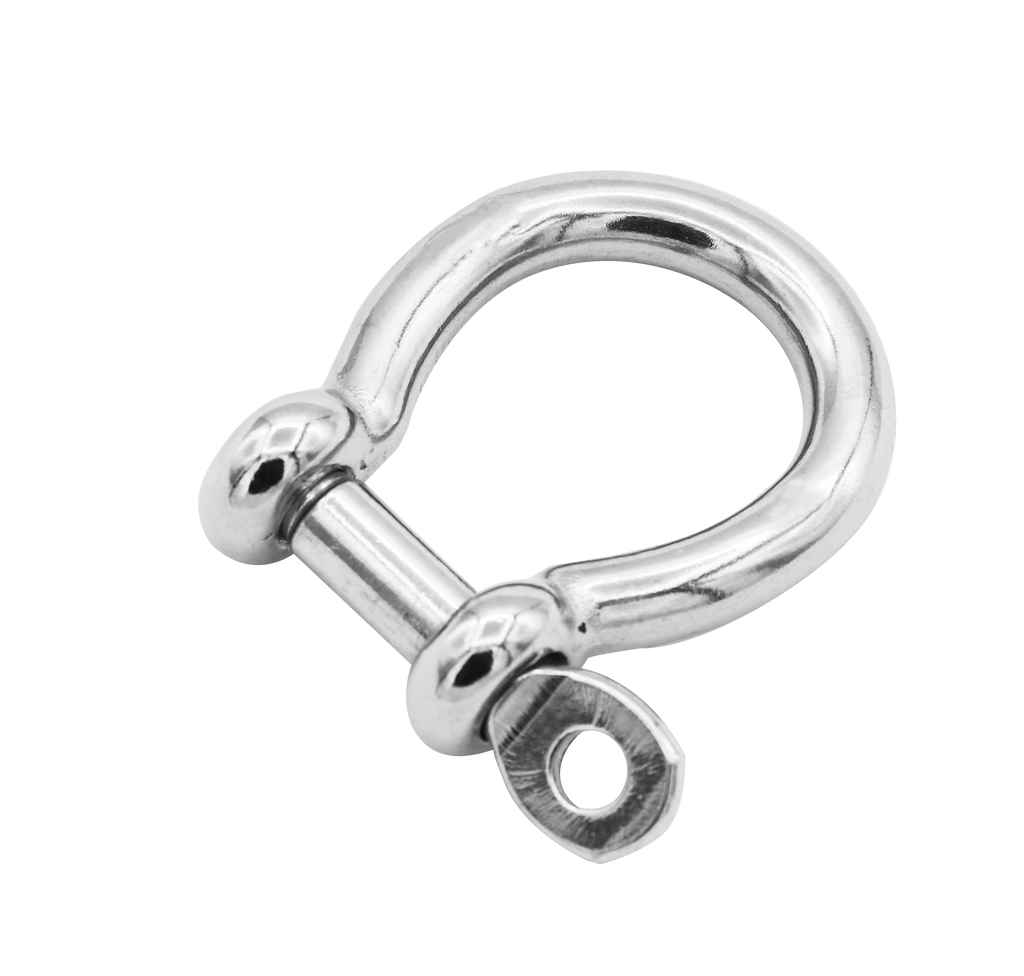

![S370 image S370 image](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/S370_ImageV1.png)
SS316 | Size | ØA (mm) | ØB (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
---|---|---|---|---|---|---|
63700004 | 4 | 4 | 8 | 20 | 0.01 | 550 |
63700005 | 5 | 5 | 10 | 25.5 | 0.02 | 1,000 |
63700006 | 6 | 6 | 12 | 30 | 0.03 | 1,700 |
63700008 | 8 | 8 | 16 | 41 | 0.07 | 2,800 |
63700010 | 10 | 10 | 20 | 51 | 0.13 | 4,500 |
63700012 | 12 | 12 | 24 | 61 | 0.22 | 6,000 |
63700014 | 14 | 14 | 28 | 70 | 0.31 | 7,000 |
63700016 | 16 | 16 | 32 | 82 | 0.41 | 10,000 |
63700019 | 19 | 19 | 38 | 97 | 0.50 | 15,000 |
SS316 | Size | ØA (inch) | ØB (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
---|---|---|---|---|---|---|
63700004 | 5/32" | 0.16 | 0.31 | 0.79 | 0.02 | 1,210 |
63700005 | 3/16" | 0.20 | 0.39 | 1.00 | 0.04 | 2,200 |
63700006 | 1/4" | 0.24 | 0.47 | 1.18 | 0.07 | 3,740 |
63700008 | 5/16" | 0.31 | 0.63 | 1.61 | 0.15 | 6,160 |
63700010 | 3/8" | 0.39 | 0.79 | 2.01 | 0.29 | 9,900 |
63700012 | 1/2" | 0.47 | 0.94 | 2.40 | 0.48 | 13,200 |
63700014 | 9/16" | 0.55 | 1.10 | 2.76 | 0.68 | 15,400 |
63700016 | 5/8" | 0.63 | 1.26 | 3.23 | 0.90 | 22,000 |
63700019 | 3/4" | 0.75 | 1.50 | 3.82 | 1.10 | 33,000 |
