Description
Technical Data
Casting Material : AISI316 - DIN 1.4408
Forging Material : AISI316 - DIN 1.4401
Production : Shackle - Cast , Pin - See chart
Surface Treatment : “E.P.” (Electro polished)
DATA SHEET DOWNLOAD

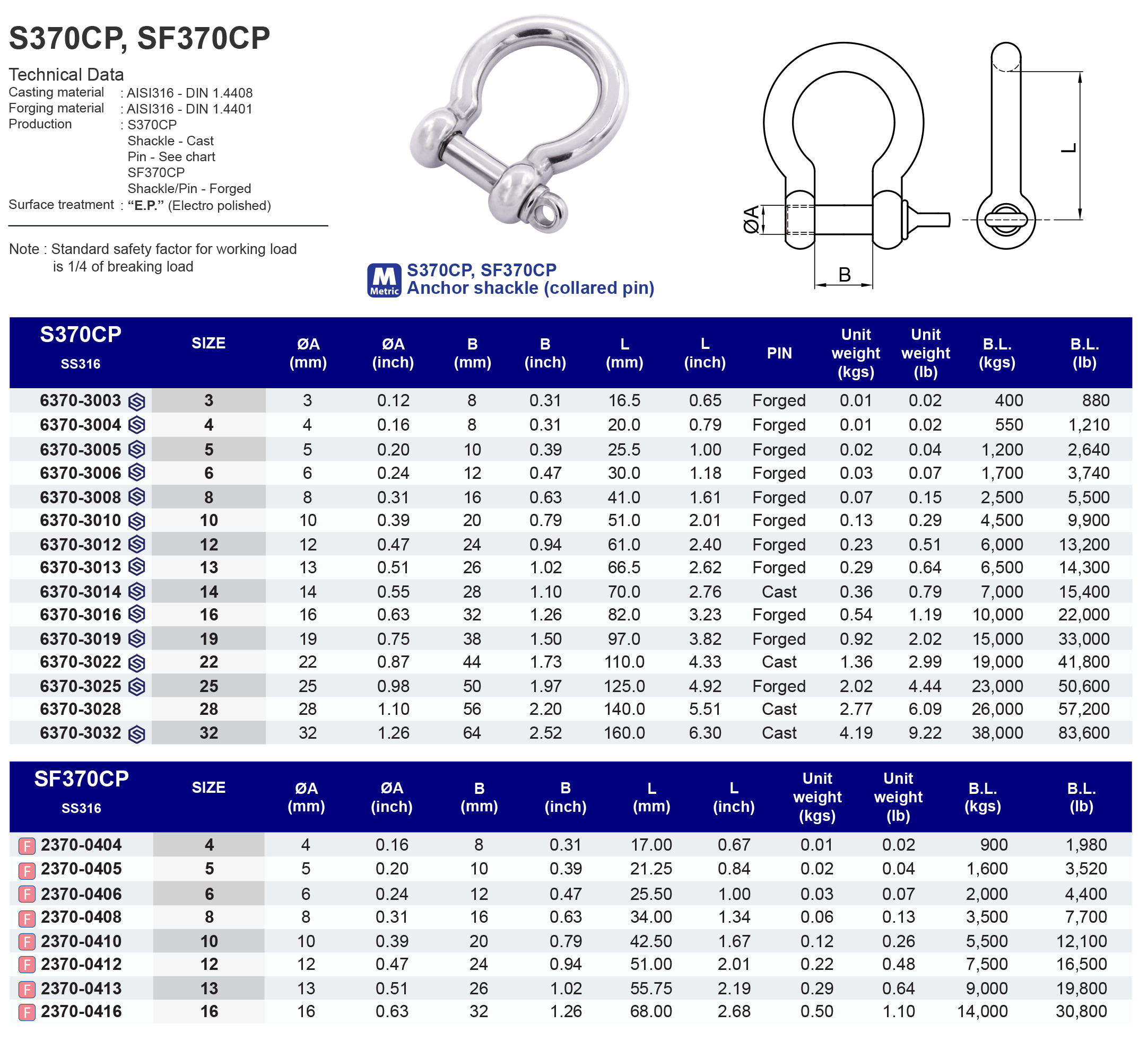

Model
S370CP
Bow-Shackle Collared Pin
316 ss
| SS316 | Size | ØA(mm) | ØB(mm) | L(mm) | PIN | Unit weight (kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|---|
| 63703003 | 3 | 3 | 8 | 0.65 | Forged | 0.01 | 400 |
| 63703004 | 4 | 4 | 8 | 0.79 | Forged | 0.01 | 550 |
| 63703005 | 5 | 5 | 10 | 1.00 | Forged | 0.02 | 1,200 |
| 63703006 | 6 | 6 | 12 | 1.18 | Forged | 0.03 | 1,700 |
| 63703008 | 8 | 8 | 16 | 1.61 | Forged | 0.07 | 2,500 |
| 63703010 | 10 | 10 | 20 | 2.01 | Forged | 0.13 | 4,500 |
| 63703012 | 12 | 12 | 24 | 2.40 | Forged | 0.23 | 6,000 |
| 63703013 | 13 | 13 | 26 | 2.62 | Forged | 0.29 | 6,500 |
| 63703014 | 14 | 14 | 28 | 2.76 | Cast | 0.36 | 7,000 |
| 63703016 | 16 | 16 | 32 | 3.23 | Forged | 0.54 | 10,000 |
| 63703019 | 19 | 19 | 38 | 3.82 | Forged | 0.92 | 15,000 |
| 63703022 | 22 | 22 | 44 | 4.33 | Cast | 1.36 | 19,000 |
| 63703025 | 25 | 25 | 50 | 4.92 | Forged | 2.02 | 23,000 |
| 63703028 | 28 | 28 | 56 | 5.51 | Cast | 2.77 | 26,000 |
| 63703032 | 32 | 32 | 64 | 6.30 | Cast | 4.19 | 38,000 |
| SS316 | Size | ØA(inch) | ØB(inch) | L(inch) | PIN | Unit weight(lb) | B.L.(lb) |
|---|---|---|---|---|---|---|---|
| 63703003 | 1/8" | 0.12 | 0.31 | 0.65 | Forged | 0.02 | 880 |
| 63703004 | 5/32" | 0.16 | 0.31 | 0.79 | Forged | 0.02 | 1,210 |
| 63703005 | 3/16" | 0.20 | 0.39 | 1.00 | Forged | 0.04 | 2,640 |
| 63703006 | 1/4" | 0.24 | 0.47 | 1.18 | Forged | 0.07 | 3,740 |
| 63703008 | 5/16" | 0.31 | 0.63 | 1.61 | Forged | 0.15 | 5,500 |
| 63703010 | 3/8" | 0.39 | 0.79 | 2.01 | Forged | 0.29 | 9,900 |
| 63703012 | 15/32" | 0.47 | 0.94 | 2.40 | Forged | 0.51 | 13,200 |
| 63703013 | 1/2" | 0.51 | 1.02 | 2.62 | Forged | 0.64 | 14,300 |
| 63703014 | 9/16" | 0.55 | 1.10 | 2.76 | Cast | 0.79 | 15,400 |
| 63703016 | 5/8" | 0.63 | 1.26 | 3.23 | Forged | 1.19 | 22,000 |
| 63703019 | 3/4" | 0.75 | 1.50 | 3.82 | Forged | 2.02 | 33,000 |
| 63703022 | 7/8" | 0.87 | 1.73 | 4.33 | Cast | 2.99 | 41,800 |
| 63703025 | 1" | 0.98 | 1.97 | 4.92 | Forged | 4.44 | 50,600 |
| 63703028 | 1-1/8" | 1.10 | 2.20 | 5.51 | Cast | 6.09 | 57,200 |
| 63703032 | 1-1/4" | 1.26 | 2.52 | 6.30 | Cast | 9.22 | 83,600 |
