Description
Technical Data
Casting Material : AISI316 - DIN 1.4408
Forging Material : AISI316 - DIN 1.4401
Production : Shackle - Cast , Pin - Forged
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 breaking load
DATA SHEET DOWNLOAD
Model
S380CP

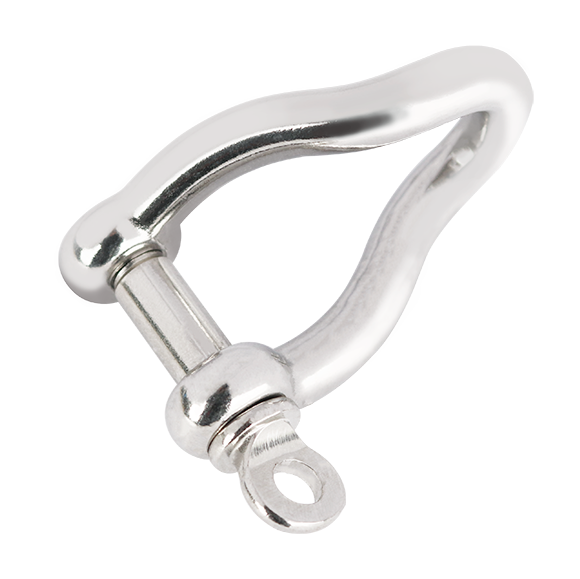

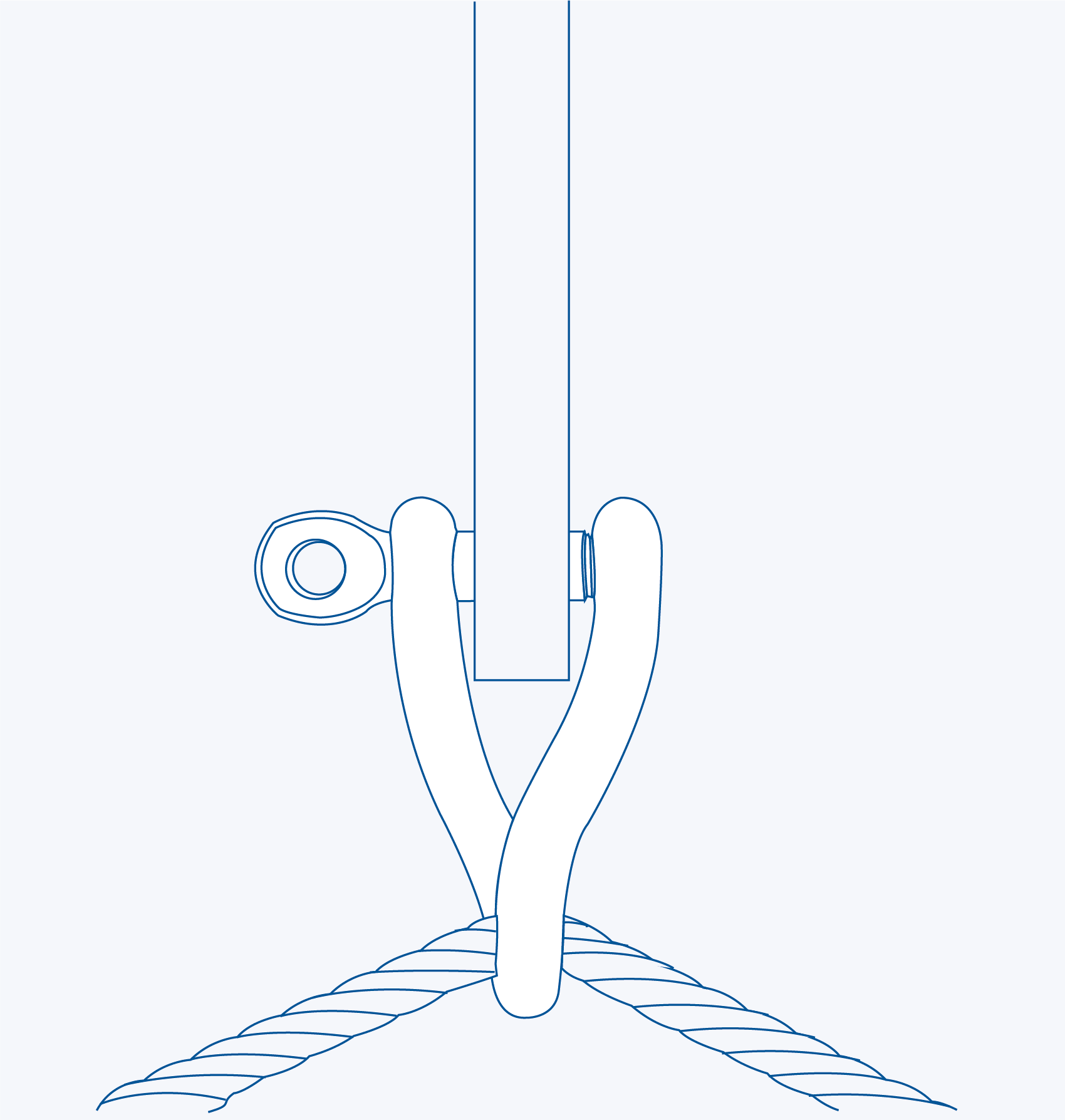

Twist shackle (collared pin)
316 ss

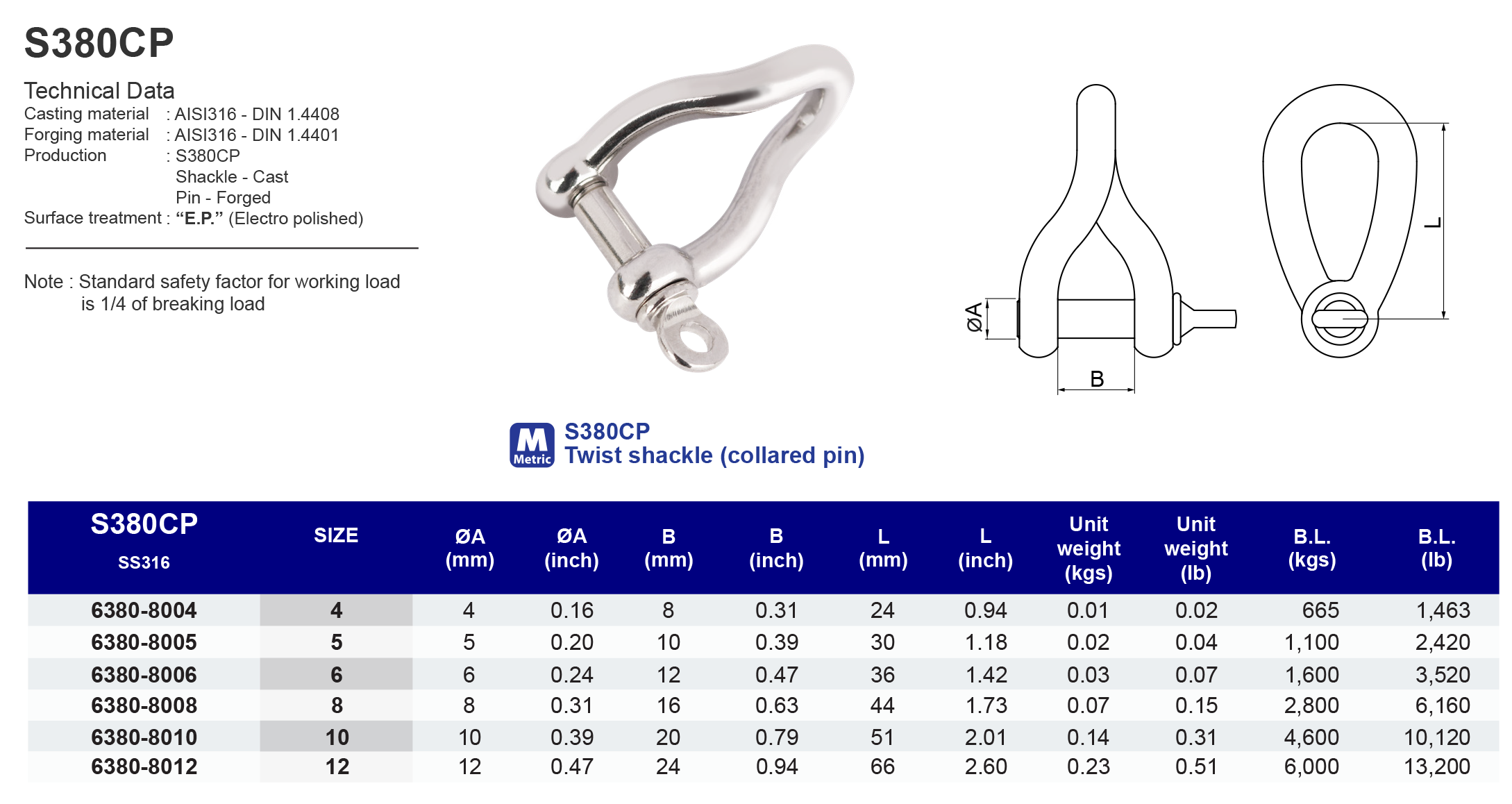

| SS316 | Size | ØA (mm) | ØB (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 63808004 | 4 | 4 | 8 | 24 | 0.01 | 665 |
| 63808005 | 5 | 5 | 10 | 30 | 0.02 | 1,100 |
| 63808006 | 6 | 6 | 12 | 36 | 0.03 | 1,600 |
| 63808008 | 8 | 8 | 16 | 44 | 0.07 | 2,800 |
| 63808010 | 10 | 10 | 20 | 51 | 0.14 | 4,600 |
| 63808012 | 12 | 12 | 24 | 66 | 0.23 | 6,000 |
| SS316 | Size | ØA (inch) | ØB (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 63808004 | 5/32" | 0.16 | 0.31 | 0.94 | 0.02 | 1,463 |
| 63808005 | 3/16" | 0.20 | 0.39 | 1.18 | 0.04 | 2,420 |
| 63808006 | 1/4" | 0.24 | 0.47 | 1.42 | 0.07 | 3,520 |
| 63808008 | 5/16" | 0.31 | 0.63 | 1.73 | 0.15 | 6,160 |
| 63808010 | 3/8" | 0.39 | 0.79 | 2.01 | 0.31 | 10,120 |
| 63808012 | 1/2" | 0.47 | 0.94 | 2.60 | 0.51 | 13,200 |
