Description
Technical Data
Casting Material : AISI316 - DIN 1.4408
Production : Hook - Cast , Swivel - Cast
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

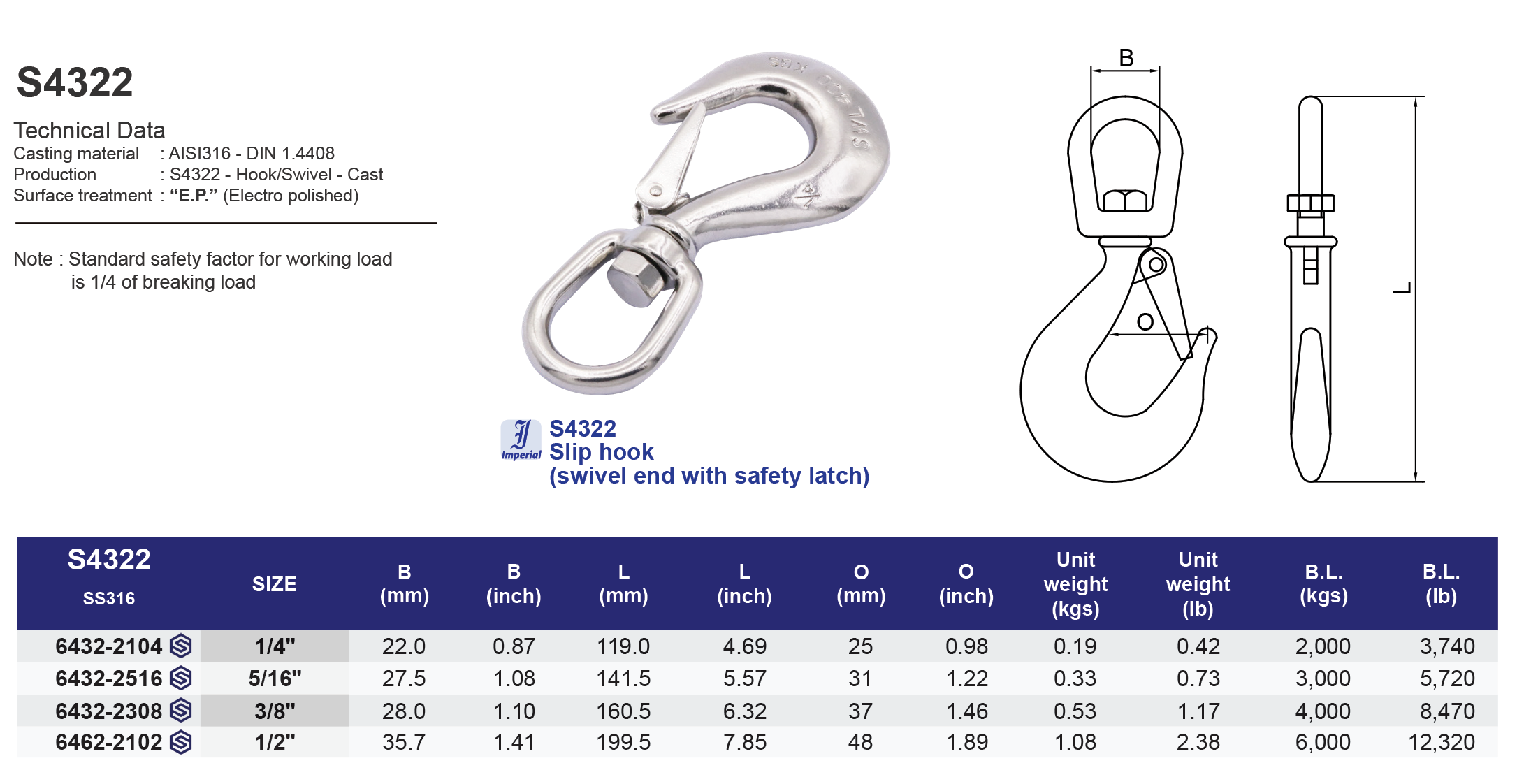

Model
S4322

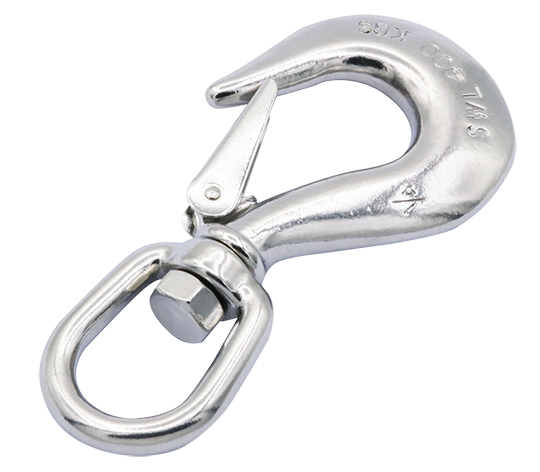

Slip hook (swivel end with safety latch)
316 ss
| SS316 | Size | B (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 64322104 | 1/4" | 22.0 | 119 | 22.5 | 0.19 | 2,000 |
| 64322516 | 5/16" | 27.5 | 141.5 | 24.0 | 0.33 | 3,000 |
| 64322308 | 3/8" | 28.0 | 160.5 | 28.5 | 0.53 | 4,000 |
| 64622102 | 1/2" | 35.7 | 199.5 | 36.0 | 1.08 | 6,000 |
| SS316 | Size | B (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 64322104 | 1/4" | 0.87 | 4.69 | 0.89 | 0.42 | 3,740 |
| 64322516 | 5/16" | 1.08 | 5.57 | 0.94 | 0.73 | 5,720 |
| 64322308 | 3/8" | 1.10 | 6.32 | 1.12 | 1.17 | 8,470 |
| 64622102 | 1/2" | 1.41 | 7.85 | 1.42 | 2.38 | 12,320 |
