Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production: S506L, S506R - Chocks - Cast
Surface Treatment:“M.P.” (Mirror polished) DATA SHEET DOWNLOAD

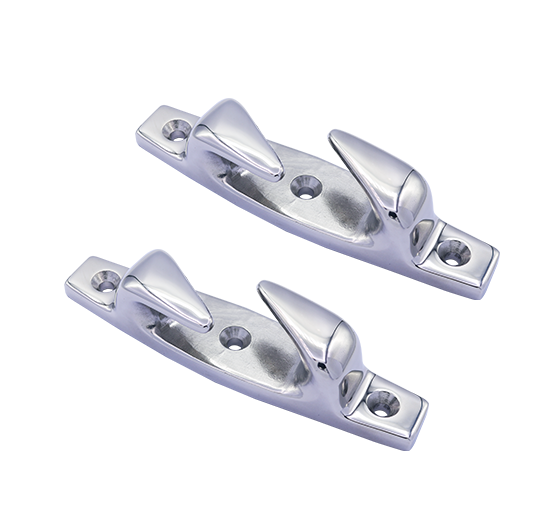

Model
S506R
Pull up cleat
316 ss

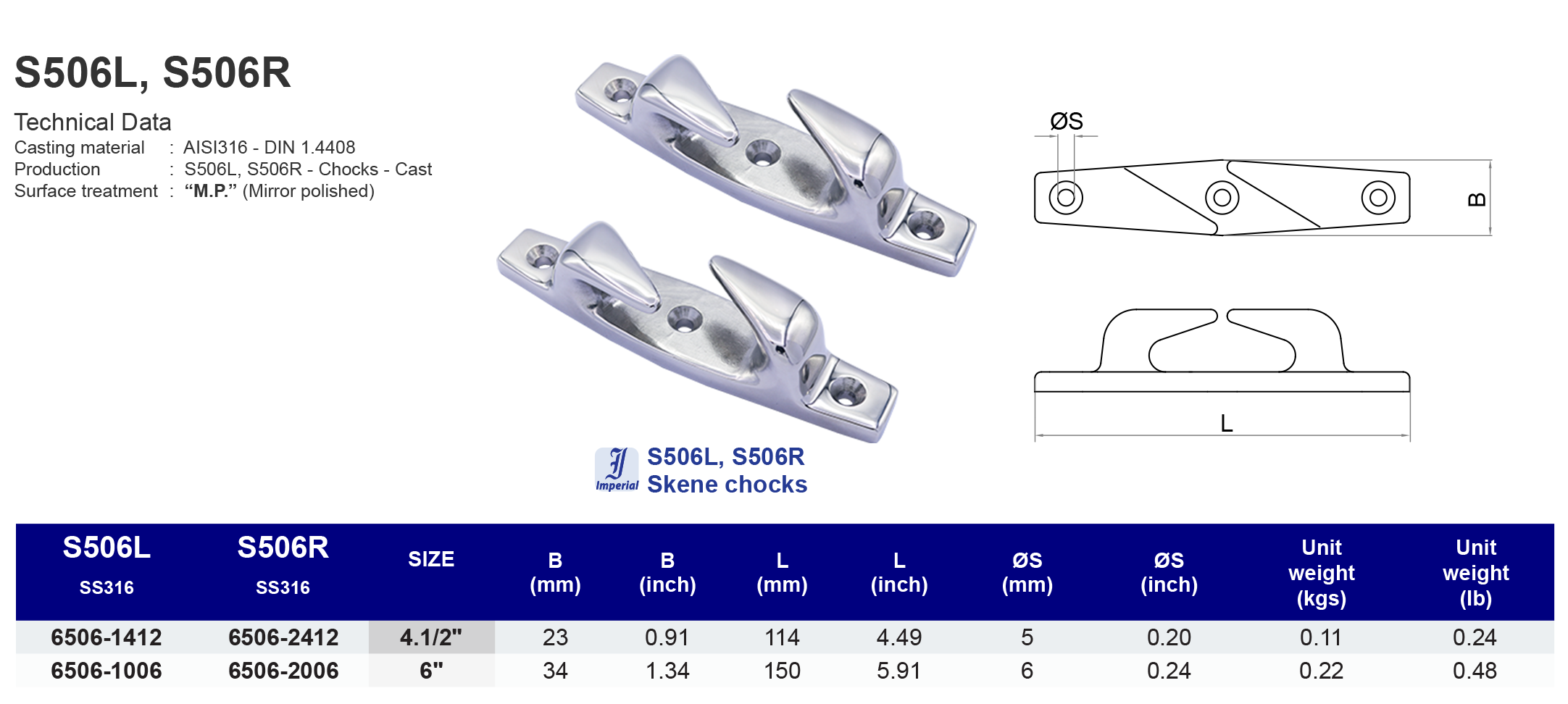

| SS316 | SIZE | B (mm) | L (mm) | ØS (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|
| 65062412 | 4.1/2" | 23 | 114 | 5 | 0.11 |
| 65062006 | 6" | 34 | 150 | 6 | 0.22 |
| SS316 | SIZE | B (inch) | L (inch) | ØS (inch) | Unit weight (lb) |
|---|---|---|---|---|---|
| 65062412 | 4.1/2" | 0.91 | 4.49 | 0.20 | 0.24 |
| 65062006 | 6" | 1.34 | 5.91 | 0.24 | 0.48 |
