Description

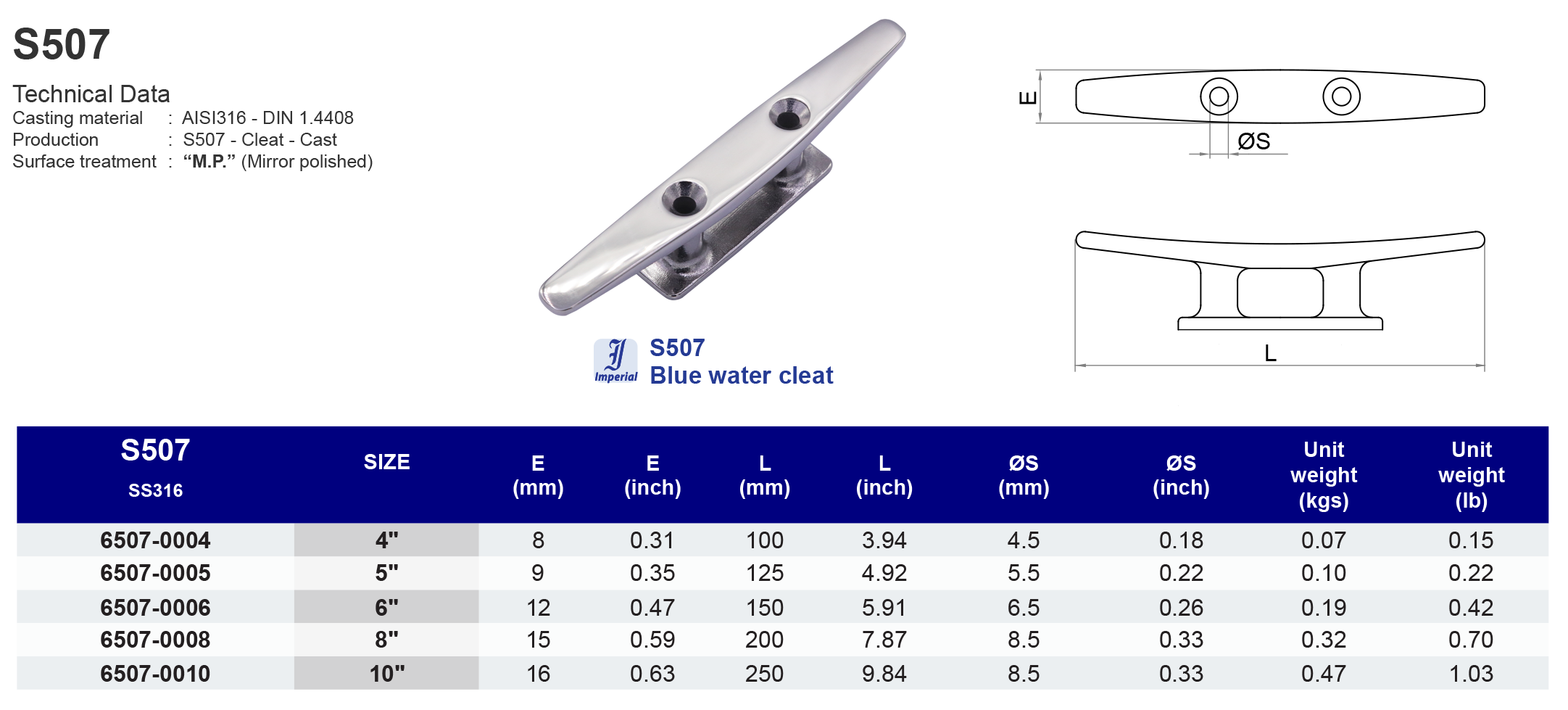

Technical Data:
Casting Material:
AISI316 - DIN 1.4408
Production:
S507 - Cleat - Cast
Surface Treatment:
“M.P.” (Mirror polished)

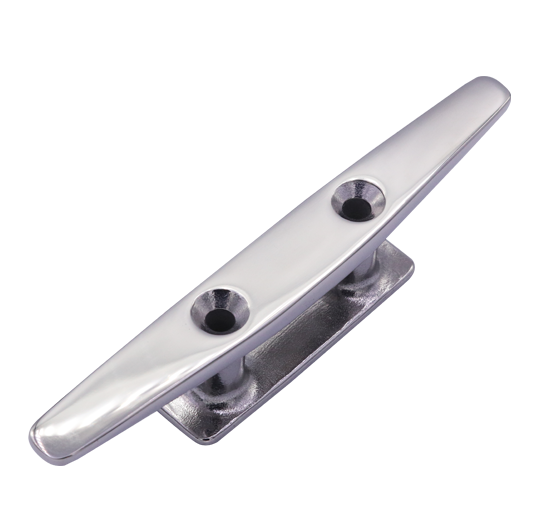

Model
S507
Blue water cleat
316 ss
| SS316 | SIZE | E (mm) | L (mm) | ØS (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|
| 65070004 | 4" | 8 | 100 | 4.5 | 0.07 |
| 65070005 | 5" | 9 | 125 | 5.5 | 0.10 |
| 65070006 | 6" | 12 | 150 | 6.5 | 0.19 |
| 65070008 | 8" | 15 | 200 | 8.5 | 0.32 |
| 65070010 | 10" | 16 | 250 | 8.5 | 0.47 |
| SS316 | SIZE | E (inch) | L (inch) | ØS (inch) | Unit weight (lb) |
|---|---|---|---|---|---|
| 65070004 | 4" | 0.31 | 3.94 | 0.18 | 0.15 |
| 65070005 | 5" | 0.35 | 4.92 | 0.22 | 0.22 |
| 65070006 | 6" | 0.47 | 5.91 | 0.26 | 0.42 |
| 65070008 | 8" | 0.59 | 7.87 | 0.33 | 0.70 |
| 65070010 | 10" | 0.63 | 9.84 | 0.33 | 1.03 |
