Description
Technical Data:
Forging Material: AISI 316 - DIN 1.4401
Surface Treatment: Electro Polished

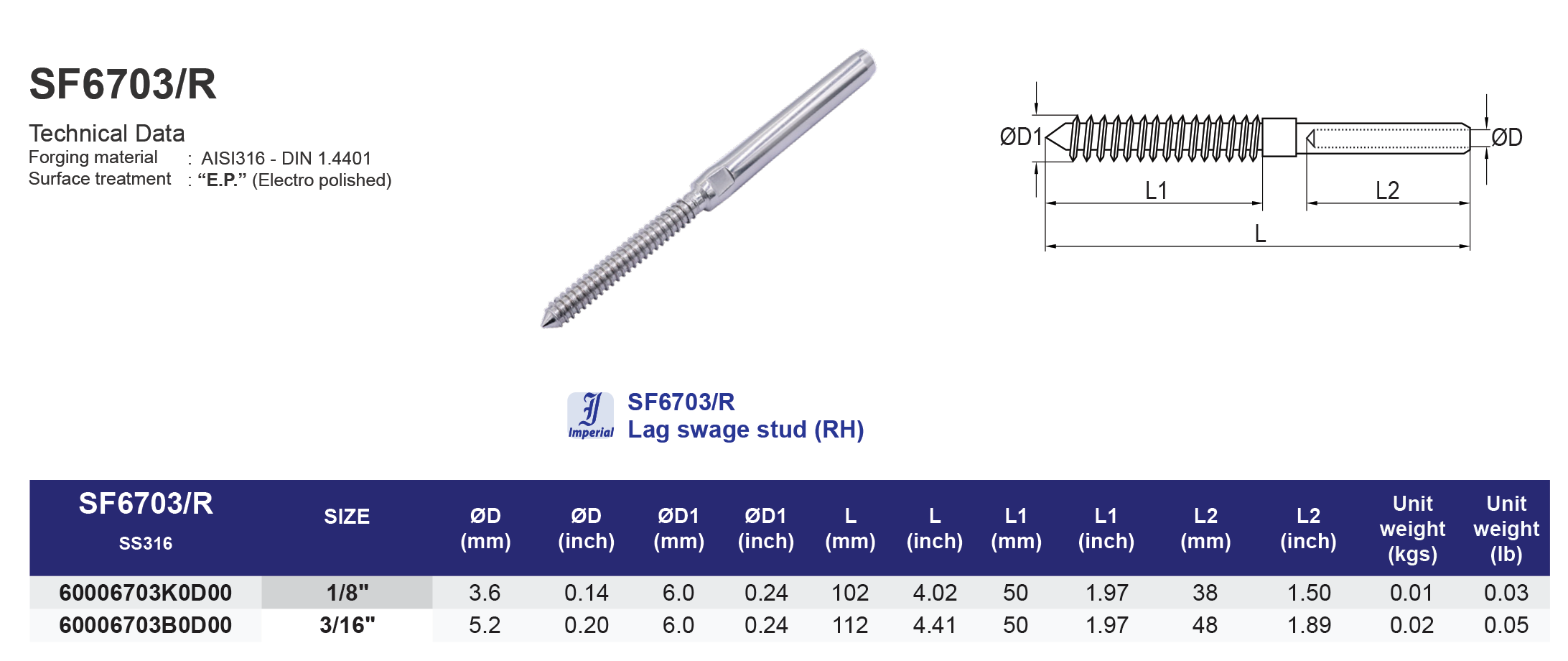

Model

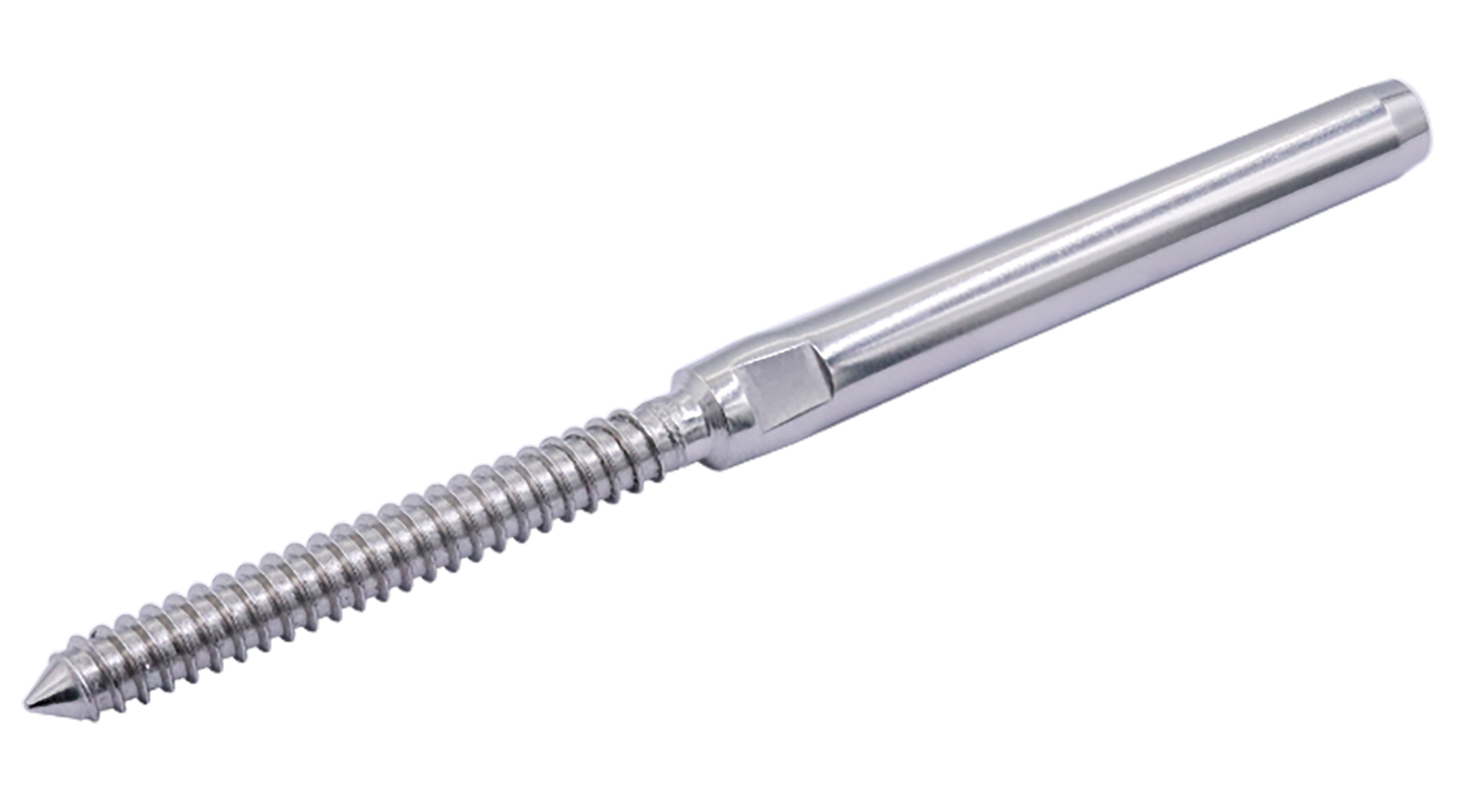

S6703R
Hand swage Lag swage stud (RH)
316 ss
| SS316 | Size | ØD(mm) | L(mm) | L1 (mm) | L2 (mm) | M(thread) | Weight (kgs) |
|---|---|---|---|---|---|---|---|
| 60006703K0D00 | 1/8" | 1/8" | 97.03 | 48.01 | 38.10 | 1/4" | 0.01 |
| 60006703B0D00 | 3/16" | 3/16" | 128.02 | 60.96 | 52.07 | 3/8" | 0.02 |
| SS316 | Size | ØD(inch) | L(inch) | L1 (inch) | L2(inch) | M(thread) | Weight (lb) |
|---|---|---|---|---|---|---|---|
| 60006703K0D00 | 1/8" | 1/8" | 3.82 | 1.89 | 1.50 | 1/4" | 0.03 |
| 60006703B0D00 | 3/16" | 3/16" | 5.04 | 2.40 | 2.05 | 3/8" | 0.05 |
