Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Forging Material: AISI 316 - DIN 1.4401
Production:
Swage Cast
Toggle Forged
Surface Treatment: Electro Polished
Model

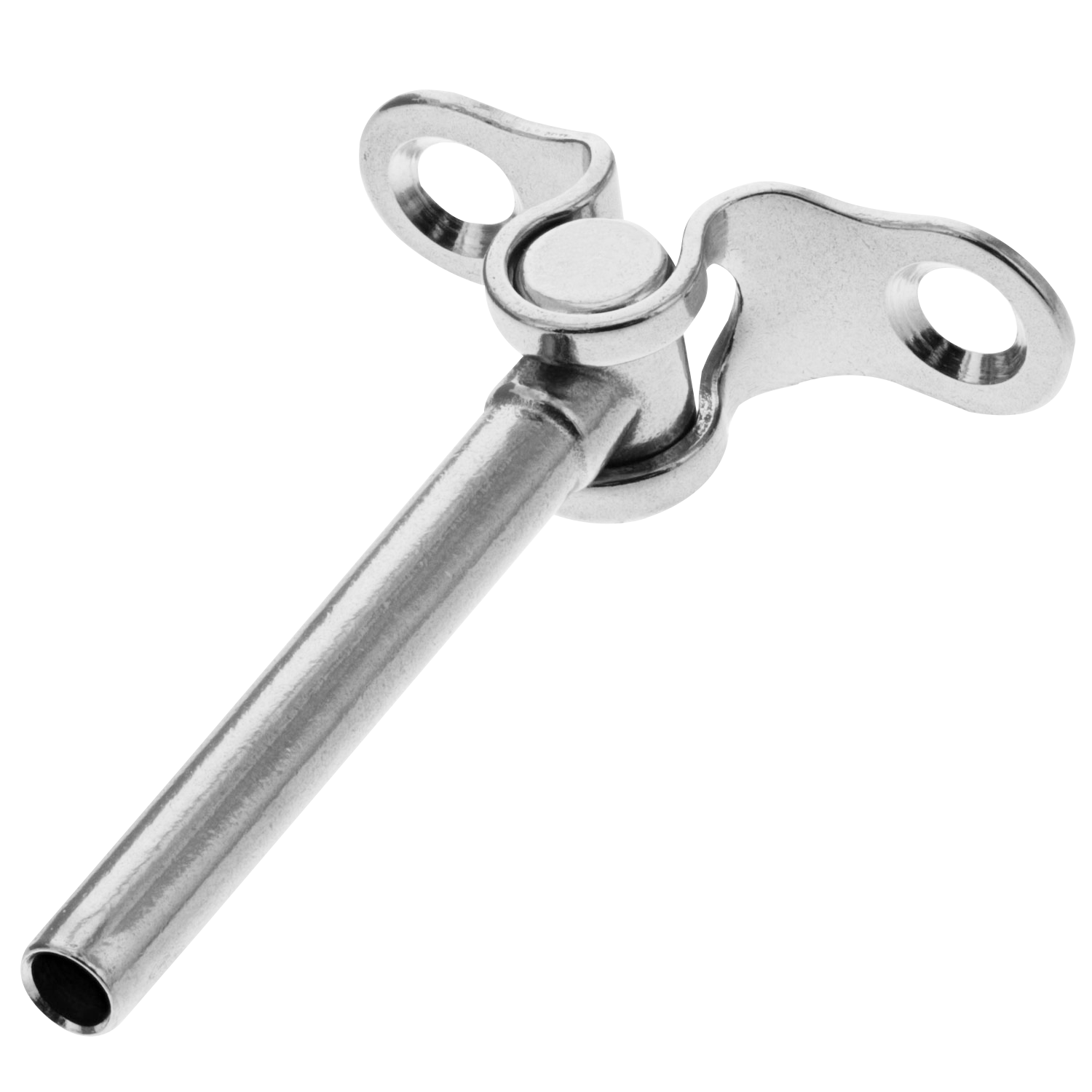

S7805D/DS2
Hand swage wall mount toggle
316 ss
| SS316 | Size | A(mm) | ØD(mm) | L(mm) | ØS(mm) | Weight (kgs) |
|---|---|---|---|---|---|---|
| 67805DDS10800 | 1/8" | 32.51 | 1/8" | 75.44 | 6.60 | 0.03 |
| 67805DDS31600 | 3/16" | 32.51 | 3/16" | 72.39 | 6.60 | 0.03 |
| SS316 | Size | A(inch) | ØD(inch) | L(inch) | ØS(inch) | Weight (lb) |
|---|---|---|---|---|---|---|
| 67805DDS10800 | 1/8" | 1.28 | 1/8" | 2.97 | 0.26 | 0.07 |
| 67805DDS31600 | 3/16" | 1.28 | 3/16" | 2.85 | 0.26 | 0.08 |
