Description
Technical Data
Casting Material : AISI304 - DIN 1.4301
Production : Snap - Cast
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

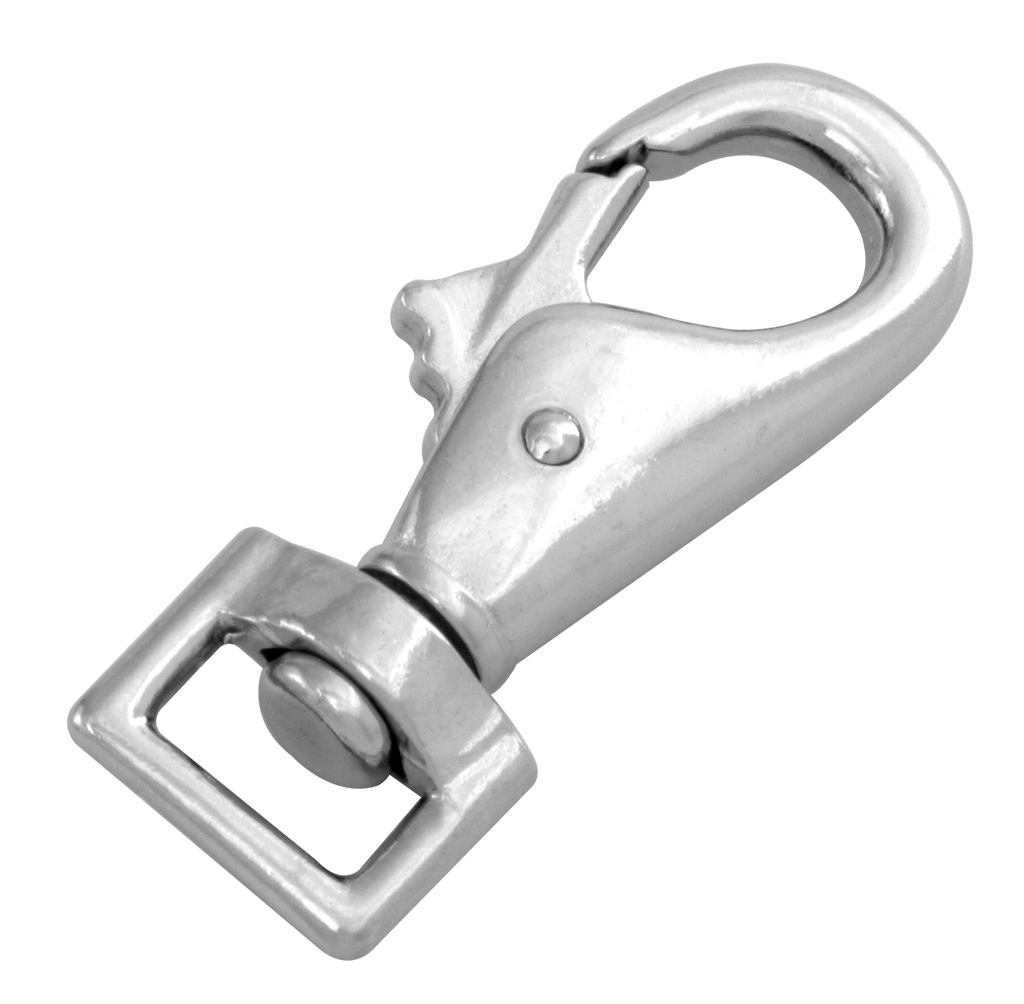

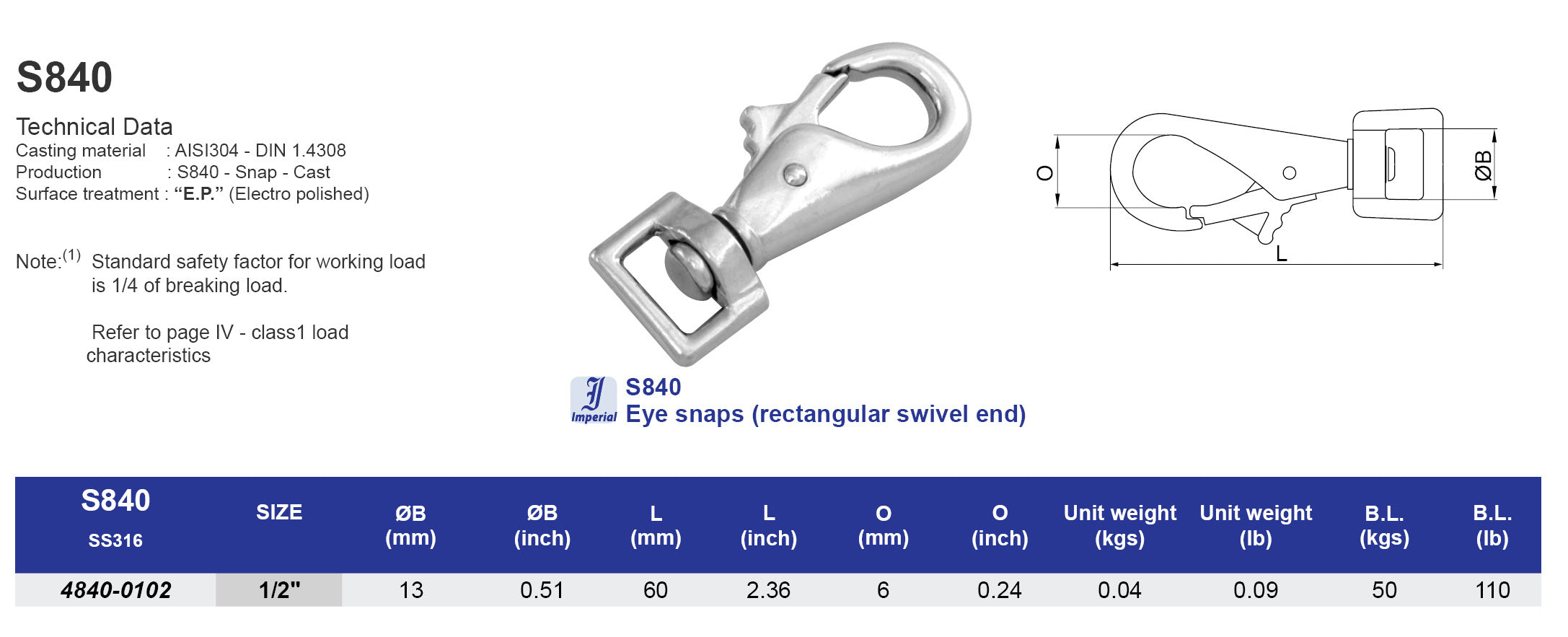

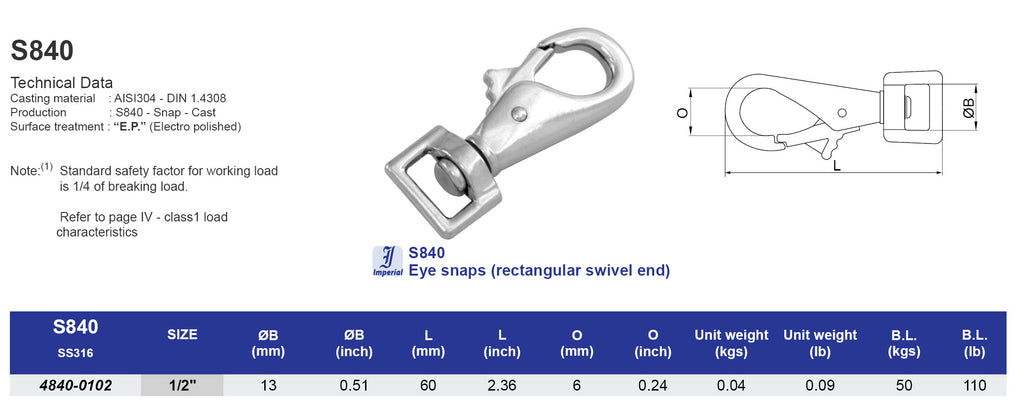

Model
S840
Eye Snaps
304 ss
| SS304 | Size | ØB(mm) | L(mm) | O(mm) | Weight(kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|
| 48400102 | 1/2" | 13 | 60 | 6 | 0.04 | 50 |
| SS304 | Size | ØB(inch) | L(inch) | O(inch) | Weight(Ib) | B.L.(lb) |
|---|---|---|---|---|---|---|
| 48400102 | 1/2" | 0.51 | 2.36 | 0.24 | 0.09 | 28 |
