Description
Technical Data
Casting Material : AISI316 - DIN 1.4408
Production : Hook - Cast
Surface Treatment : “M.P.” (Mirror polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

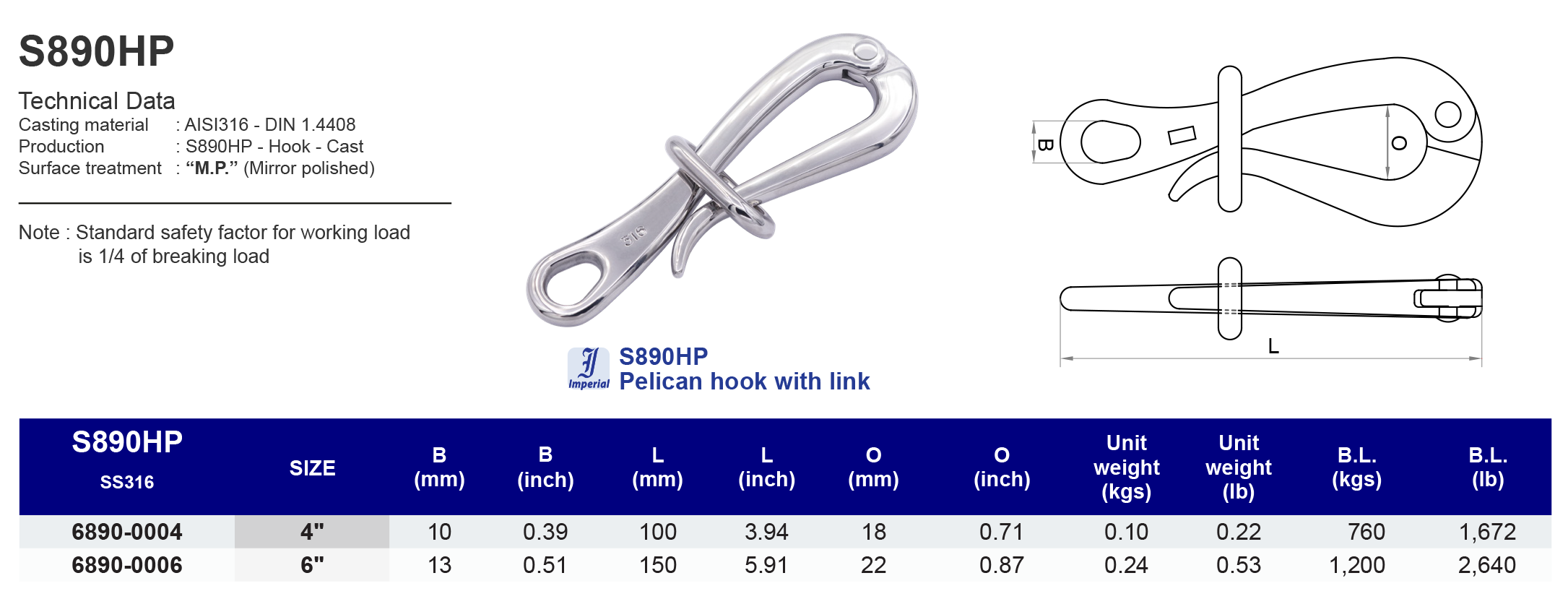

Model
S890HP

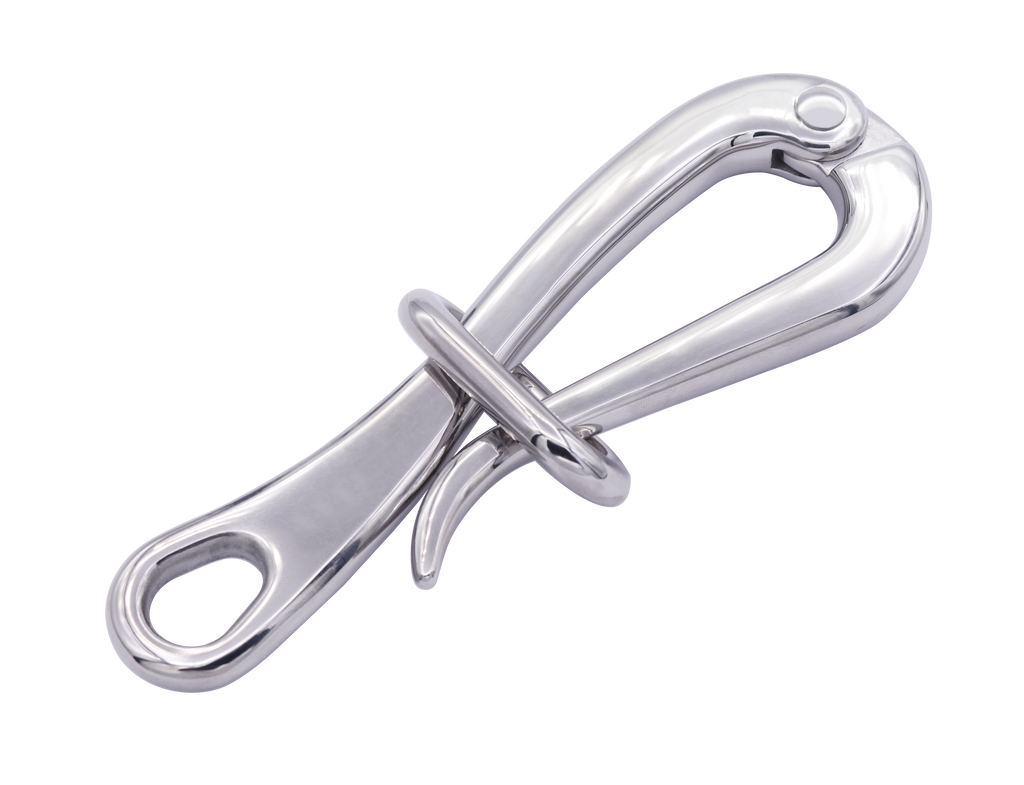

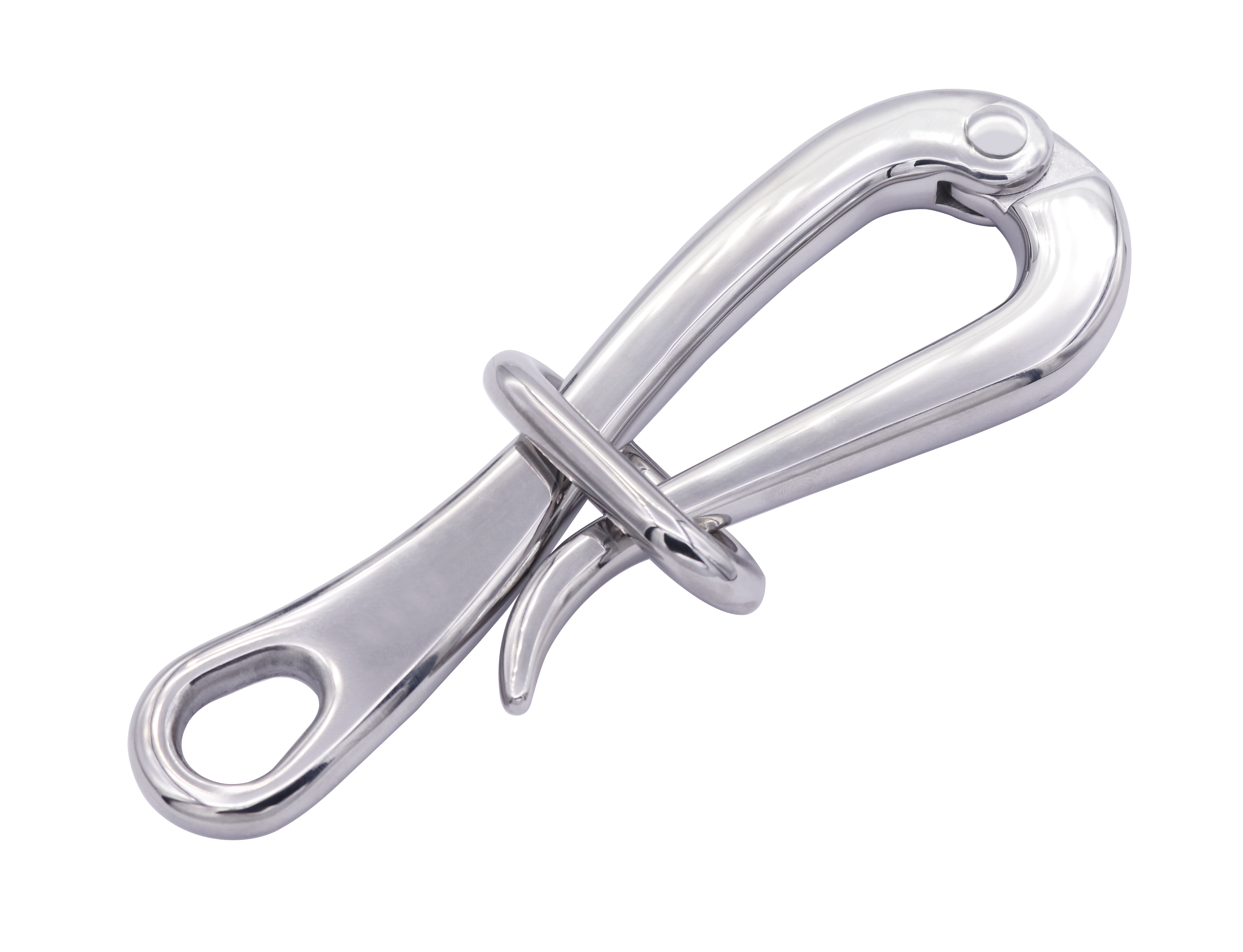

Pelican hook with link
316 ss
| SS316 | Size | B (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 68900004 | 4" | 10 | 100 | 18 | 0.1 | 760 |
| 68900006 | 6" | 13 | 150 | 22 | 0.24 | 1,200 |
| SS316 | Size | B (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 68900004 | 4" | 0.39 | 3.94 | 0.71 | 0.22 | 1,672 |
| 68900006 | 6" | 0.51 | 5.91 | 0.87 | 0.53 | 2,640 |
