Description
Technical Data:
Casting Material:
AISI316 - DIN 1.4408
Production:
S9210 - Body - Cast
Surface Treatment:
“M.P.” (Mirror polished)

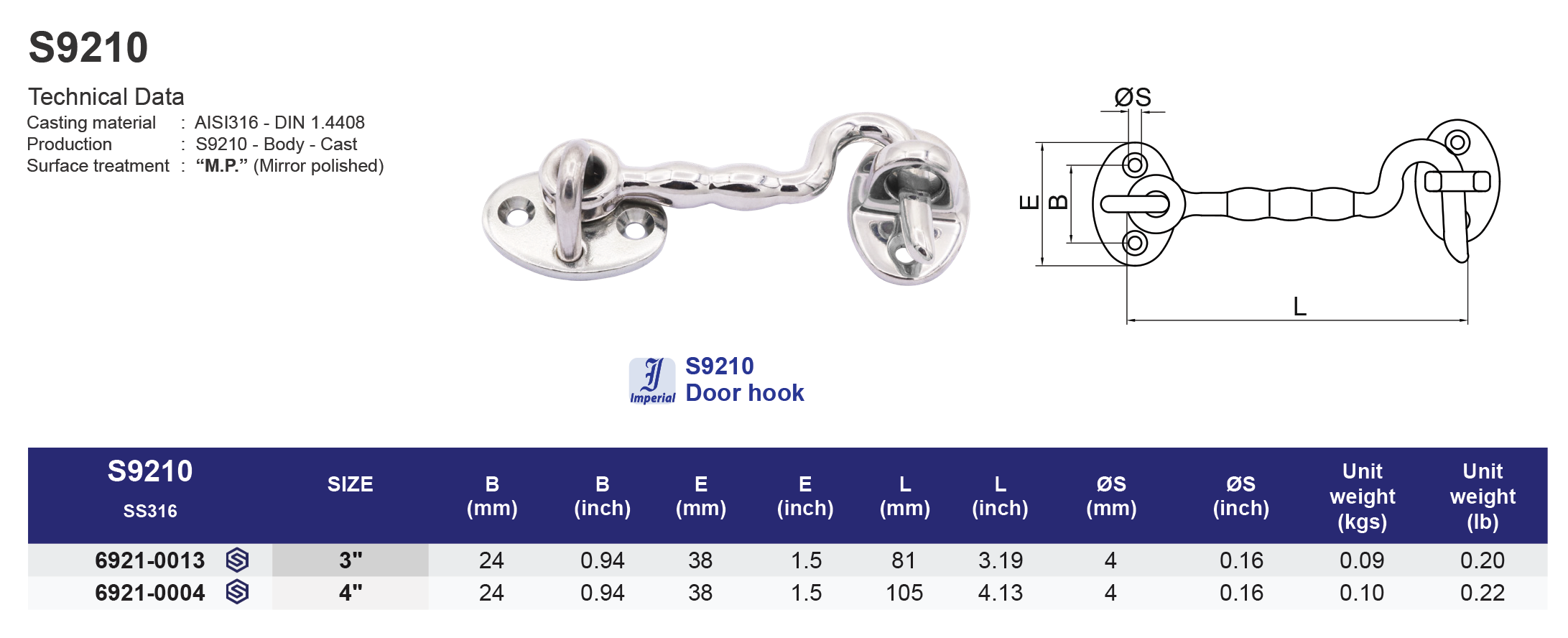

Model
S9210

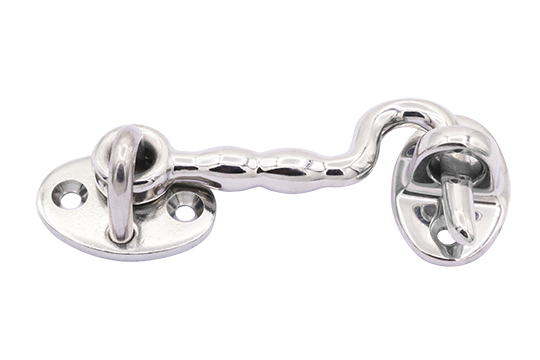

Door hook
316 ss
| SS316 | SIZE | B (mm) | E (mm) | L (mm) | ØS (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|---|
| 69210013 | 3" | 24 | 38 | 81 | 4 | 0.09 |
| 69210004 | 4" | 24 | 38 | 105 | 4 | 0.10 |
| SS316 | SIZE | B (inch) | E (inch) | L (inch) | ØS (inch) | Unit weight (lb) |
|---|---|---|---|---|---|---|
| 69210013 | 3" | 0.94 | 1.5 | 3.19 | 0.16 | 0.20 |
| 69210004 | 4" | 0.94 | 1.5 | 4.13 | 0.16 | 0.22 |
