Description
Technical Data:
Casting Material:
AISI316 - DIN 1.4408
Production:
S9211 - Body - Cast
Surface Treatment:
“M.P.” (Mirror polished)
Model
S9211

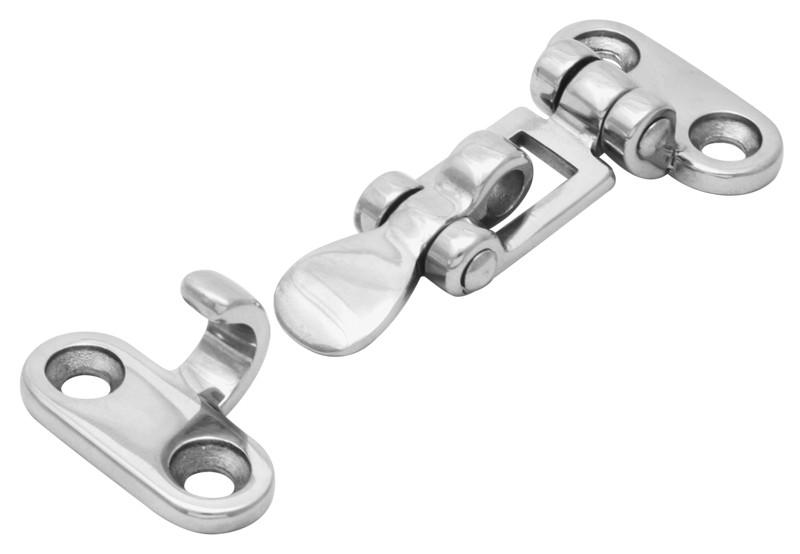

Cover latch
316 ss

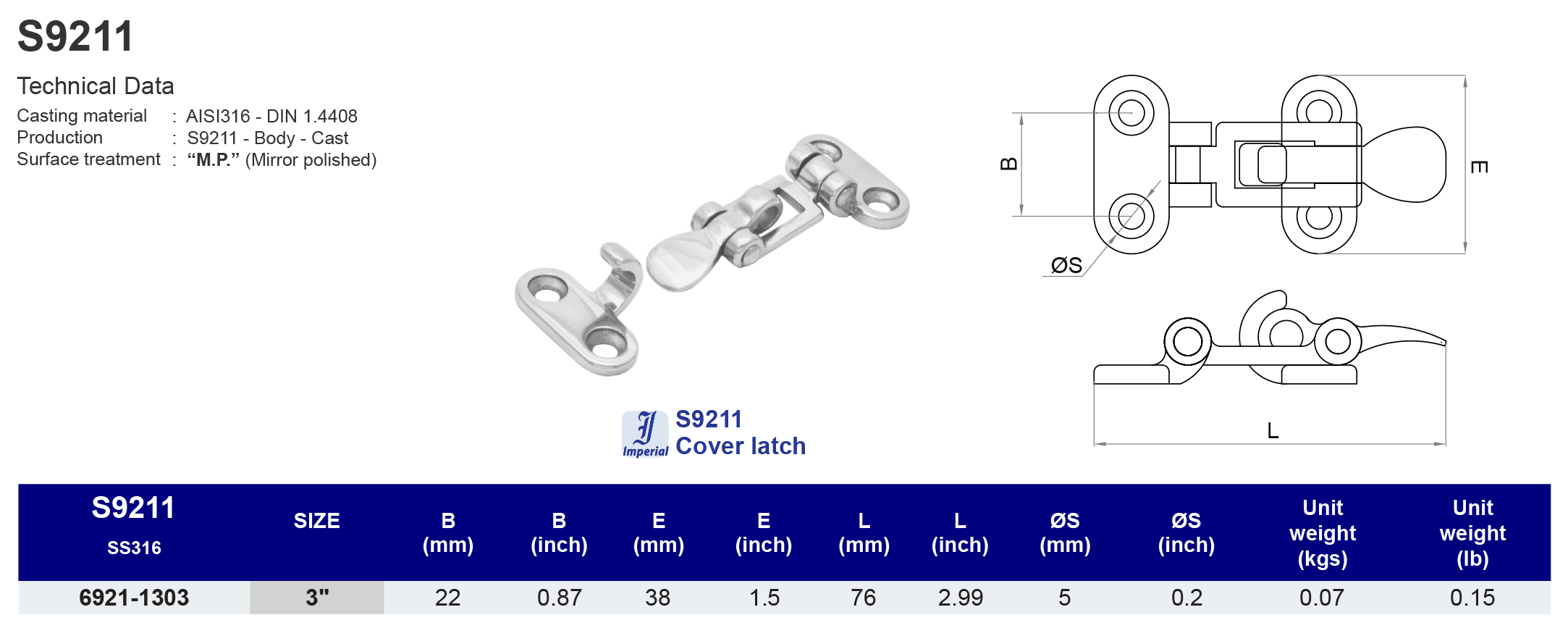

| SS316 | SIZE | B (mm) | E (mm) | L (mm) | ØS (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|---|
| 69211303 | 3" | 22 | 38 | 76 | 5 | 0.07 |
| SS316 | SIZE | B (inch) | E (inch) | L (inch) | ØS (inch) | Unit weight (lb) |
|---|---|---|---|---|---|---|
| 69211303 | 3" | 0.87 | 1.5 | 2.99 | 0.2 | 0.15 |
