Description

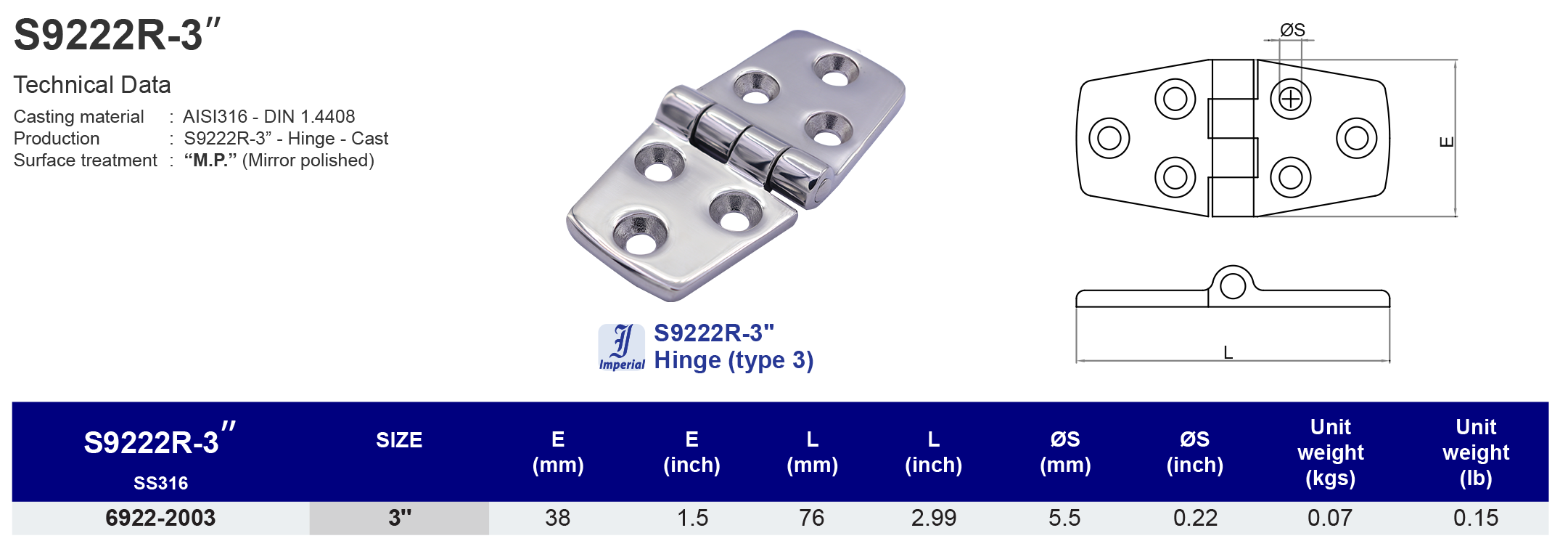

Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production: S9222R - 3" - Hinge - Cast
Surface Treatment: “M.P.” (Mirror polished)

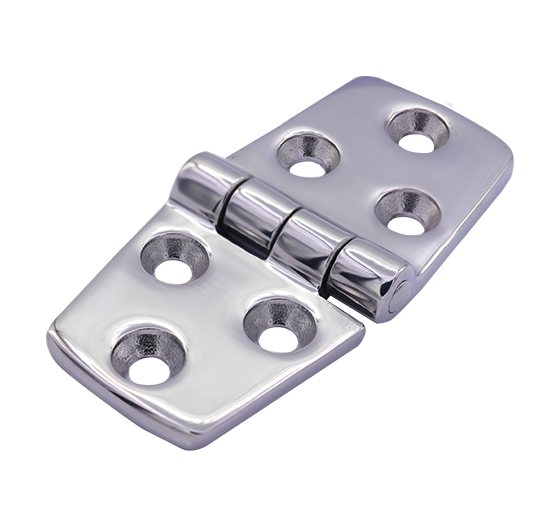

Model
S9222R-3
Hinge (type 3)
316 ss
| SS316 | SIZE | E (mm) | L (mm) | ØS (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|
| 69222003 | 3'' | 38 | 76 | 5.5 | 0.07 |
| SS316 | SIZE | E (inch) | L (inch) | ØS (inch) | Unit weight (lb) |
|---|---|---|---|---|---|
| 69222003 | 3'' | 1.5 | 2.99 | 0.22 | 0.15 |
