Description
Technical Data:
Forging material : AISI316 - DIN 1.4401
Production : SF2345 -Thimble - Forged,
Sheet - Welded
Surface treatment : “E.P.” (Electro polished)
DATA SHEET DOWNLOAD
Model
SF2345

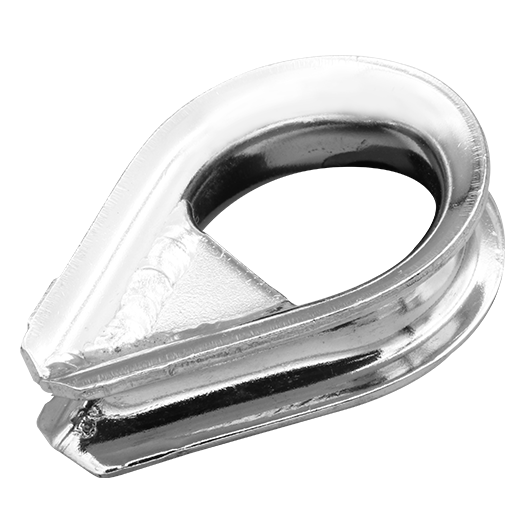

Thimble light type
316 ss
| SS316 | SIZE | B (mm) | L (mm) | L1 (mm) | T (mm) | DiaØ Cable (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|---|---|
| 62345006 | 6 | 16 | 25 | 13 | 1.2 | 6 | 0.009 |
| 62345007 | 8 | 20 | 32 | 16.5 | 1.5 | 8 | 0.019 |
| 62345010 | 10 | 26 | 40 | 20.5 | 2.0 | 10 | 0.039 |
| 62345014 | 14 | 34 | 56 | 28.5 | 2.5 | 14 | 0.088 |
| SS316 | SIZE | B (inch) | L (inch) | L1 (inch) | T (inch) | DiaØ Cable (mm) | Unit weight (lb) |
|---|---|---|---|---|---|---|---|
| 62345006 | 1/4" | 0.63 | 0.98 | 0.51 | 0.05 | 6 | 0.02 |
| 62345007 | 5/16" | 0.79 | 1.26 | 0.65 | 0.06 | 8 | 0.04 |
| 62345010 | 3/8" | 1.02 | 1.57 | 0.81 | 0.08 | 10 | 0.09 |
| 62345014 | 9/16" | 1.34 | 2.20 | 1.12 | 0.10 | 14 | 0.20 |
