SF234U Light thimbles - 316

SKU: 62340002

SIZE ØCable (mm): 2mm
Price:

Login to view the price.

Stock:
Login to view stock.

Description

Technical Data:
Forging Material:
AISI316 - DIN 1.4401
Production:
SF234U - Thimble - Forged
Surface Treatment:“E.P.” (Electro polished)

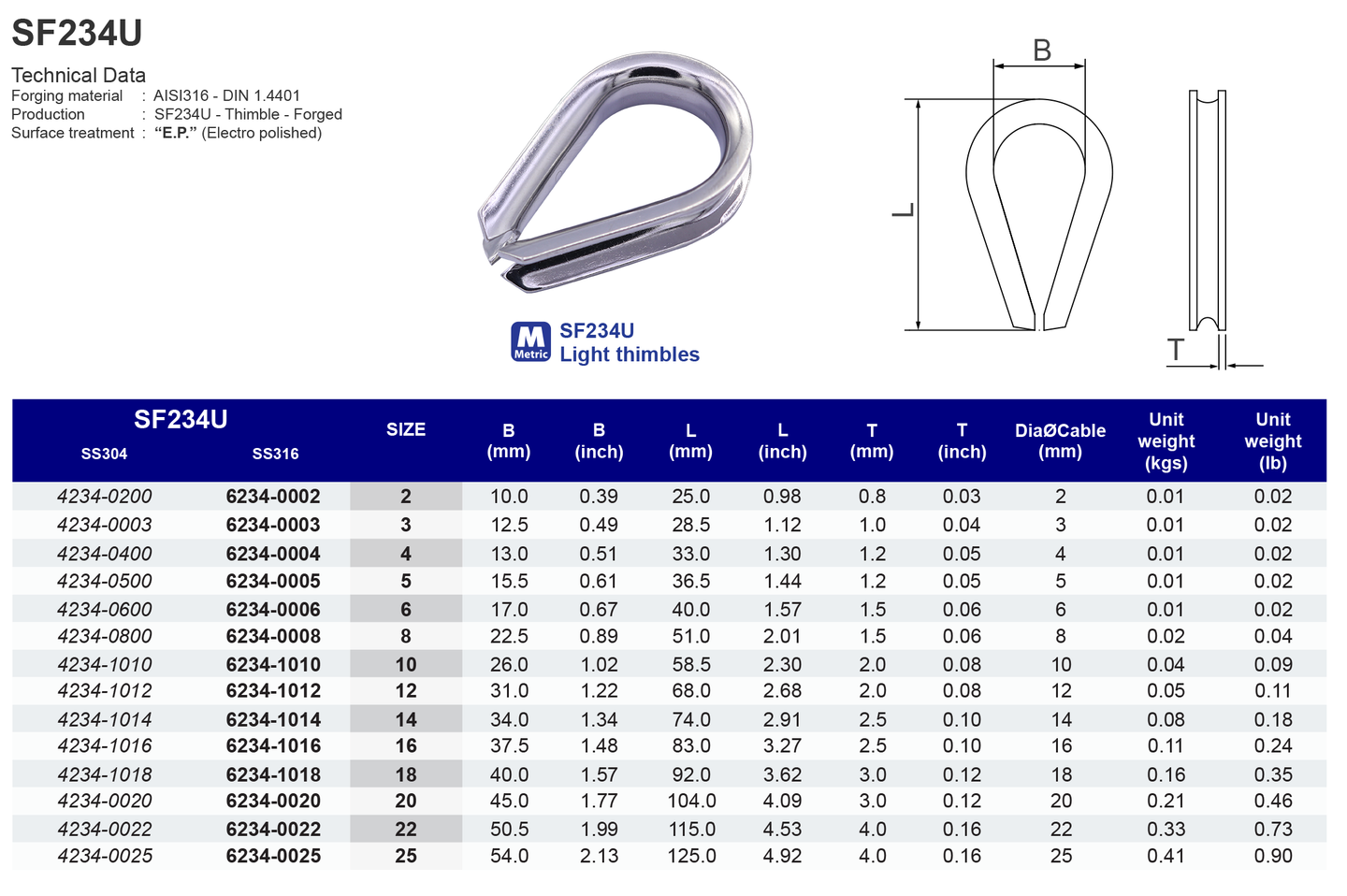

DATA SHEET DOWNLOAD

Model

SF234U

Light thimbles
316 ss

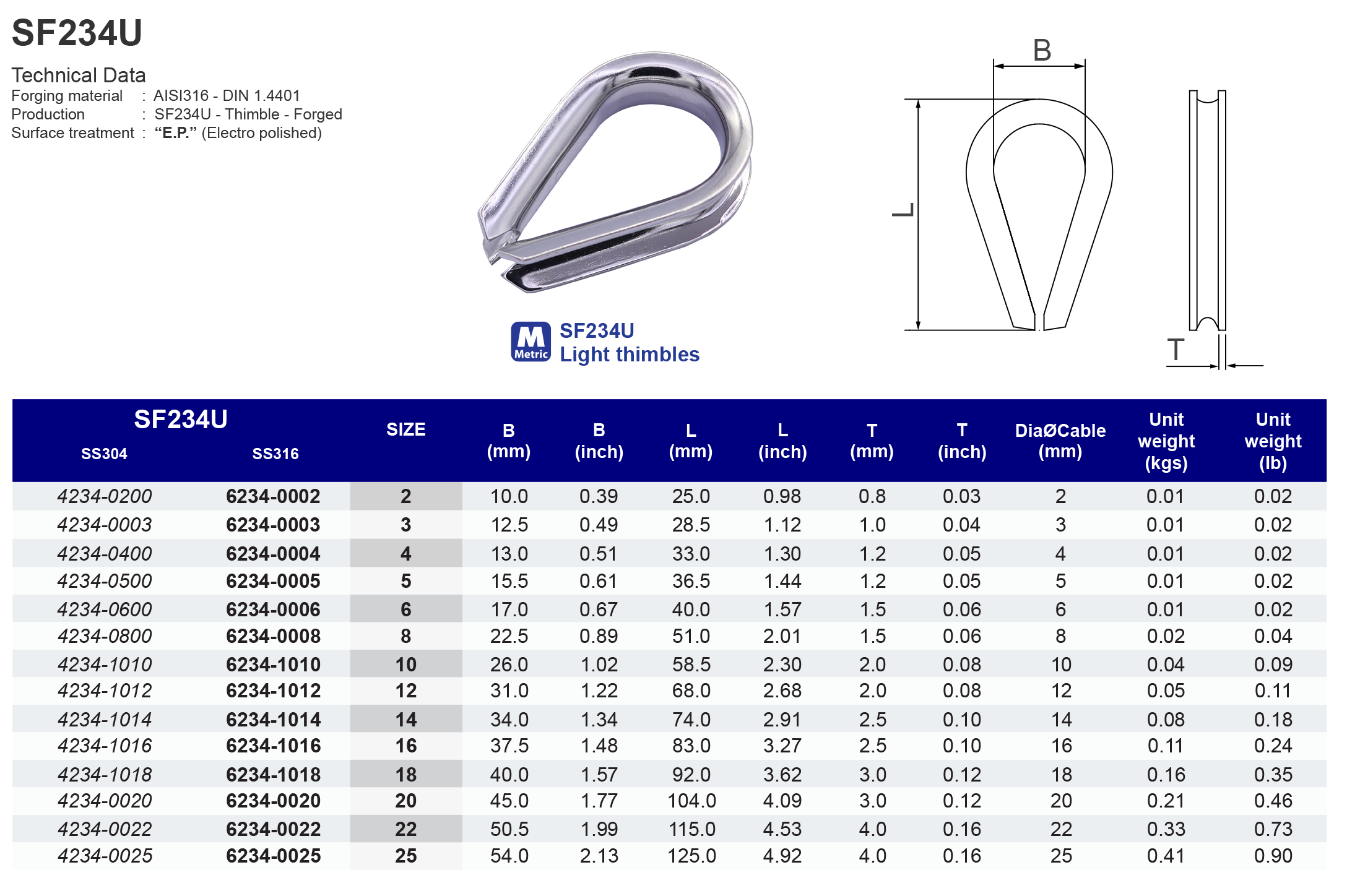

SF234Udrawing

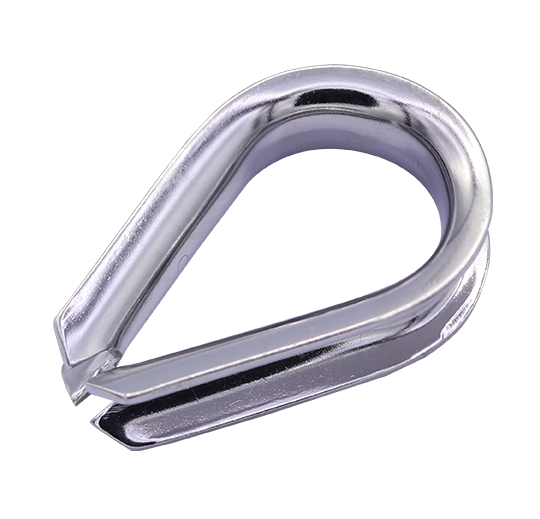

SF234U image
SS316SIZEB (mm)L (mm)T (mm)DiaØ Cable (mm)Unit weight (kgs)
62340002210250.820.01
62340003312.528.51.030.01
62340004413331.240.01
62340005515.536.51.250.01
62340006617401.560.01
62340008822.5511.580.02
62341010102658.52.0100.04
623410121231682.0120.05
623410141434742.5140.08
623410161637.5832.5160.11
623410181840923.0180.16
6234002020451043.0200.21
623400222250.51154.0220.33
6234002525541254.0250.41
SS316SIZEB (inch)L (inch)T (inch)DiaØ Cable (mm)Unit weight (lb)
623400023/32"0.390.980.0320.02
623400031/8"0.491.120.0430.02
623400045/32"0.511.30.0540.02
623400053/16"0.611.440.0550.02
623400061/4"0.671.570.0660.02
623400085/16"0.892.010.0680.04
623410103/8"1.022.300.08100.09
623410121/2"1.222.680.08120.11
623410149/16"1.342.910.10140.18
623410165/8"1.483.270.10160.24
6234101811/16"1.573.620.12180.35
623400203/4"1.774.090.12200.46
623400227/8"1.994.530.16220.73
623400251"2.134.920.16250.90
