Description

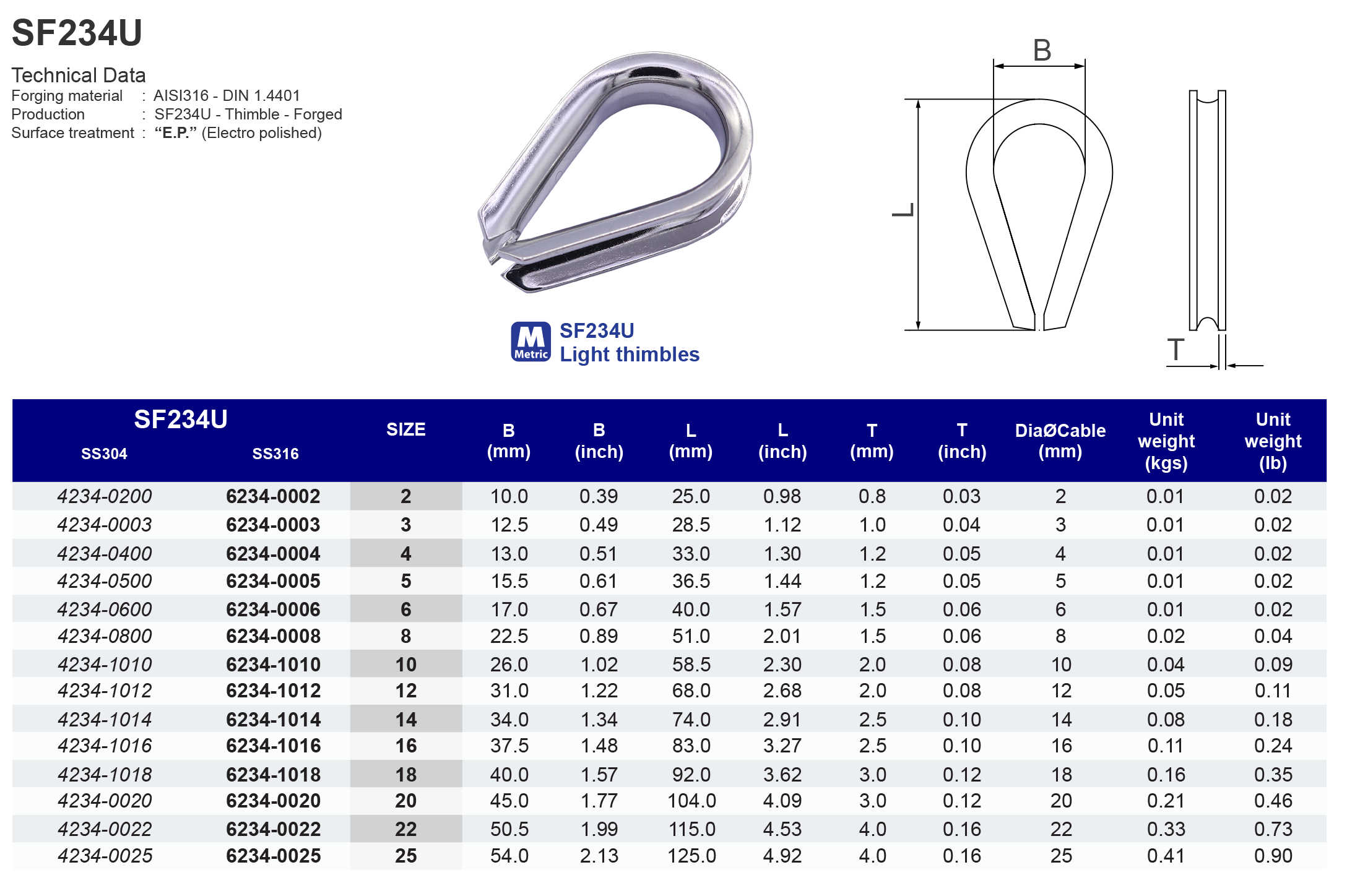

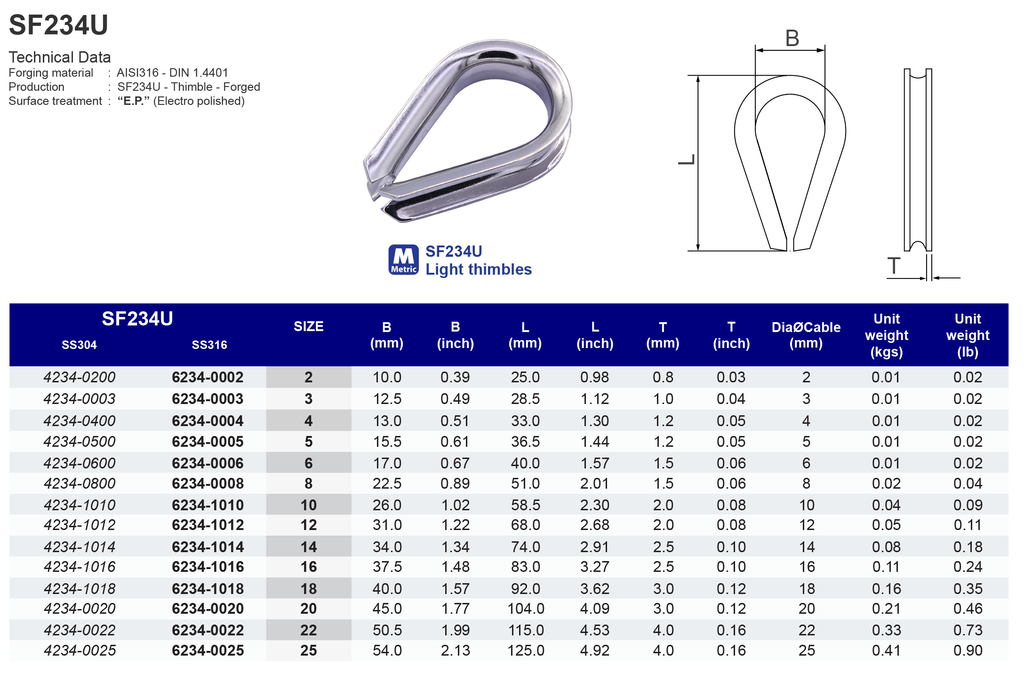

Technical Data:
Forging Material:
AISI316 - DIN 1.4401
Production:
SF234U - Thimble - Forged
Surface Treatment:“E.P.” (Electro polished)
Model
SF234U

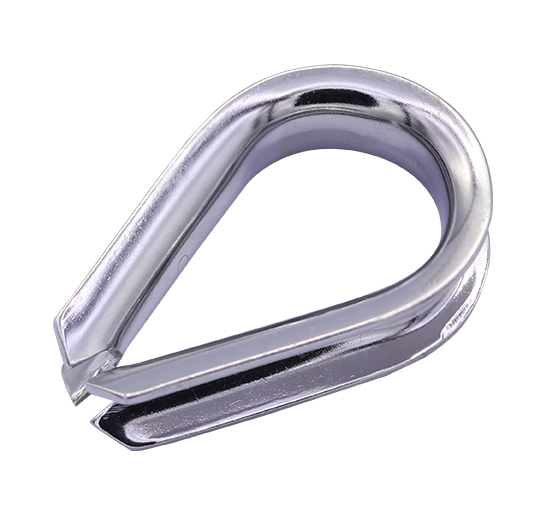

Light thimbles
316 ss
| SS316 | SIZE | B (mm) | L (mm) | T (mm) | DiaØ Cable (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|---|
| 62340002 | 2 | 10 | 25 | 0.8 | 2 | 0.01 |
| 62340003 | 3 | 12.5 | 28.5 | 1.0 | 3 | 0.01 |
| 62340004 | 4 | 13 | 33 | 1.2 | 4 | 0.01 |
| 62340005 | 5 | 15.5 | 36.5 | 1.2 | 5 | 0.01 |
| 62340006 | 6 | 17 | 40 | 1.5 | 6 | 0.01 |
| 62340008 | 8 | 22.5 | 51 | 1.5 | 8 | 0.02 |
| 62341010 | 10 | 26 | 58.5 | 2.0 | 10 | 0.04 |
| 62341012 | 12 | 31 | 68 | 2.0 | 12 | 0.05 |
| 62341014 | 14 | 34 | 74 | 2.5 | 14 | 0.08 |
| 62341016 | 16 | 37.5 | 83 | 2.5 | 16 | 0.11 |
| 62341018 | 18 | 40 | 92 | 3.0 | 18 | 0.16 |
| 62340020 | 20 | 45 | 104 | 3.0 | 20 | 0.21 |
| 62340022 | 22 | 50.5 | 115 | 4.0 | 22 | 0.33 |
| 62340025 | 25 | 54 | 125 | 4.0 | 25 | 0.41 |
| SS316 | SIZE | B (inch) | L (inch) | T (inch) | DiaØ Cable (mm) | Unit weight (lb) |
|---|---|---|---|---|---|---|
| 62340002 | 3/32" | 0.39 | 0.98 | 0.03 | 2 | 0.02 |
| 62340003 | 1/8" | 0.49 | 1.12 | 0.04 | 3 | 0.02 |
| 62340004 | 5/32" | 0.51 | 1.3 | 0.05 | 4 | 0.02 |
| 62340005 | 3/16" | 0.61 | 1.44 | 0.05 | 5 | 0.02 |
| 62340006 | 1/4" | 0.67 | 1.57 | 0.06 | 6 | 0.02 |
| 62340008 | 5/16" | 0.89 | 2.01 | 0.06 | 8 | 0.04 |
| 62341010 | 3/8" | 1.02 | 2.30 | 0.08 | 10 | 0.09 |
| 62341012 | 1/2" | 1.22 | 2.68 | 0.08 | 12 | 0.11 |
| 62341014 | 9/16" | 1.34 | 2.91 | 0.10 | 14 | 0.18 |
| 62341016 | 5/8" | 1.48 | 3.27 | 0.10 | 16 | 0.24 |
| 62341018 | 11/16" | 1.57 | 3.62 | 0.12 | 18 | 0.35 |
| 62340020 | 3/4" | 1.77 | 4.09 | 0.12 | 20 | 0.46 |
| 62340022 | 7/8" | 1.99 | 4.53 | 0.16 | 22 | 0.73 |
| 62340025 | 1" | 2.13 | 4.92 | 0.16 | 25 | 0.90 |
