Description
Technical Data
Forging Material : AISI304 - DIN 1.4301
Production : Snap - Forged
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

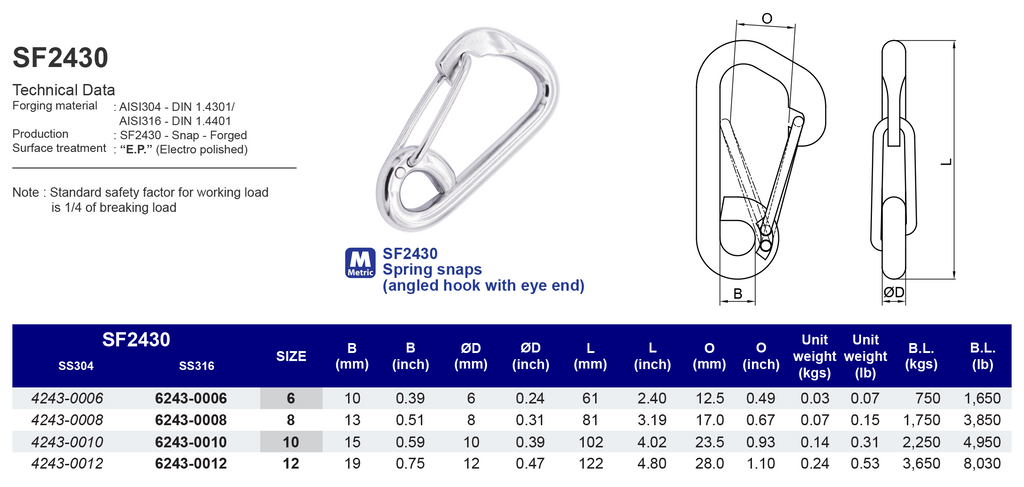

Model
SF2430
Spring snaps (angled hook with eye end)
304 ss
| SS304 | Size | B (mm) | ØD (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 42430106 | 6 | 10 | 6 | 60 | 13 | 0.03 | 830 |
| 42430108 | 8 | 12 | 8 | 80 | 18 | 0.07 | 1,600 |
| 42430110 | 10 | 15 | 10 | 100 | 21 | 0.13 | 2,500 |
| 42430112 | 12 | 19 | 12 | 120 | 27 | 0.24 | 3,300 |
| SS304 | Size | B (inch) | ØD (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 42430006 | 1/4" | 0.39 | 0.24 | 2.40 | 0.49 | 0.07 | 1,650 |
| 42430008 | 5/16" | 0.47 | 0.31 | 3.19 | 0.67 | 0.15 | 3,850 |
| 42430010 | 3/8" | 0.59 | 0.39 | 4.02 | 0.93 | 0.31 | 4,950 |
| 42430012 | 1/2" | 0.75 | 0.47 | 4.80 | 1.10 | 0.53 | 8,030 |
