Description
Technical Data
Forging Material : AISI316 - DIN 1.4401
Production : Snap - Forged
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

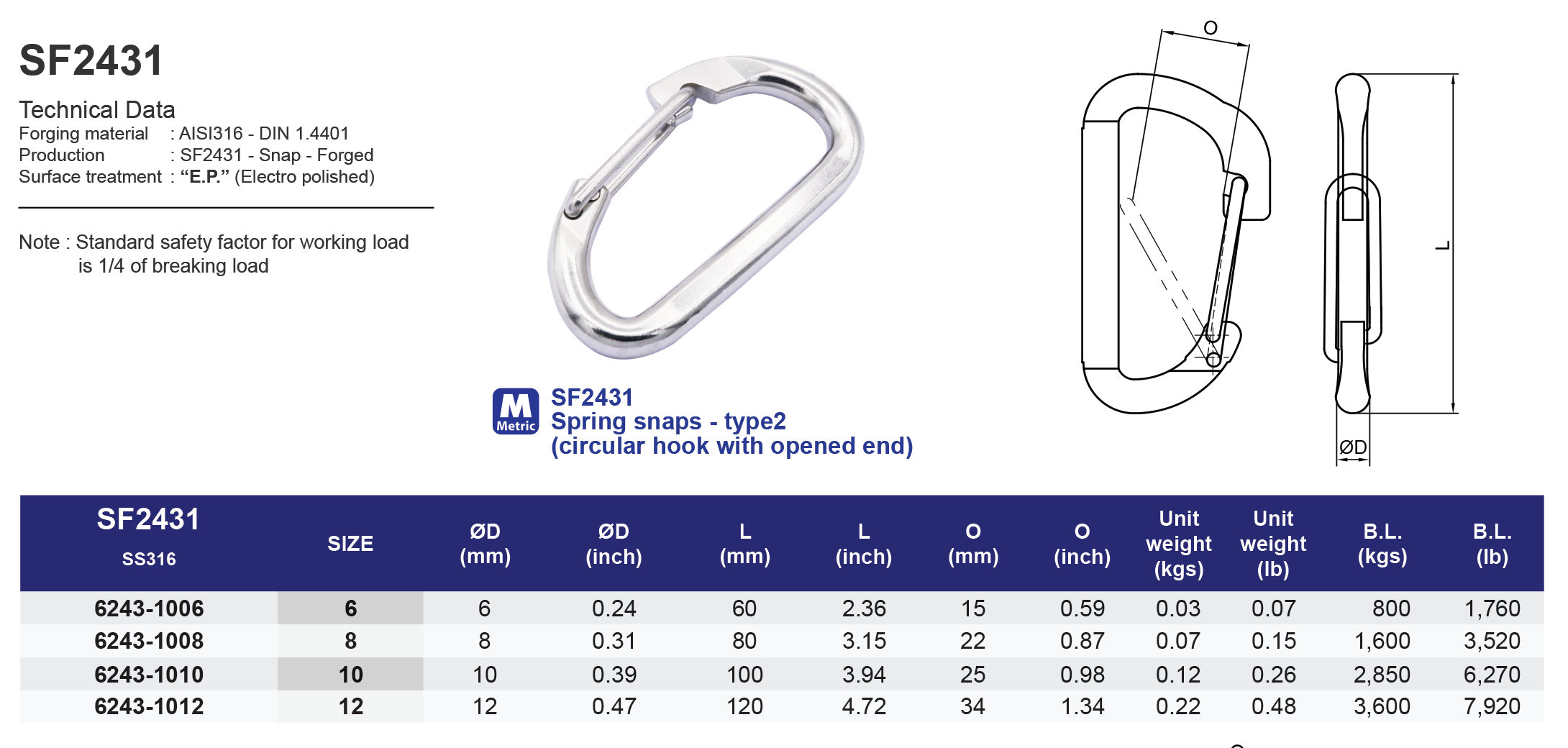

Model
SF2431

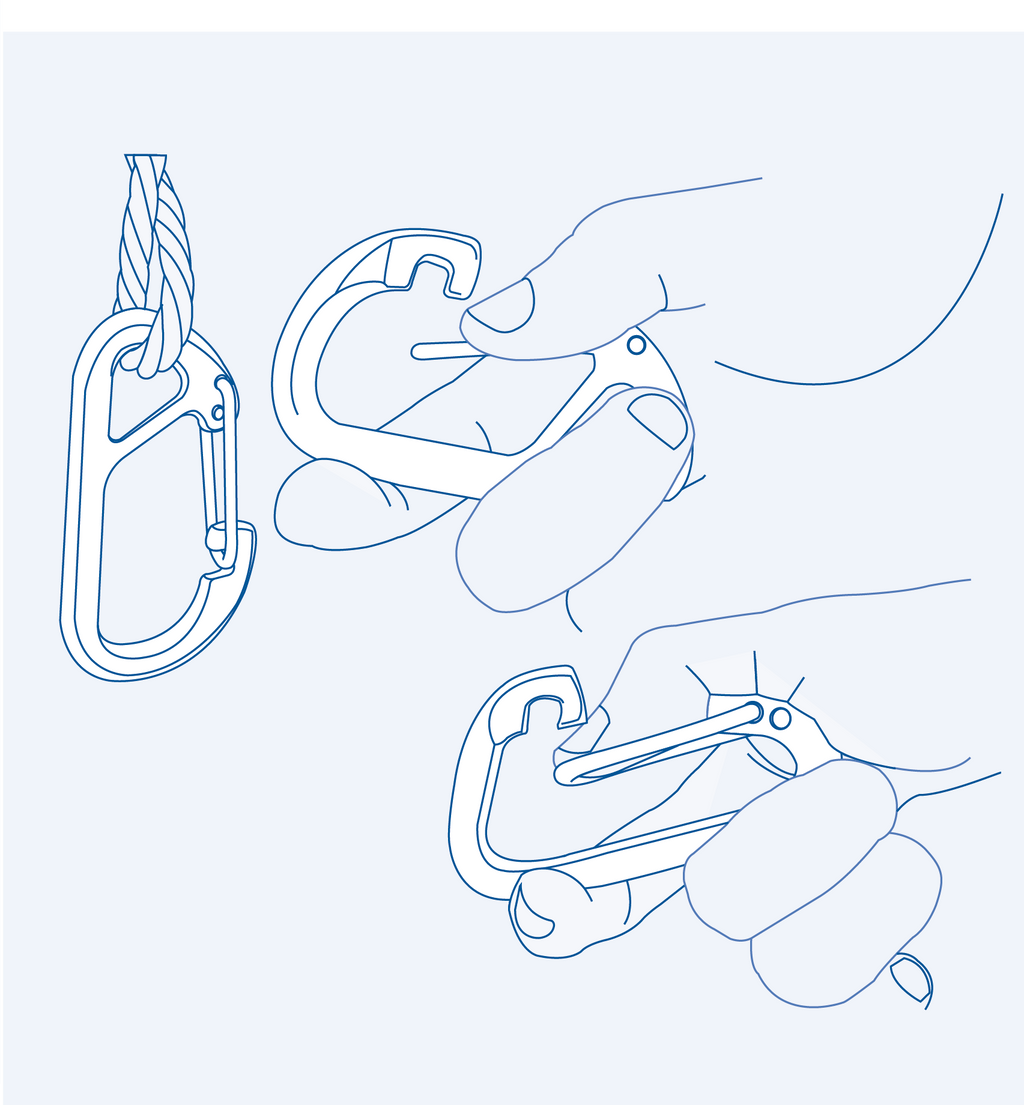

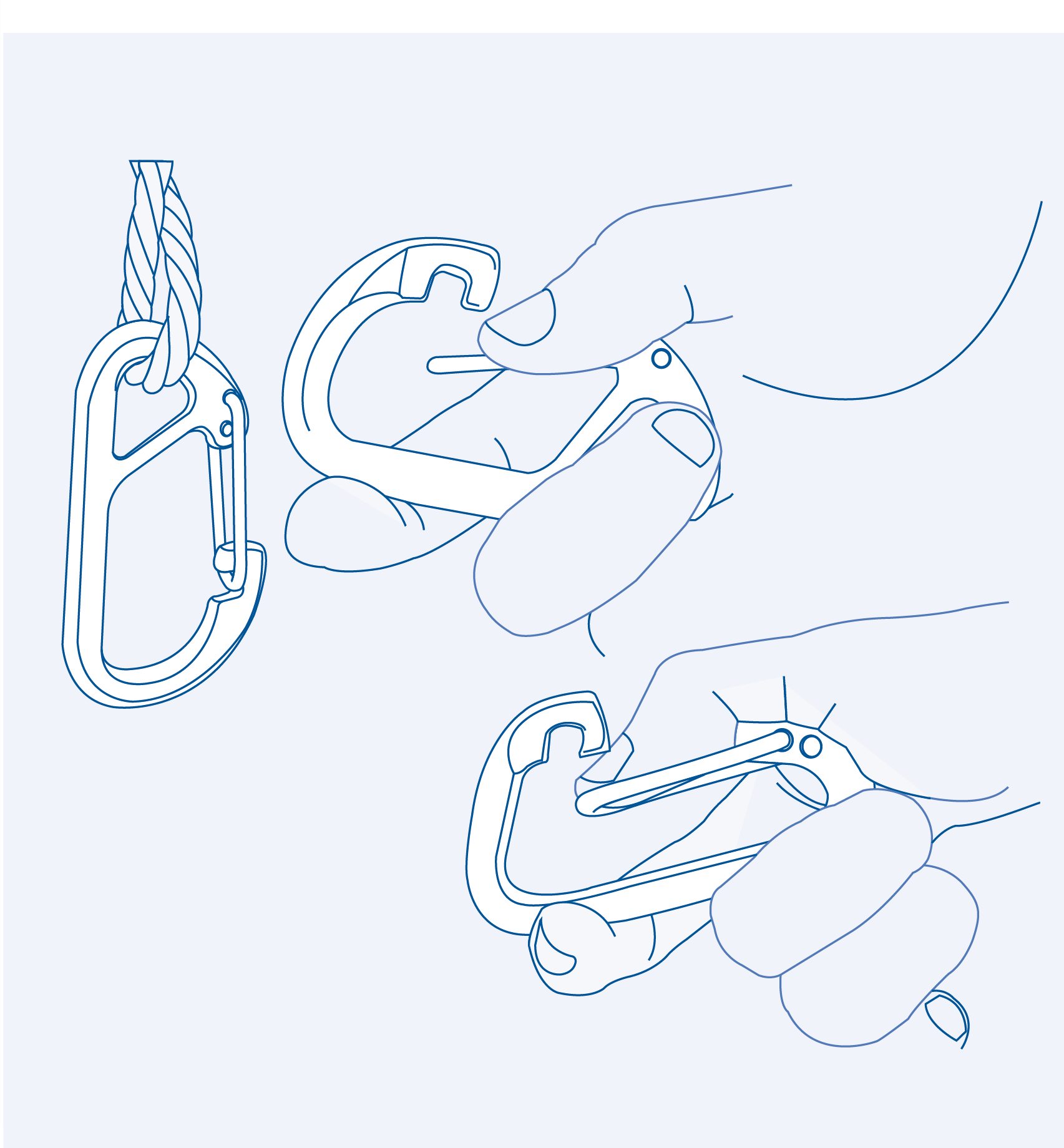

Spring snaps - type 2 (circular hook with opened end)
316 ss
| SS316 | Size | ØD (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 62431006 | 6 | 6 | 60 | 15 | 0.03 | 800 |
| 62431008 | 8 | 8 | 80 | 22 | 0.07 | 1,450 |
| 62431010 | 10 | 10 | 100 | 25 | 0.12 | 2,850 |
| 62431012 | 12 | 12 | 120 | 28 | 0.22 | 3,600 |
| SS316 | Size | ØD (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 62431006 | 1/4" | 0.24 | 2.36 | 0.59 | 0.07 | 1,760 |
| 62431008 | 5/16" | 0.31 | 3.15 | 0.87 | 0.15 | 3,190 |
| 62431010 | 3/8" | 0.39 | 3.94 | 0.98 | 0.26 | 6,270 |
| 62431012 | 1/2" | 0.47 | 4.72 | 1.10 | 0.48 | 7,920 |
