Description
Technical Data:
Forging Material:
AISI316 - DIN 1.4401
Production:
SF312 / 7 - Eye / Jaw - Forged
Accessory - See Chart
Surface Treatment:
Matte finished / Passivated
Model
SF312-7

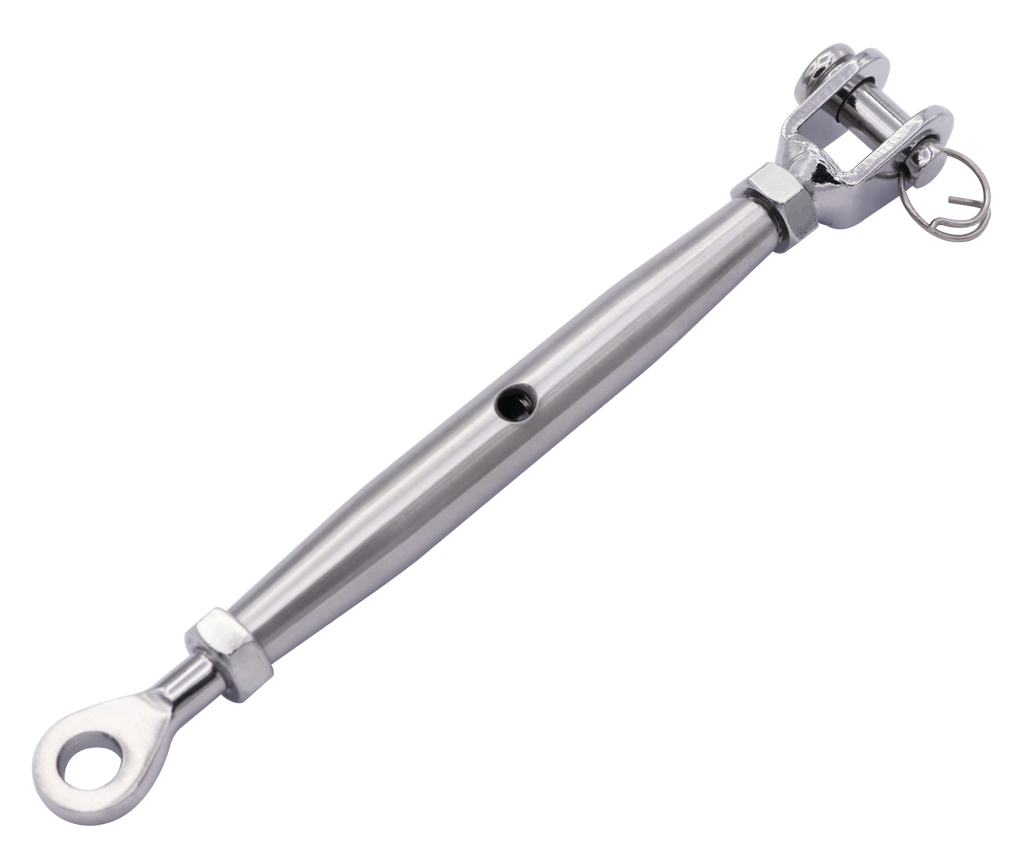

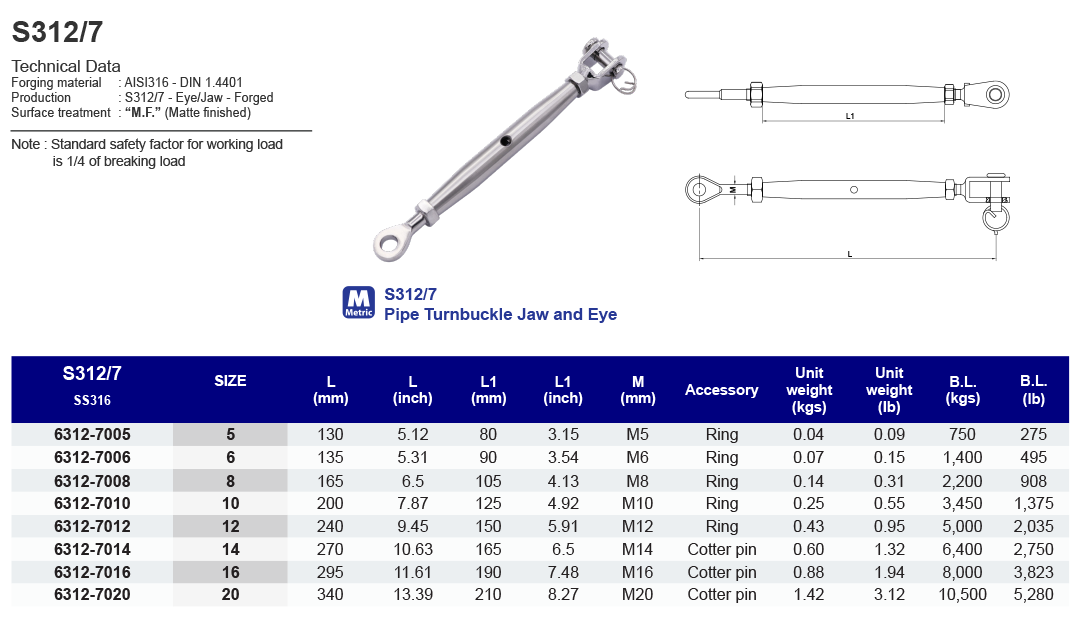

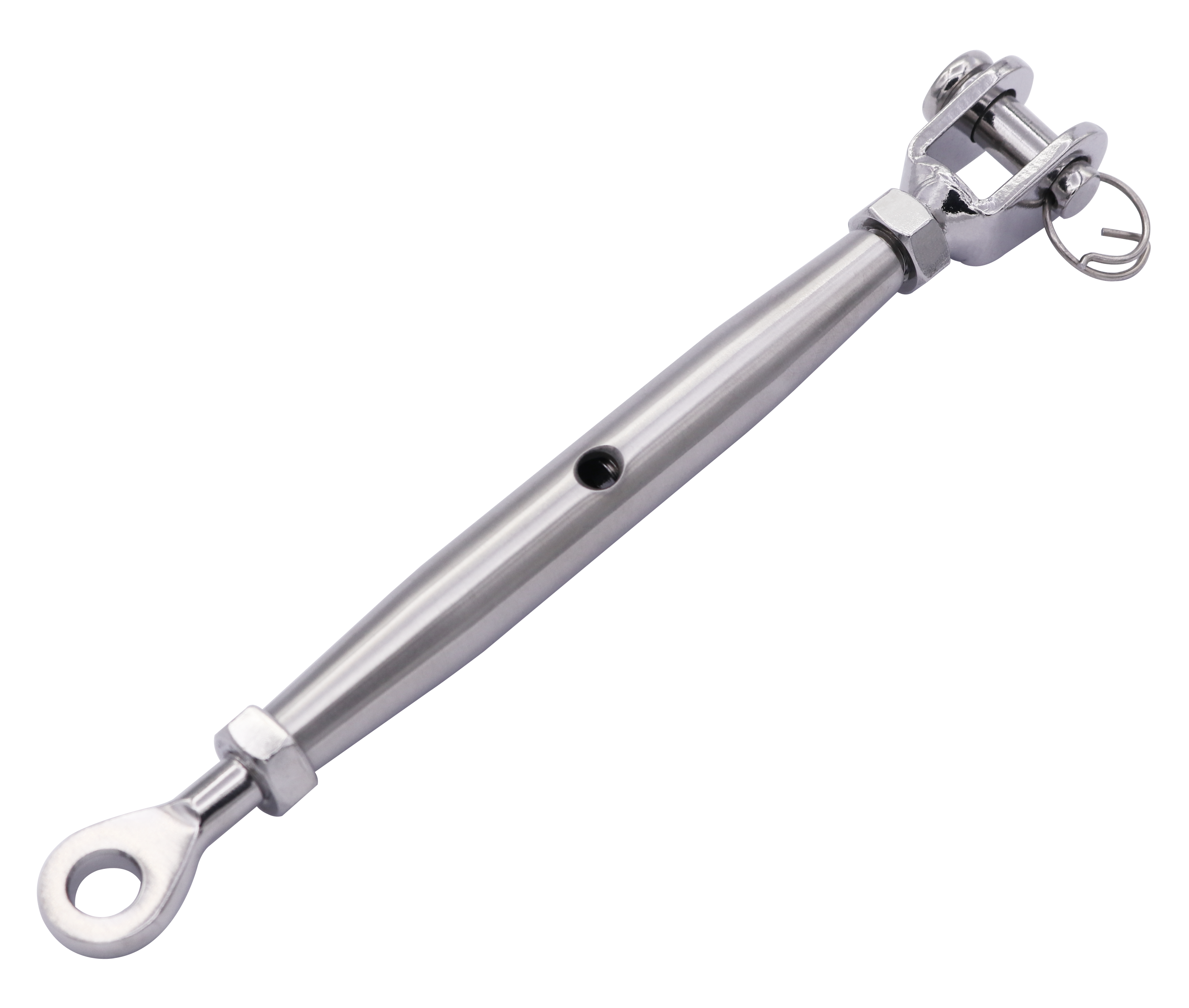

Pipe Turnbuckle Jaw and Eye
316 ss
| SS316 | Size | L(mm) | L1(mm) | M(thread) | Accessory | Unit weight (kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|---|
| 63127005 | 5 | 130 | 80 | M5 | Ring | 0.04 | 750 |
| 63127006 | 6 | 135 | 90 | M6 | Ring | 0.07 | 1,400 |
| 63127008 | 8 | 165 | 105 | M8 | Ring | 0.14 | 2,200 |
| 63127010 | 10 | 200 | 125 | M10 | Ring | 0.25 | 3,450 |
| 63127012 | 12 | 240 | 150 | M12 | Ring | 0.43 | 5,000 |
| 63127014 | 14 | 270 | 165 | M14 | Cotter pin | 0.60 | 6,400 |
| 63127016 | 16 | 295 | 190 | M16 | Cotter pin | 0.88 | 8,000 |
| 63127020 | 20 | 340 | 210 | M20 | Cotter pin | 1.42 | 10,500 |
| SS316 | Size | L(inch) | L1(inch) | M(thread) | Accessory | Unit weight (Ib) | B.L.(lb) |
|---|---|---|---|---|---|---|---|
| 63127005 | 5 | 5.12 | 3.15 | M5 | Ring | 0.09 | 413 |
| 63127006 | 6 | 5.31 | 3.54 | M6 | Ring | 0.15 | 770 |
| 63127008 | 8 | 6.50 | 4.13 | M8 | Ring | 0.31 | 1,210 |
| 63127010 | 10 | 7.87 | 4.92 | M10 | Ring | 0.55 | 1,898 |
| 63127012 | 12 | 9.45 | 5.91 | M12 | Ring | 0.95 | 2,750 |
| 63127014 | 14 | 10.63 | 6.50 | M14 | Cotter pin | 1.32 | 3,520 |
| 63127016 | 16 | 11.61 | 7.48 | M16 | Cotter pin | 1.94 | 4,400 |
| 63127020 | 20 | 13.39 | 8.27 | M20 | Cotter pin | 3.12 | 5,775 |
