Description
Technical Data:
Forging Material: AISI316 - DIN 1.4401
Surface Treatment: Electro Polished

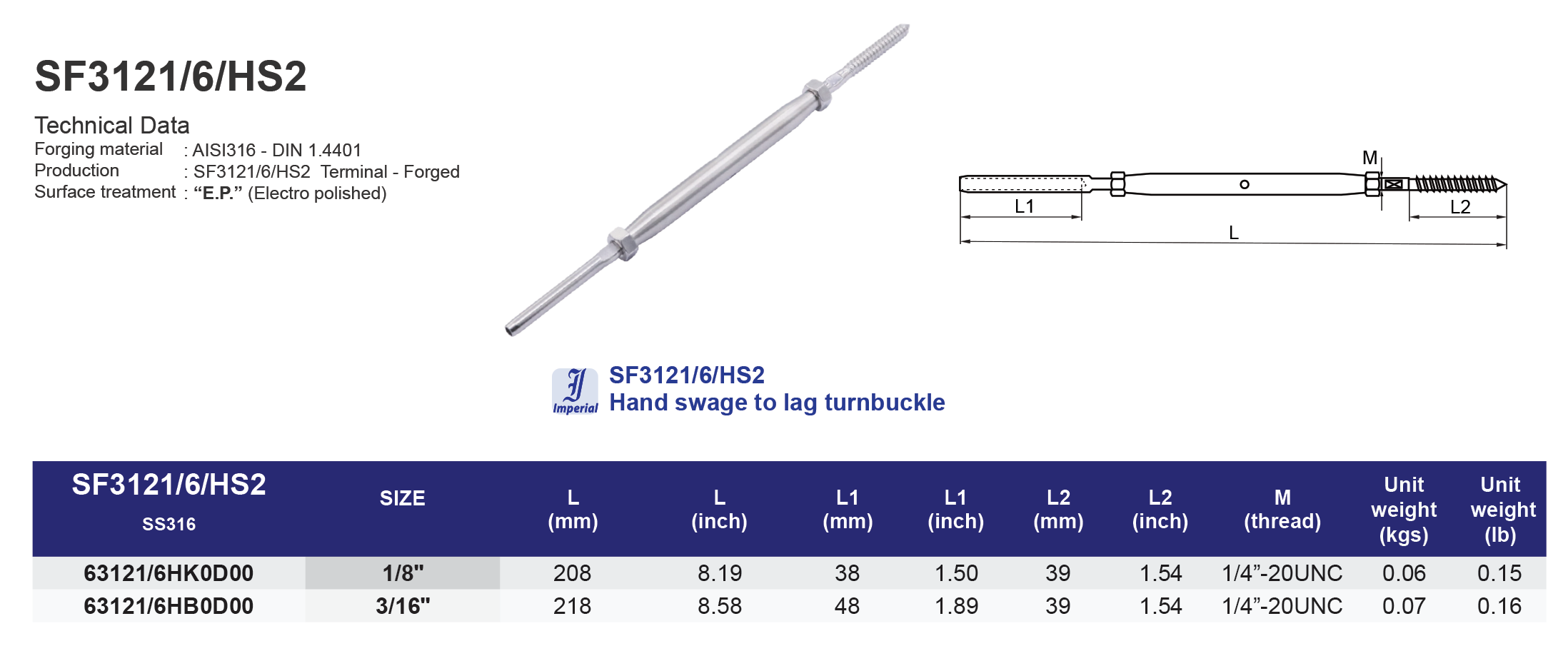

Model
SF3121/6/HS2

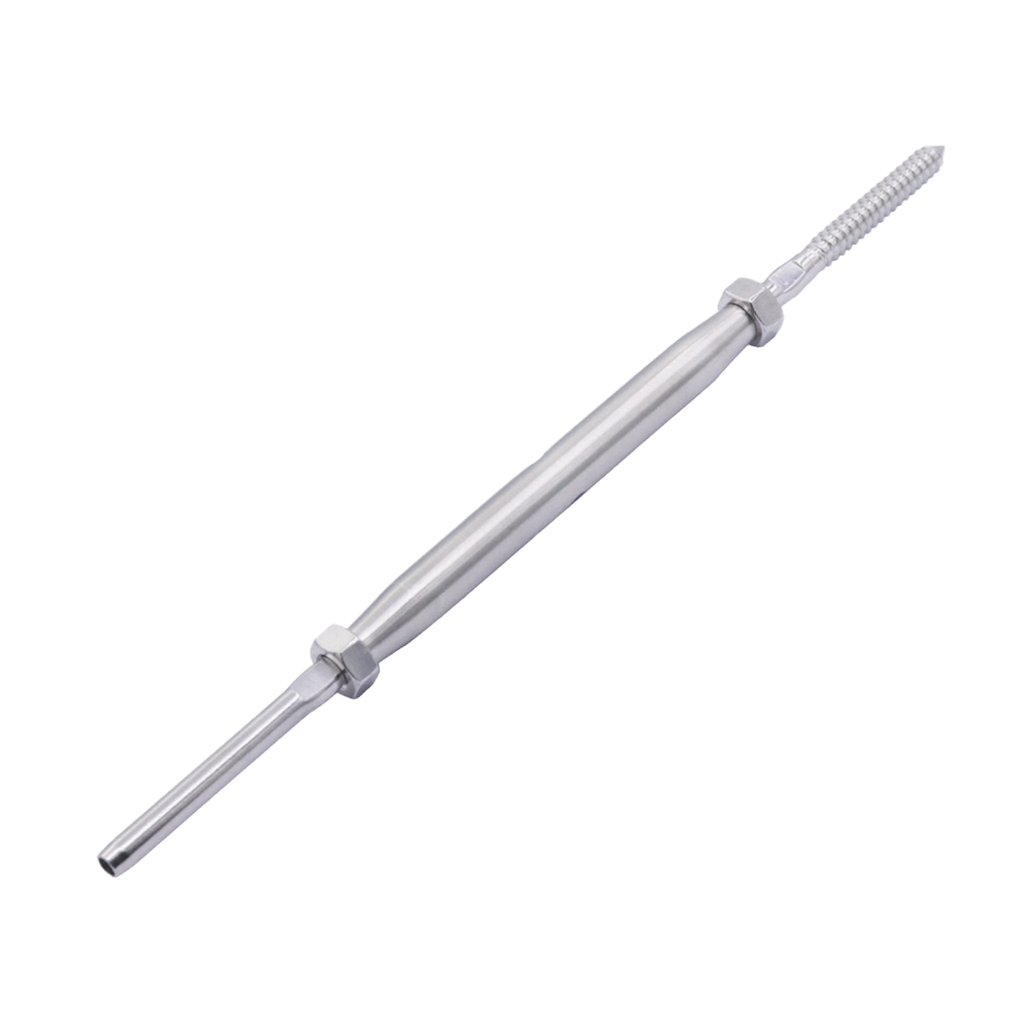

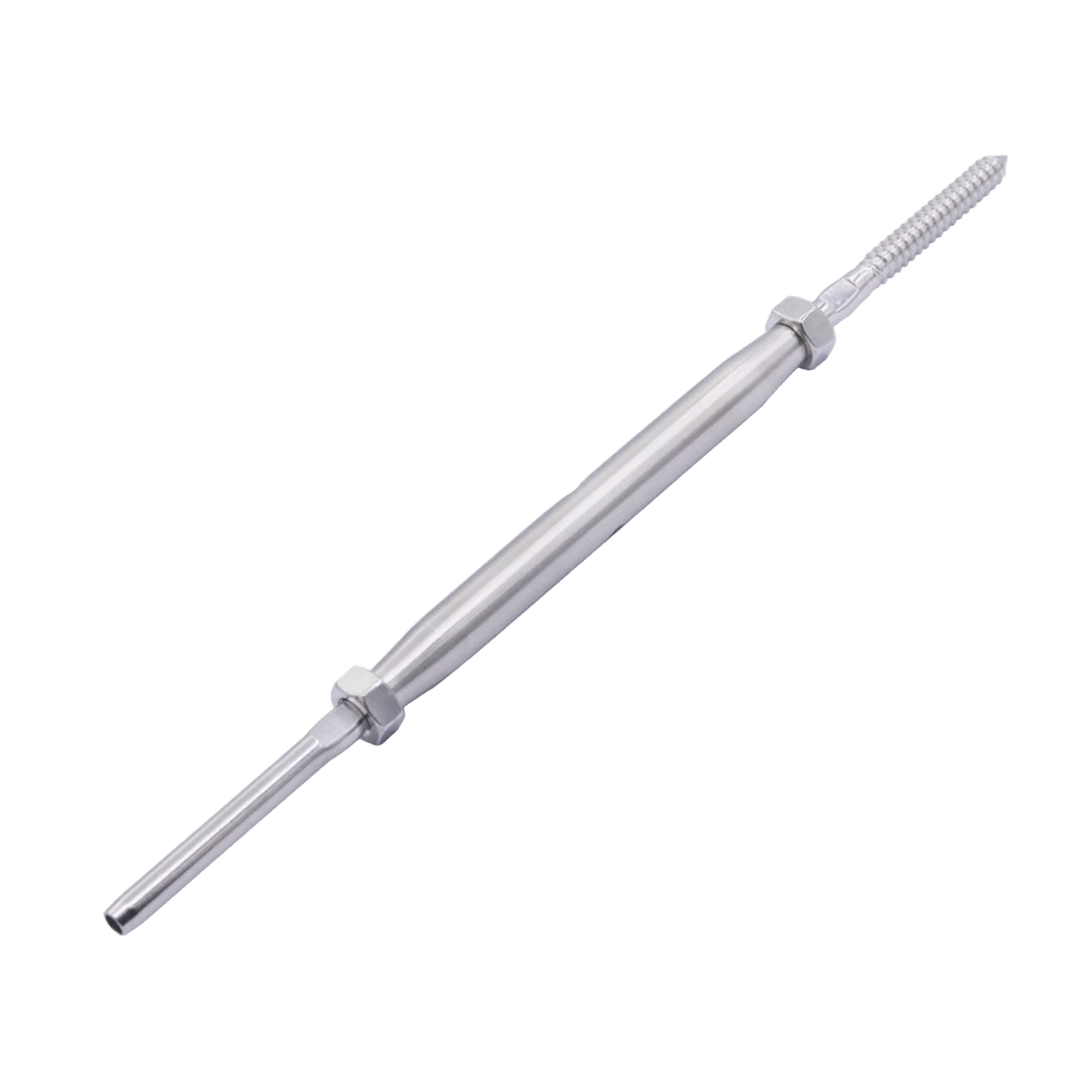

Hand swage to lag turnbuckle
316 ss
| SS316 | Size | L(mm) | L1 (mm) | L2(mm) | M(thread) | Weight (kgs) |
|---|---|---|---|---|---|---|
| 63121/6HK0D00 | 1/8" | 207.77 | 37.85 | 38.86 | 1/4"-20UNC | 0.06 |
| 63121/6HB0D00 | 3/16" | 217.93 | 47.75 | 38.86 | 1/4"-20UNC | 0.07 |
| SS316 | Size | L(inch) | L1 (inch) | L2(inch) | M(thread) | Weight (lb) |
|---|---|---|---|---|---|---|
| 63121/6HK0D00 | 1/8" | 8.18 | 1.49 | 1.53 | 1/4"-20UNC | 0.15 |
| 63121/6HB0D00 | 3/16" | 8.58 | 1.88 | 1.53 | 1/4"-20UNC | 0.16 |
