Description

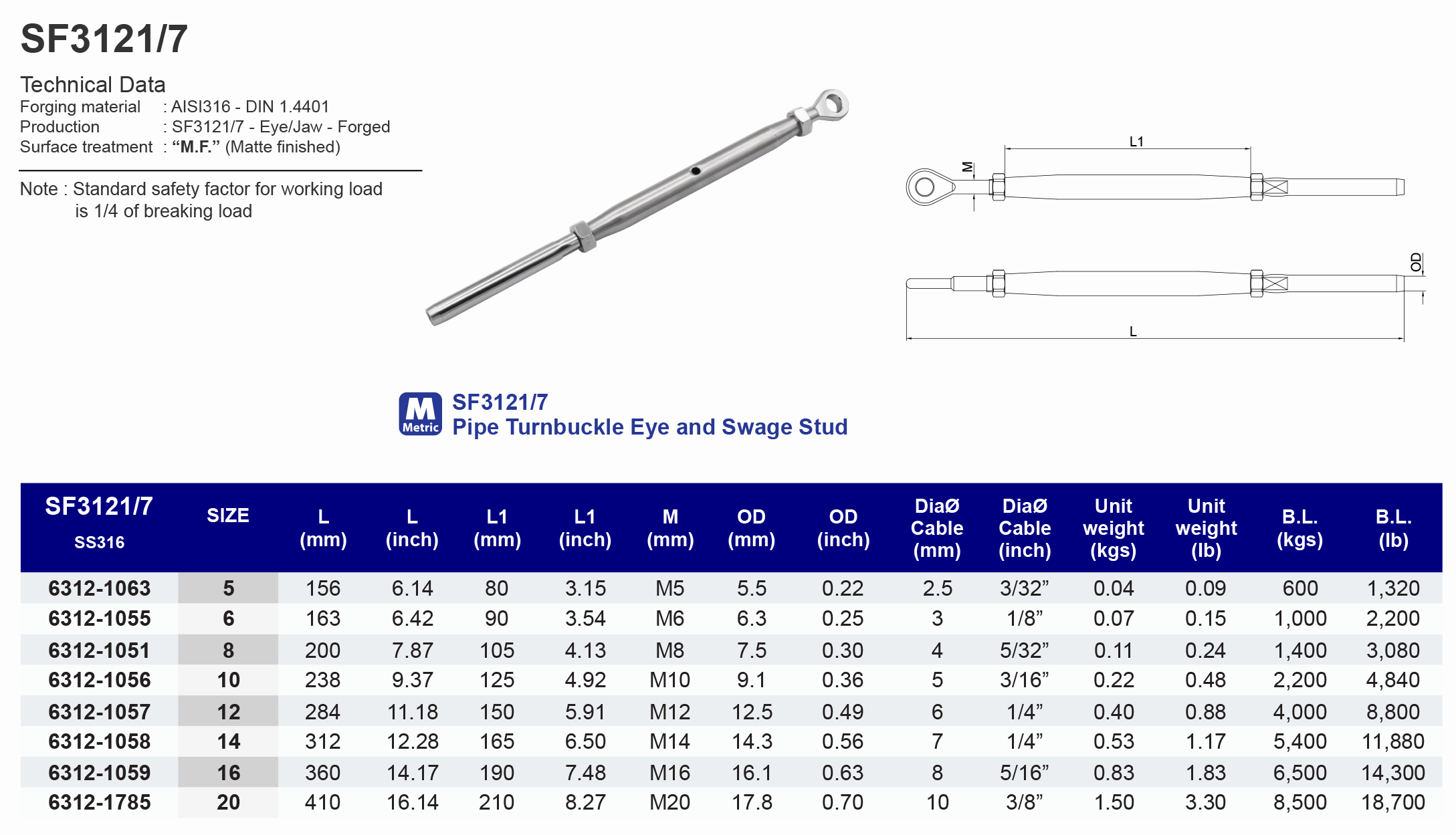

Technical Data:
Forging Material:
AISI316 - DIN 1.4401
Production:
SF3121 / 7 - Eye - Forged
Terminal - Forged
Surface Treatment:
Matte finished / Passivated
Model
SF3121-7

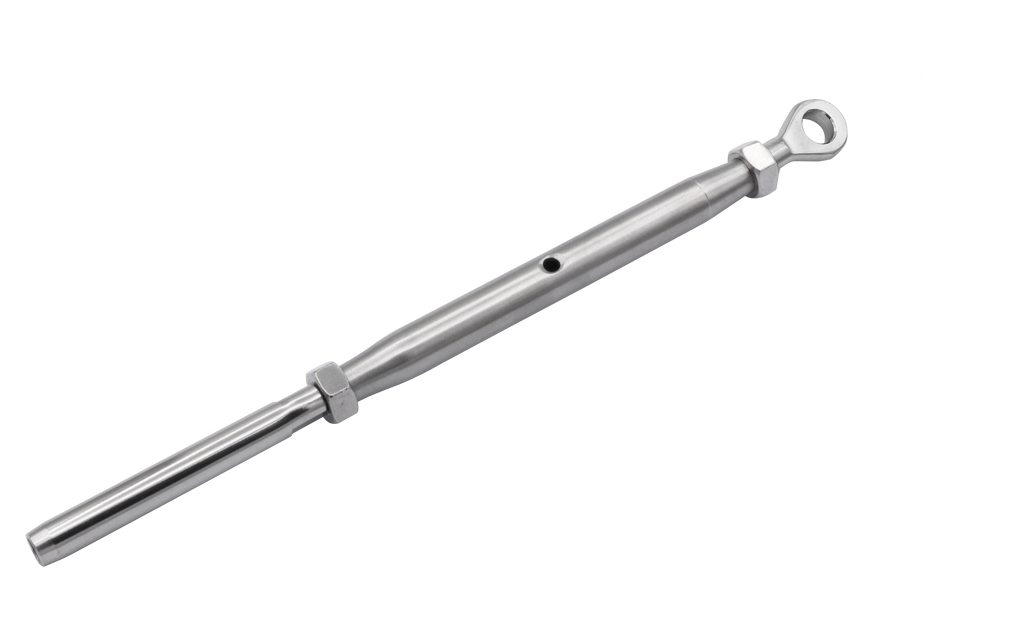

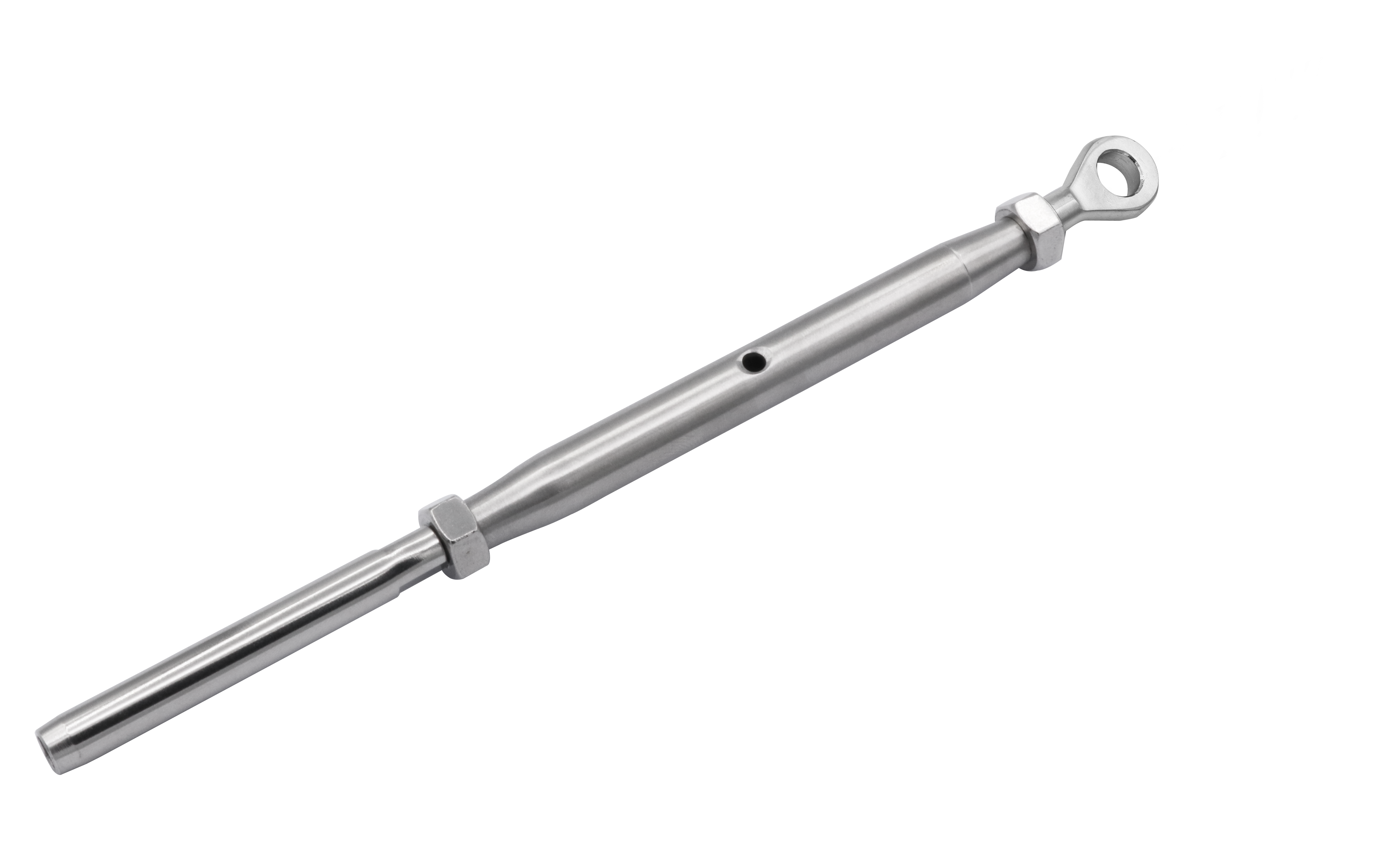

Pipe Turnbuckle Eye and Swage Stud
316 ss
| SS316 | Size | L(mm) | L1(mm) | M(thread) | OD(mm) | DiaØCable(mm) | Unit weight (kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|---|---|
| 63121063 | 5 | 156 | 80 | M5 | 5.5 | 2.5 | 0.04 | 600 |
| 63121055 | 6 | 163 | 90 | M6 | 6.3 | 3 | 0.07 | 1,000 |
| 63121051 | 8 | 200 | 105 | M8 | 7.5 | 4 | 0.11 | 1,400 |
| 63121056 | 10 | 238 | 125 | M10 | 9.1 | 5 | 0.22 | 2,200 |
| 63121057 | 12 | 284 | 150 | M12 | 12.5 | 6 | 0.40 | 4,000 |
| 63121058 | 14 | 312 | 165 | M14 | 14.3 | 7 | 0.53 | 5,400 |
| 63121059 | 16 | 360 | 190 | M16 | 16.1 | 8 | 0.83 | 6,500 |
| 63121785 | 20 | 410 | 210 | M20 | 17.8 | 10 | 1.50 | 8,500 |
| SS316 | Size | L(inch) | L1(inch) | M(thread) | OD(inch) | DiaØCable(inch) | Unit weight (Ib) | B.L.(lb) |
|---|---|---|---|---|---|---|---|---|
| 63121063 | 5 | 6.14 | 3.15 | M5 | 0.22 | 3/32" | 0.09 | 330 |
| 63121055 | 6 | 6.42 | 3.54 | M6 | 0.25 | 1/8" | 0.15 | 550 |
| 63121051 | 8 | 7.87 | 4.13 | M8 | 0.30 | 5/32" | 0.24 | 770 |
| 63121056 | 10 | 9.37 | 4.92 | M10 | 0.36 | 3/16'' | 0.48 | 1,210 |
| 63121057 | 12 | 11.18 | 5.91 | M12 | 0.49 | 1/4" | 0.88 | 2,200 |
| 63121058 | 14 | 12.28 | 6.50 | M14 | 0.56 | 1/4" | 1.17 | 2,970 |
| 63121059 | 16 | 14.17 | 7.48 | M16 | 0.63 | 5/16" | 1.83 | 3,575 |
| 63121785 | 20 | 16.14 | 8.27 | M20 | 0.70 | 3/8" | 3.30 | 4,675 |
