Description
Technical Data:
Forging Material: AISI316 - DIN 1.4401
Production: SF3121P/FT1 - Jaw/Nut - Forged
Terminal - Forged
Surface Treatment: Matte finished / Passivated
Note : Standard safety factor for working load is 1/4 of breaking load.

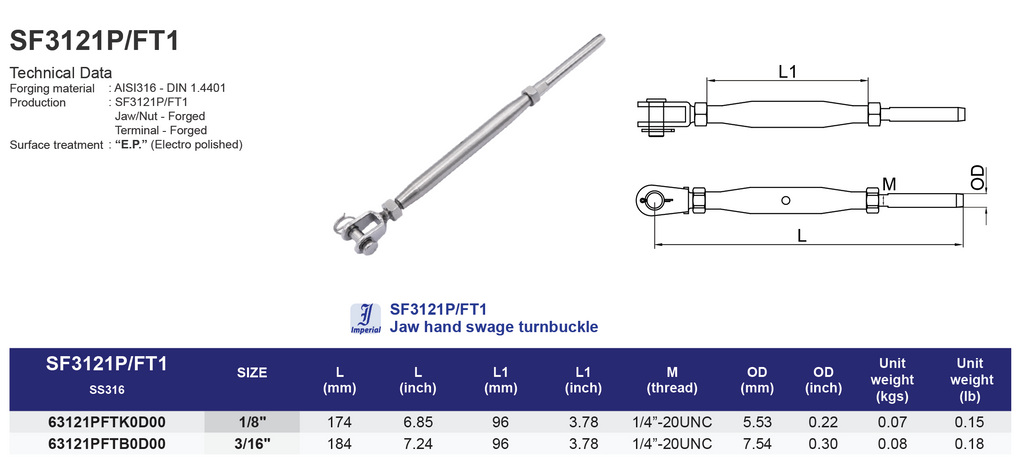

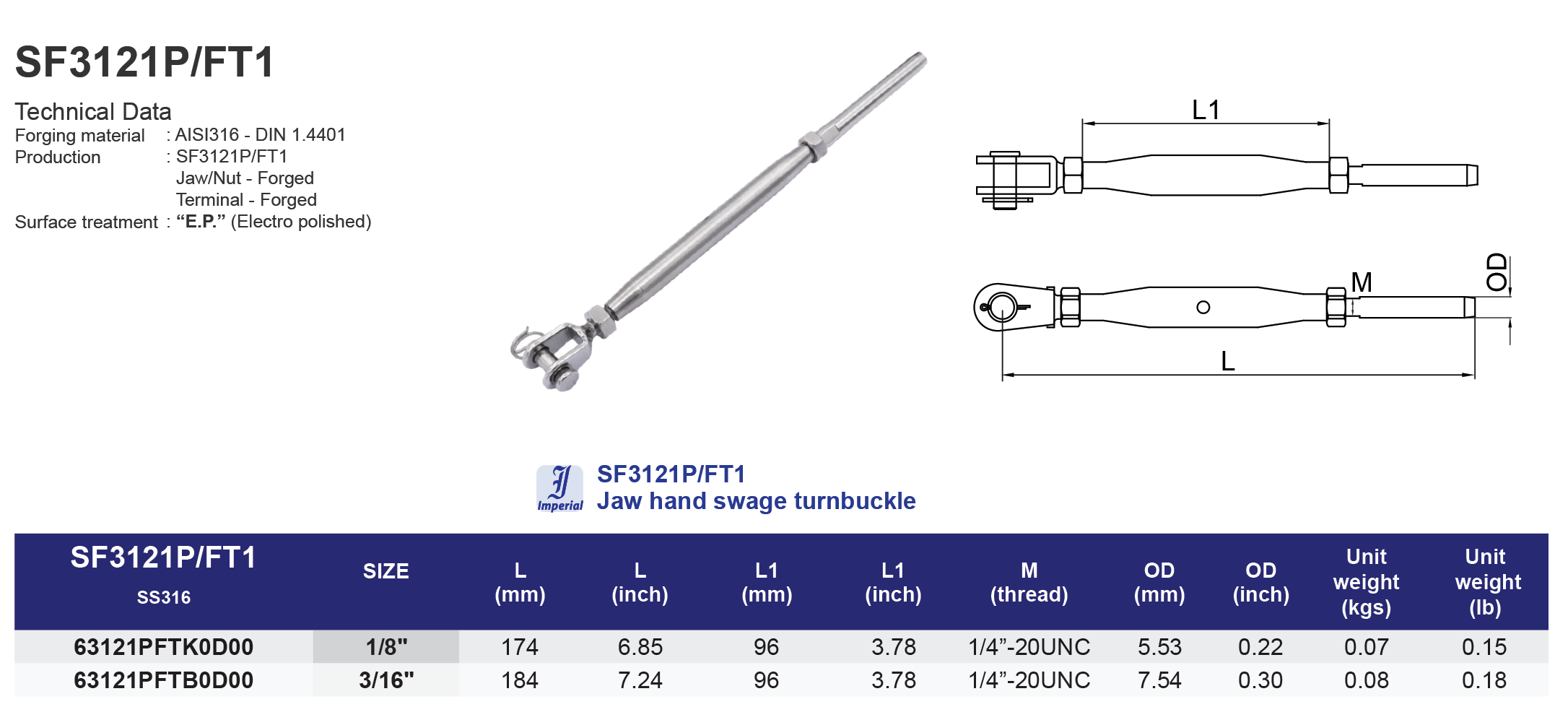

Model
SF3121P/FT1

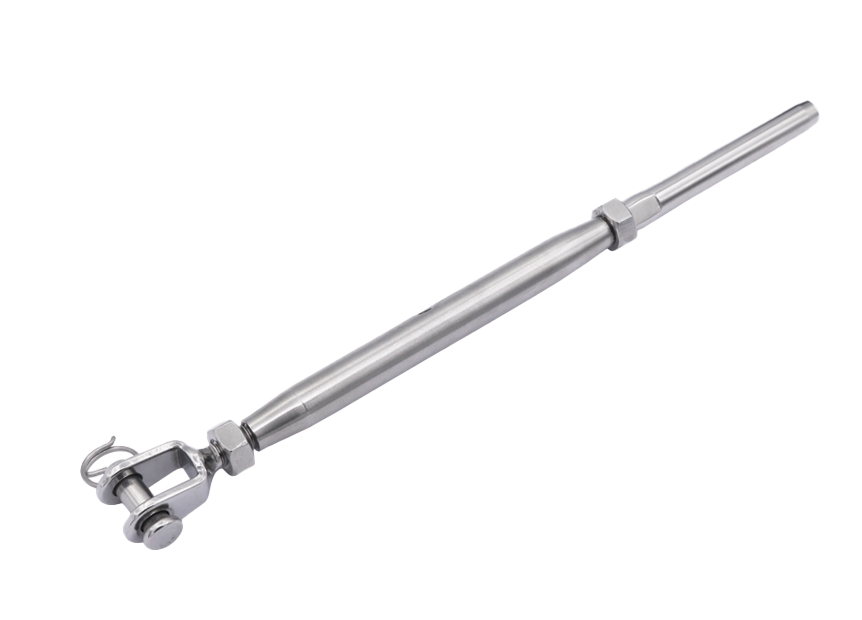

Jaw hand swage turnbuckle
316 ss
| SS316 | Size | L(mm) | L1(mm) | M(thread) | OD(mm) | Weight(kgs) |
|---|---|---|---|---|---|---|
| 63121PFTK0D00 | 1/8" | 173.99 | 95.76 | 1/4"-20UNC | 3.56 | 0.074 |
| 63121PFTB0D00 | 3/16" | 183.90 | 95.76 | 1/4"-20UNC | 5.08 | 0.080 |
| SS316 | Size | L(inch) | L1(inch) | M(thread) | OD(inch) | Weight(lb) |
|---|---|---|---|---|---|---|
| 63121PFTK0D00 | 1/8" | 6.85 | 3.77 | 1/4"-20UNC | 0.14 | 0.160 |
| 63121PFTB0D00 | 3/16" | 7.24 | 3.77 | 1/4"-20UNC | 0.20 | 0.170 |
