Description
Technical Data:
Forging Material: AISI316 - DIN 1.4401
Surface Treatment: Electro Polished

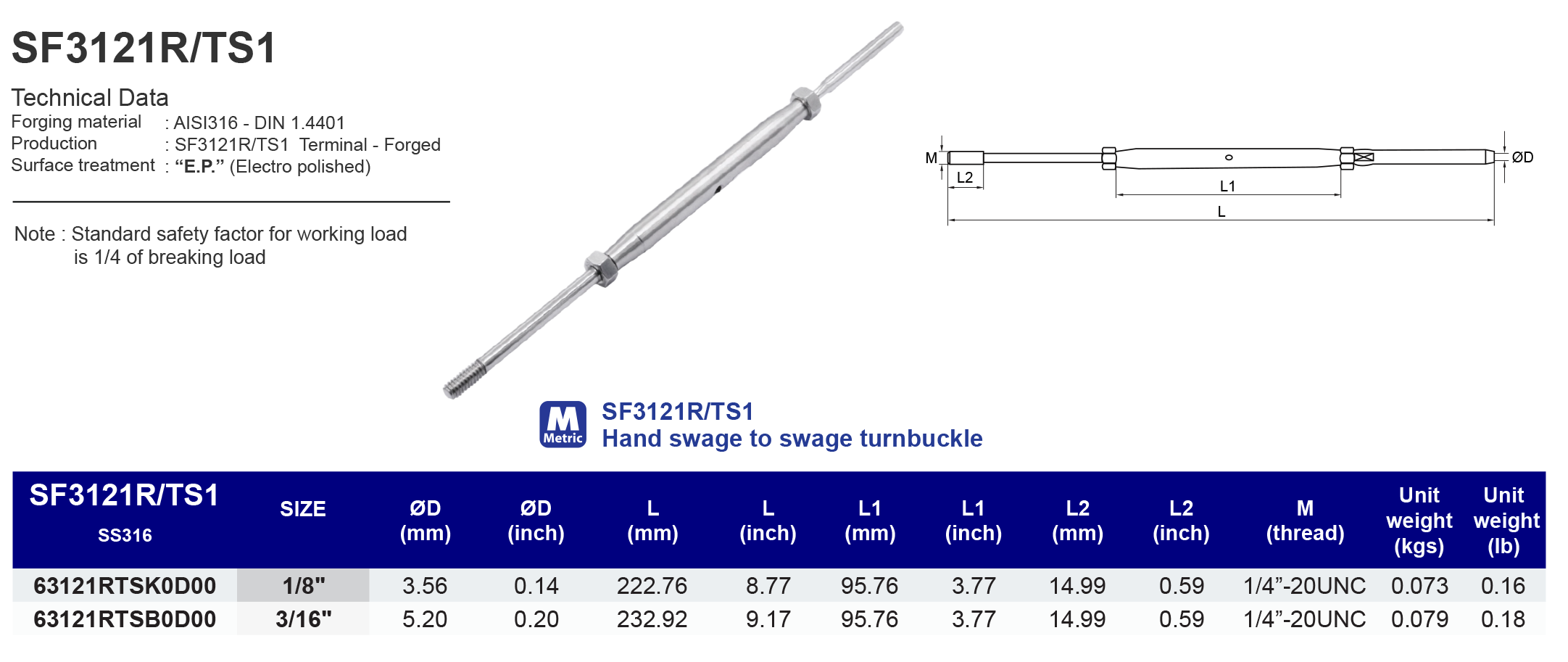

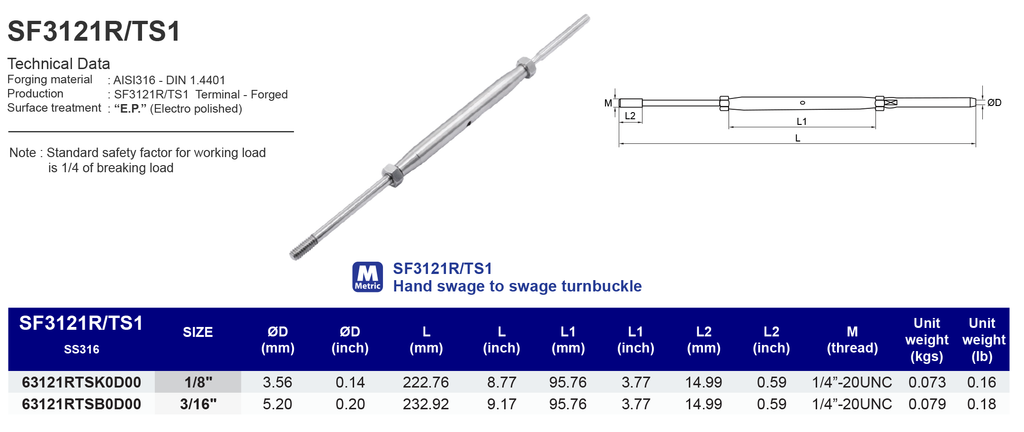

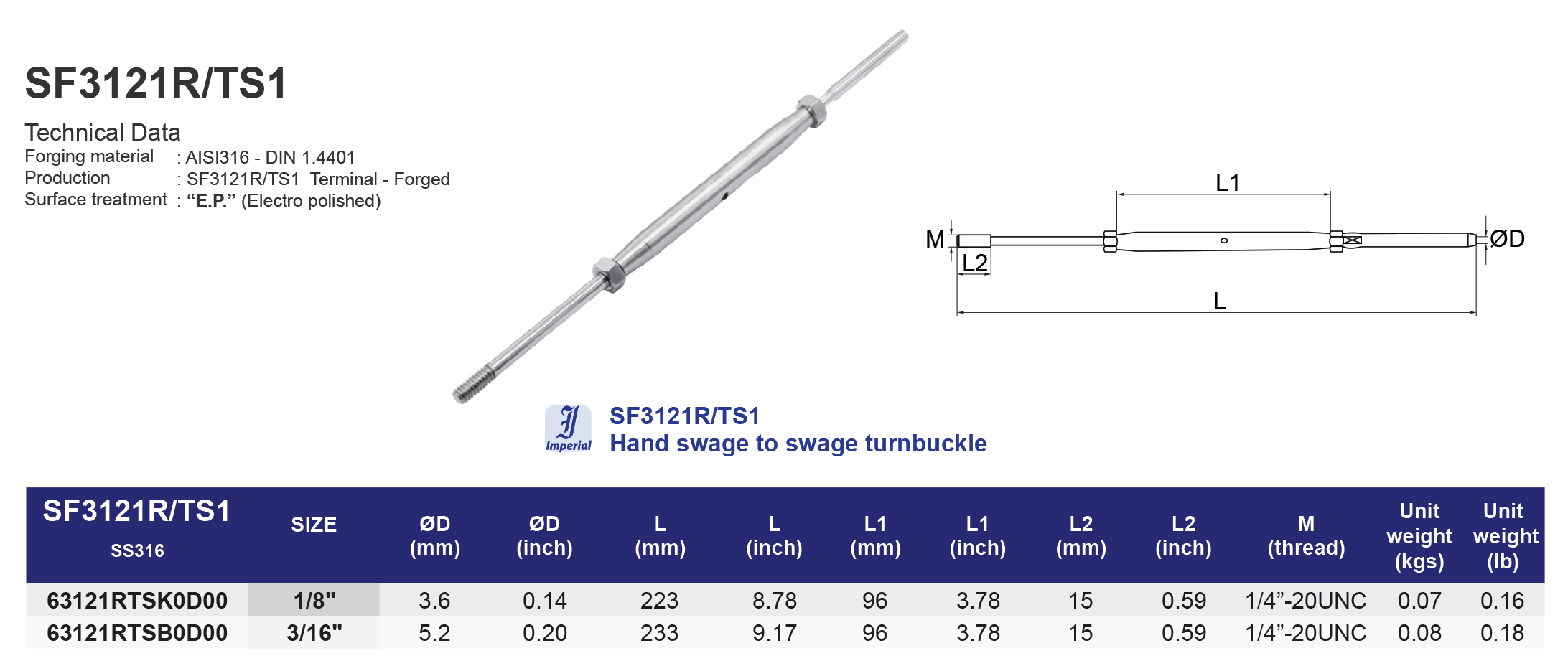

Model
SF3121R/TS1

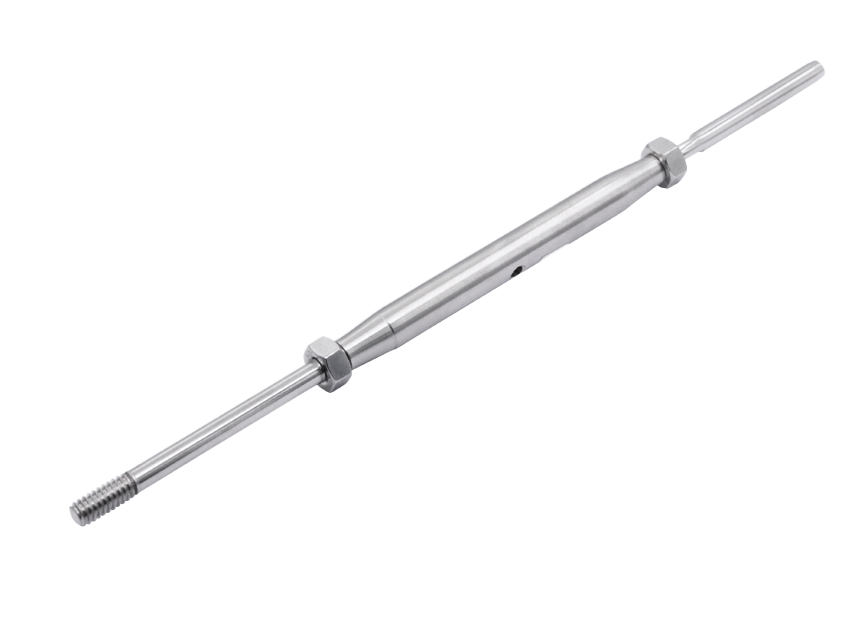

Hand swage to swage turnbuckle
316 ss
| SS316 | Size | ØD(mm) | L(mm) | L1 (mm) | L2(mm) | M(thread) | Weight (kgs) |
|---|---|---|---|---|---|---|---|
| 63121RTSK0D00 | 1/8" | 3.56 | 222.76 | 95.76 | 14.99 | 1/4"-20UNC | 0.073 |
| 63121RTSB0D00 | 3/16" | 5.20 | 232.92 | 95.76 | 14.99 | 1/4"-20UNC | 0.079 |
| SS316 | Size | ØD(inch) | L(inch) | L1 (inch) | L2(inch) | M(thread) | Weight (lb) |
|---|---|---|---|---|---|---|---|
| 63121RTSK0D00 | 1/8" | 0.14 | 8.77 | 3.77 | 0.59 | 1/4"-20UNC | 0.16 |
| 63121RTSB0D00 | 3/16" | 0.20 | 9.17 | 3.77 | 0.59 | 1/4"-20UNC | 0.18 |
