Description
Technical Data:
Forging Material: AISI316 - DIN 1.4401
Surface Treatment: Electro Polished

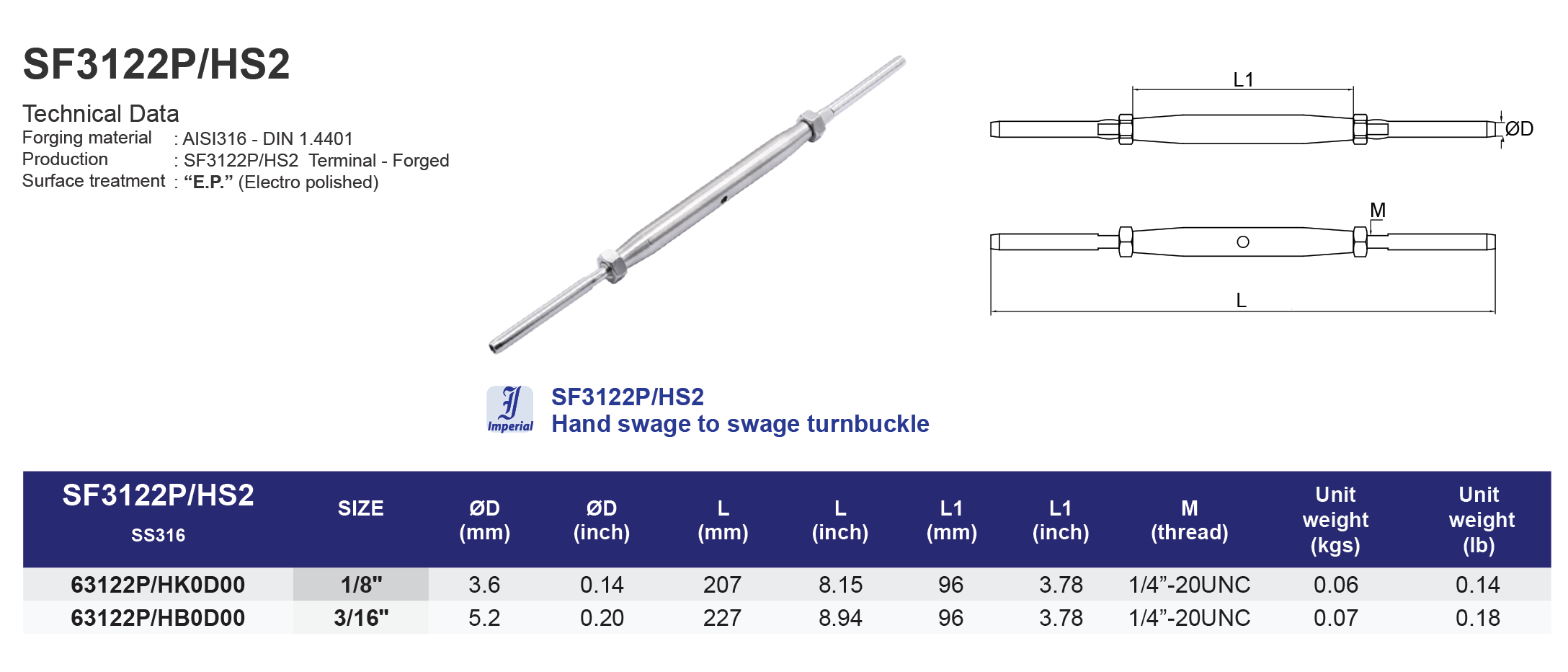

Model
SF3122P/HS2

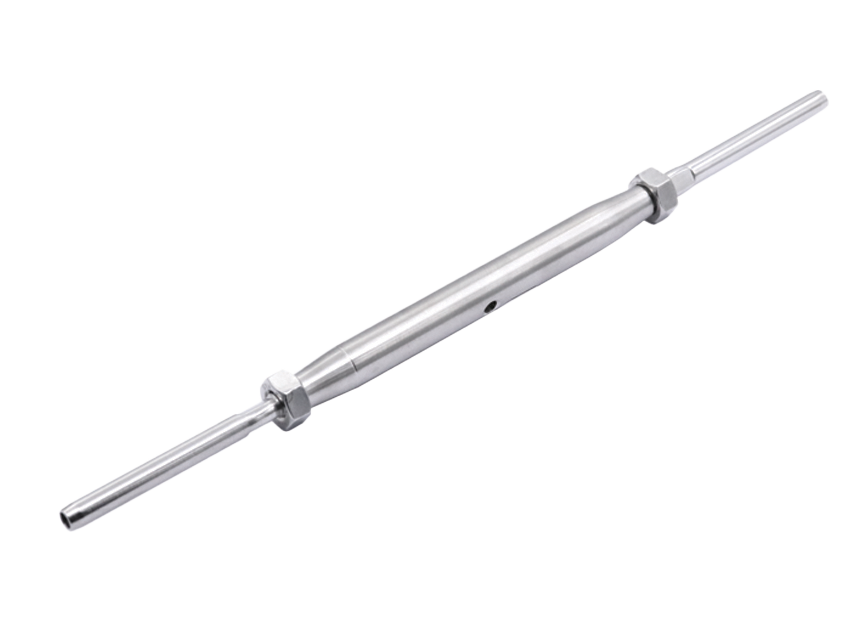

Hand swage to swage turnbuckle
316 ss
| SS316 | Size | L(mm) | L1 (mm) | M (thread) | Weight (kgs) |
|---|---|---|---|---|---|
| 63122P/HK0D00 | 1/8" | 206.76 | 95.76 | 1/4"-20UNC | 0.06 |
| 63122P/HB0D00 | 3/16" | 226.82 | 95.76 | 1/4"-20UNC | 0.07 |
| SS316 | Size | L(inch) | L1 (inch) | M (thread) | Weight (lb) |
|---|---|---|---|---|---|
| 63122P/HK0D00 | 1/8" | 8.14 | 3.77 | 1/4"-20UNC | 0.14 |
| 63122P/HB0D00 | 3/16" | 8.93 | 3.77 | 1/4"-20UNC | 0.18 |
