Description

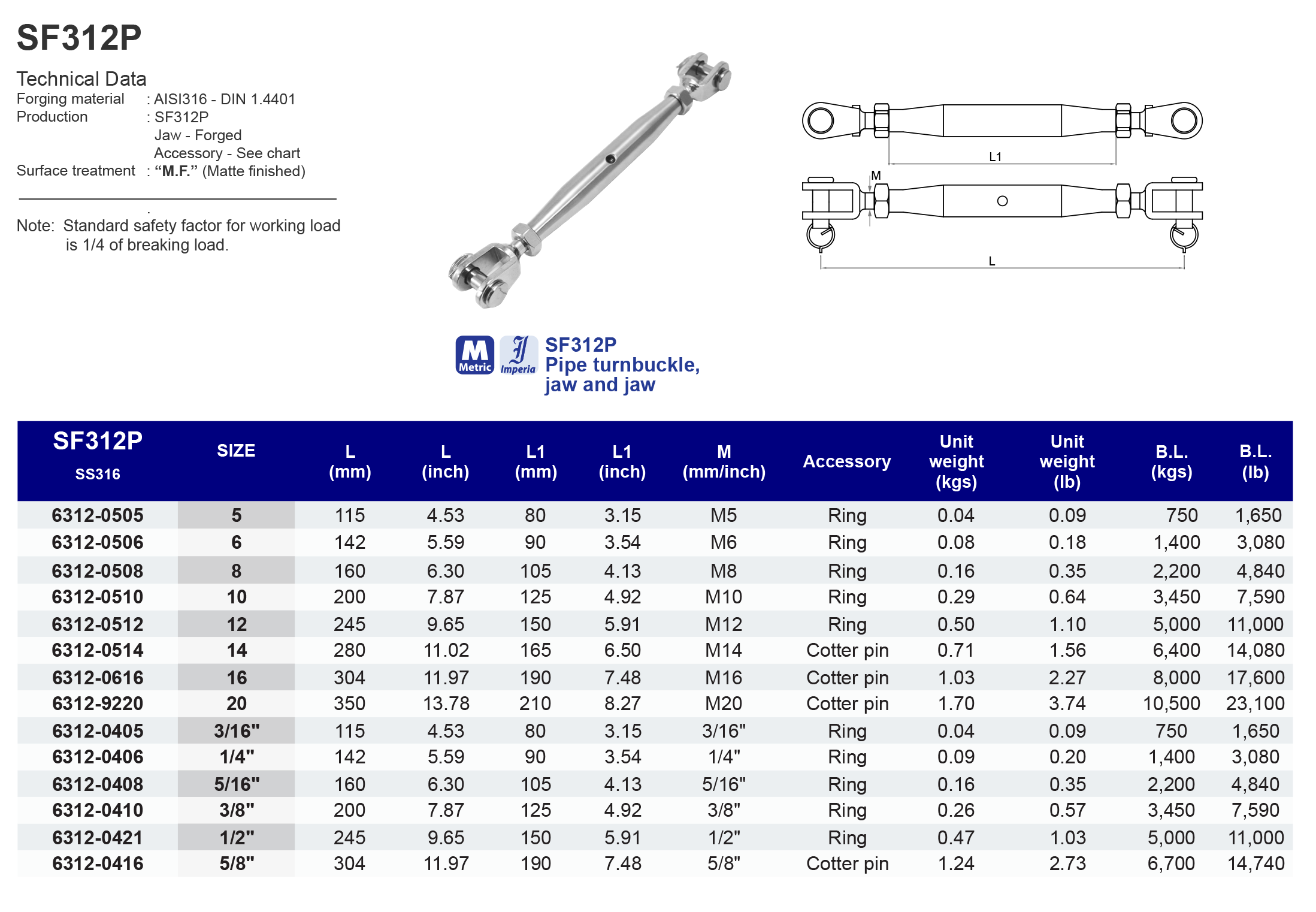

Technical Data:
Forging Material: AISI316 - DIN 1.4401
Production: SF312P - Jaw - Forged
Accessory - See Chart
Surface Treatment: “M.F.” (Matte finished) Note: Standard safety factor for working load
is 1/4 of breaking load.
Model
SF312P
Pipe turnbuckle, jaw and jaw
316 ss
| SS316 | Size | L (mm) | L1 (mm) | M (mm) | Accessory | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 63120505 | 5 | 115 | 80 | M5 | Ring | 0.04 | 750 |
| 63120506 | 6 | 142 | 90 | M6 | Ring | 0.08 | 1,400 |
| 63120508 | 8 | 160 | 105 | M8 | Ring | 0.16 | 2,200 |
| 63120510 | 10 | 200 | 125 | M10 | Ring | 0.29 | 3,450 |
| 63120512 | 12 | 245 | 150 | M12 | Ring | 0.50 | 5,000 |
| 63120514 | 14 | 280 | 165 | M14 | Cotter pin | 0.71 | 6,400 |
| 63120616 | 16 | 304 | 190 | M16 | Cotter pin | 1.03 | 8,000 |
| 63129220 | 20 | 350 | 210 | M20 | Cotter pin | 1.70 | 10,500 |
| SS316 | Size | L (inch) | L1 (inch) | M (inch) | Accessory | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 63120405 | 3/16"UNC | 4.53 | 3.15 | 3/16" | Ring | 0.09 | 1,650 |
| 63120406 | 1/4"UNC | 5.59 | 3.54 | 1/4" | Ring | 0.20 | 3,080 |
| 63120408 | 5/16"UNC | 6.3 | 4.13 | 5/16" | Ring | 0.35 | 4,840 |
| 63120410 | 3/8"UNC | 7.87 | 4.92 | 3/8" | Ring | 0.57 | 7,590 |
| 63120421 | 1/2"UNC | 9.65 | 5.91 | 1/2" | Ring | 1.03 | 11,000 |
| 63120416 | 5/8"UNC | 11.97 | 7.48 | 5/8" | Cotter pin | 2.73 | 14,740 |
