Description
Technical Data:
Forging Material: AISI316 - DIN 1.4401
Production: SF312PBD / MIN - Pipe - Forged
Surface Treatment: “M.F.” (Matte finished)
Model
SF312PBD_MIN

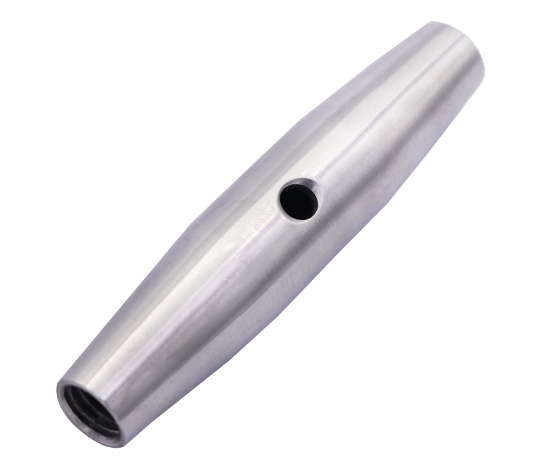

Mini turnbuckle pipe
316 ss

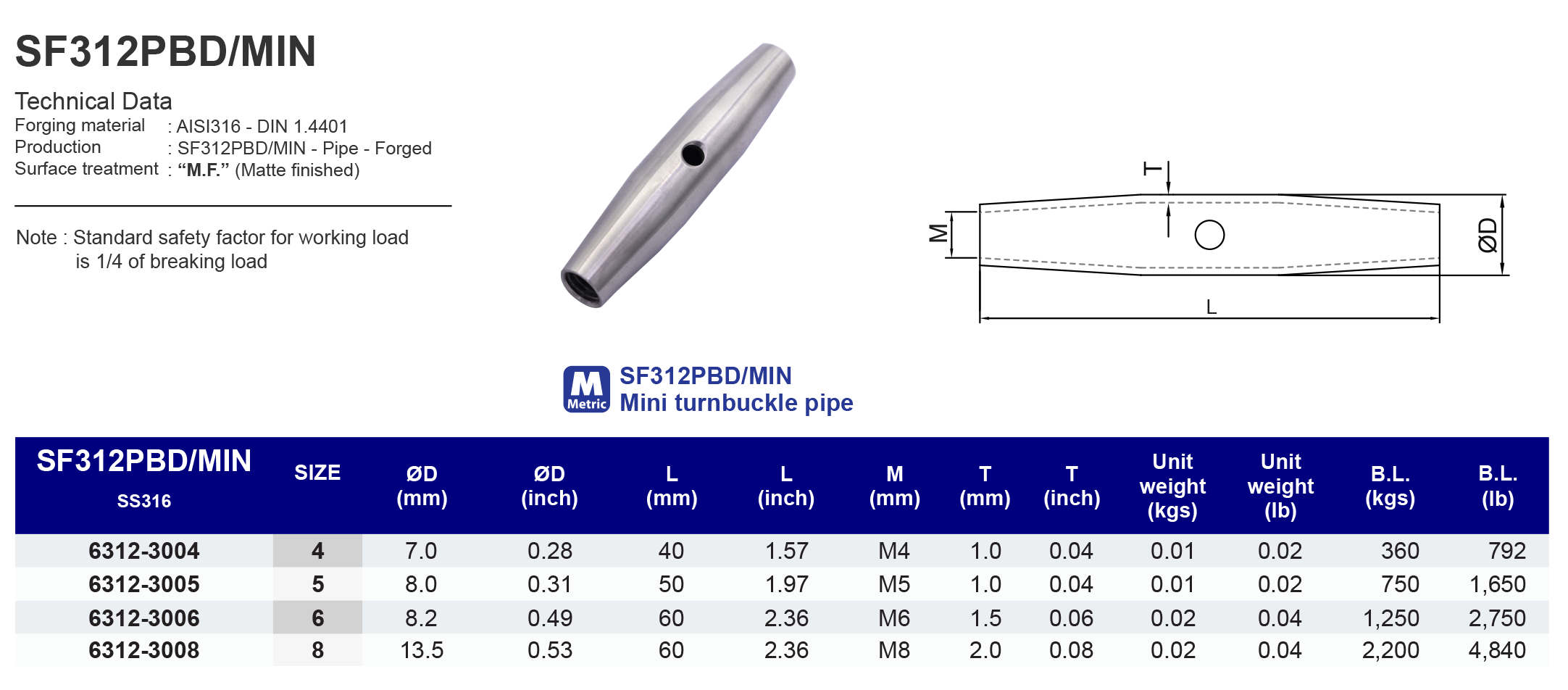

| SS316 | Size | ØD (mm) | L (mm) | M (mm) | T (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 63123004 | 4 | 7.0 | 40 | M4 | 1.0 | 0.01 | 360 |
| 63123005 | 5 | 8.0 | 50 | M5 | 1.0 | 0.01 | 750 |
| 63123006 | 6 | 8.2 | 60 | M6 | 1.5 | 0.02 | 1,250 |
| 63123008 | 8 | 13.5 | 60 | M8 | 2.0 | 0.02 | 2,200 |
| SS316 | Size | ØD (inch) | L (inch) | M (mm) | T (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 63123004 | 4 | 0.28 | 1.57 | M4 | 0.04 | 0.02 | 792 |
| 63123005 | 5 | 0.31 | 1.97 | M5 | 0.04 | 0.02 | 1,650 |
| 63123006 | 6 | 0.32 | 2.36 | M6 | 0.06 | 0.04 | 2,750 |
| 63123008 | 8 | 0.53 | 2.36 | M8 | 0.08 | 0.04 | 4,840 |
