Description
Technical Data:
Forging Material: AISI316 - DIN 1.4401
Production: SF312PHE - Hook - Forged
Eye - Welded
Surface Treatment: “M.F.” (Matte finished) Note : Standard safety factor for working load
is 1/4 of breaking load
Model
SF312PHE

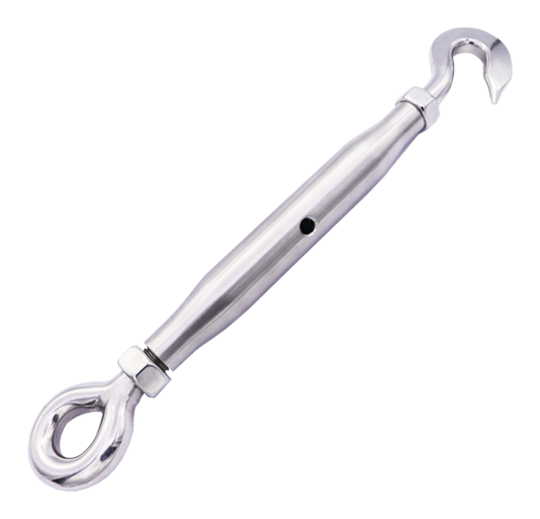

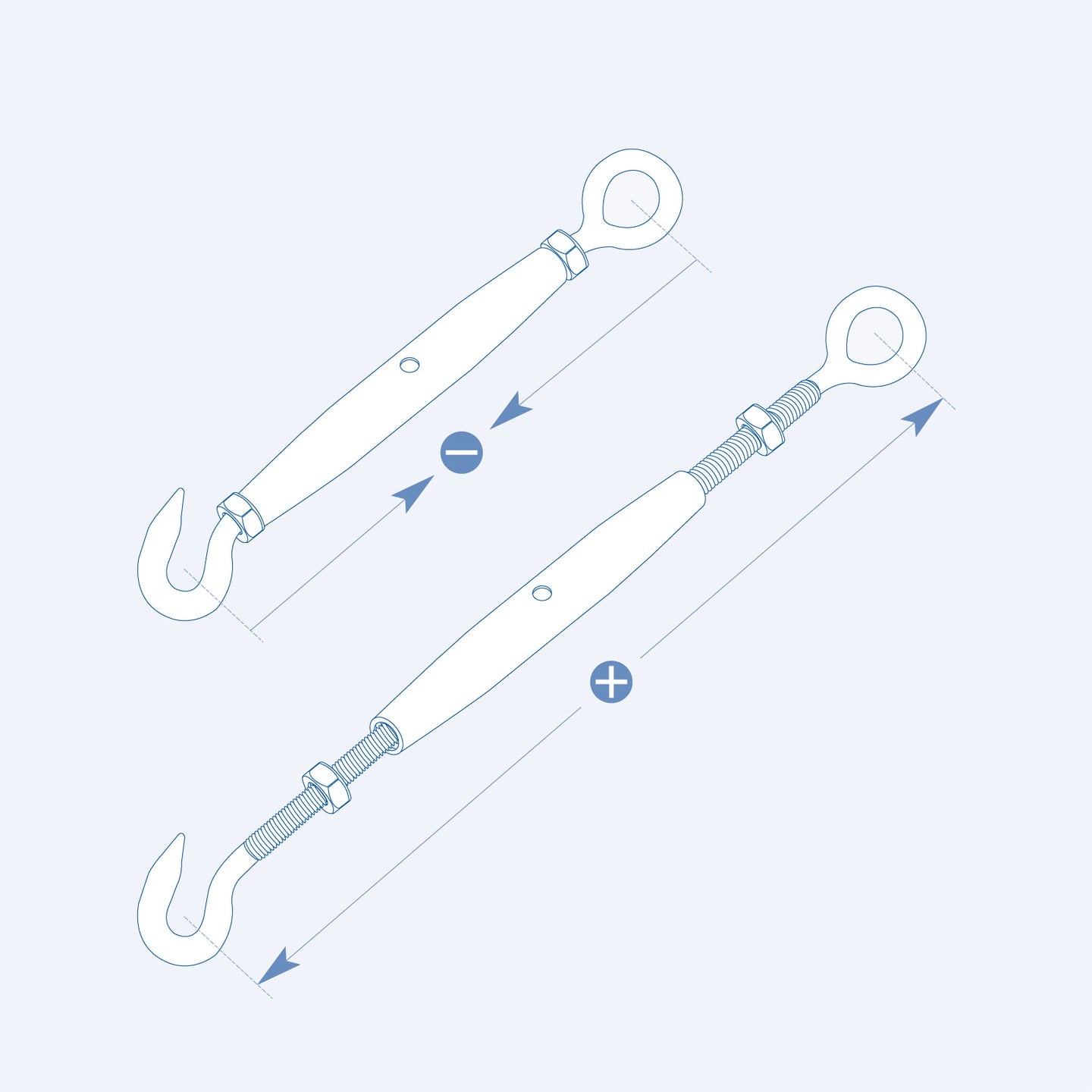

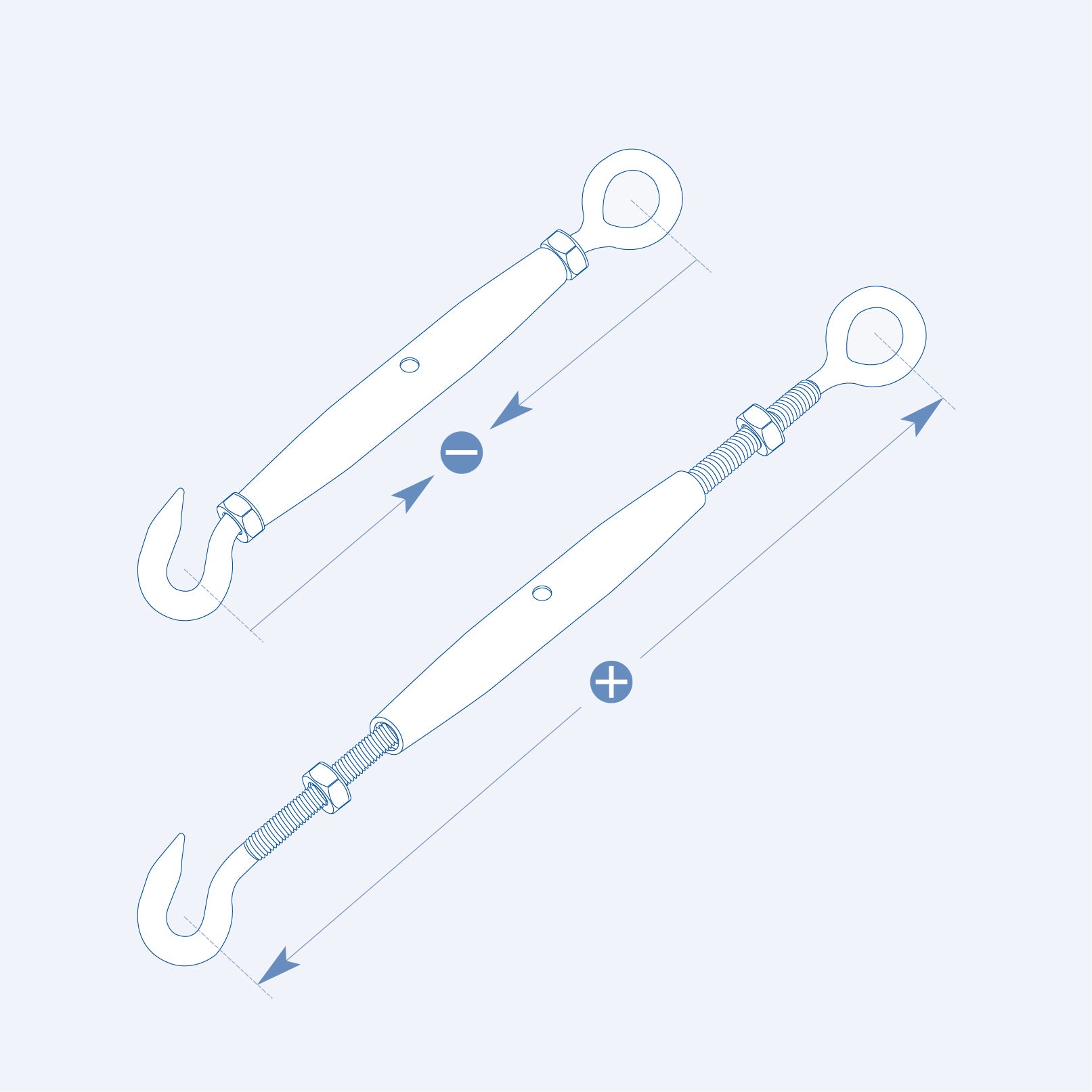

Pipe turnbuckle, hook and eye
316 ss

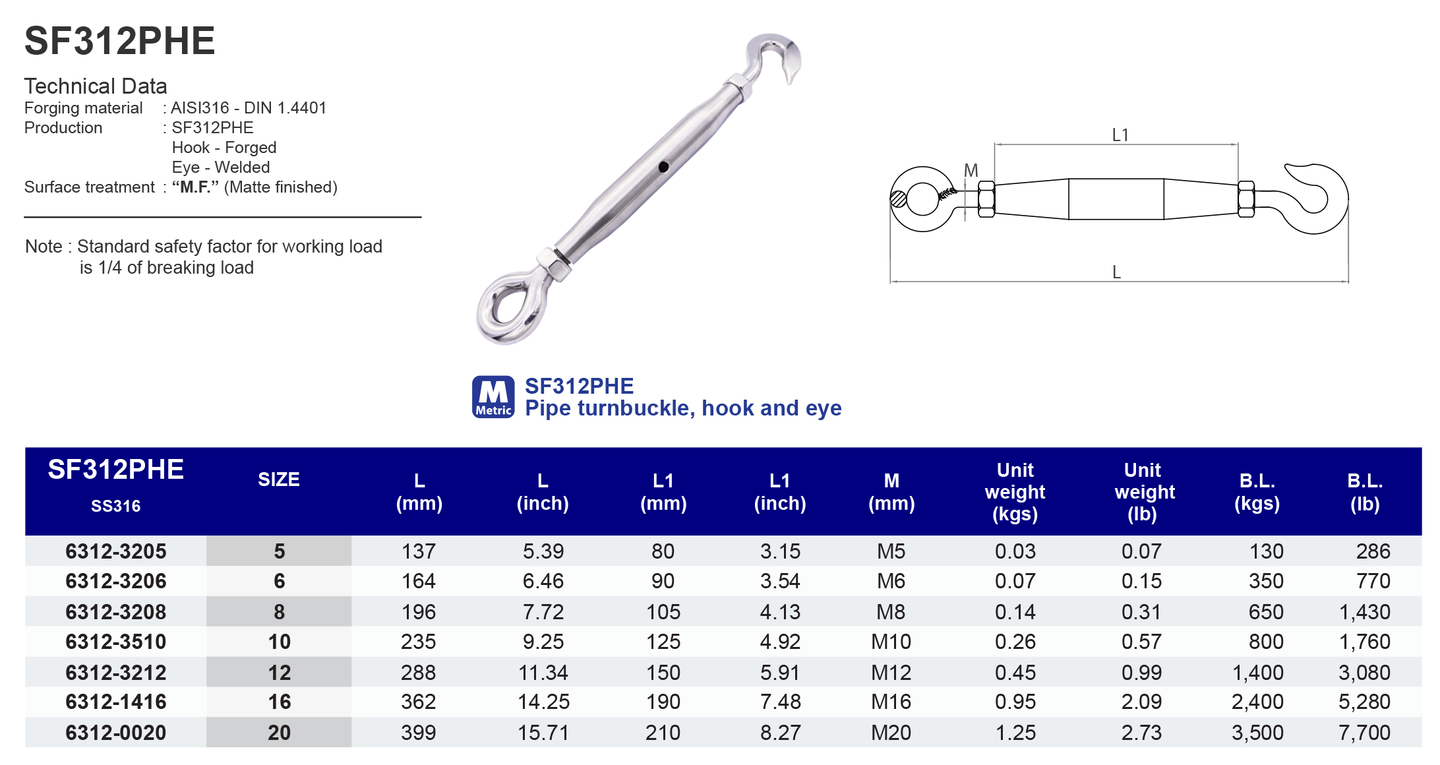

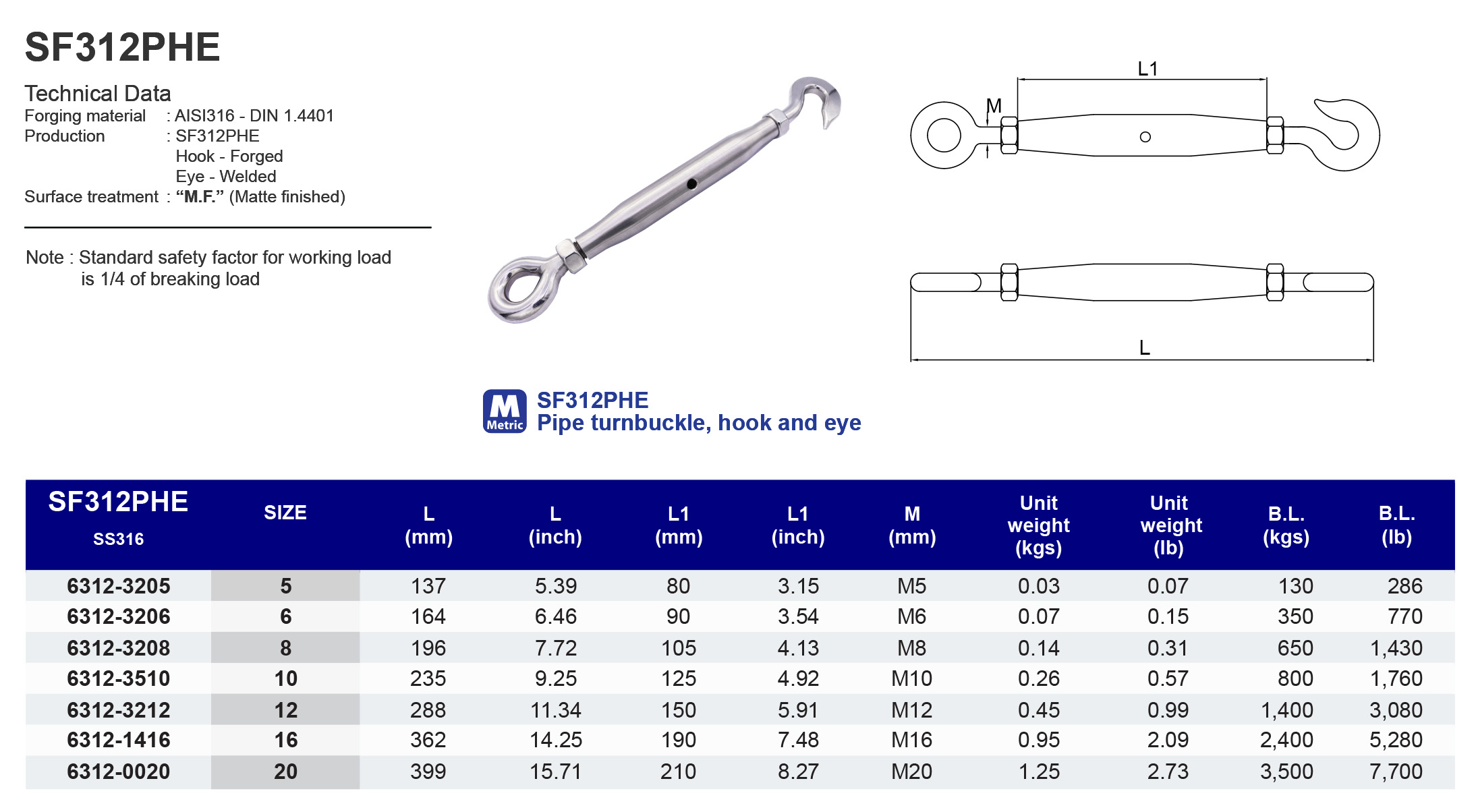

| SS316 | Size | L (mm) | L1 (mm) | M (thread) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 63123205 | 5 | 137 | 80 | M5 | 0.03 | 130 |
| 63123206 | 6 | 164 | 90 | M6 | 0.07 | 350 |
| 63123208 | 8 | 196 | 105 | M8 | 0.14 | 650 |
| 63123510 | 10 | 235 | 125 | M10 | 0.26 | 800 |
| 63123212 | 12 | 288 | 150 | M12 | 0.45 | 1,400 |
| 63121416 | 16 | 362 | 190 | M16 | 0.95 | 2,400 |
| 63120020 | 20 | 399 | 210 | M20 | 1.25 | 3,500 |
| SS316 | Size | L (inch) | L1 (inch) | M (thread) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 63123205 | 5 | 5.39 | 3.15 | M5 | 0.07 | 286 |
| 63123206 | 6 | 6.46 | 3.54 | M6 | 0.15 | 770 |
| 63123208 | 8 | 7.72 | 4.13 | M8 | 0.31 | 1,430 |
| 63123510 | 10 | 9.25 | 4.92 | M10 | 0.57 | 1,760 |
| 63123212 | 12 | 11.34 | 5.91 | M12 | 0.99 | 3,080 |
| 63121416 | 16 | 14.25 | 7.48 | M16 | 2.09 | 5,280 |
| 63120020 | 20 | 15.71 | 8.27 | M20 | 2.73 | 7,700 |
