Description
Technical Data:
Forging Material: AISI316 - DIN 1.4401
Production: SF312PHH - Hook - Forged
Surface Treatment: “M.F.” (Matte finished) Note : Standard safety factor for working load
is 1/4 of breaking load

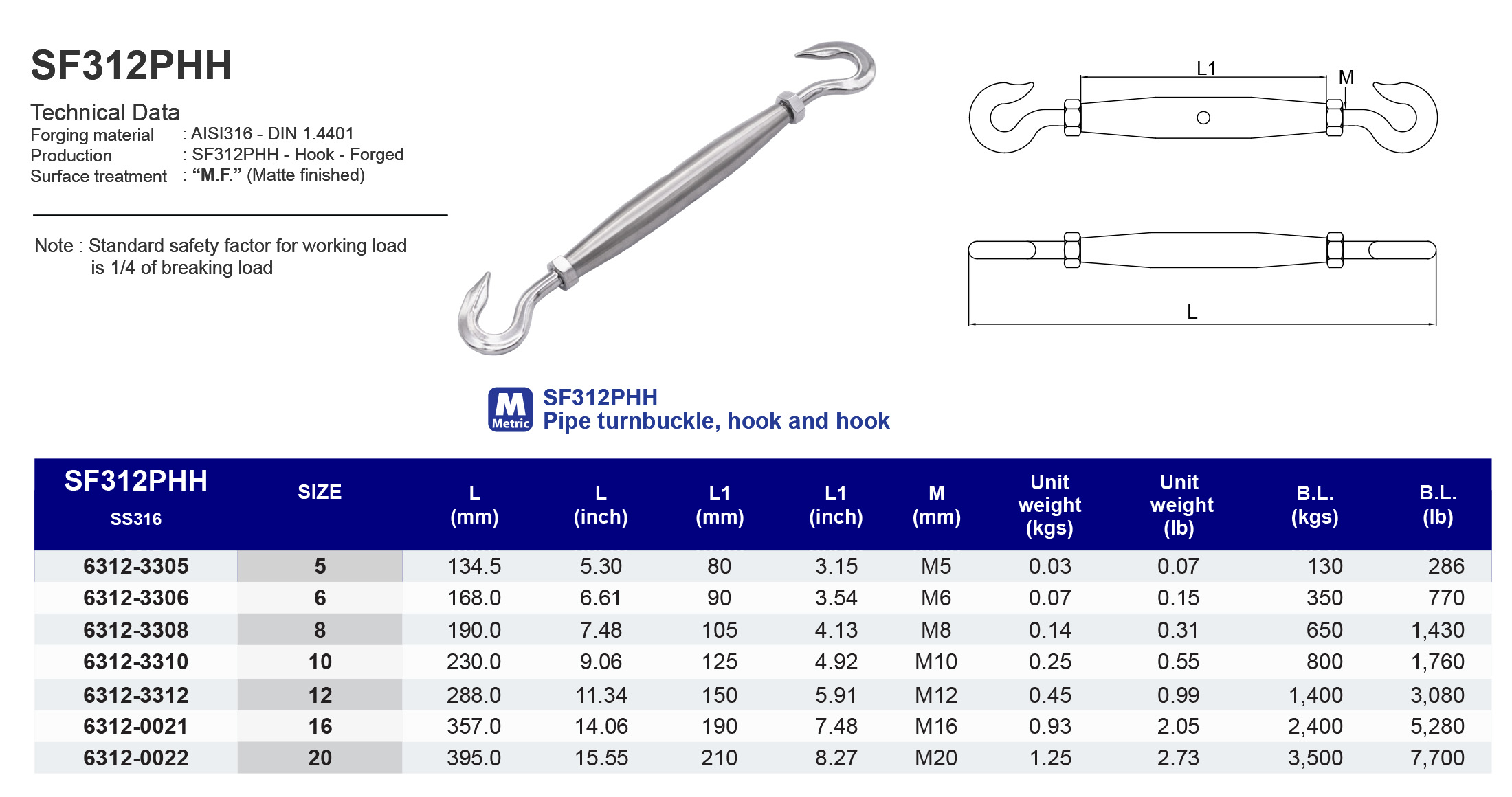

Model
SF312PHH

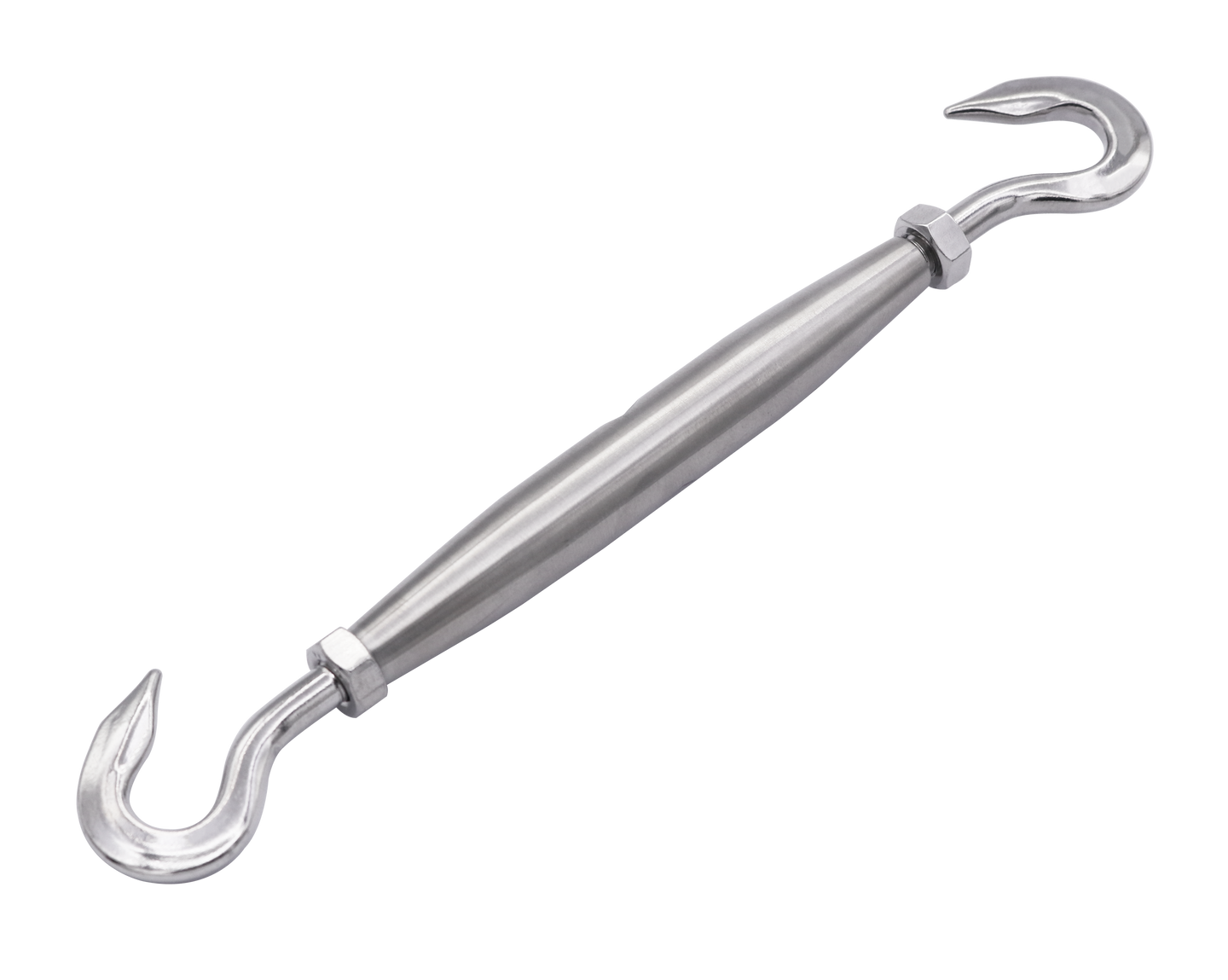

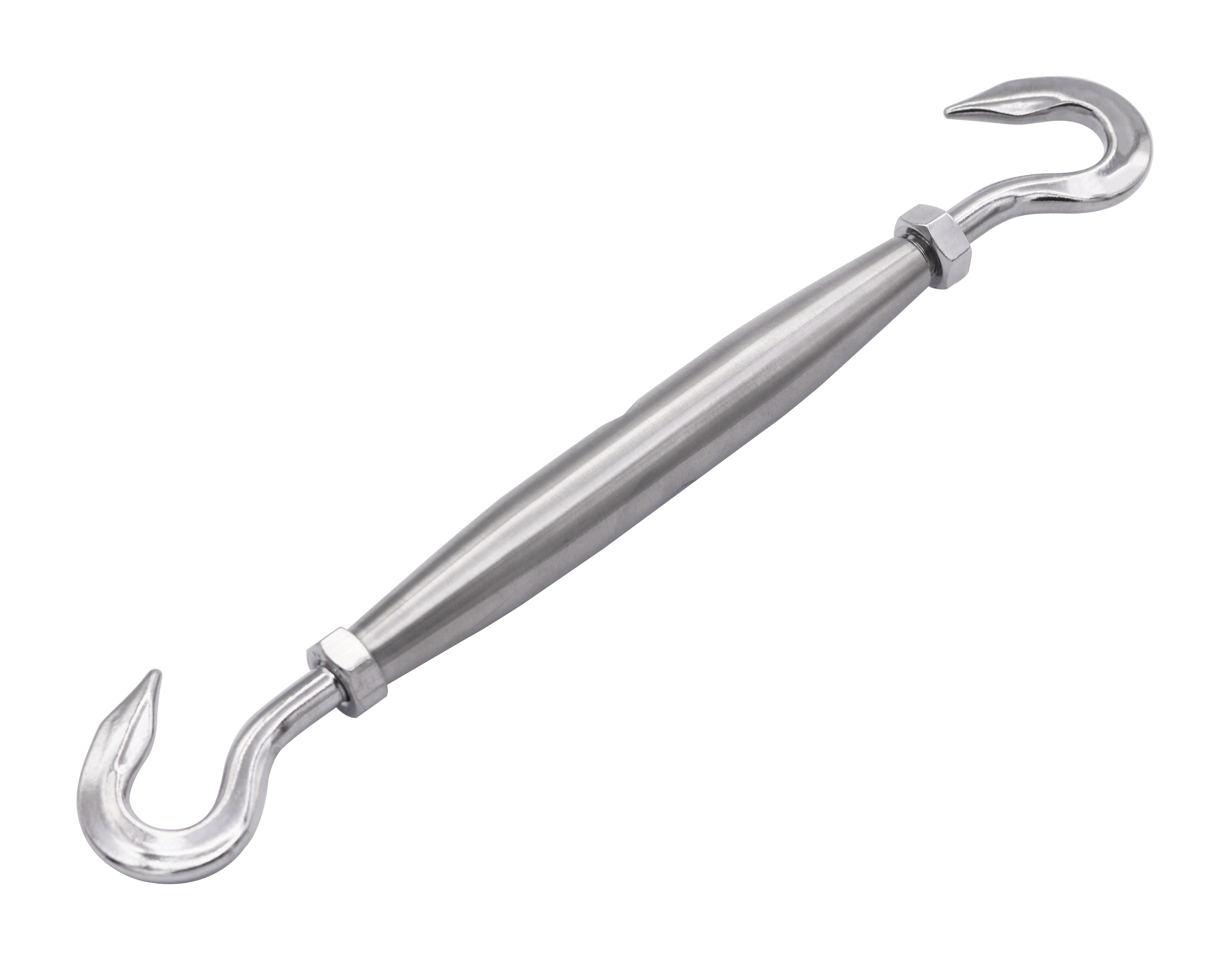

Pipe turnbuckle, hook and hook
316 ss
| SS316 | Size | L (mm) | L1 (mm) | M (thread) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 63123305 | 5 | 134.5 | 80 | M5 | 0.03 | 130 |
| 63123306 | 6 | 168 | 90 | M6 | 0.07 | 350 |
| 63123308 | 8 | 190 | 105 | M8 | 0.14 | 650 |
| 63123310 | 10 | 230 | 125 | M10 | 0.25 | 800 |
| 63123312 | 12 | 288 | 150 | M12 | 0.45 | 1,400 |
| 63120021 | 16 | 357 | 190 | M16 | 0.93 | 2,400 |
| 63120022 | 20 | 395 | 210 | M20 | 1.25 | 3,500 |
| SS316 | Size | L (inch) | L1 (inch) | M (thread) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 63123305 | 5 | 5.30 | 3.15 | M5 | 0.07 | 286 |
| 63123306 | 6 | 6.61 | 3.54 | M6 | 0.15 | 770 |
| 63123308 | 8 | 7.48 | 4.13 | M8 | 0.31 | 1,430 |
| 63123310 | 10 | 9.06 | 4.92 | M10 | 0.55 | 1,760 |
| 63123312 | 12 | 11.34 | 5.91 | M12 | 0.99 | 3,080 |
| 63120021 | 16 | 14.06 | 7.48 | M16 | 2.05 | 5,280 |
| 63120022 | 20 | 15.55 | 8.27 | M20 | 2.73 | 7,700 |
