Description

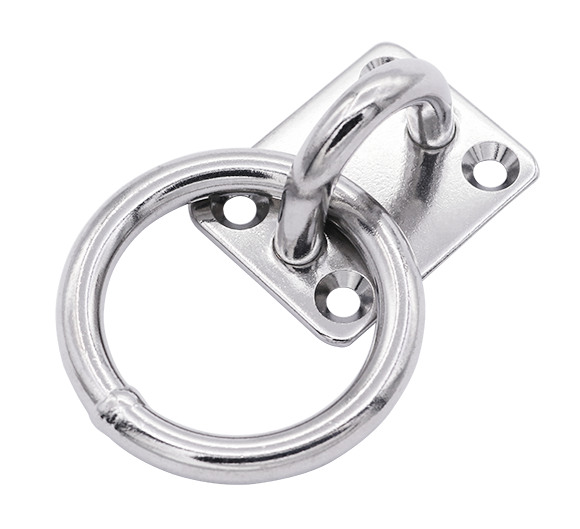

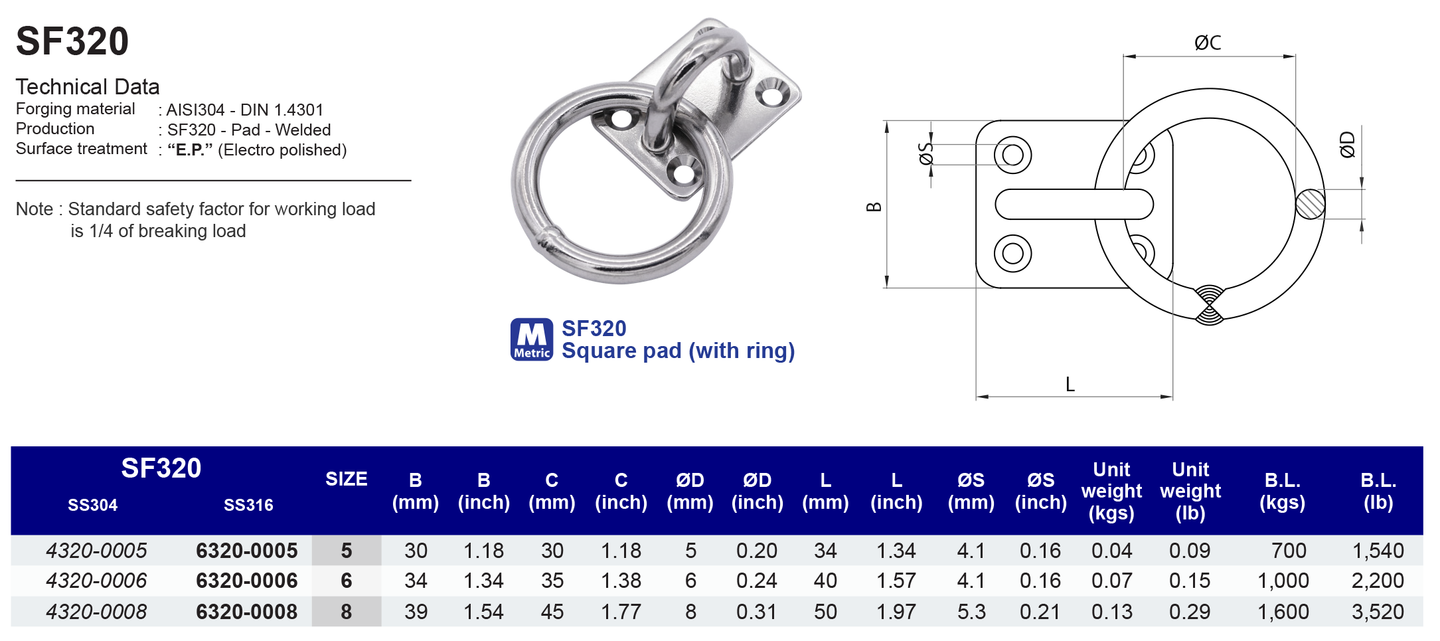

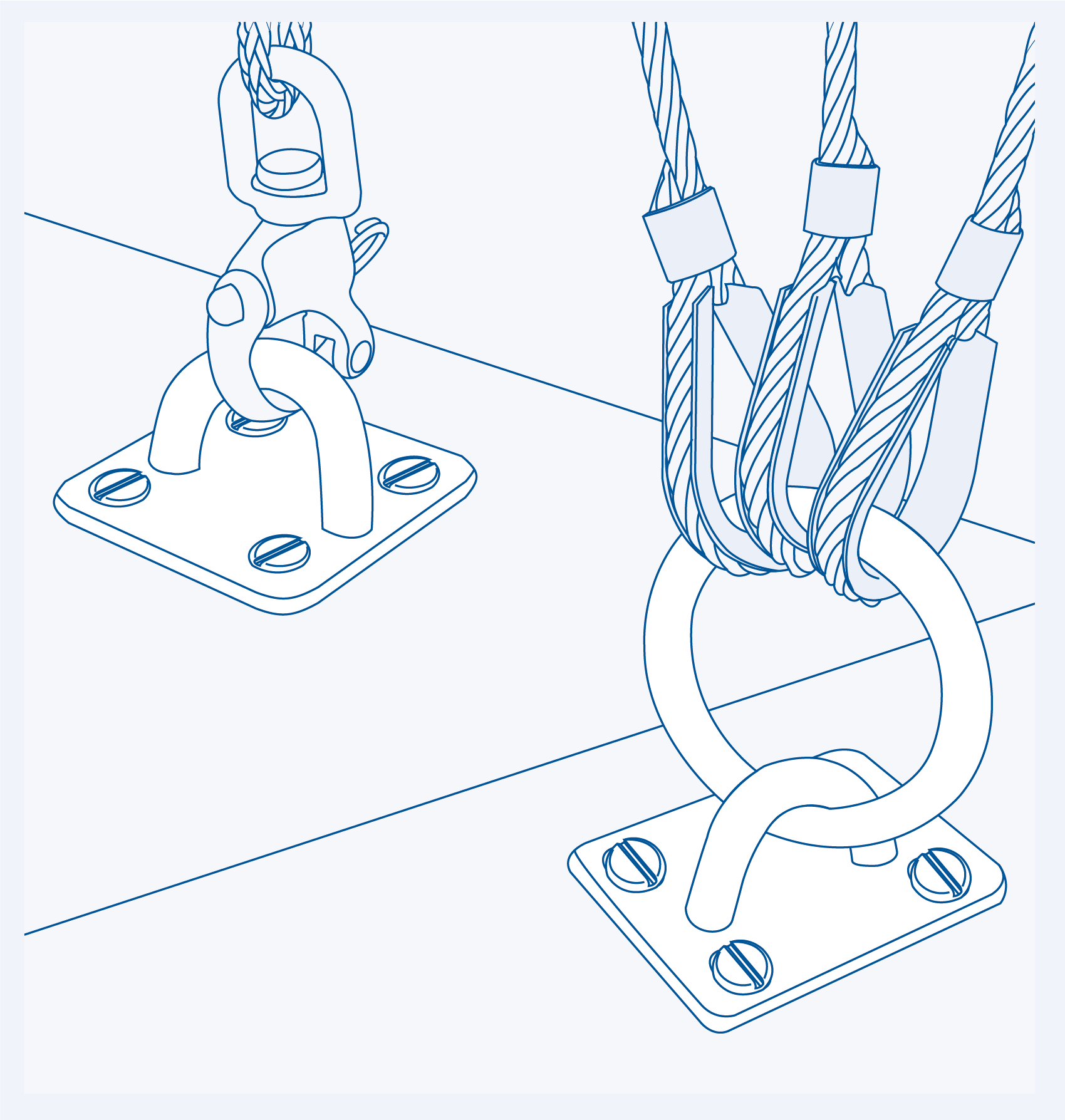

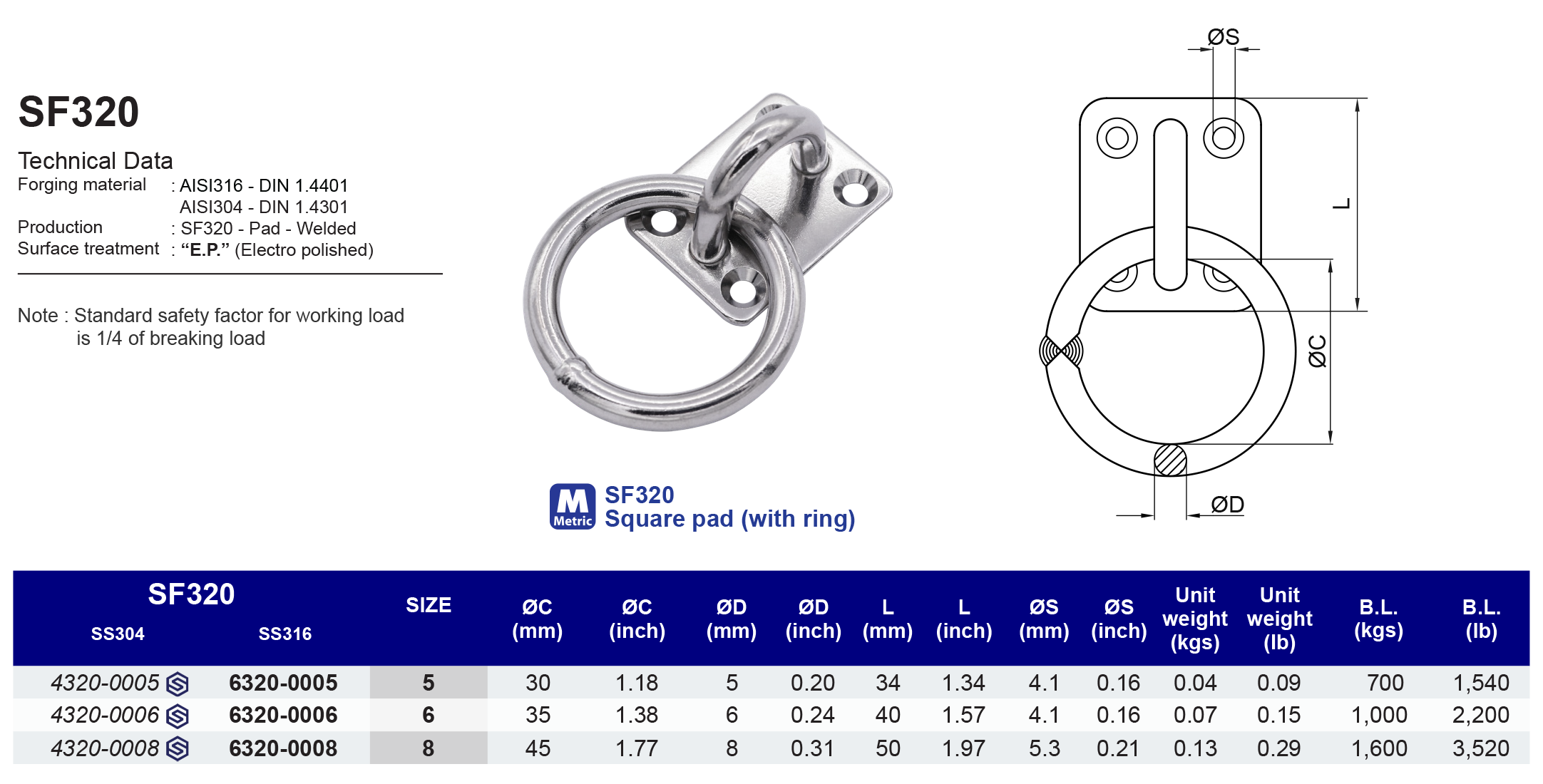

Technical Data:
Forging Material: AISI304 - DIN 1.4301
Production: SF320 - Pad - Welded
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load
Model
SF320
Square pad (with ring)
316 ss
| SS316 | Size | B (mm) | C (mm) | ØD (mm) | L (mm) | ØS (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|---|
| 63200005 | 5 | 30 | 30 | 5 | 34 | 4.1 | 0.04 | 700 |
| 63200006 | 6 | 34 | 35 | 6 | 40 | 4.1 | 0.07 | 1,000 |
| 63200008 | 8 | 39 | 45 | 8 | 50 | 5.3 | 0.13 | 1,600 |
| SS316 | Size | B (inch) | C (inch) | ØD (inch) | L (inch) | ØS (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|
| 63200005 | 3/16" | 1.18 | 1.18 | 0.2 | 1.34 | 0.16 | 0.09 | 1,540 |
| 63200006 | 1/4" | 1.34 | 1.38 | 0.24 | 1.57 | 0.16 | 0.15 | 2,200 |
| 63200008 | 5/16" | 1.54 | 1.77 | 0.31 | 1.97 | 0.21 | 0.29 | 3,520 |
