Description

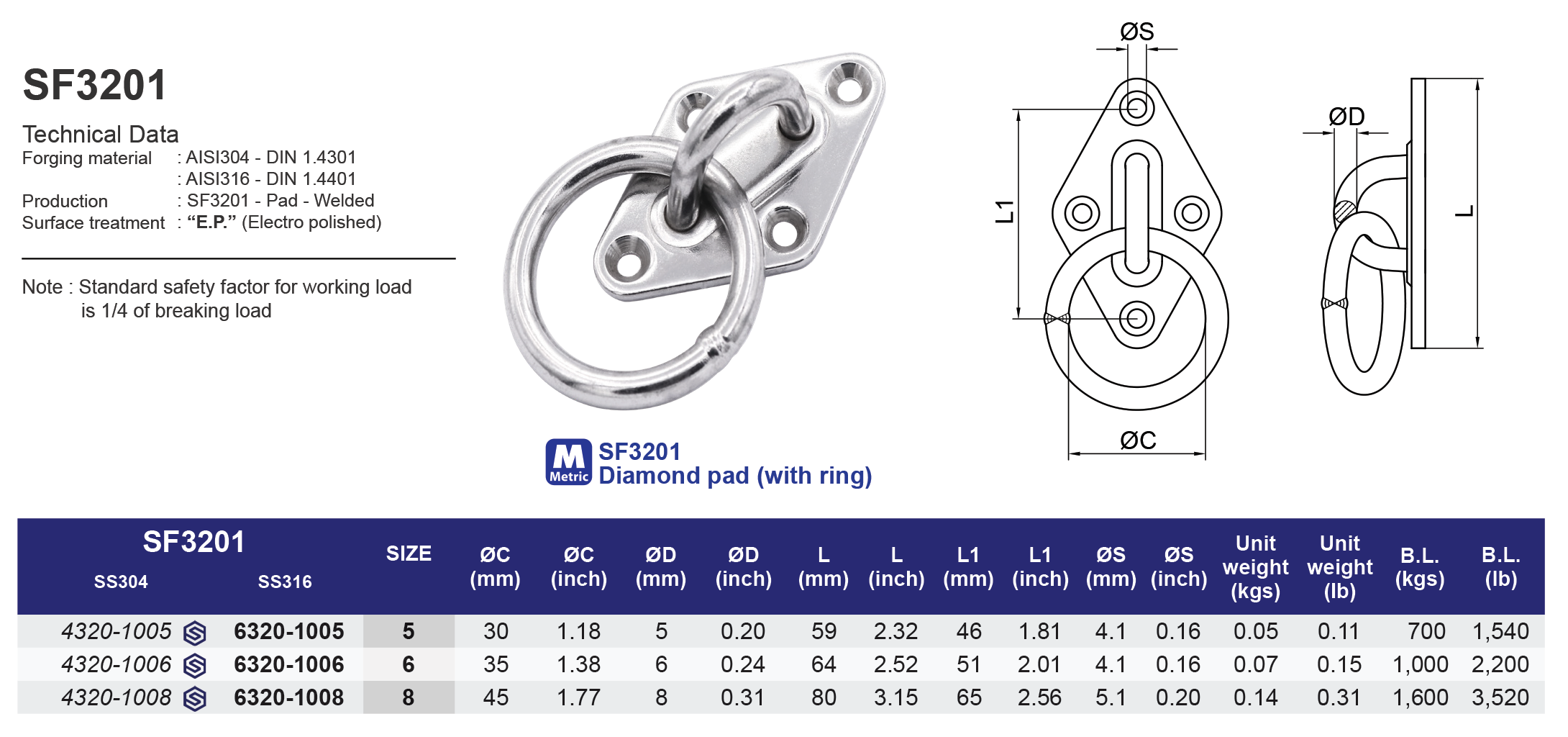

Technical Data:
Forging Material: AISI304 - DIN 1.4301
: AISI316 - DIN 1.4401 Production:
SF3201 - Pad - Welded
Surface treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load
Model
SF3201

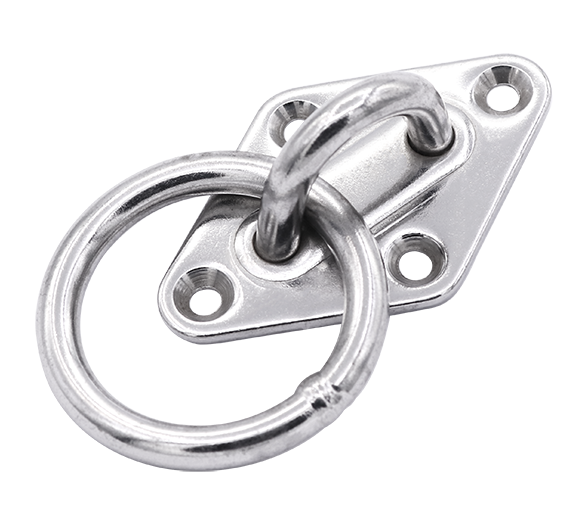

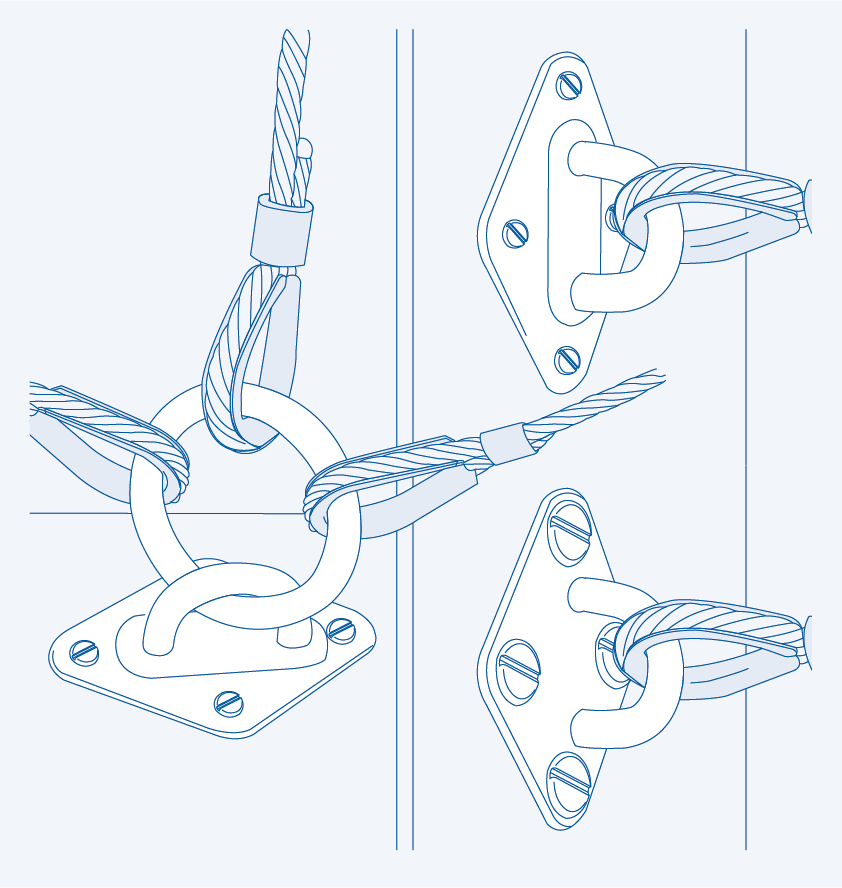

Diamond Pad (with ring)
316 ss
| SS316 | Size | ØC (mm) | ØD (mm) | L (mm) | ØS (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 63216005 | 5 | 15 | 5 | 35 | 4.2 | 0.03 | 450 |
| 63216006 | 6 | 18 | 6 | 40 | 4.2 | 0.05 | 700 |
| 63216008 | 8 | 19 | 8 | 50 | 5.2 | 0.08 | 850 |
| SS316 | Size | ØC (inch) | ØD (inch) | L (inch) | L2 (inch) | ØS (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|
| 63201005 | 3/16" | 1.18 | 0.20 | 2.32 | 0.59 | 0.16 | 0.11 | 1,540 |
| 63201006 | 1/4" | 1.38 | 0.24 | 2.52 | 0.75 | 0.16 | 0.15 | 2,200 |
| 63201008 | 5/16" | 1.77 | 0.31 | 3.15 | 0.91 | 0.20 | 0.31 | 3,520 |
