Description
Technical Data:
Forging Material : AISI304 - DIN 1.4301
: AISI316 - DIN 1.4401 Production:
SF3201 - Pad - Welded
Surface treatment: “E.P.” (Electro polished)
Note : Standard safety factor for working load
is 1/4 of breaking load
Model
SF3201

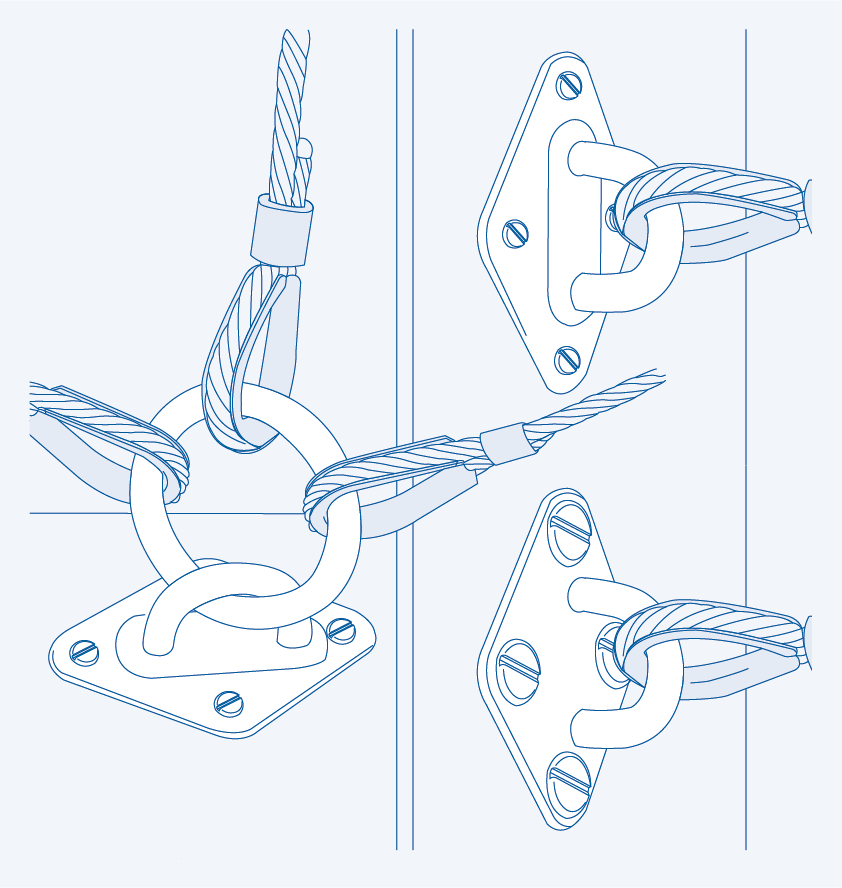

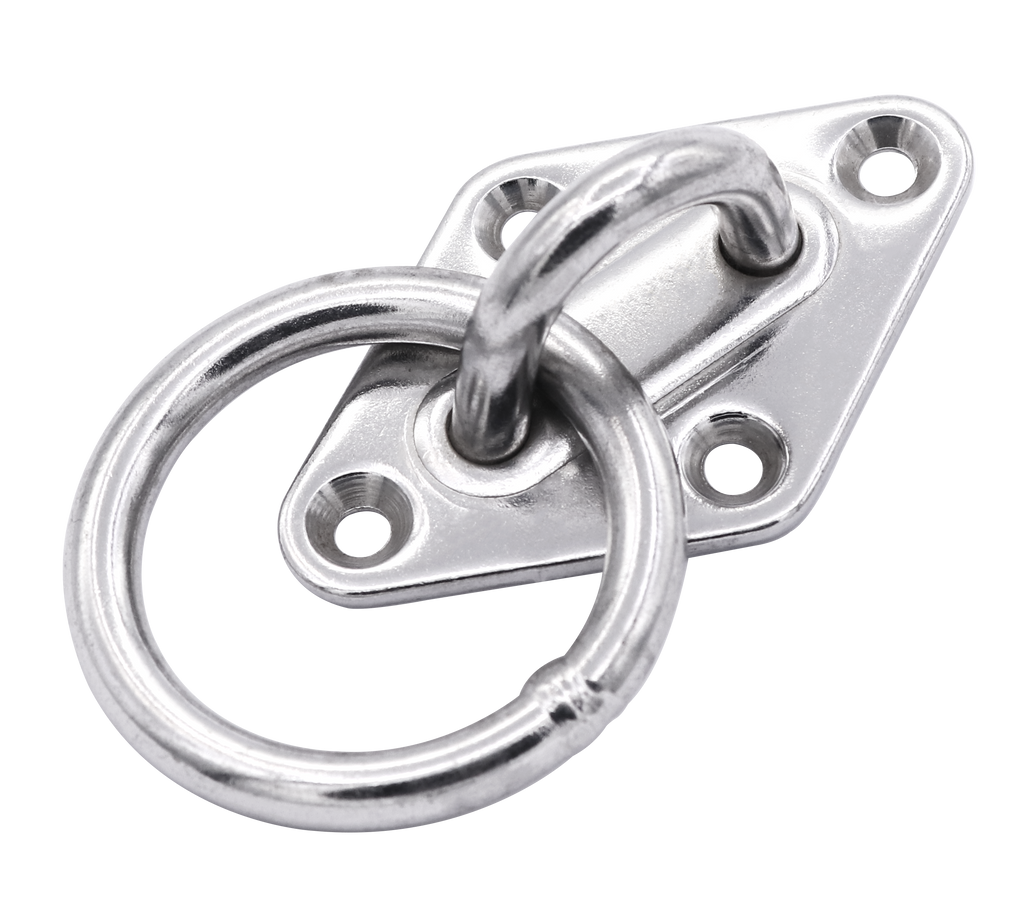

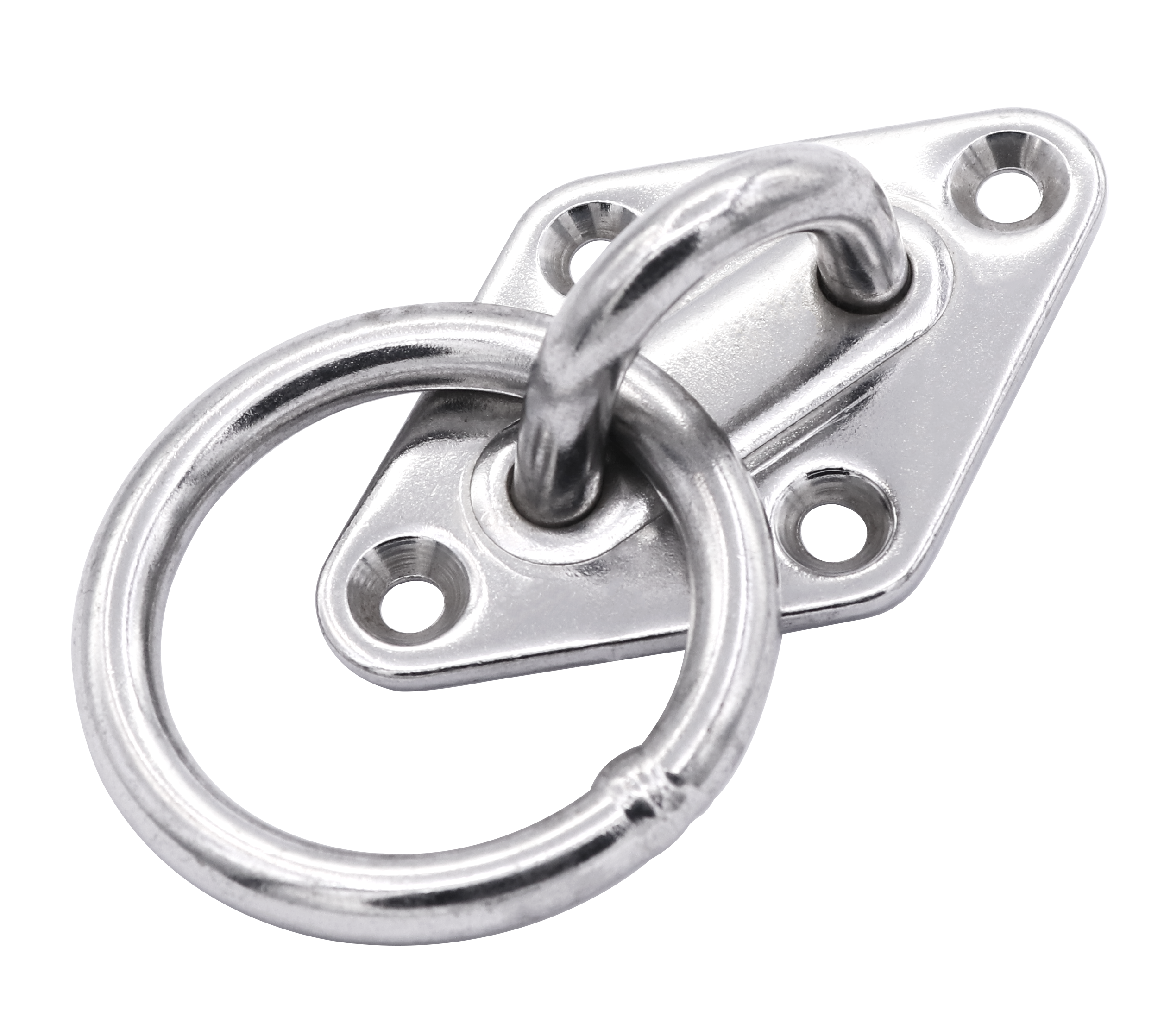

Diamond Pad (with ring)
304 ss
| SS304 | Size | ØC (mm) | ØD (mm) | L (mm) | L2 (mm) | ØS (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|---|
| 43201005 | 5 | 30 | 5 | 59 | 15 | 4.1 | 0.05 | 700 |
| 43201006 | 6 | 35 | 6 | 64 | 19 | 4.1 | 0.07 | 1,000 |
| 43201008 | 8 | 45 | 8 | 80 | 23 | 5.1 | 0.14 | 1,600 |
| SS304 | Size | ØC (inch) | ØD (inch) | L (inch) | L2 (inch) | ØS (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|
| 43201005 | 3/16" | 1.18 | 0.20 | 2.32 | 0.59 | 0.16 | 0.11 | 1,540 |
| 43201006 | 1/4" | 1.38 | 0.24 | 2.52 | 0.75 | 0.16 | 0.15 | 2,200 |
| 43201008 | 5/16" | 1.77 | 0.31 | 3.15 | 0.91 | 0.20 | 0.31 | 3,520 |
