Description

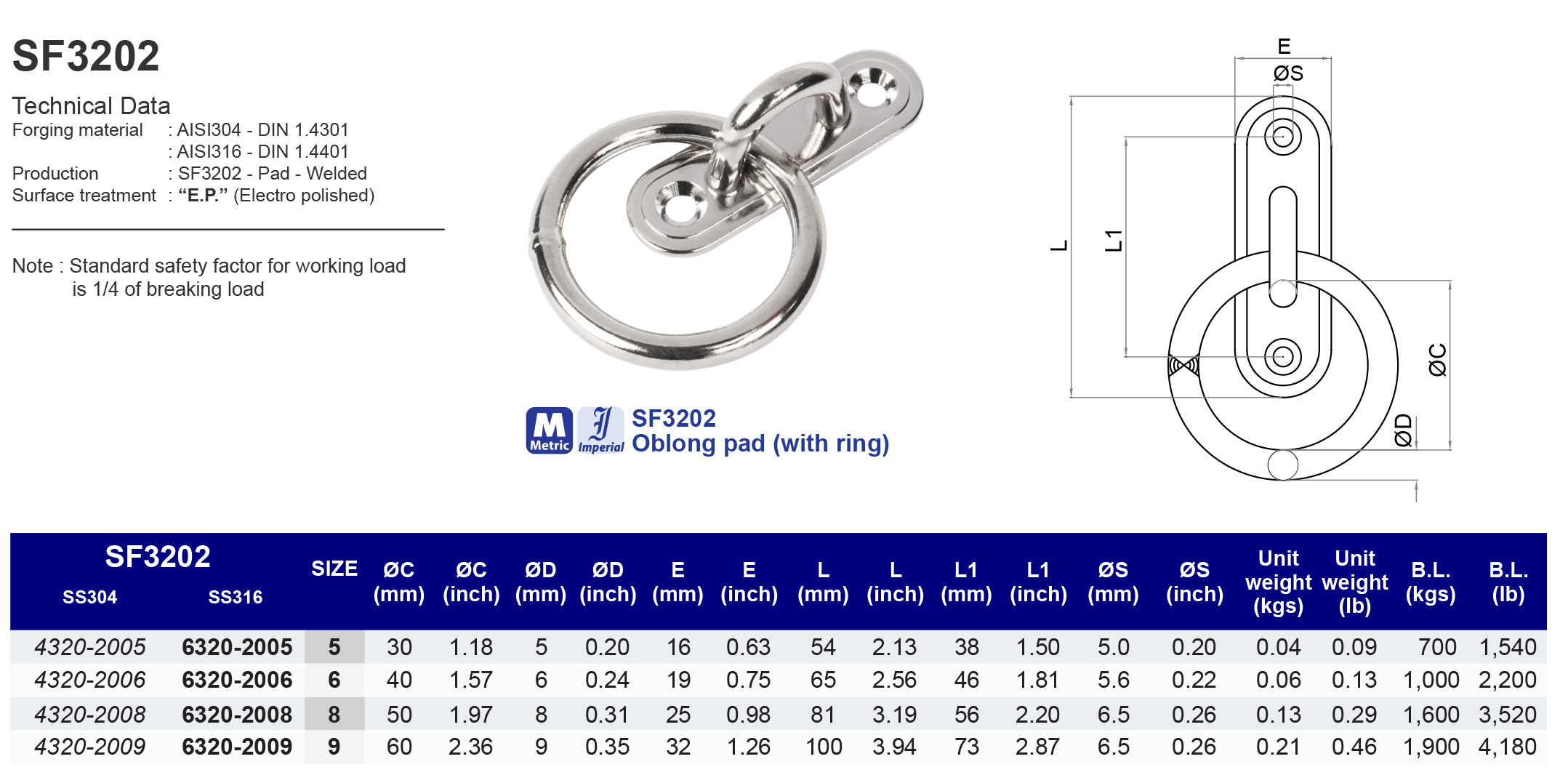

Technical Data:
Forging Material : AISI304 - DIN 1.4301
AISI316 - DIN 1.4401
Production: SF3202 - Pad - Welded
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load is 1/4 of breaking load
Model
SF3202

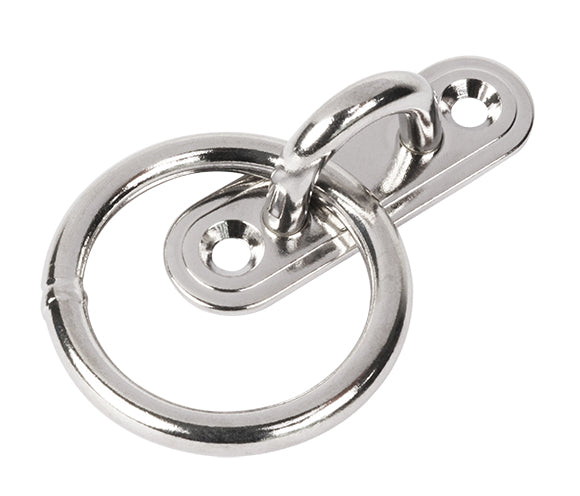

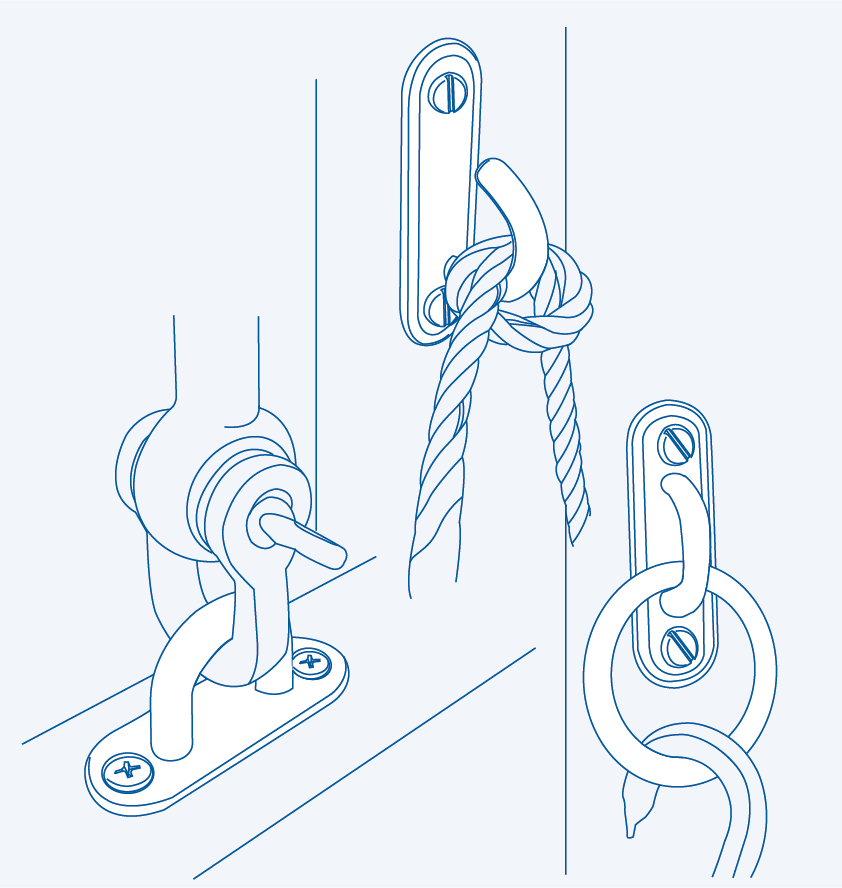

Oblong Pad (with ring)
304 ss
| SS304 | Size | ØC (mm) | ØD (mm) | E (mm) | L (mm) | L1 (mm) | ØS (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|---|---|
| 43202005 | 5 | 30 | 5 | 16 | 54 | 38 | 5.0 | 0.04 | 700 |
| 43202006 | 6 | 40 | 6 | 19 | 65 | 46 | 5.6 | 0.06 | 1,000 |
| 43202008 | 8 | 50 | 8 | 25 | 81 | 56 | 6.5 | 0.13 | 1,600 |
| 43202009 | 9 | 60 | 9 | 32 | 100 | 73 | 6.5 | 0.21 | 1,900 |
| SS304 | Size | ØC (inch) | ØD (inch) | E (inch) | L (inch) | L1 (inch) | ØS (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|---|
| 43202005 | 3/16" | 1.18 | 0.20 | 0.63 | 2.13 | 1.50 | 0.20 | 0.09 | 1,540 |
| 43202006 | 1/4" | 1.57 | 0.24 | 0.75 | 2.56 | 1.81 | 0.22 | 0.13 | 2,200 |
| 43202008 | 5/16" | 1.97 | 0.31 | 0.98 | 3.19 | 2.2 | 0.26 | 0.29 | 3,520 |
| 43202009 | 3/8" | 2.36 | 0.35 | 1.26 | 3.94 | 2.87 | 0.26 | 0.46 | 4,180 |
