Description
Technical Data:
Forging Material: AISI304 - DIN 1.4301
AISI316 - DIN 1.4401
Production: SF321 - Pad - Welded
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load is 1/4 of breaking load

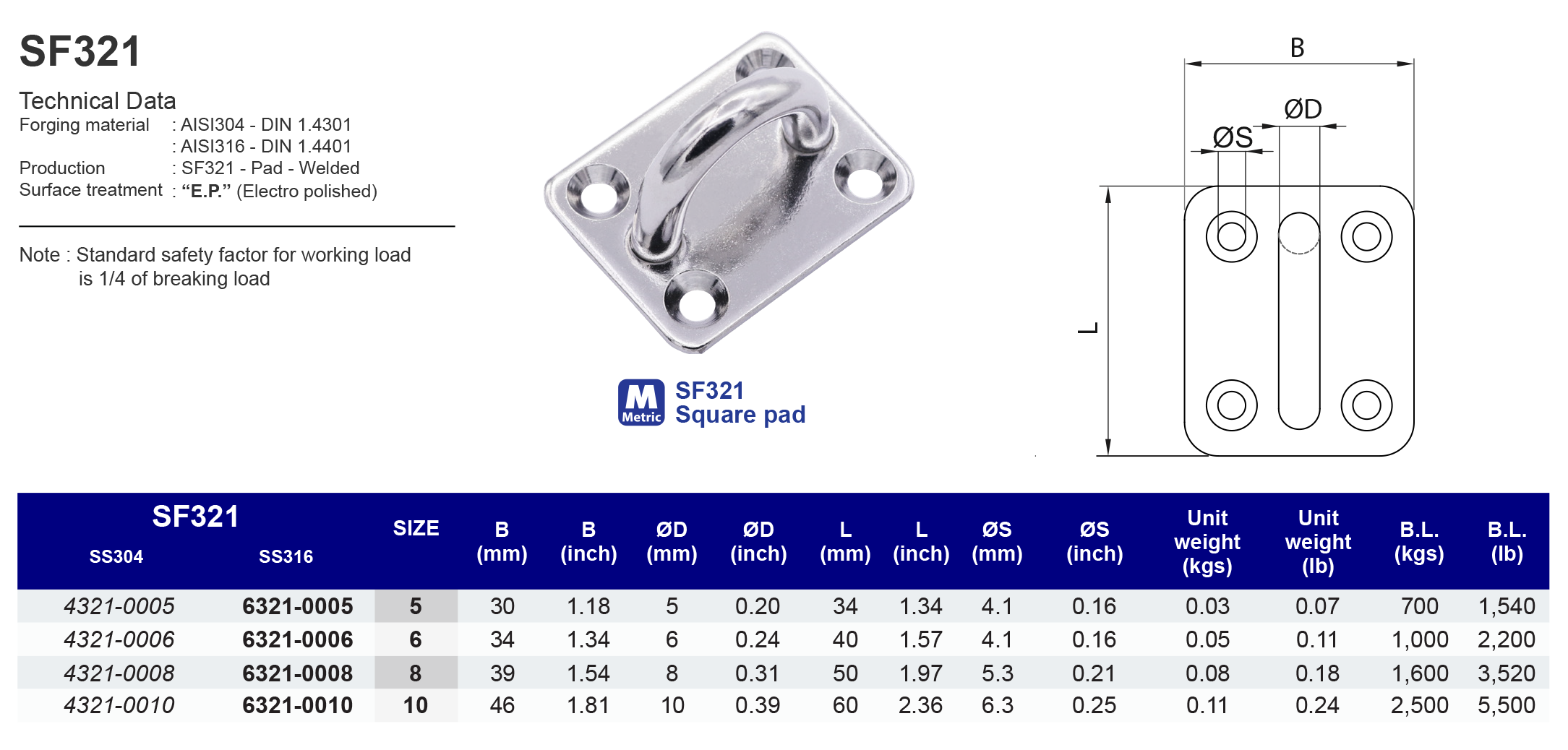

Model
SF321

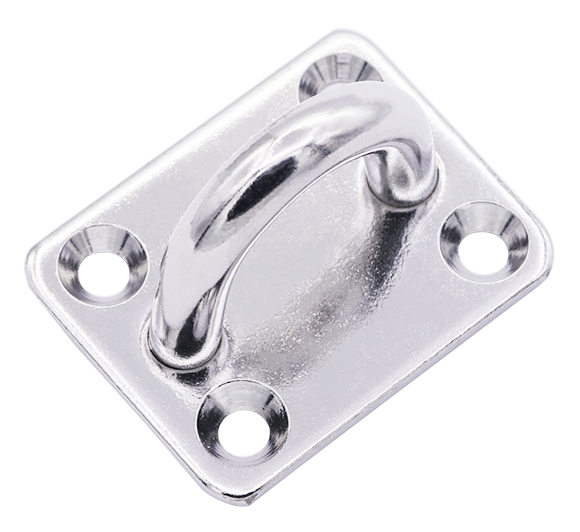

Square pad
304 ss
| SS304 | Size | B (mm) | ØD (mm) | L (mm) | ØS (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 43210005 | 5 | 30 | 5 | 34 | 4.1 | 0.03 | 700 |
| 43210006 | 6 | 34 | 6 | 40 | 4.1 | 0.05 | 1,000 |
| 43210008 | 8 | 39 | 8 | 50 | 5.3 | 0.08 | 1,600 |
| 43210010 | 10 | 46 | 10 | 60 | 6.3 | 0.11 | 2,500 |
| SS304 | Size | B (inch) | ØD (inch) | L (inch) | ØS (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 43210005 | 3/16" | 1.18 | 0.2 | 1.34 | 0.16 | 0.07 | 1,540 |
| 43210006 | 1/4" | 1.34 | 0.24 | 1.57 | 0.16 | 0.11 | 2,200 |
| 43210008 | 5/16" | 1.54 | 0.31 | 1.97 | 0.21 | 0.18 | 3,520 |
| 43210010 | 3/8" | 1.81 | 0.39 | 2.36 | 0.25 | 0.24 | 5,500 |
